FD514G-R460 dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.
FD514G-R460 have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT.
| Item | FD514G-R460 | |
| Specifications | 1*xPON + 4*GE RJ45 | |
| GPON/EPON Port | Single mode single fiber | |
| GPON | FSAN G.984.2 standard,Class B+ | |
| EPON | 1000BASE-PX20+ symmetric | |
| GPON | 2.488Gbps/1.244Gbps downstream/upstream | |
| EPON | 1.25Gbps downstream/upstream | |
| Wavelength | Transmit: 1310nm Receiver: 1490nm | |
| Receiving sensitivity | GPON: -28dBm EPON: -27dBm | |
| Saturated power | GPON: -8dBm EPON: -3dBm | |
| Transmitting power | GPON: 0.5～5dBm EPON: 0～4dBm | |

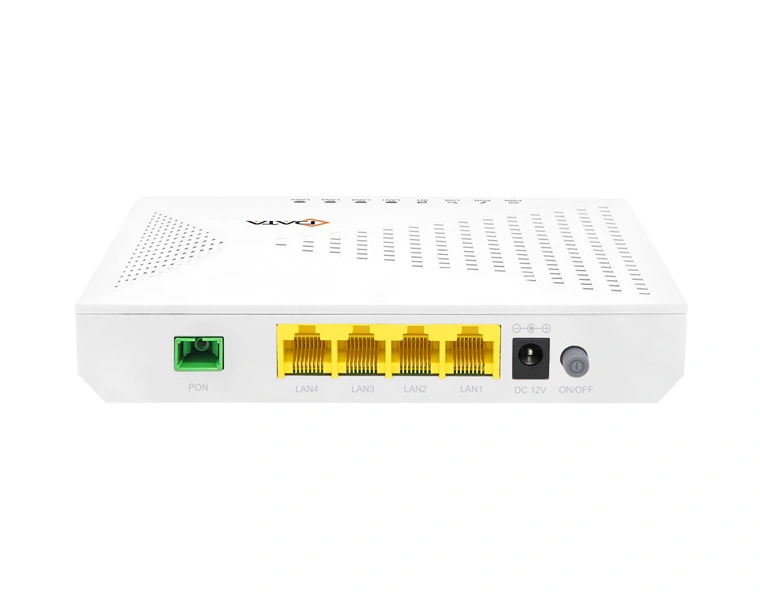

| User Port(LAN) | RJ-45 connector | |
| 4*10/100/1000 Mbps adaptive Ethernet port | ||
| Full/half duplex | ||
| Auto MDI/MDI-X | ||

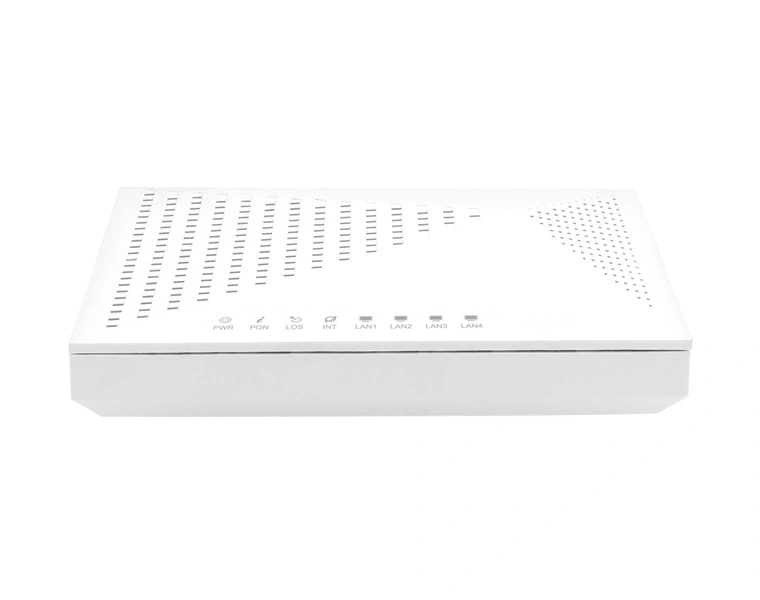

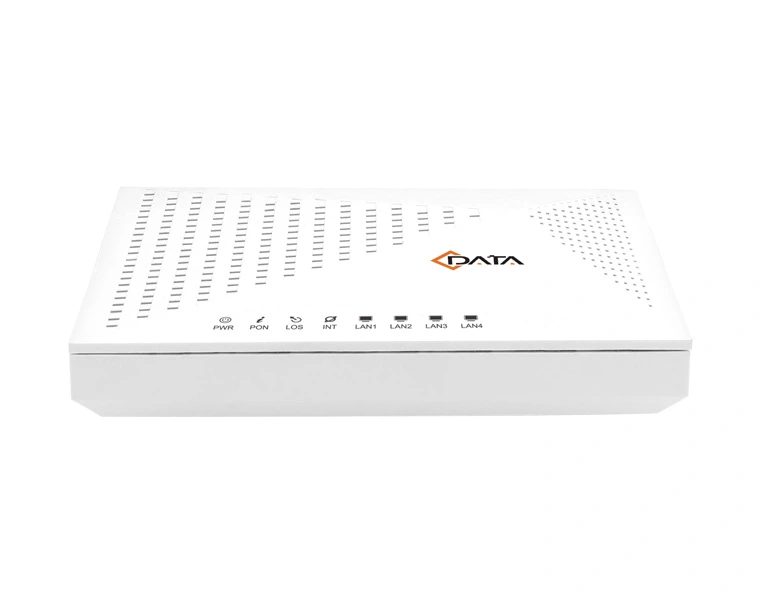

| Indicators | PWR / PON / LOS / LAN / INT | |
| Power | External 12VDC/1A power supply adapter | |
| Power consumption:<4.5W | ||
| Dimension and Weight | Item Dimension | 160mm(L) x 112mm(W) x 28.5mm (H) |
| Item weight | 0.20kg | |
| Environmental Specifications | Operating temperature | 0 to 40ºC |
| Storage temperature | -40 to 85ºC | |
| Operating humidity | 10% to 90%(Non-condensing) |
