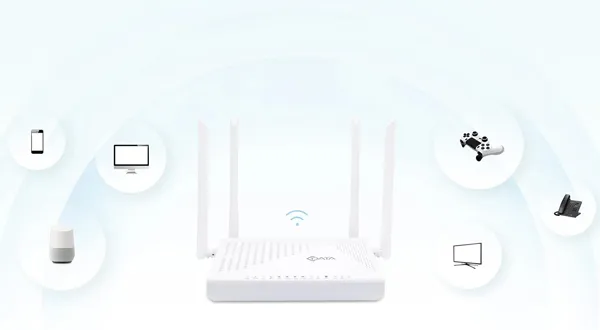

C-Data XPON ONU Triple Play Series interconnect with the OLT to provide users with Internet, VOIP, CATV and WiFi services, greatly reduce the costs of operators.

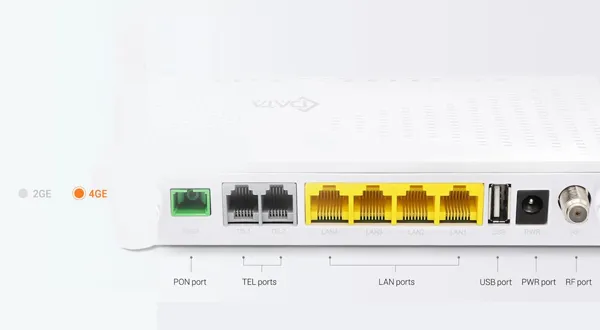

You can choose the appropriate number of ports as needed.

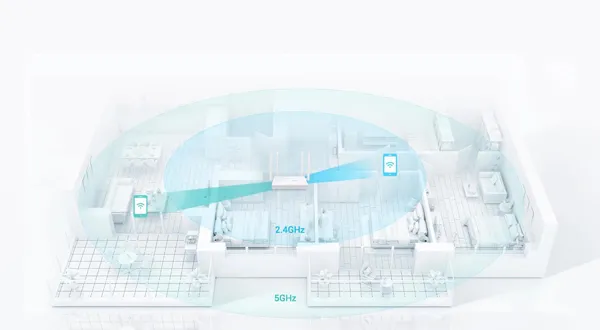

2.4G+5G dual-band WiFi, combined with 2.4G’s wall penetration capability and 5G's fast speed, creates the ultimate Internet experience.

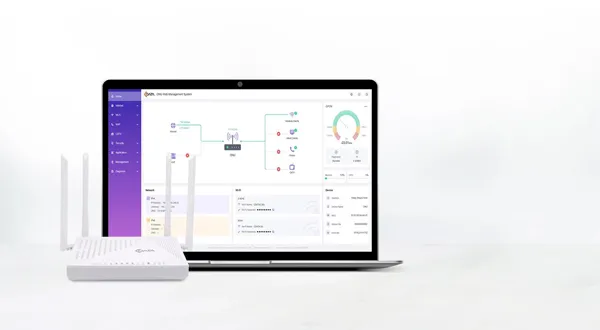

Both of EPON and GPON support a variety of management methods.
Remote maintenance, convenient and fast.
FD814GD-R760 is an indoor fiber broadband access terminal. The device provides one GPON / EPON adaptive optical port and supports XPON mode. It can be used in connection with C-Data EPON, GPON and XGSPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) GPON or EPON OLT to provide users with Internet, WIFI, VOIP and CATV services based on GPON and EPON technology.
Mechanics | |
Dimensions | 234*157.5*32mm |
Weight | About 300g |
Hardware | |||
User Port (LAN) | RJ-45 connector | ||
4 *10/100/1000Mbps adaptive Ethernet port | |||
Full/half duplex | |||
Auto MDI/MDI-X | |||
Indicators | PWR / PON / LOS / LAN1-4 / INT / TEL / CATV / WIFI | ||
PON Port | PON Mode | EPON：1000BASE-PX20+ symmetric GPON：FSAN G.984.2 standard,Class B+ | |
PON Rate | EPON：1.25Gbps downstream/upstream GPON：2.488Gbps/1.244Gbps downstream/upstream | ||
Wavelength | Transmit: 1310nm | Receiver: 1490nm | |
Receiving sensitivity | EPON：-27dBm GPON：-28dBm | ||
Saturated power | EPON：-3dBm GPON：-8dBm | ||
Transmitting power | EPON:0～4dBm GPON：0.5～5dBm | ||
CATV（Input /Output port） | |
Wavelength: 1550nm | |
Input optical power: -18dBm～0dBm(with AGC) | |
RF frequency: 47MHz~1000MHz | |
RF output level: 78dBuV (@-12~-2dBm@85MHz) (with AGC) | |
RF output return loss: >12dB(with AGC) | |
RF impedance: 75Ω | |
Environment | |
Working temperature | 0 to 40ºC |
Operating humidity | 10% ~ 90% (Non-condensing) |
| NO. | Product Model | Specifications | Accessories |
| 1 | FD812XW-R460 | 1*xPON + 1*FE RJ45 + 1*GE RJ45 + 1*POTS + 1*RF CATV + Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
| 2 | FD814GD-R760 | 1*xPON + 4*GE RJ45 + 1*POTS + 1*RF CATV + Dual-Band Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
| 3 | FD814GS1-R850 | 1*xPON + 4*GE RJ45 + 1*POTS + 1*RF CATV + Dual-Band Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
