GPON OLT

Rapid FTTH Construction with Pizza-Box GPON OLT
Rapid FTTH Construction with Pizza-Box GPON OLT
  • Dedicated Chip
    Dedicated Chip
  • USB Interface
    USB Interface
  • Back Battery Unit
    Back Battery Unit
  • Layer3 Switching
    Layer3 Switching

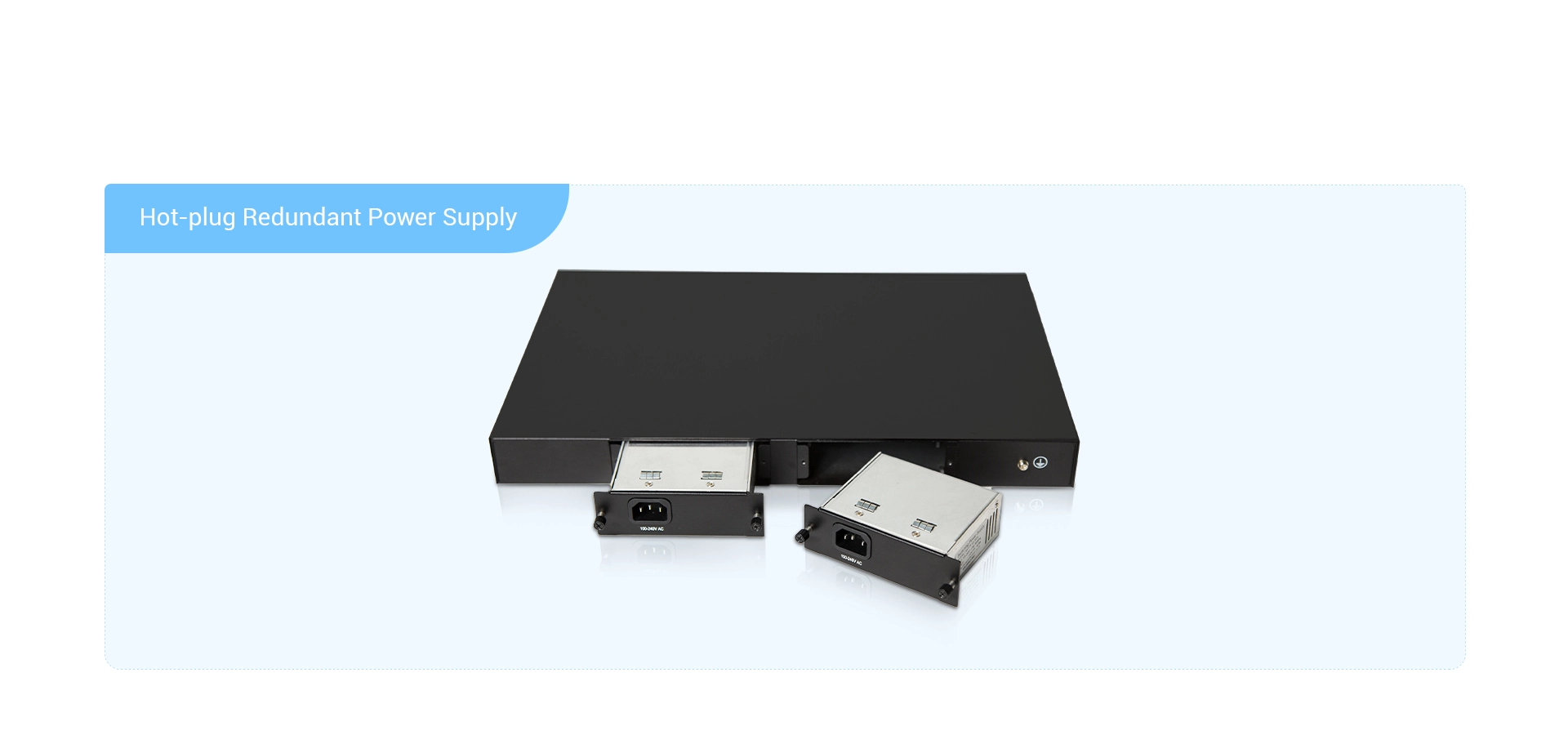

Optional Power Supply
Optional Power Supply

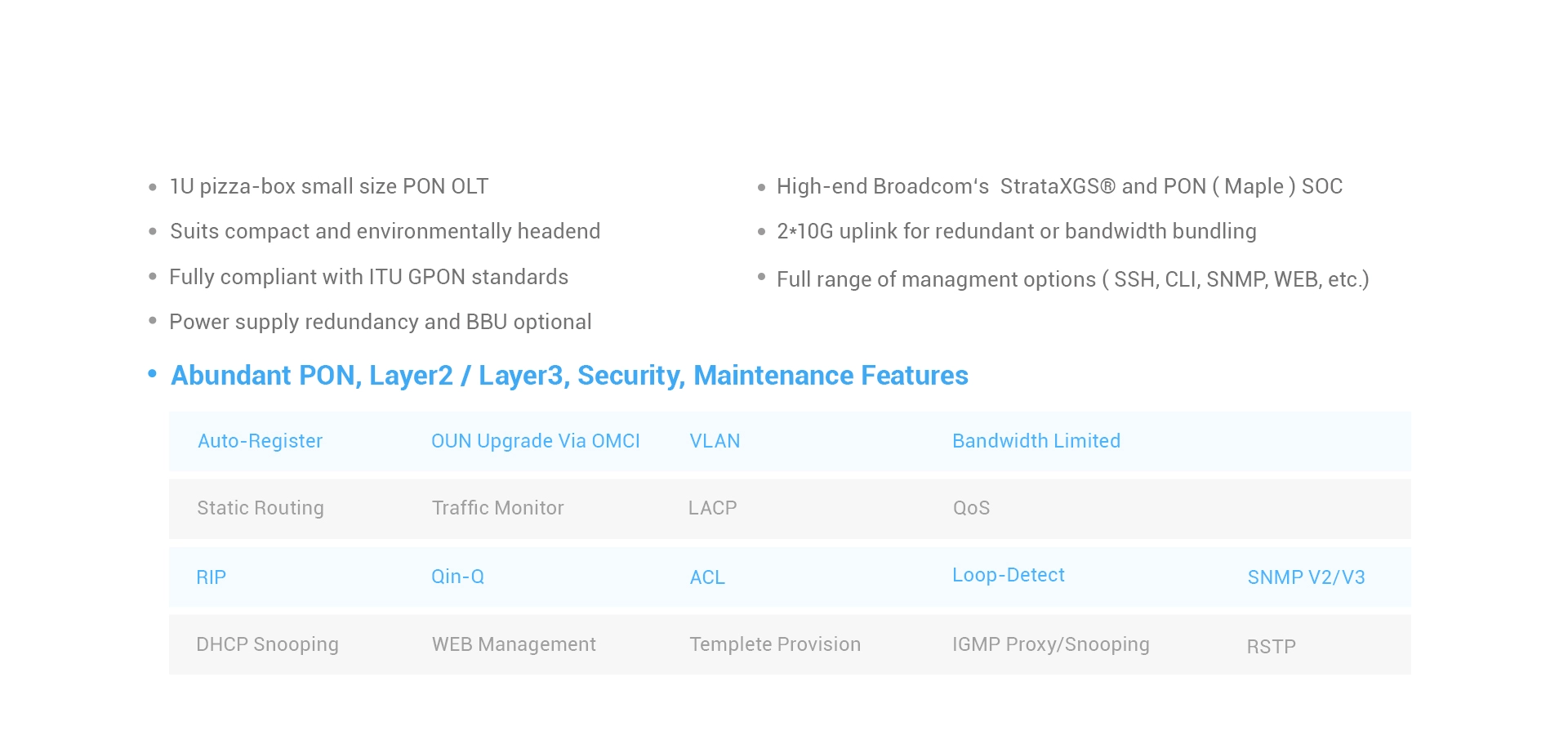

Key Features
Key Features

SPECIFICATIONS

ModelFD1604S-B1
Management Rack1U 19-inch standard box
Dimensions440*44*276mm
Uplink PortCOMBO port
4* 10/100/1000M auto-negotiation Ethernet ports
4* SFP interfaces
PON PortQuantity: 4
Physical interface: SFP
Interface type: GPON: ITU-TG.984.2 Class B+/Class C+
Max splitting ratio: GPON: 1:128
Management Port1* 100/1000BASE-Tx out-band Ethernet port
1* CONSOLE local management port
Backplane Bandwidth63G



See More
Take Back

RELATED PRODUCTS

ITEM

GPON OLT

FD1604S-B1

GPON OLT

FD1608S-B1

GPON OLT

FD1616S-B1


FD1700S

Specifications
4*GPON + 4*GE + 4*GE SFP + 2*10GE SFP+8*GPON + 4*GE + 4*GE SFP + 2*10GE SFP+16*GPON + 2*GE + 2*GE SFP + 2*10GE SFP+

4*10GE SFP + 4*25GE SFP

2*Optional pluggable slots: 4*GPON/8*GPON/16*GPON/4*10GE EPON/8* XG(S)PON

RackType1U 19-inch standard box1U 19-inch standard box1U 19-inch standard box1U 19-inch standard box
Uplink PortCOMBO port4 10/100/1000M auto-negotiation Ethernet ports4 10/100/1000M auto-negotiation Ethernet ports4 10/100/1000M auto-negotiation Ethernet ports4*1G(SFP)/10G SFP+
4 SFP interfaces4 SFP interfaces4 SFP interfaces4*10G(SFP+)/25G(SFP28)
10-Gigabit2 SFP+ interfaces2 SFP+ interfaces2 SFP+ interfaces
PON PortQuantity4816Two boards, each board has three specifications are available (4/8/16 GPON )
Physical interfaceSFPSFPSFP SFP
Interface typeGPON: ITU-TG.984.2 Class B+/Class C+GPON: ITU-TG.984.2 Class B+/Class C+GPON: ITU-TG.984.2 Class B+/Class C+GPON: ITU-TG.984.2 Class B+/Class C+
Max splitting ratioGPON: 1:128GPON: 1:128GPON: 1:128GPON: 1:128
Management Port1 100/1000BASE-Tx out-band Ethernet port1 100/1000BASE-Tx out-band Ethernet port1 100/1000BASE-Tx out-band Ethernet port1 100/1000BASE-Tx out-band Ethernet port
1 CONSOLE local management port1 CONSOLE local management port1 CONSOLE local management port1 CONSOLE local management port
USB Port1 USB 1 USB 1 USB
PON Port attributeTransmission distance20KM20KM20KM20KM
Port rate

Downstream: 2.5Gbps

Upstream: 1.25Gbps

Downstream: 2.5Gbps
Upstream: 1.25Gbps		Downstream: 2.5Gbps
Upstream: 1.25Gbps		Downstream: 2.5Gbps
Upstream: 1.25Gbps
WavelengthForwarding: 1490nmForwarding: 1490nmForwarding: 1490nmForwarding: 1490nm
Receiving: 1310nmReceiving: 1310nmReceiving: 1310nmReceiving: 1310nm
Interface typeSC/UPCSC/UPCSC/UPCSC/UPC
Fiber type

9/125μm SMF

(Single Mode Fiber)

9/125μm SMF

(Single Mode Fiber)

9/125μm SMF

(Single Mode Fiber)

9/125μm SMF (Single Mode Fiber)

Network management methodSupport CLI、SNMP、TELNET、SSH、WEBSupport CLI、SNMP、TELNET、SSH、WEBSupport CLI, SNMP, TELNET, SSH, WEB
Backplane Bandwidth63G78G108G400G
Size440*44*276mm440*44*276mm440*44*276mm440*375*44mm
Weight4.0Kg4.50Kg5kgAbout 6kg
Power supply220VACAC: 100V～240V，47/63HzAC: 100V～240V, 47/63HzAC: 90V～240V, 47/63HzAC: 90V～240V, 47/63Hz
-48DCDC:-40V～-72VDC: -40V～-72VDC:-40V～-72VDC:-40V～-72V
BBUDC: 11V～14VDC: 11V～14V

Maximum power45W78W100W
WorkingWorking temperature-15～50℃-15～50℃-15～50℃-15 ~ 50℃
environmentStorage temperature-40～85℃-40～85℃-40～85℃-40 ~ 85℃

Humidity5～90% (Non-condensing)5～90% (Non-condensing)5～90% (Non-condensing)5 ~ 90% (Non-condensing)


ORDERING INFORMATION

NO.Product ModelSpecificationsAccessories
1FD1604S-B14*GPON + 4*GE + 4*GE SFP + 2*10GE SFP+
2FD1608S-B18*GPON + 4*GE + 4*GE SFP + 2*10GE SFP+
3FD1616S-B116*GPON + 2*GE + 2*GE SFP + 2*10GE SFP+
4FD1700S

4*10GE SFP + 4*25GE SFP

2*Optional pluggable slots: 4*GPON/8*GPON/16*GPON/4*10GE EPON/8* XG(S)PON
