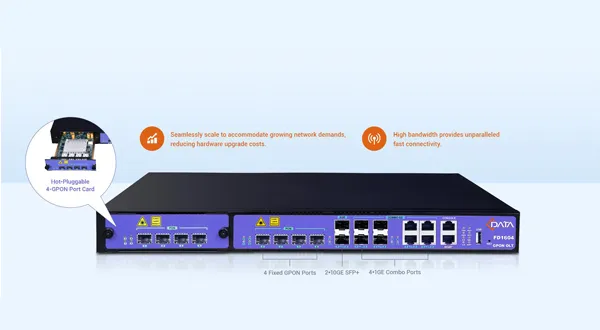

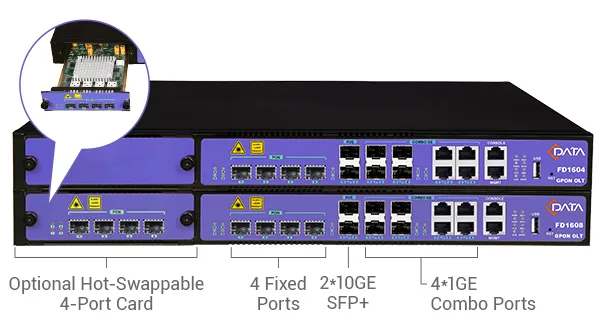

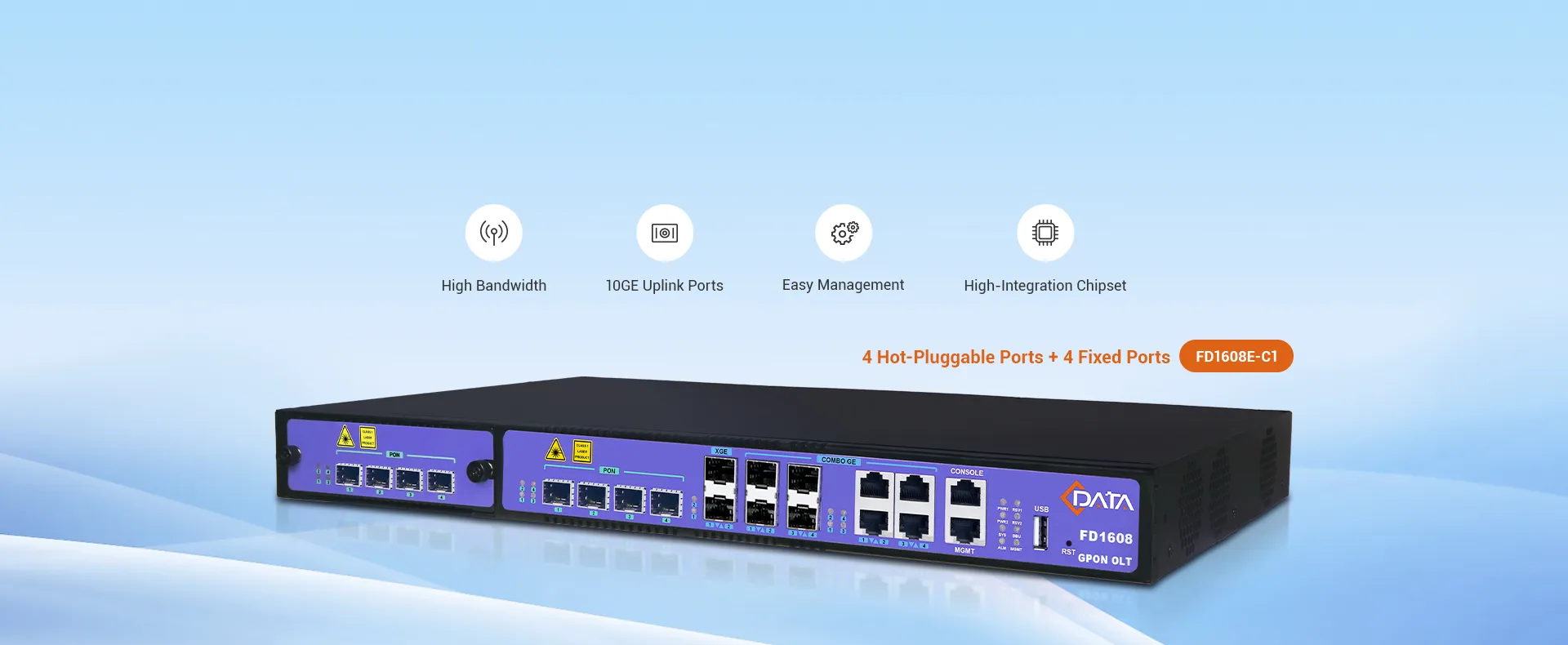

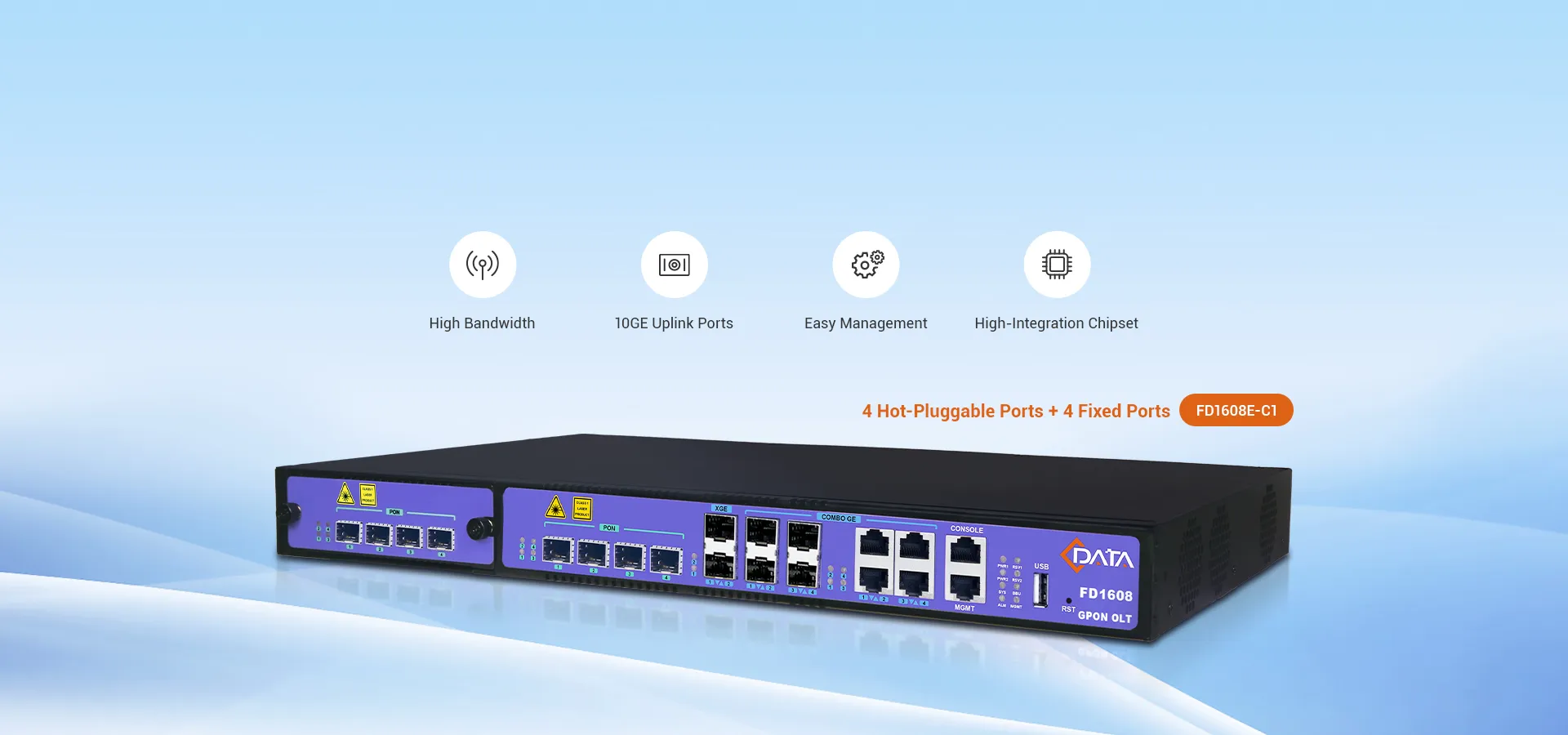

Flexible Expansion, On-Demand Upgrades

Flexible Expansion, On-Demand Upgrades

  • Flexible GPON capacity with 4 fixed ports and an optional hot-swappable 4-port card.

  • High bandwidth with 2*10GE SFP+ and 4*1GE uplink ports.

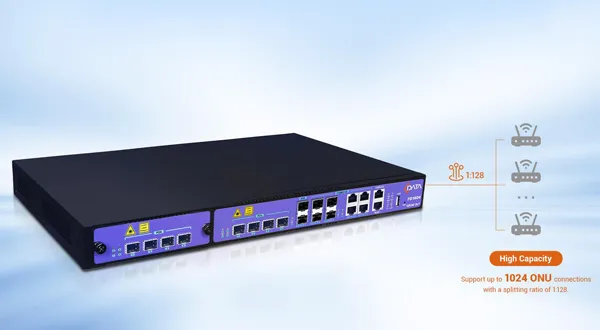

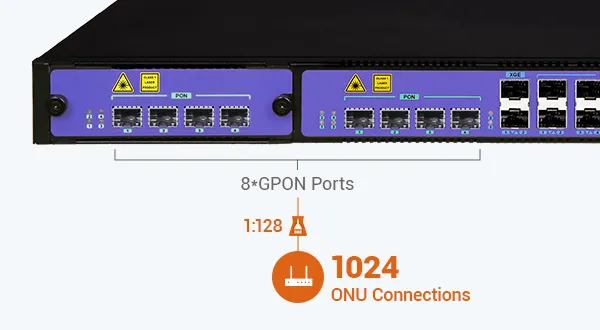

Efficient Access, Fast Connectivity

Efficient Access, Fast Connectivity

  • Up to 1:128 split ratio enables up to 1024 ONU connections.

  • Up to 1.25Gbps upstream/2.5Gbps downstream.

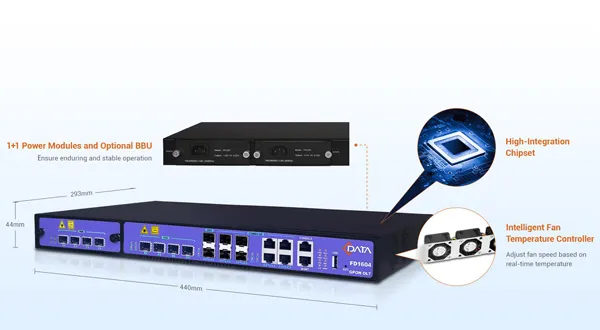

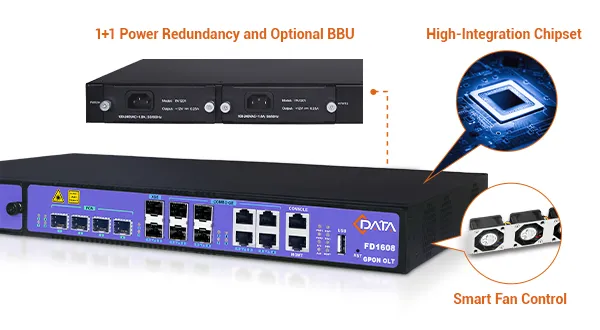

Superior Performance, Reliable Operation

Superior Performance, Reliable Operation

  • High-integration chipset for enhanced performance and system efficiency.

  • Smart fan control for optimized cooling and reduced power consumption.

  • 1+1 power redundancy and optional BBU for reliable operation.

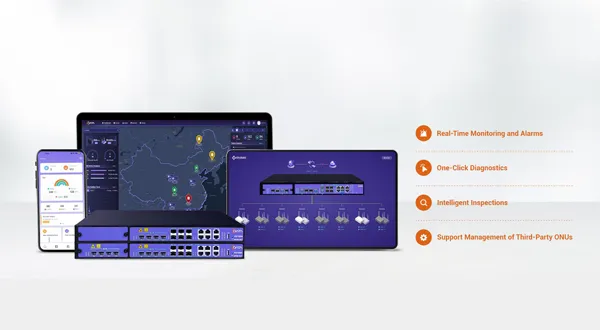

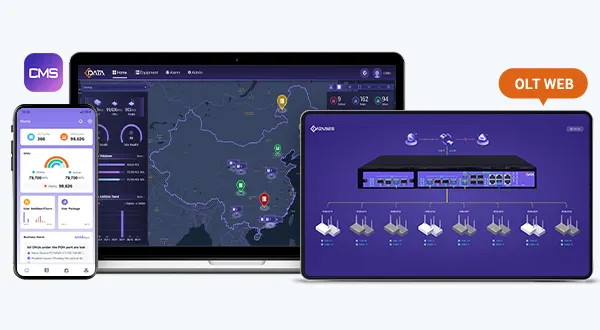

The Integrated Management System

The Integrated Management System

Simplifies management with C-Data CMS and OLT Web, enabling efficient and intelligent O&M.

  • Batch ONU onboarding

  • Remote one-click troubleshooting

  • Intelligent business analytics

  • Real-time monitoring and alerts


Diverse Application Scenarios

Built for access and enterprise network, enabling high-performance service convergence.

  • GPON OLT Application Scenarios
  • GPON OLT Application Scenarios
  • GPON OLT Application Scenarios
  • GPON OLT Application Scenarios

Technical Overview

GPON OLT FD1604S/FD1604E-C1 completely meets relative standard of ITU-T G.984.x/G.988, which is  1U rack-mounted device with 1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, 2 10GE uplink ports. FD1604S-C1 has 4 fixed GPON ports and FD1604E-C1 has 4 fixed GPON ports and 1 4GPON port service card (optional). Each GPON port supports the splitting ratio of 1:128. The GPON system supports up to 512/ 1024 terminal connections.


FD1604E-C1 supports a pluggable service card, which is convenient and flexible to use, easy to deploy, and convenient for the subsequent expansion of network services. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.


Datasheet Get Docs

Technical Specifications

Hardware

Uplink Port

COMBO port

4*10/100/1000M auto-negotiation Ethernet ports

4* SFP interfaces

10-Gigabit

2* SFP+ interfaces

PON Port

Quantity

4 (FD1604S-C1)

4+(4) (FD1604E-C1/FD1608E-C1)

Physical Interface

SFP slot

Interface Type

GPON: ITU-TG.984.2 Class B+/Class C+/Class C++

Max Splitting Ratio

GPON: 1:128

Management Port

1* 100/1000BASE-Tx out-band Ethernet port

1* CONSOLE local management port

USB Port

1* USB interface (It's used to backup configuration, upgrade program and record log information)

PON Port Attribute

Transmission Distance

20KM

Port Rate

GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps

Wavelength

Forwarding: 1490nm Receiving: 1310nm

Interface Type

SC/UPC

Fiber type

9/125μm SMF (Single Mode Fiber)

Light Transmission Power

Class B+: +1.5 ~+5dBm

Class C+: +3 ~ +7dBm

ClassC++: +4.5 ~ +10dBm

Receiving Sensitivity

Class B+: -28dBm

Class C+: -30dBm

Class C++: -31dBm

Saturation Power

Class B+: -8dBm

Class C+: -12dBm

Class C++: -10dBm

Network Management Method

Support CLI, SNMP, TELNET, SSH, WEB

Business Capabilities

Support device log, device upgrade, device management, condition monitoring, configuration management, and user management.

Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on.

PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on.

Layer 3 function: support static routing, dhcp-relay and vlanif configuration.

Backplane Bandwidth

63G (FD1604S-C1)

63G (FD1604E-C1)

78G (FD1608E-C1)

Power supply

AC

100V ~ 240V, 47 ~ 63Hz

DC

-40V ~ -72V

BBU (Backup Battery Unit)

DC: 11V～14V.

Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply and charge the backup power supply.

Maximum Power

34.6W (FD1604S-C1)

34.6W (FD1604E-C1)

49.0W (FD1608E-C1)

Environment

Working Temperature

-15 ~ 50℃

Storage Temperature

-40 ~ 85℃

Ambient Humidity

5 ~ 90% (Non-condensing)



Functional Feature

  • Meet ITU-T G.984/G.988 standard and standards of Chinese Communication Industry

  • Support OMCI Protocol

  • 1U height 8PON OLT product in compact design of Pizza-Box

  • Fan speed adjust automatically

  • 1+1 Pluggable power module

  • Complete PON protection switching function

  • Layer 2 Switching Function

  • OLT equips with very powerful layer 2 Full Wire Speed Switching and completely supports layer 2 protocol. OLT supports varieties of layer 2 functions like TRUNK, VLAN, LACP, rate limit, port isolate, queue technology, flow control technology, ACL and so on, which provides technical guarantee for the development of multi-service integrated.

  • QoS Guarantee

  • GPON Products maintains fully-improved DBA with excellent QoS service capabilities. DBA meets different QoS requirements from different service flow in latency, jitter, packet loss rate.

  • Easy-to-Use Management System

  • Support management method of CLI, WEB, SNMP, TELNET, SSH and meet OMCI standard, through OMCI channel protocol service management can be realized, including ONT function parameter set, T-CONT service lines and amount, QoS parameters, configuration information request, performance statistics, auto-reporting of running events in system, configuration for ONT from OLT, fault diagnosis and management of performance and safety.


OLT FD1604S/FD1604E-C1 Product Datasheet

Mechanics

Dimensions

  • 440mm(L)*293mm(W)*44mm(H)

Weight

  • 3.6Kg (FD1604S-C1)

  • 3.0Kg (FD1604E-C1)



Hardware


Uplink Port

COMBO port

  • 4* 10/ 100/ 1000M auto-negotiation Ethernet ports

  • 4* SFP interfaces

10-Gigabit

  • 2* SFP+ interfaces

PON Port

Quantity

  • 4 (FD1604S-C1)

  • 4/8 (FD1604E-C1)

Physical Interface

  • SFP slot

Interface Type

  • GPON: ITU-TG.984.2 Class B+/Class C+/Class C++

Max Splitting Ratio

  • GPON: 1:128

Management Port

  • 1* 100/ 1000BASE-Tx out-band Ethernet port 1* CONSOLE local management port

USB Port

  • 1* USB interface (It’s used to backup configuration, upgrade program and record log information)

PON Port Attribute

Transmission Distance

  • 20KM

Port Rate

  • GPON:

    Downstream: 2.5Gbps

    Upstream: 1.25Gbps

Wavelength

  • Forwarding: 1490nm

  • Receiving: 1310nm

Interface Type

  • SC/ UPC

Fiber type

  • 9/ 125μm SMF (Single Mode Fiber)

Light Transmission Power

  • Class B+: +1.5 ~+5dBm

  • Class C+: +3 ~ +7dBm

  • ClassC++: +4.5 ~ +10dBm

Receiving Sensitivity

  • Class B+: -28dBm

  • Class C+: -30dBm

  • Class C++: -31dBm

Saturation Power

  • Class B+: -8dBm

  • Class C+: -12dBm

  • Class C++: -10dBm

Network Management Method

  • Support CLI, SNMP, TELNET, SSH, WEB

Business Capabilities

  • Support device log, device upgrade, device management, condition monitoring, configuration management, and user management.

  • Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on.

  • PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on.

  • Layer 3 function: support static routing, dhcp-relay and vlanif configuration.

Backplane Bandwidth

  • 63G (FD1604S-C1) 78G (FD1604E-C1)



Power supply

AC

  • 100V ~ 240V, 47 ~ 63Hz

DC

  • -40V ~ -72V

BBU (Backup Battery Unit)

  • DC: 11V～14V.

  • Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will

  • switch back to the regular power supply and charge the backup power supply.

Maximum Power

  • 34.6W (FD1604S-C1) 49W (FD1604E-C1)



Environment

Working Temperature

  • -15 ~ 50℃

Storage Temperature

  • -40 ~ 85℃

Ambient Humidity

  • 5 ~ 90% (Non-condensing)


Ordering Information

NO.Product ModelSpecificationsPower Supply
1FD1604E-C14*GPON + 2*10GE (SFP+) + 4*GE Combo Ports (SFP/RJ45)

AC: 100V~240V, DC: -40V~-72V

Optional BBU

2FD6041TOptional 4*GPON port card (only compatible with FD1604E)



Ordering Information

NO.

  • 1

  • 2

Product Model

  • FD1604E-C1

  • FD6041T

Specifications

  • 4*GPON + 2*10GE (SFP+) + 4*GE Combo Ports (SFP/RJ45)

  • Optional 4*GPON port card (only compatible with FD1604E)

Power Supply

  • AC: 100V~240V, DC: -40V~-72V

  • Optional BBU
