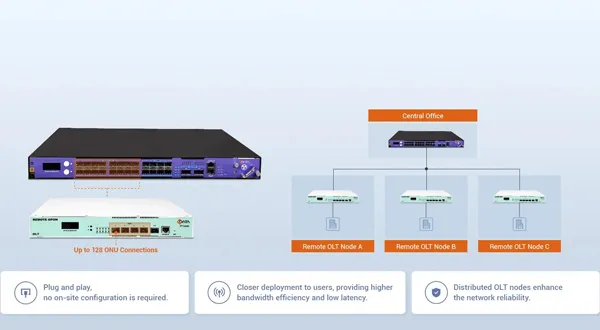

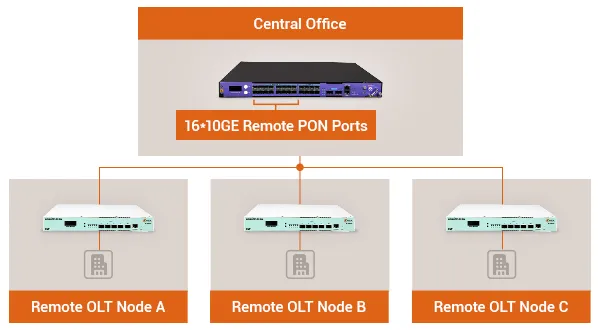

Efficient Distributed Deployment for High-Density Networks

Efficient Distributed Deployment for High-Density Networks

  • Supports up to 16 remote GPON OLTs and 8,192 ONU connections across the solution.

  • Close-to-edge deployment enables higher bandwidth efficiency and low latency.

  • Distributed OLT architecture enhances network reliability and service stability.

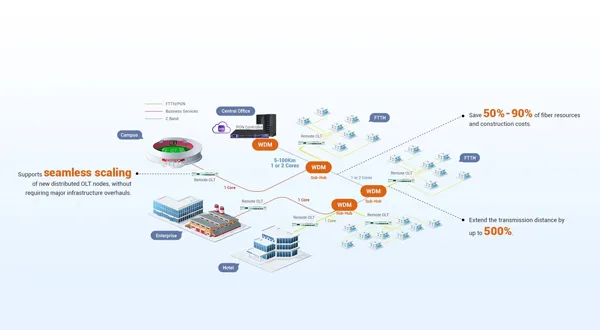

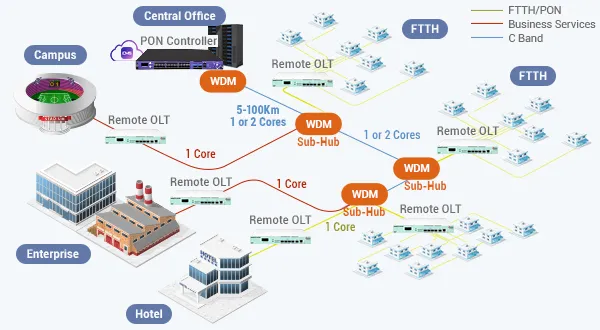

Smarter Architecture for FTTH Deployments

Smarter Architecture for FTTH Deployments

  • Saves up to 75% of backbone fiber resources, reducing long-distance fiber deployment costs.

  • Extends coverage up to 120km while enabling flexible scaling of OLT nodes for broader network reach.

  • Centralized OLT management via the PON controller, eliminating aggregation switches and lowering costs.

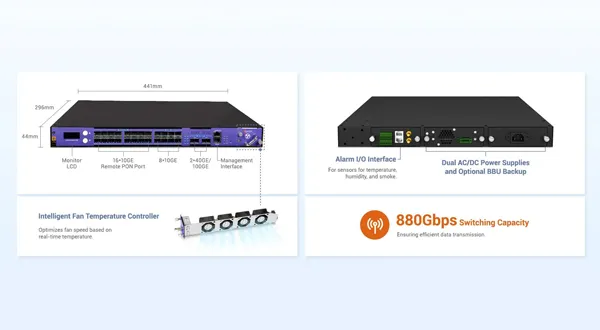

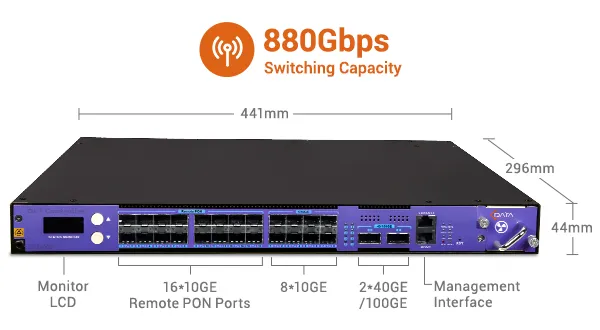

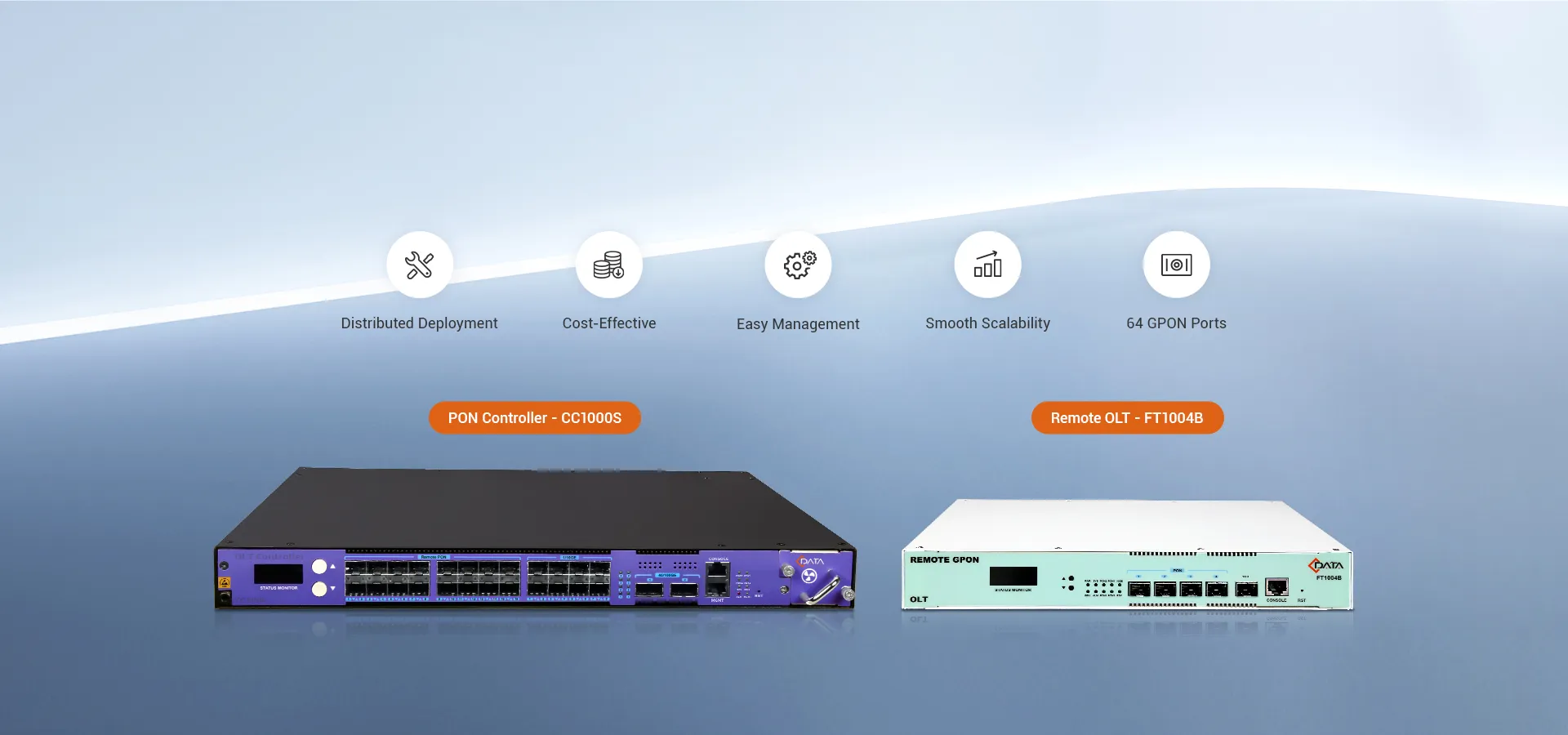

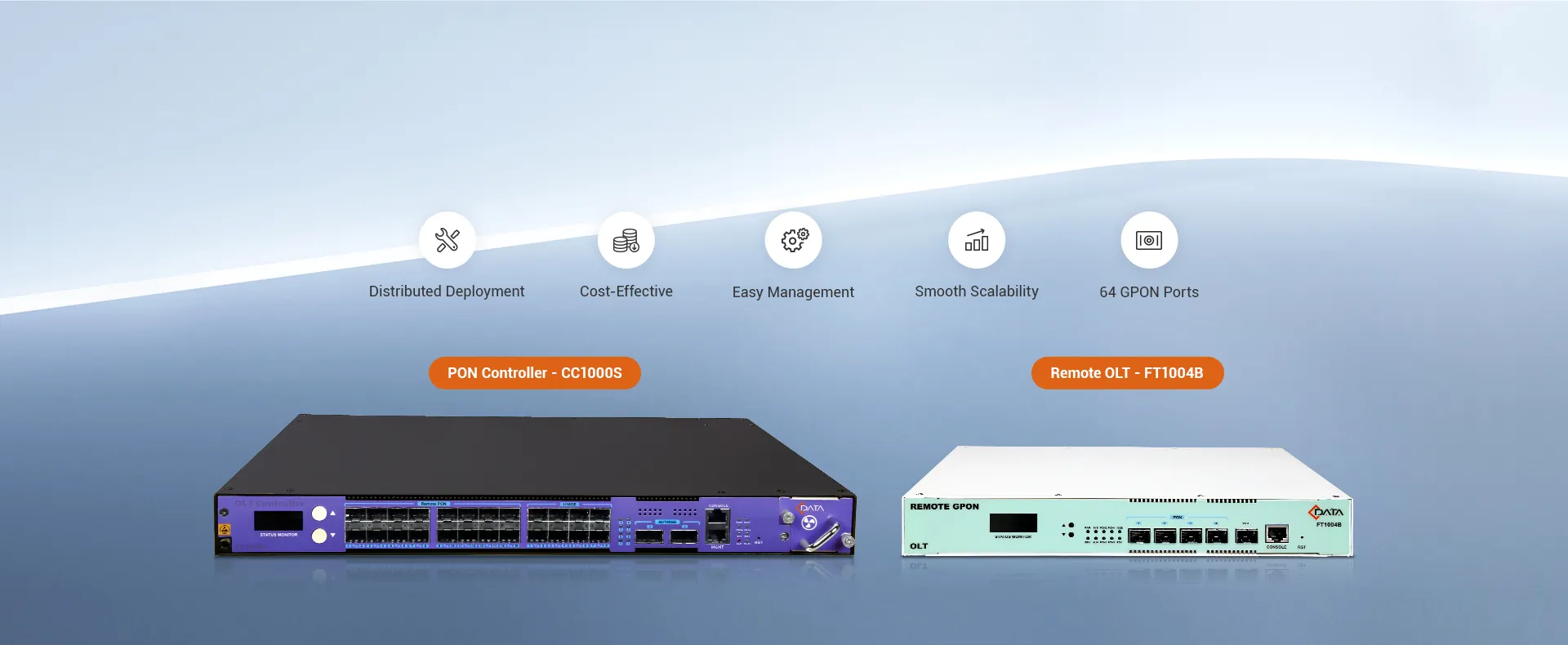

PON Controller - CC1000S

PON Controller - CC1000S

  • Serving as an all-optical Layer 3 aggregation switch with integrated PON control.

  • 8*10GE and 2*40GE/100GE ports enable high-speed aggregation, backed by 880Gbps switching capacity.

  • Intelligent fan control and dual AC/DC power supplies ensuring reliable and stable operations.

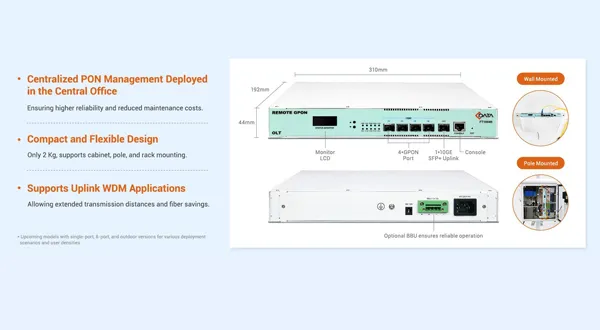

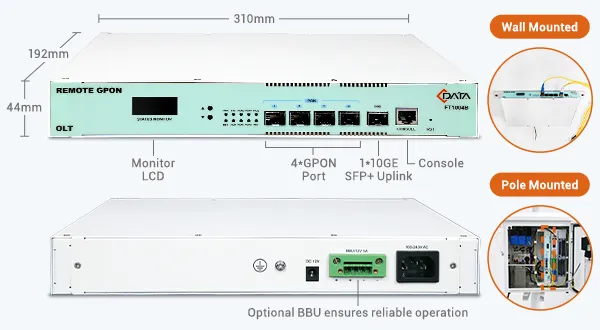

Remote GPON OLT - FT1004B

Remote GPON OLT - FT1004B

  • Equipped with 4 GPON ports and a 10GE uplink, with up to 1:128 split ratio.

  • Supports uplink WDM applications to improve network efficiency and resource utilization.

  • Supports flexible wall-mount or cabinet installations, eliminating the need for equipment rooms.

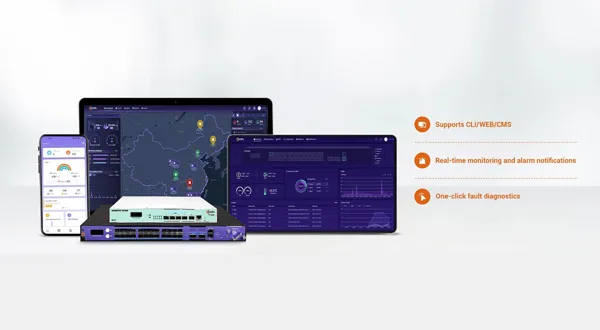

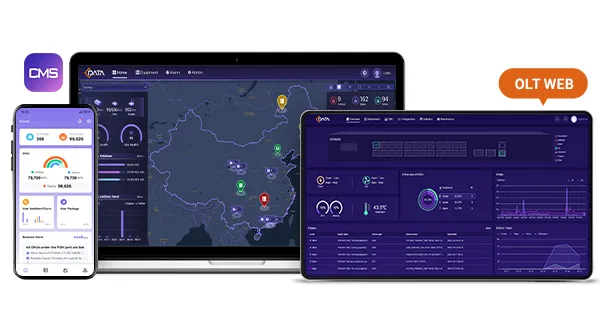

Centralized Management

Centralized Management

Centralized management of all OLTs through Web and CMS, enabling easy ONU configuration and simplified O&M.

  • Uplink distance monitoring

  • Network resource allocation

  • Remote troubleshooting


Versatile for Multiple Scenarios

Supports ultra-long-distance transmission and full service convergence, delivering reliable connectivity for large-scale deployments.

  • Flexibility to Meet the Needs of Various Application Scenarios
  • Flexibility to Meet the Needs of Various Application Scenarios
  • Flexibility to Meet the Needs of Various Application Scenarios
  • Flexibility to Meet the Needs of Various Application Scenarios

Technical Overview

  • cc1000s 01
  • cc1000s 03
  • cc1000s 02
  • cc1000s 01
  • cc1000s 03
  • cc1000s 02

CC1000S can customize the number of PON ports and uplink ports, and can manage FT1004B/M of C-Data. It has the functions of aggregation switches, such as switching,  routing, QoS, link aggregation, flow control, cloud integration, and so on. In addition,   CC1000 has additional interfaces, IO, 1588.

GPON OLT FT1004B  completely meet relative standard of ITU G.984.x and FSAN, the device with 1*10 Gigabit uplink port and 4 GPON port. Each GPON port supports the splitting ratio of 1:128, The GPON system supports up to 512 terminal connections.

Datasheet Get Docs

Technical Specifications of CC1000S

Mechanics
Management Rack1U 19-inch standard box
Dimensions441mm(L)*296mm(W)*44mm(H)
WeightAbout 4.45kg


Hardware
Remote PON16* 1/ 10GE
Uplink Port8*1/ 10GE      2*40/ 100GE
Management Port1     100/ 1000BASE-Tx out-band Ethernet port
1    CONSOLE local management port


Power Supply
AC100V ~ 240V
DC-40 ~ - 57 V


Environment
Working temperature-15 ~ 50℃
Storage temperature-40 ~ 85℃
Ambient humidity5 ~ 90% (Non-condensing)



Order information


S.LModelSpecificationsAccessory
1CC1000S24*10GE(SFP+)+2*100GE(QSFP28)1/2*AC/ DC; 1 * BBU (optional); 10GE SFP+module (optional); 100GE QSFP28 module (optional);



Technical Specifications of FT1004B


Mechanics
Dimensions310mm(L)*192mm(W)*44mm(H)
Weight1.95Kg


Hardware
Uplink Port1*10 Gigabit uplink port
PON PortQuantity4
Physical interfaceSFP slot
Interface typeGPON:     ITU-TG.984.2 Class B+/Class C+
Max splitting ratioGPON:     1:128
Management Port1    CONSOLE local management port
PON Port attributeTransmission distance20KM
Port rateGPON:       Downstream: 2.5Gbps              Upstream: 1.25Gbps
WavelengthForwarding: 1490nm                Receiving: 1310nm
Interface typeSC/ UPC
Fiber type9/ 125μm SMF (Single Mode Fiber)
Light transmission powerClass B+    +1.5 ~ +5dBmClass C+     +3 ~ +7dBm
Receiving sensitivityClass B+ :    -28dBmClass C+ :    -30dBm
Saturation powerClass B+    -8dBmClass C+    -12dBm
Backplane Bandwidth35G


Power supply
AC100V ~ 240V ，47~63Hz
DCExternal adapter mode 12V/2.5A


Environment

Working temperature

 -15 ~ 50℃

Storage temperature

-40 ~ 85℃

Ambient humidity

5 ~ 90% (Non-condensing)


Technical Specifications of CC1000S

Mechanics
Management Rack

  • 1U 19-inch standard box

Dimensions

  • 441mm(L)*296mm(W)*44mm(H)

Weight

  • About 4.45kg



Hardware
Remote PON

  • 16* 1/ 10GE

Uplink Port

  • 8*1/ 10GE

  • 2*40/ 100GE

Management Port

  • 1     100/ 1000BASE-Tx out-band Ethernet port

  • 1    CONSOLE local management port



Power Supply
AC

  • 100V ~ 240V

DC

  • 40 ~ - 57 V



Environment
Working temperature

  • -15 ~ 50℃

Storage temperature

  • -40 ~ 85℃

Ambient humidity

  • 5 ~ 90% (Non-condensing)



Order information

S.L

  • 1

Model

  • CC1000S

Specifications

  • 24*10GE(SFP+)+2*100GE(QSFP28)

Accessory

  • 1/2*AC/ DC; 1 * BBU (optional); 10GE SFP+module (optional); 100GE QSFP28 module (optional);



Technical Specifications of FT1004B

Mechanics
Dimensions

  • 310mm(L)*192mm(W)*44mm(H)

Weight

  • 1.95Kg



Hardware
Uplink Port

  • 1*10 Gigabit uplink port

PON Port
Quantity

  • 4

Physical interface

  • SFP slot

Interface type

  • GPON: ITU-TG.984.2 Class B+/Class C+

Interface type

  • GPON: 1:128

Management Port

  • 1    CONSOLE local management port

PON Port attribute
Transmission distance

  • 20KM

Port rate

  • GPON:

    Downstream: 2.5Gbps

    Upstream: 1.25Gbps

Wavelength

  • Forwarding: 1490nm

  • Receiving: 1310nm

Interface type

  • SC/ UPC

Fiber type

  • 9/ 125μm SMF (Single Mode Fiber)

Light transmission power

  • Class B+    +1.5 ~ +5dBm

  • Class C+     +3 ~ +7dBm

Receiving sensitivity

  • Class B+ :    -28dBm

  • Class C+ :    -30dBm

Saturation power

  • Class B+    -8dBm

  • Class B+    -8dBm

Backplane Bandwidth

  • 35G



Power supply
AC

  • 100V ~ 240V ，47~63Hz

DC

  • External adapter mode 12V/2.5A



Environment

Working temperature

  • -15 ~ 50℃

Storage temperature

  • -40 ~ 85℃

Ambient humidity

  • 5 ~ 90% (Non-condensing)


Ordering Information

NO.Product ModelsSpecificationsAccessories
1

CC1000S

16*10GE Remote PON (SFP+) + 8*10GE (SFP+) + 2*40GE (QSFP+)/100GE (QSFP28)Optional BBU
2

FT1004B

4*GPON (SFP) + 1*10GE (SFP+)External adapter mode 12V/2.5A, optional BBU



Ordering Information

NO.

  • 1

  • 2

Product Models

  • CC1000S

  • FT1004B

Specifications

  • 16*10GE Remote PON (SFP+) + 8*10GE (SFP+) + 2*40GE (QSFP+)/100GE (QSFP28)

  • 4*GPON (SFP) + 1*10GE (SFP+)

Accessories

  • Optional BBU

  • External adapter mode 12V/2.5A, optional BBU
