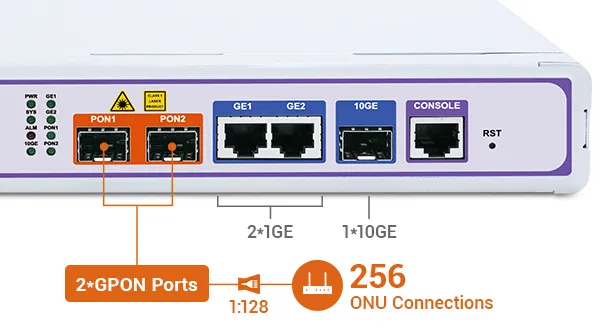

Efficient Fiber Connectivity

2*GPON ports with up to 1:128 split ratio.
High-speed uplinks with 1*10GE and 2*1GE.
Up to 1.25Gbps upstream/2.5Gbps downstream.
Transmission distance up to 20km.

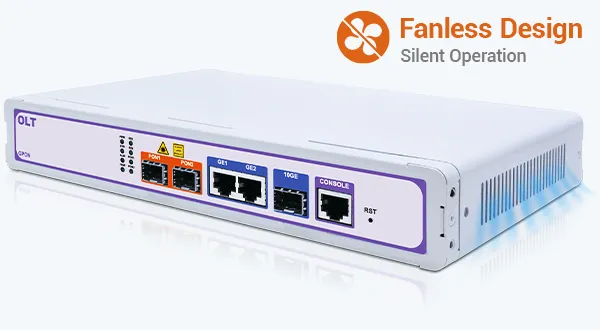

Energy-Efficient Fanless Design

Fanless design with natural cooling and stable thermal performance.
Low-power consumption for higher energy efficiency.
Silent operation suitable for noise-sensitive environments.

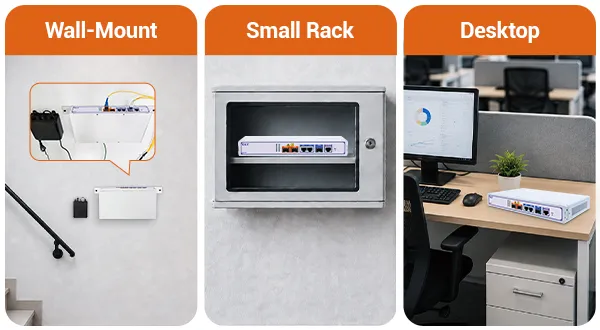

Compact Design, Flexible Deployment

Measuring only 260*157*40mm and 1.5kg with low power consumption.
Flexible desktop, wall-mount, or small rack deployment.

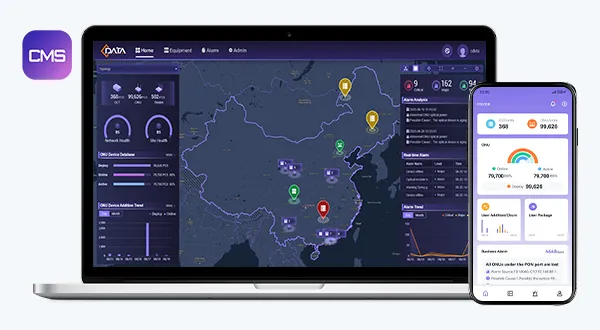

Simplified Network Management

CMS centrally manage OLT and connected ONUs for smart and streamlined O&M, featuring:

Remote one-click troubleshooting
Intelligent business analytics
Real-time monitoring and business alerts

Multiple Application Scenarios

FD1602S-C2 delivers a compact, cost-efficient solution for flexible FTTx deployment, enabling optimal performance in low-density areas.

SMEs
Residential Buildings
Rural Network Access
Temporary Network Deployment

Flexible FTTx Deployment

Designed for flexible FTTx deployment, mini GPON OLTs provide a reliable and cost-efficient solution for low-density scenarios.

Technical Overview

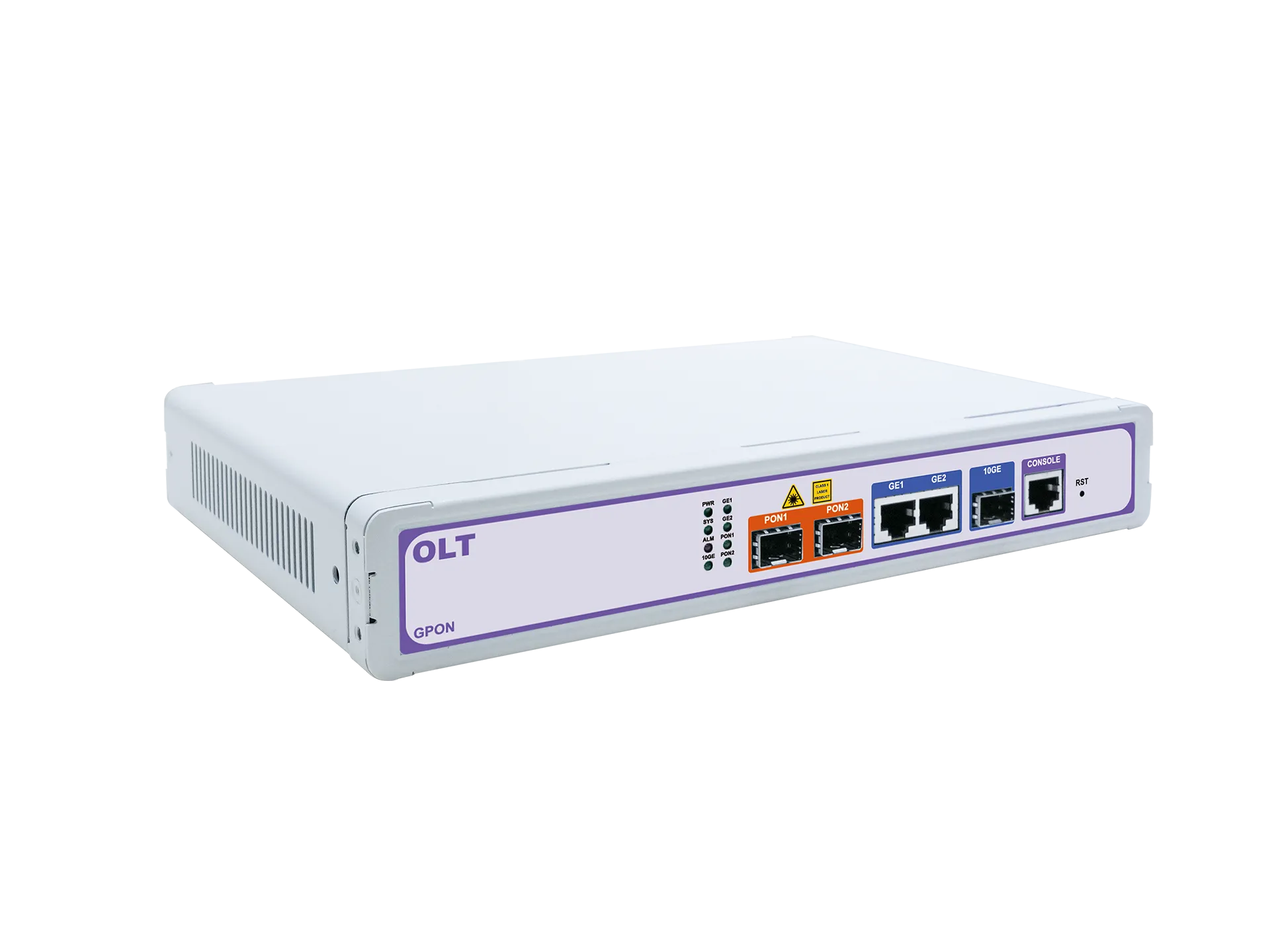

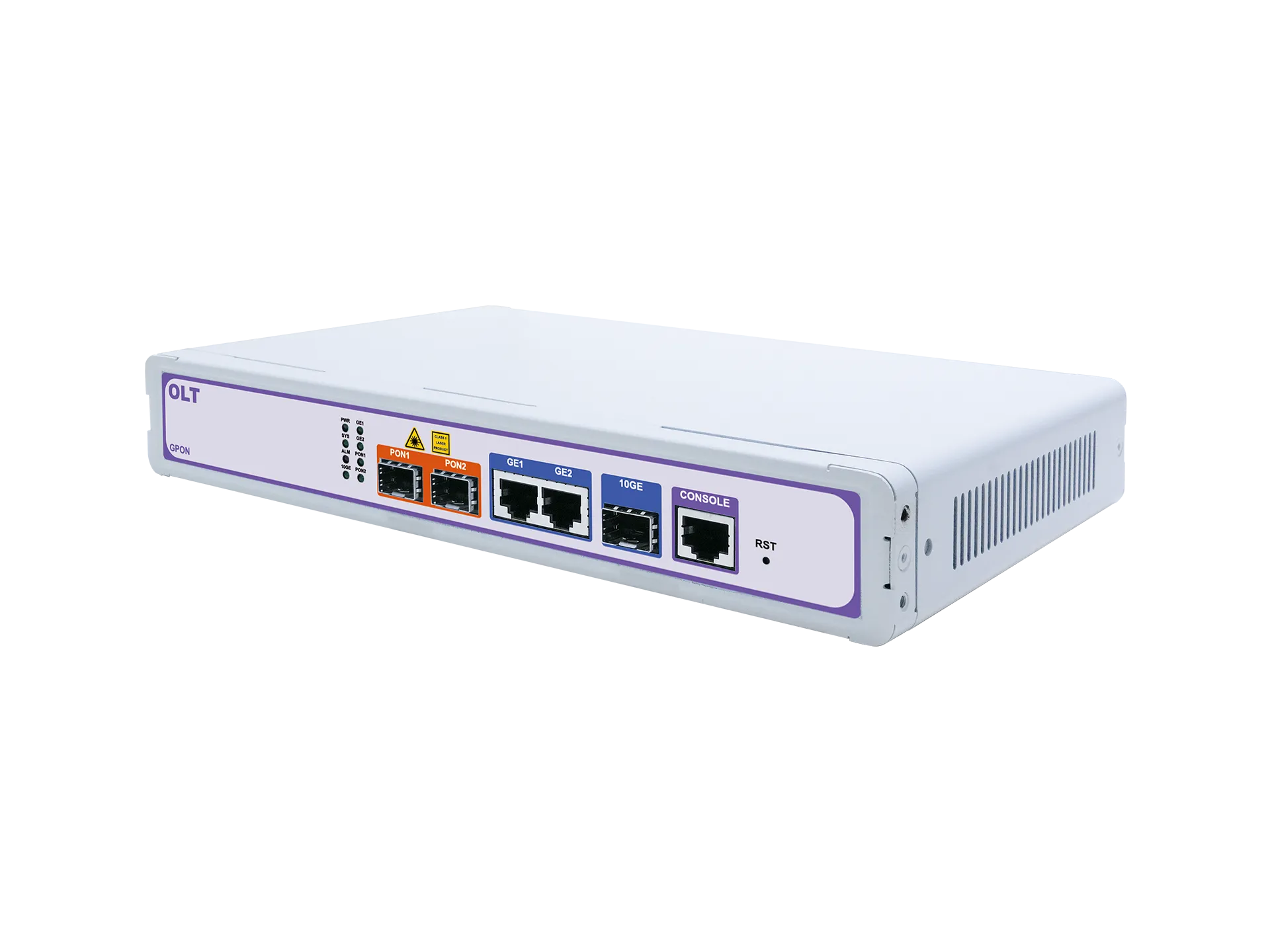

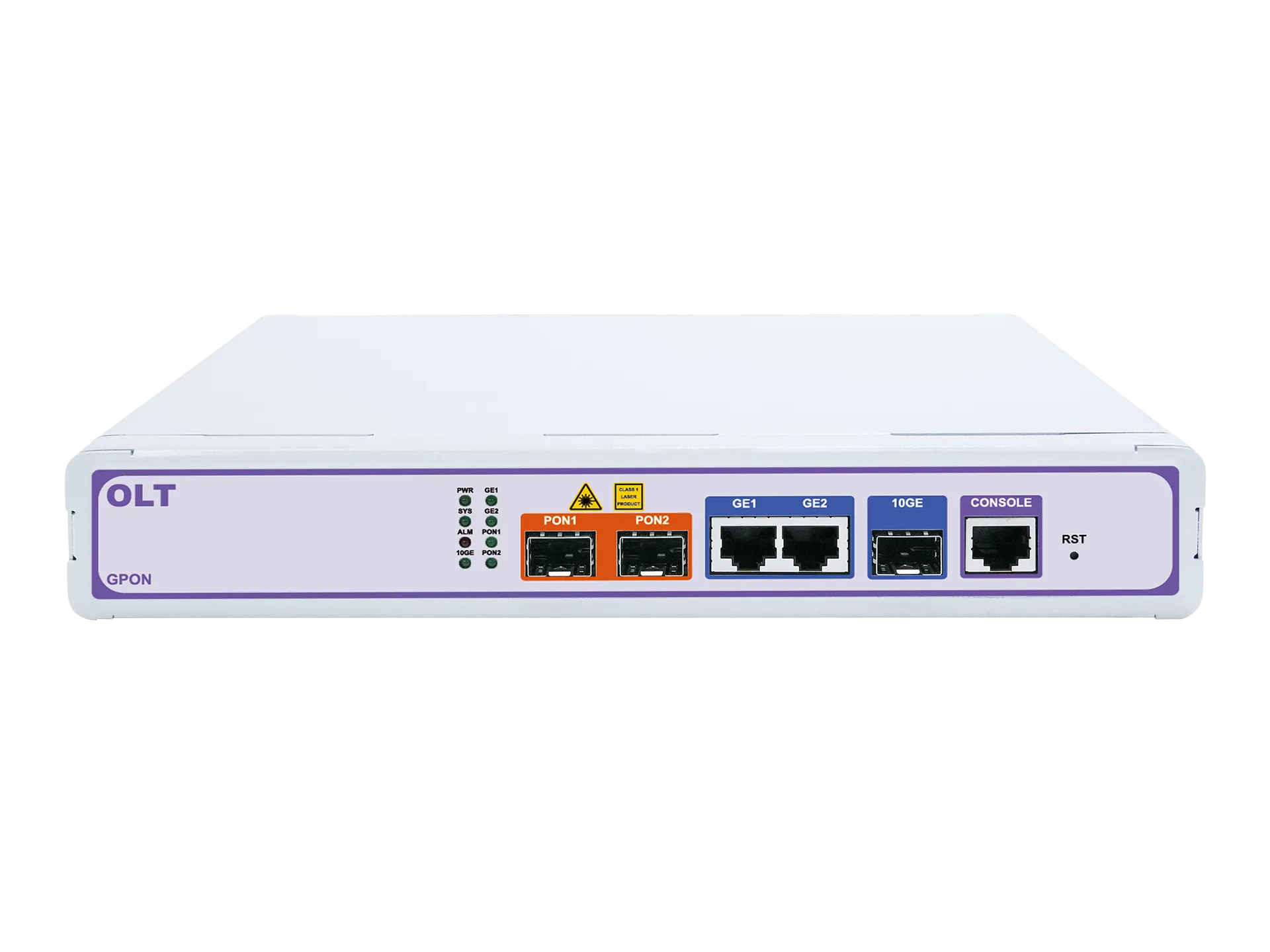

GPON OLT FD1602S-C2 completely meets relative standard of ITU-T. It is 1U rack-mounted device with 1 10 Gigabit uplink ports, and 2 GPON ports. The GPON port supports the splitting ratio of 1:128. This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which is convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.

 Datasheet  Get Docs

Technical Specifications

Mechanics
Dimensions	260mm(L)157mm(W)40mm(H)
Weight	1.5Kg

Hardware
Uplink Port	2* 10/100/1000M auto-negotiation Ethernet ports
Uplink Port	1* 10 Gigabit uplink SFP+ port
PON Port	Quantity	2
	Physical Interface	SFP slot
	Interface Type	GPON: ITU-T G.984.2 Class B+/Class C+/Class C++
	Max Splitting Ratio	GPON: 1:128
Management Port		1* CONSOLE local management port
PON Port Attribute	Transmission Distance	20KM
	Port Rate	GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps
	Wavelength	Forwarding: 1490nm Receiving: 1310nm
	Interface Type	SC/UPC
	Fiber Type	9/125μm SMF (Single Mode Fiber)
	Light Transmission Power	Class B+: +1.5 ~+5dBm Class C+: +3 ~+7dBm ClassC++: +4.5dBm~+10dBm
	Receiving Sensitivity	Class B+: -28dBm Class C+: -30dBm ClassC++: -31dBm
	Saturation Power	Class B+: -8dBm Class C+: -12dBm ClassC++: -10dBm
Backplane Bandwidth		31.5G
