FD5101BF utilizes PoF technology to deliver power and data through an optical-electrical composite cable, extending fiber connectivity and power supply to every corner.
With 25W PoE+ capability, FD5101BF delivers both data and power to IP cameras, wireless AP, and other devices, significantly improving deployment efficiency.
C-Data Mixed Converter ONU FD5101BF is engineered for demanding environments, featuring a robust aluminum shell with excellent heat dissipation.
With an operating temperature range of -10℃ to 60℃, it ensures uninterrupted and stable operation even in harsh conditions.
With a mini size of just 127*56*23mm and a lightweight design of only 130g, FD5101BF can be easily mounted on wall or ceiling, providing flexible deployment options.
Its discreet installation maintains a clean space, enabling seamless installation even in tight or concealed locations.

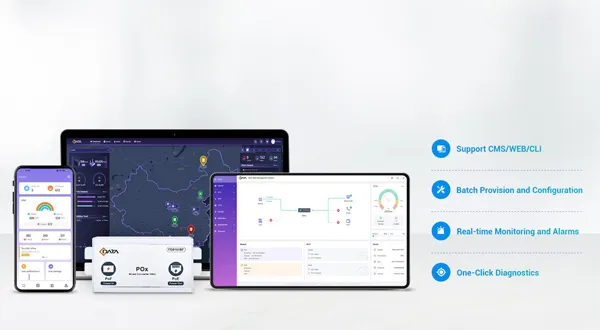

C-Data CMS and ONU Web provide users, enterprises, and operators with a secure, efficient, and intelligent network operation and maintenance platform,
enhancing management efficiency and saving O&M costs.
Tailored for challenging installation environments and power-limited areas,
FD5101BF provides seamless fiber network coverage with capabilities of flexible deployment and easy power supply, delivering an efficient and reliable connectivity solution for users.
FD5101BF xPON ONU products are specially designed for FTTB/FTTO/POL application scenarios, providing multi-port data services based on xPON network.
The product provides 1 G/EPON adaptive PON port for uplink, 1*10/100/1000BASE-T electrical ports for downlink, and supports PoE/PoE+ function.
It is used for data transmission and can supply power to connected cameras, APs and other terminals.
Specially, The PON uplink port supports the access of optical-electrical composite cables, providing the equipment with both the high bandwidth of optical fiber and the power supply capacity of copper wire, solving the problem of power supply.
| Model | FD5101BF |
| Dimensions | 127*56*23mm |
| Weight | 130g |
| Hardware | |||
| User Port (LAN) | RJ-45 connector | ||
| 1* 10/100/1000Mbps adaptive network port (PoE Power supply) | |||
| Full/Half duplex | |||
| Auto MDI/MDI-X | |||
| Indicators | PWR / PON / LOS / LAN / POE / POF | ||
| PON Port | PON mode | EPON：1000BASE-PX20+ symmetric | |
| GPON：Class B+/Class C+ | |||
| PON rate | EPON：1.25Gbps downstream/upstream | ||
| GPON：2.488Gbps/1.244Gbps downstream/upstream | |||
| Connector | SC/UPC(APC optional), supports optical-electric composite cable power supply | ||
| Wavelength | Transmit: 1310nm | Receiver: 1490nm | |
| Receiving sensitivity | EPON：-27dBm GPON：-28dBm | ||
| Saturated power | EPON：-3dBm GPON：-8dBm | ||
| Transmitting power | EPON:0～4dBm GPON：0.5～5dBm | ||
| Power supply | |
| POF IN (optical-electric composite cable power supply, Standard PoE protocol), | |
| Input voltage | 44-56V |
| Support PoE/PoE+(PSE) | |
| PoE output voltage | 44-56V |
| PoE output power | 25W |
| DC | 12V/0.5A |
| Power consumption | 2W |
| Maximum machine power consumption | 27W |
| Environment | |
| Working temperature | -10 to 50ºC |
| Ambient humidity | 10% ~ 90% (Non-condensing) |
| Product Model | Specification | Power Supply (ONU Self-Power Consumption) |
| FD5101BF | 1*xPON (SC,UPC/APC) + 1*GE (RJ45) PoF Input Voltage: 44-56V DC PoE Output Voltage: 44-56V DC Maximum Output Power: 25W | DC: 12V/0.5A Typical Power Consumption: 2W Maximum Power Consumption: 27W |
