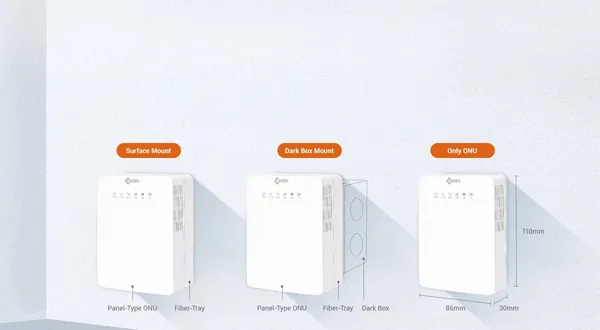

Plug and Play, Flexible Installation

The C-Data Panel-Type ONU is a compact and versatile solution, the size of only 110mm*86mm*30mm.

Designed for indoor wall mounting and compatible with 86-type electrical boxes,

it integrates an optical fiber cassette for fiber splicing, routing, bend-radius protection, and optical connector safeguarding.

With support for wall surface and 86-type dark box installations, it adapts to your unique preferences, offering a streamlined network solution.

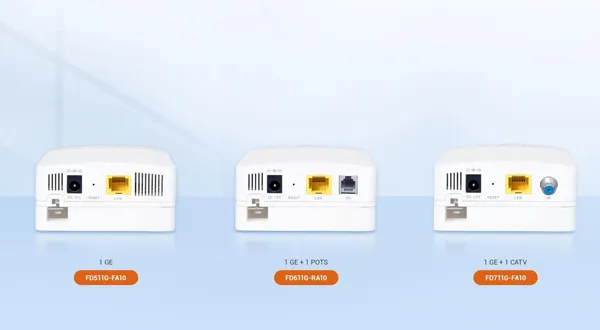

Ensures a Seamless Experience for Voice, Video, and Data Service

The C-Data Panel-Type ONU comes equipped with an xPON port, supporting adaptive access for both EPON and GPON modes. On the user side, it features 1 Gigabit Ethernet (GE) port. With versatile options for multi-service ports, you can choose from 1 GE, 1 GE + 1 POTS, or 1 GE + 1 CATV, catering to a wide range of connectivity needs.

Standards-Compliant and Reliable

The C-Data Panel-Type ONU is compliant with IEEE802.3ah and ITU-T G.984.x standards, guaranteeing top-notch quality. Additionally, it features a power-off alarm function for easy link problem detection, ensuring a robust and dependable network solution.

Achieve Seamless Full Coverage for FTTH / FTTx

The C-Data Panel-Type ONU enhances the convenience of FTTH and FTTB installations by offering a compact, versatile, and standards-compliant solution with integrated fiber capabilities and multiple service ports. It adapts to various installation preferences and helps ensure seamless network connectivity.

High-Performance Forwarding Capabilities

The C-Data Panel-Type ONU ensures outstanding internet service experiences. This series offers flexible and stable terminal solutions for FTTH/FTTx deployments and future-proof business support capabilities.

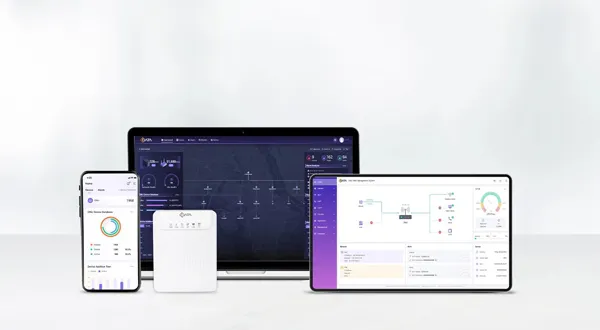

The Integrated Management System

ONU WEB3.0 and CMS provide users, enterprises, and operators with a secure, efficient, and intelligent network operation and maintenance platform, achieving efficient, stable, and swift management and operation, significantly enhancing overall efficiency.

Application Scenarios

Technical Overview



FD711G-FA10 is an indoor fiber broadband access terminal. The device provides one GPON / EPON adaptive optical port and supports XPON mode. It can be used in connection C-Data EPON, GPON and XGSPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) GPON or EPON OLT to provide users with Internet and CATV services based on GPON and EPON technology.

 Datasheet  Get Docs

Technical Specifications

Mechanics
Dimensions	110mm(L)86mm(W)30.5mm (H)
Weight	About 0.13kg

Hardware
User Port (LAN)		RJ-45 connector
		1*10/100/1000Mbps adaptive Ethernet port
		Full/half duplex
		Auto MDI/MDI-X
Indicators		PWR / PON / LOS / LAN / INT / CATV
PON Port	PON Mode	EPON：1000BASE-PX20+ symmetric GPON：FSAN G.984.2 standard,Class B+
	PON Rate	EPON：1.25Gbps downstream/upstream GPON：2.488Gbps/1.244Gbps downstream/upstream
	Wavelength	Transmit: 1310nm	Receiver: 1490nm
	Receiving sensitivity	EPON：-27dBm GPON：-28dBm
	Saturated power	EPON：-3dBm GPON：-8dBm
	Transmitting power	EPON:0～4dBm GPON：0.5～5dBm

CATV（Input /Output port）
Wavelength: 1550nm
Input optical power: -18dBm～0dBm(with AGC)
RF frequency: 47MHz~1000MHz
RF output level: 78dBuV (@-12~-2dBm@85MHz) (with AGC)
RF output return loss: >12dB(with AGC)
RF impedance: 75Ω

Environment
Working temperature	0 to 40ºC
Operating humidity	10% ~ 90% (Non-condensing)

Power
External 12VDC/0.5A power supply adapter
Power consumption	≤3.3W



Ordering Information

NO.	Product Model	Specifications	Accessories
1	FD511G-FA10	1xPON + 1GE RJ45	AC-DC Power Adapter: DC 12V/0.5A
2	FD711G-FA10	1xPON + 1GE RJ45 + 1*RF CATV	AC-DC Power Adapter: DC 12V/0.5A
3	FD611G-RA10	1xPON + 1GE RJ45 + 1*POTS	AC-DC Power Adapter: DC 12V/0.5A
