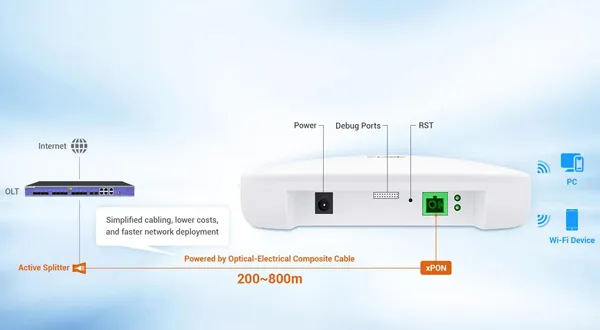

FD510D-FP10 delivers both data and power through a single optical-electrical composite cable, extending power reach to 200-800 meters and eliminating power-access limitations at the far end.

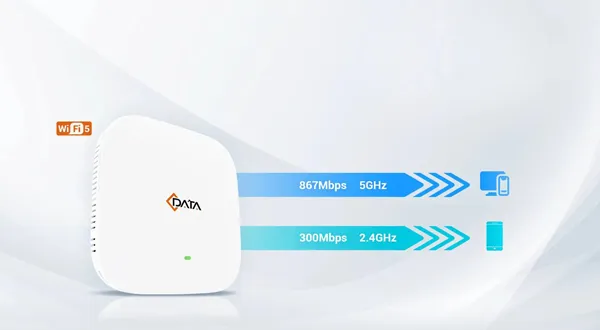

Experience fast, low-latency connectivity with dual-band speeds of up to 1200Mbps to elevate your network performance.
Intelligent roaming ensures seamless, stable network experience as users move across the network.

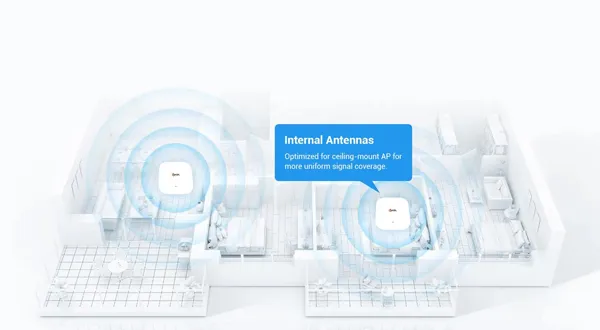

Four internal 3dBi antennas are precision-tuned for ceiling-mount deployment, delivering wide, stronger and reliable coverage, extending fast and stable Wi-Fi to every corner of your home or office.

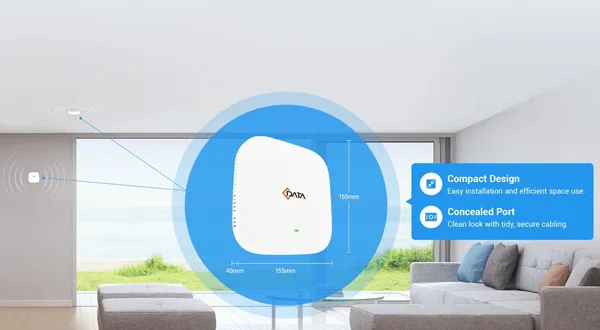

Supports both ceiling and wall mounting for flexible deployments, with a sleek, modern design that blends seamlessly into any setup.

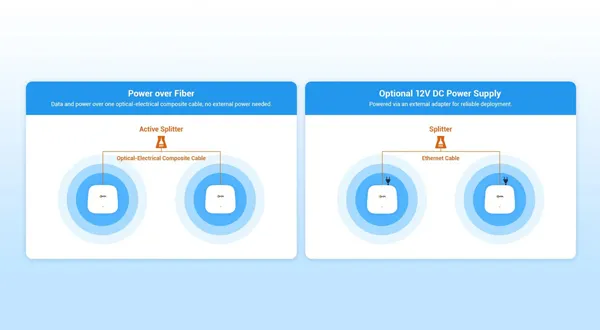

Supports flexible power options to meet the needs of different deployment scenarios.

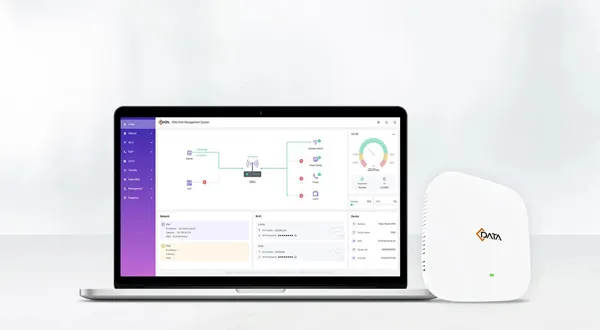

Web management platform enables remote configuration and maintenance, with an intuitive interface for simplified and efficient operations.
FD510D-FP10 is acompact and lightweight AC1200 indoor ceiling mounted xPON ONU launched by C-Data. It provides one SC type optical composite cable PON port and offers DC and standard POF power supply methods, making net working flexible. Can be widely used in indoor scenarios such as restaurants, hotel lobbies, warehouses, and small businesses, providing high-quality wireless coverage.
In compliant with IEEE802.3ah and ITU -T G.984 standard
Support ONU auto-discovery/ Link detection/remote upgrade of software
Support SN and LOID+Password multiple registration methods
Support port VLAN configuration
Support port-based rate limitation and bandwidth control
Support port flow-control
Support MAC address learning
Support MAC address learning account limit
Support VLAN transparent/tag/translate/trunk
Support broadcasting storm resistance function
Support igmp transparent/snooping/ proxy mode
Support Dynamic Bandwidth Allocation (DBA)
Support AES encryption and decryption
Support power-off alarm function, easy for link problem detection
Support Firewall
Support MAC address/URL filter
Support Remote WEB/Telnet access control
Indicator | Description | |
PON/ LOS | ONT Register | Green constantly on: Success to register to OLT; Green flashing: In process of registering to OLT; Red constantly on: LOS; |
Mechanics | |
Dimensions | 155mm(L)*155mm(W)*40mm(H) |
Weight | About 228g |
Hardware | |||
Interface | 1 * Pin type Debugging port base (default configuration) or 1*GE RJ-45 connector(optional) | ||
1 * SC type optoelectronic composite cable interface | |||
1*DC power port, 1*Reset, 4*Internal Wi-Fi Antennas | |||
Indicators | PON/ LOS | ||
PON Port | PON Mode | EPON：1000BASE-PX20+ symmetric GPON：ITU-T G.984.2 standard,Class B+ | |
PON Rate | EPON：1.25Gbps downstream/upstream GPON：2.488Gbps/1.244Gbps downstream/upstream | ||
Wavelength | Transmit: 1310nm | Receiver: 1490nm | |
Receiving sensitivity | EPON：-27dBm GPON：-28dBm | ||
Saturated power | EPON：-3dBm GPON：-8dBm | ||
Transmitting power | EPON:0～4dBm GPON：0.5～5dBm | ||
Wi-Fi |
IEEE 802.11b/g/n(2.4GHz) IEEE 802.11a/n/ac(5GHz) |
Total wireless rate is 1200Mbps 2.4GHz: 40Mhz bandwidth maximum rate 300Mbps 5GHz: 80Mhz bandwidth maximum rate 867Mbps |
2.4GHz EIRP: 23dBm / 5GHz EIRP: 22dBm |
Power supply | |
POF IN (optical-electric composite cable power supply, Standard PoE protocol), | |
Input voltage | 44-56V |
External power supply adapter | 12VDC/ 1A |
Power consumption | ≤6W |
Environment | |
Working temperature | 0 to 40ºC |
Operating humidity | 10% ~ 90% (Non-condensing) |
Product Model | Specifications | Power Supply |
FD510D-FP10 | 1*xPON (PoF) + Wi-Fi 5 | PoF Input Voltage: 44-56V External Power Adapter: 12V DC/1A Power Consumption: ≤6W |
