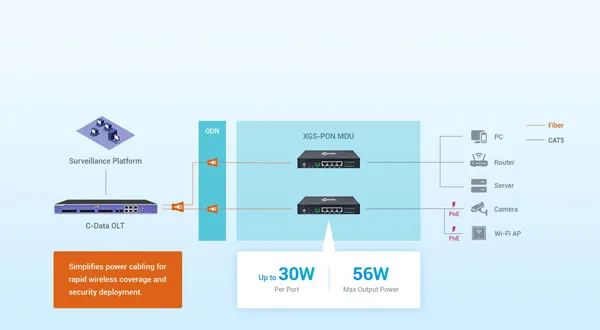

Supports optional PoE/PoE+ (PSE), delivering up to 30W per port and a total PoE power budget of up to 56W,
ensuring reliable power supply for cameras and wireless APs for enhanced deployment flexibility.

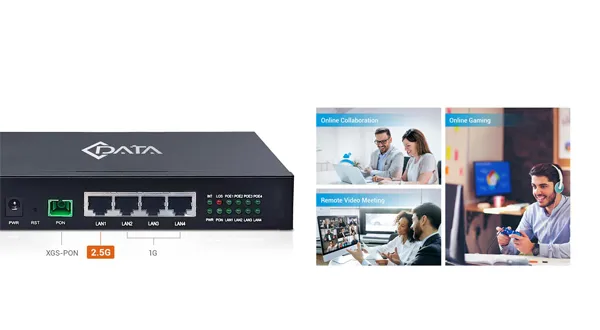

The XGS-PON MDU features a 10Gbps transmission capability on the PON interface,
paired with 1*2.5G and 3*1G Ethernet ports, delivering exceptional performance for diverse networking needs of business and homes.

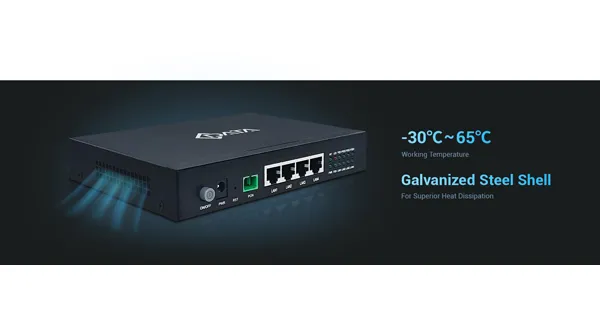

Featuring a durable galvanized steel shell and optimized ventilation design, the XGS-PON MDU ensures superior heat dissipation.
It operates stably within a temperature range of -30℃~65℃, providing reliable connectivity even in extreme conditions.

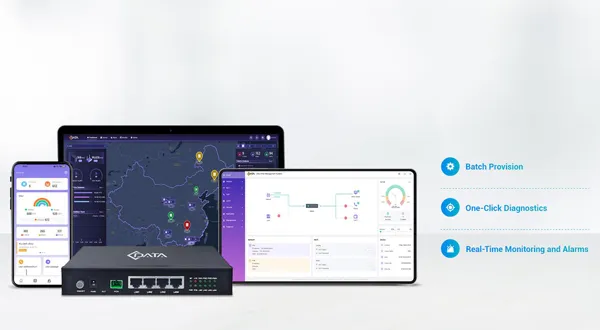

C-Data CMS and ONU Web provide users, enterprises, and operators with a secure, efficient,
and intelligent network operation and maintenance platform, enhancing management efficiency and saving O&M costs.

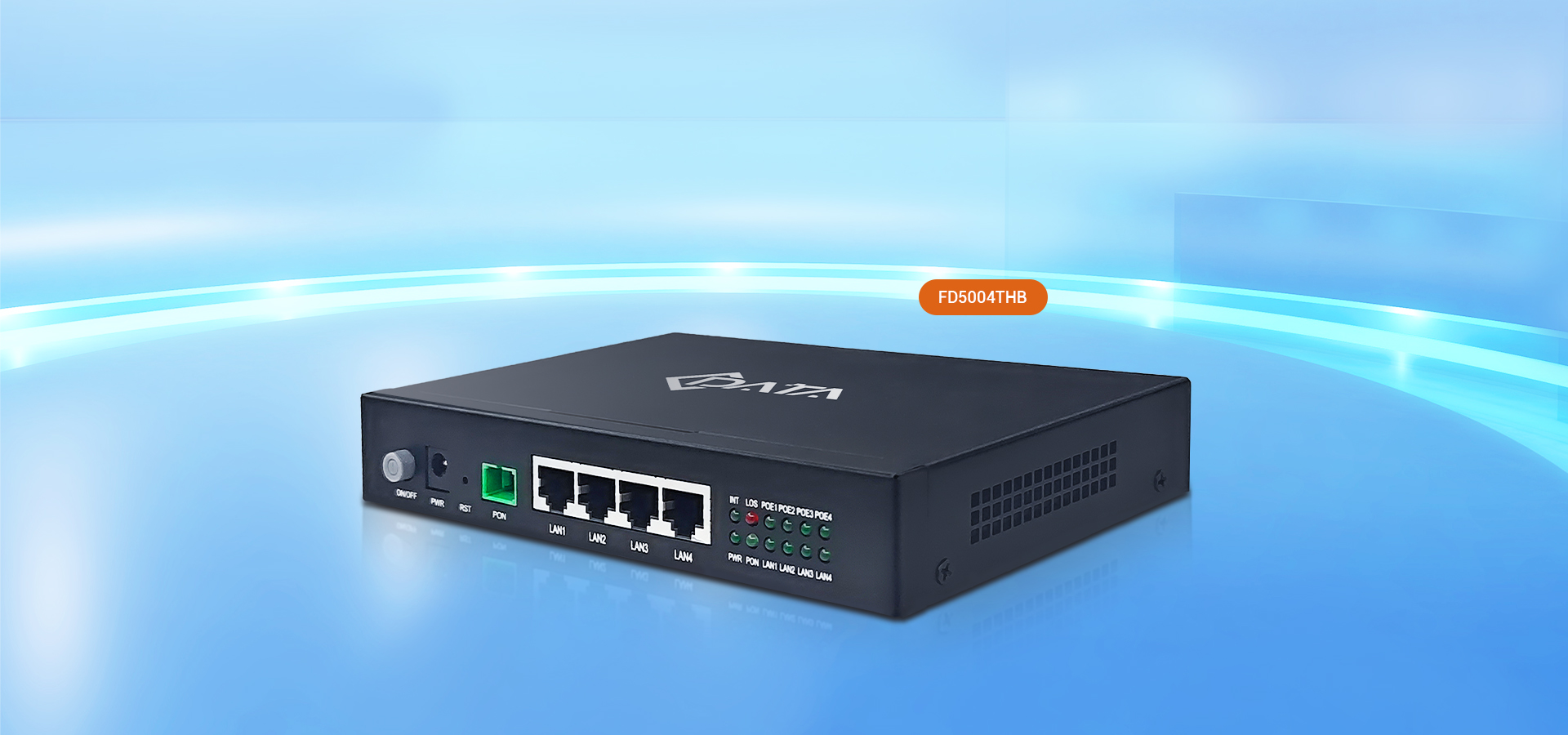

The product provides 3GE and 1*2.5G ports with PoE/PoE+ functions, which can not only transmit data, but also connect to terminal devices such as cameras through its PoE ports to supply power, making the networking more flexible. FD5004THB-RS&FD5004THBF-RS Corridor MDU has the characteristics of high reliability, quality of service(QoS) guarantee, easy management, flexible upgrade and expansion and networking. The various functions and performance indicators of the equipment meet ITU-T related recommendations, relevant international standards and technical specifications of industry standards, and have good compatibility when used with mainstream manufacturers' central office OLTs.
Support MDU auto-discovery/Link detection/remote upgrade of software
Support SN and LOID+Password multiple registration methods
Support port VLAN configuration
Support port-based rate limitation and bandwidth control
Support MAC address learning
Support MAC address learning account limit
Support VLAN transparent/tag/translate/trunk
Support broadcasting storm resistance function
Support igmp transparent/snooping/proxy mode
Support Dynamic Bandwidth Allocation (DBA)
Support AES encryption and decryption
EMS network management based on SNMP, convenient for maintenance
Support power-off alarm function, easy for link problem detection
Support Firewall
Support MAC address/URL filter
Support Remote WEB/Telnet access control
| Mechanics | |||
| Dimensions | 180mm(L) x 122mm(W) x 30mm (H) | ||
| Weight | About 500g | ||
| Hardware | |||
| User Port (LAN) | RJ-45 connector | ||
| 1*2.5G and 3* 10/100/1000Mbps adaptive Ethernet port | |||
| Full/Half duplex | |||
| Auto MDI/MDI-X | |||
| Indicators | PWR / PON / LOS / LAN/ INT / POE | ||
| PON Port | PON Mode | XGS-PON: ITU-T G.9807.1 standard | |
| PON Rate | XGS-PON: 10Gbps/10Gbps downstream/upstream | ||
| Wavelength | Transmit: 1270nm | Receiver: 1577nm | |
| Receiving sensitivity | XGS-PON: -28dBm | ||
| Saturated power | XGS-PON: -9dBm | ||
| Average sending | XGS-PON: +4～+9dBm | ||
| Environment | |||
| Working temperature | -30 to 65ºC | ||
| Operating humidity | 10% ~ 90% (Non-condensing) | ||
| Power | |||
| FD5004THBF-RS: | |||
| External power supply: 48VDC/1.5A | |||
| Support POE feed (PSE) | |||
| PSE output voltage: 48V DC | |||
| The maximum output power of the whole machine: 56W, the maximum output power of a single port: 30W | |||
| Max machine power consumption: <60W | |||
| FD5004THB-RS: | |||
| External 12VDC/1A power supply adapter | |||
| Max machine power consumption:<6W |
NO. | Product Model | Specification | Power Supply |
1 | FD5004THBF-RS | 1*XGS-PON + 1*2.5GE (RJ45) + 3*GE (RJ45) + PoE/PoE+ (PSE) Max PoE Output Power: 56W PSE Output Voltage: 48V DC | External power supply 48V DC/1.5A Max power consumption<60W |
2 | FD5004THB-RS | 1*XGS-PON + 1*2.5GE (RJ45) + 3*GE (RJ45) | External power supply 12V DC/1A Max power consumption<6W |
