C-Data XGS-PON ONU features 1*XGS-PON port, supporting 10Gbps data transmission rate for both downstream and upstream,
and enabling large-capacity and fast-speed data transmission.
Facilitating efficient operations for Enterprise/SMB with C-Data XGS-PON ONU Series. Boasting high bandwidth, high stability, and low latency,
XGS-PON ONUs meet the needs for high-speed data transmission and simultaneously supports multiple users.

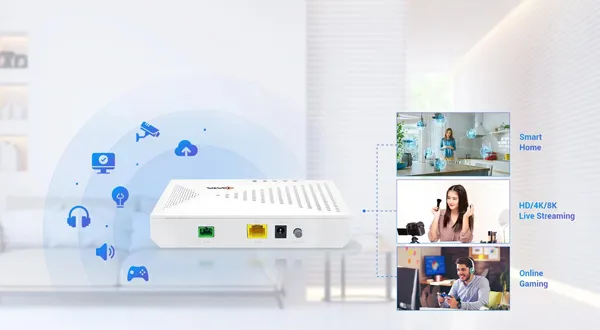

Designed specifically for home user, C-Data XGS-PON ONU supports simultaneous connection for smartphones, computers, and smart home devices,
meeting the diverse network needs of family members. No more latency, enjoy the ultimate network experience.
CMS and ONU WEB provide users, enterprises, and operators with a secure, efficient, and intelligent network operation and maintenance platform.
CMS achieves efficient, stable, and swift management, significantly enhancing overall efficiency.
FD511TH-R460s is an indoor fiber broadband access terminal.
It can be used in connection with our XGSPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) XGSPON OLT to provide users with Internet service based on XGSPON technology.
Mechanics | |
Dimensions | 160mm(L)*112mm(W)*32mm(H) |
Weight | About 200g |
Hardware | |||
User Port (LAN) | RJ-45 connector | ||
2.5GE | |||
Full/half duplex | |||
Auto MDI/ MDI-X | |||
Indicators | PWR / XGSPON / LOS / LAN / INT | ||
PON Port | PON Mode | XGSPON：FSAN G.9807.1 standard | |
PON Rate | XGSPON：10Gbps/10Gbps downstream/upstream | ||
Wavelength | Transmit: 1270nm | Receiver: 1577nm | |
Receiving sensitivity | XGSPON：-28dBm | ||
Saturated power | XGSPON：-9dBm | ||
Average sending | XGSPON：+4～+9dBm | ||
Environment | |
Working temperature | 0 to 40ºC |
Operating humidity | 10% ~ 90% (Non-condensing) |
Power | |
External 12VDC/ 1A power supply adapter | |
Power consumption | <8.1W |
Product Model | Specifications | Accessories |
FD511T-R460S | 1*XGS-PON+1*10GE RJ45 | External 12VDC/1A power supply adapter |
FD511TH-R460S | 1*XGS-PON+1*2.5GE RJ45 | External 12VDC/1A power supply adapter |
