Compared with FE Ports, the Performance of GE Ports is Improved by 10 Times. Meetings, Videos, Downloading Large Files? So Easy!

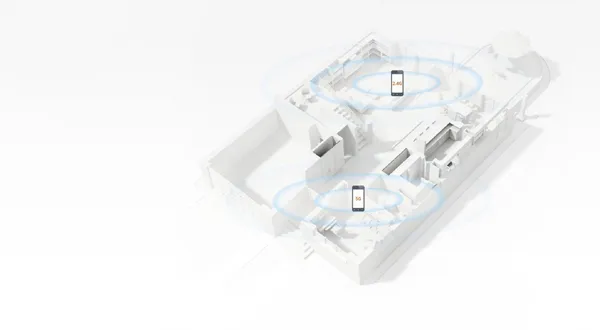

Dual-band WiFi, Combined with 2.4G' s wall Penetration. Capability and 5G' s fast Speed, Creates the Ultimate Internet experience.

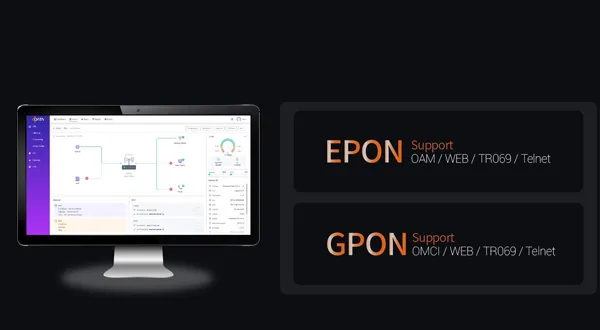

Multiple Maintenance Methods, Easy to Manage.

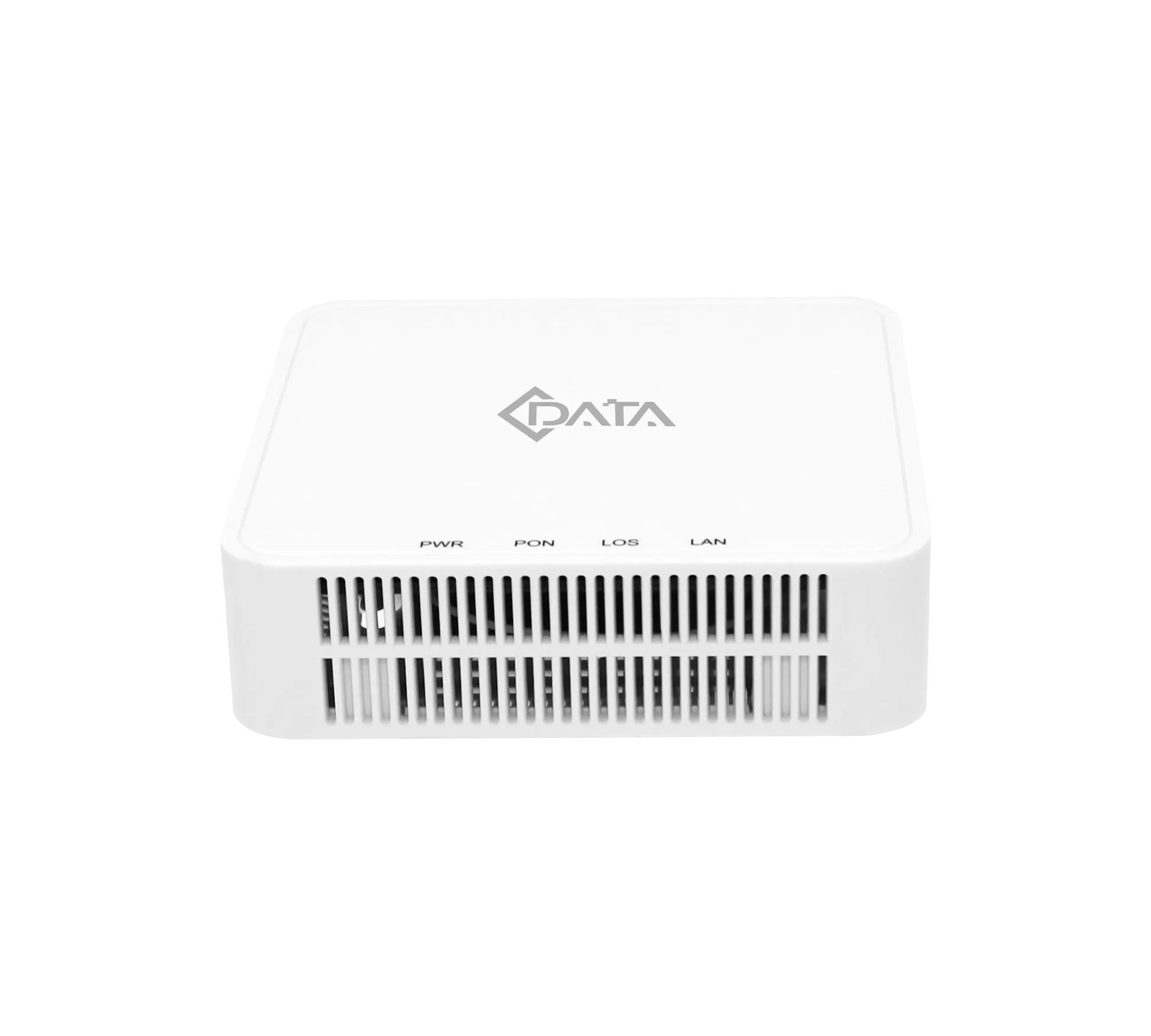

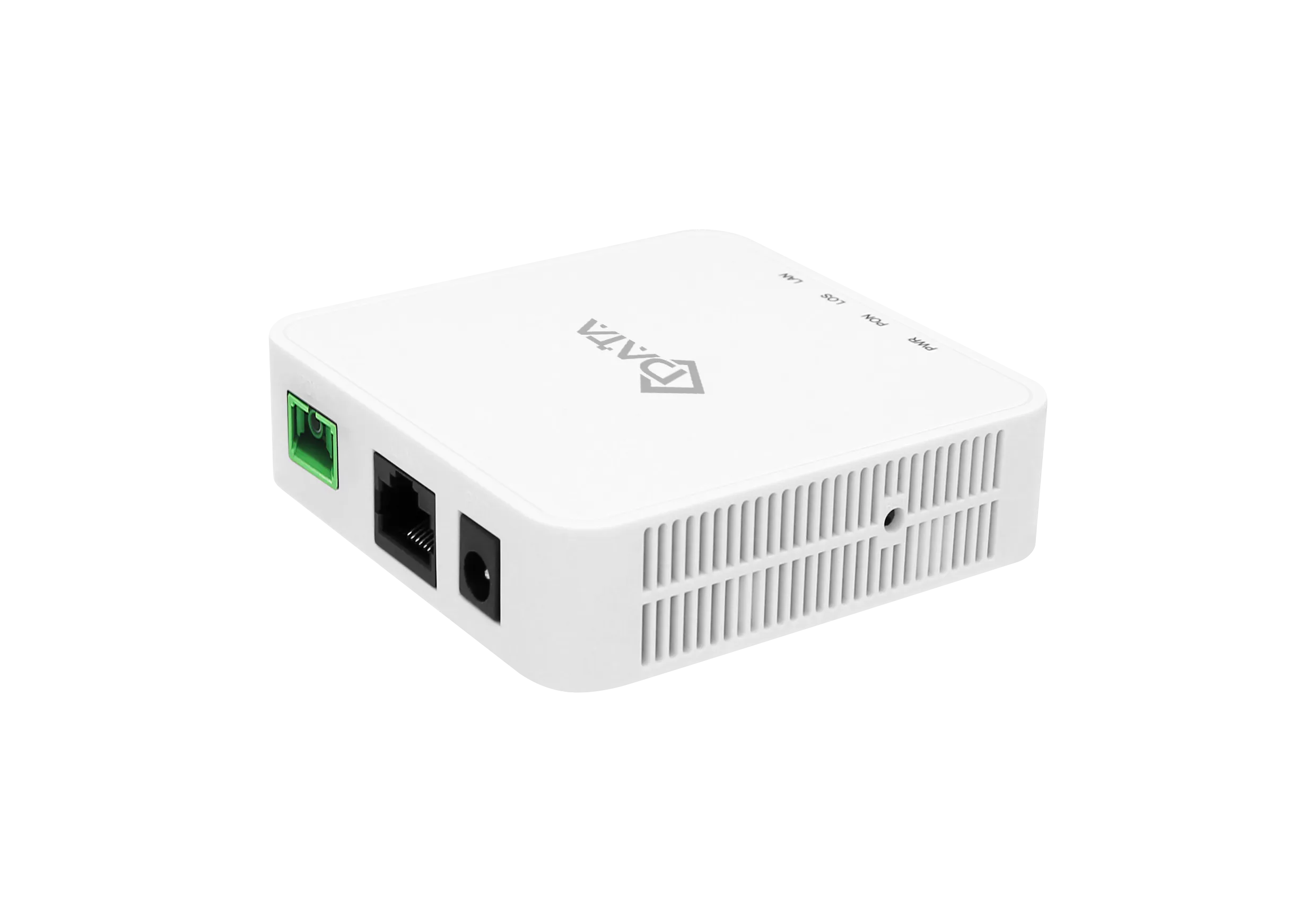

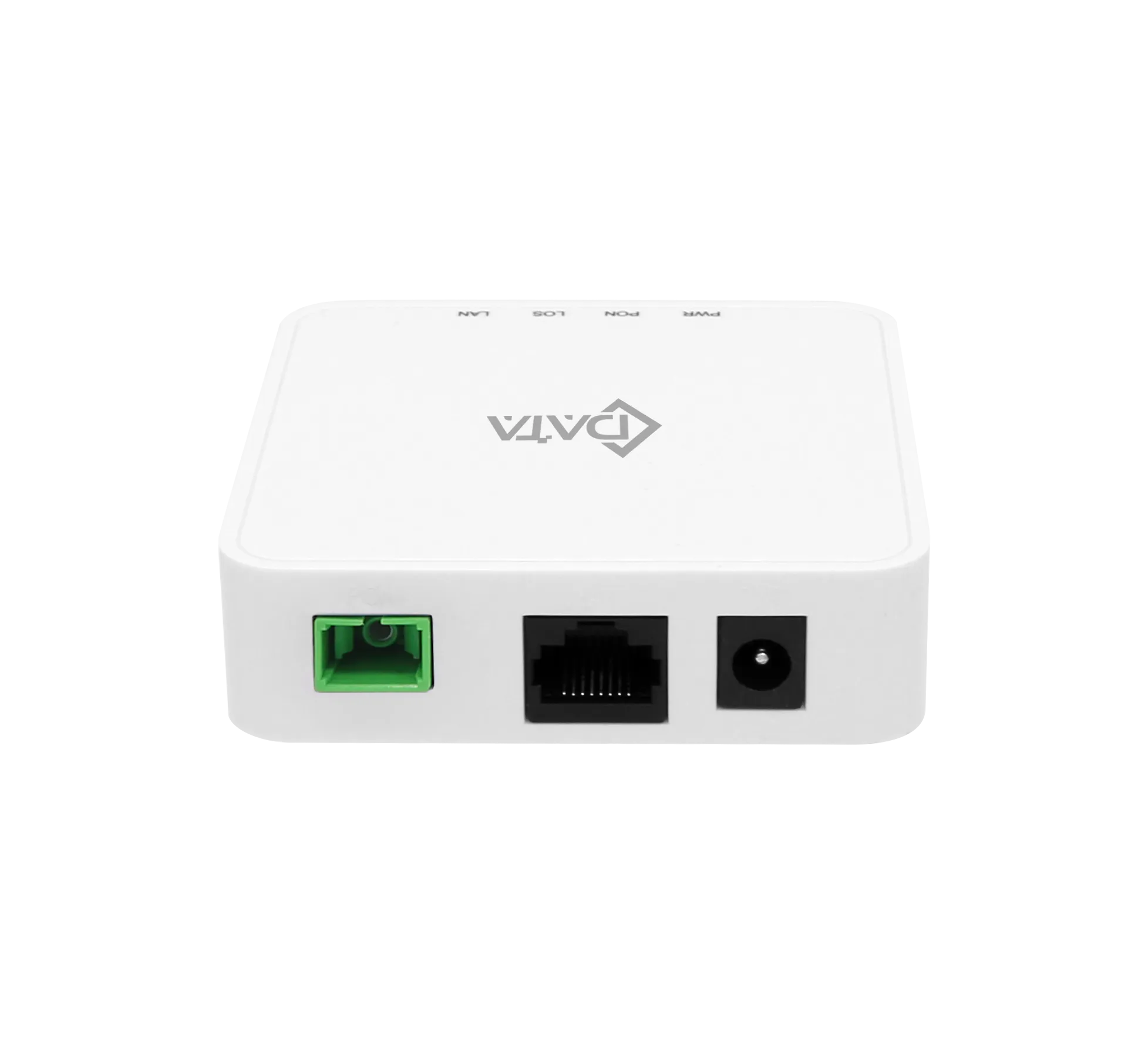

FD511G-F660 is an indoor fiber broadband access terminal. The device provides one GPON / EPON adaptive optical port and supports XPON mode. It can be used in connection with our company FD16/17 series GPON OLT or FD13 / 12 series EPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) GPON or EPON OLT to provide users with Internet service based on GPON and EPON technology.
| Item | FD511G-F660 | |
| Specifications | 1*xPON + 1*GE RJ45 | |
| GPON/EPON Port | SC/APC single mode single fiber | |
| GPON | FSAN G.984.2 standard,Class B+ | |
| EPON | 1000BASE-PX20+ symmetric | |
| GPON | 2.488Gbps/1.244Gbps downstream/upstream | |
| EPON | 1.25Gbps downstream/upstream | |
| Wavelength | Transmit: 1310nm Receiver: 1490nm | |
| Receiving sensitivity | GPON: -28dBm EPON: -27dBm | |
| Saturated power | GPON: -8dBm EPON: -3dBm | |
| Transmitting power | GPON: 0.5～5dBm EPON: 0～4dBm | |
| User Port(LAN) | 1*10/100/1000Mbps adaptive Ethernet port | |
| Full / Half-Duplex | ||
| RJ-45 connector | ||
| Auto MDI/MDI-X | ||
| Indicators | PWR / PON / LOS / LAN | |
| Power | External 12V/0.5A DC power supply adapter | |
| Power consumption:<3W | ||
| Dimension and Weight | Item Dimension | 78mm(L) x 78mm(W) x 23.5mm (H) |
| Item weight | about 62.7g | |
| Environmental Specifications | Operating temperature | 0 to 40ºC |
| Operating humidity | 10% to 90%(Non-condensing) |
| NO. | Product Model | Specifications | Accessories |
| 1 | FD511G-F660 | 1*xPON + 1*GE RJ45 | AC-DC Power Adapter: DC 12V/0.5A |
| 2 | FD512XW-R470 | 1*xPON + 1*FE RJ45 + 1*GE RJ45 + Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
| 3 | FD512GD-R550 | 1*xPON + 2*GE RJ45 + Dual-Band Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
| 4 | FD504XW-R460 | 3*FE RJ45 + 1*GE RJ45 + Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
| 5 | FD514GD-R460 | 1*xPON + 4*GE RJ45 + Dual-Band Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
