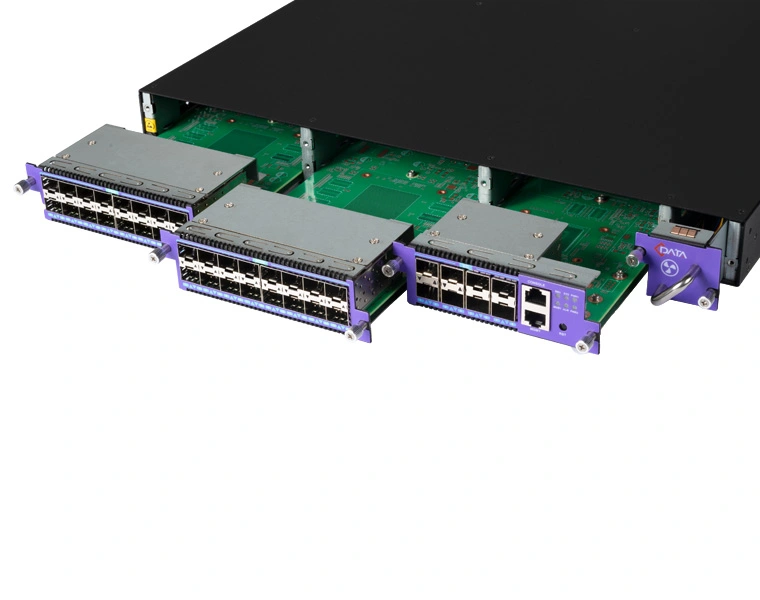

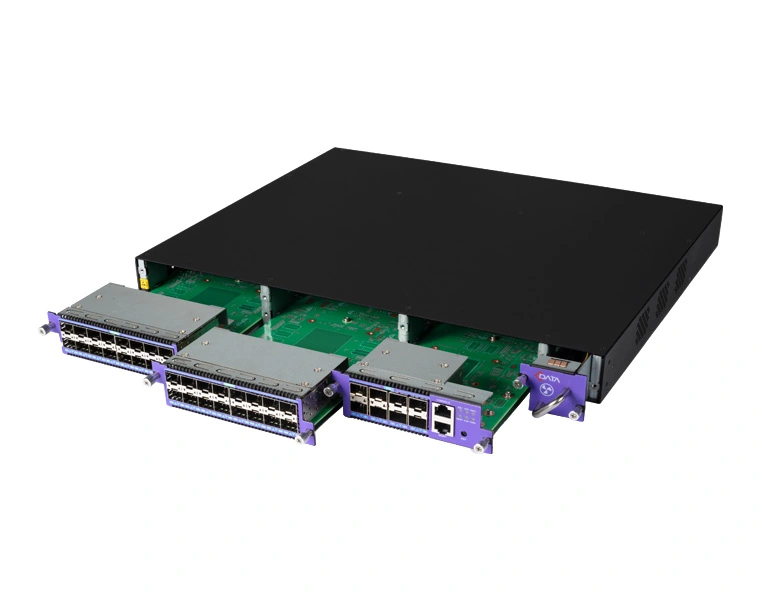

The GPON OLT FD1700S fully complies with the relevant standards of ITU G.984.x and FSAN. It's a 1RU device featuring an uplink SFP port with options for either 4*1G/10G and 4*10G/25G. The PON ports come in configurations of 4/8/16 ports. Each GPON port supports a splitting ratio of 1:128. Consequently, the GPON system can accommodate up to 4096 terminal connections, depending on the number of PON ports chosen.
| Mechanics | Management Rack | 1U 19-inch standard box | |
| Dimensions | 440*375*44mm | ||
| Weight | About 6kg | ||
| Hardware | Uplink Port | 4*1G(SFP)/10G SFP+ 4*10G(SFP+)/25G(SFP28) | |
| PON Port | Quantity | Two boards, each board has three specifications are available (4/8/16 GPON ) | |
| Physical interface | SFP slot | ||
| Interface type | GPON: ITU-TG.984.2 Class B+/Class C+ | ||
| Max splitting ratio | GPON: 1:128 | ||
| Management Port | 1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port | ||
| PON Port attribute | Transmission distance | 20KM | |
| Port rate | GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps | ||
| Wavelength | Forwarding: 1490nm Receiving: 1310nm | ||
| Interface type | SC/UPC | ||
| Fiber type | 9/125μm SMF (Single Mode Fiber) | ||
| Light transmission power | Class B+: +1.5 ~ +5dBm Class C+: +3 ~ +7dBm | ||
| Receiving sensitivity | Class B+: -28dBm Class C+: -30dBm | ||
| Saturation power | Class B+: -8dBm Class C+: -12dBm | ||
| Backplane Bandwidth | 400G | ||
| Power supply | AC | -40 ~ - 57 V | |
| DC | 90V ~ 240V | ||
| Environment | Working temperature | -15 ~ 50℃ | |
| Storage temperature | -40 ~ 85℃ | ||
| Ambient humidity | 5 ~ 90% (Non-condensing) | ||
