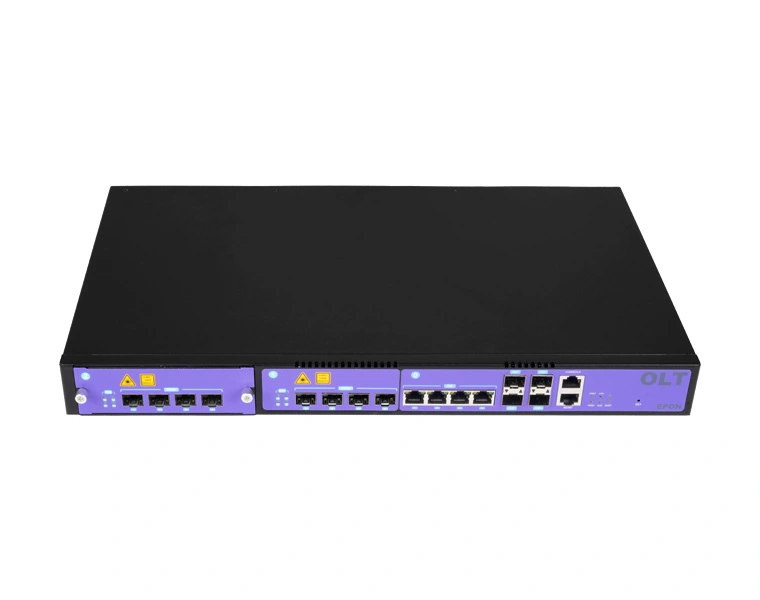

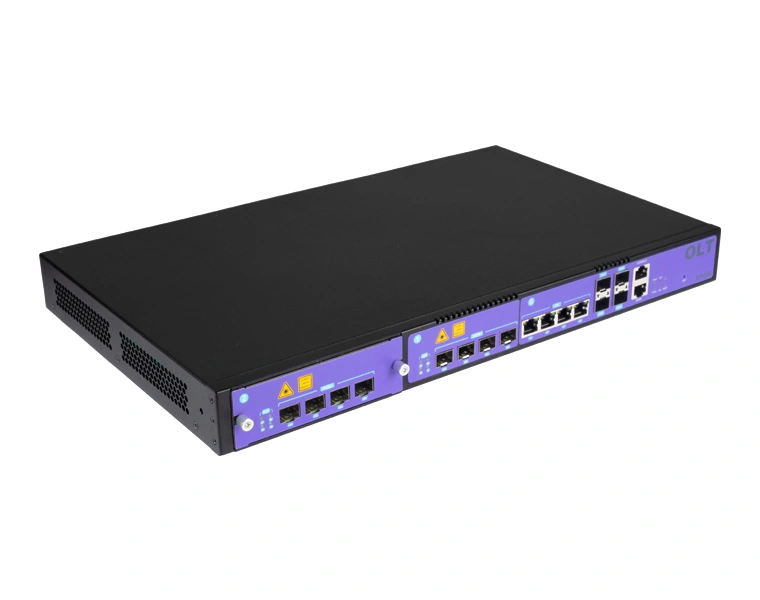

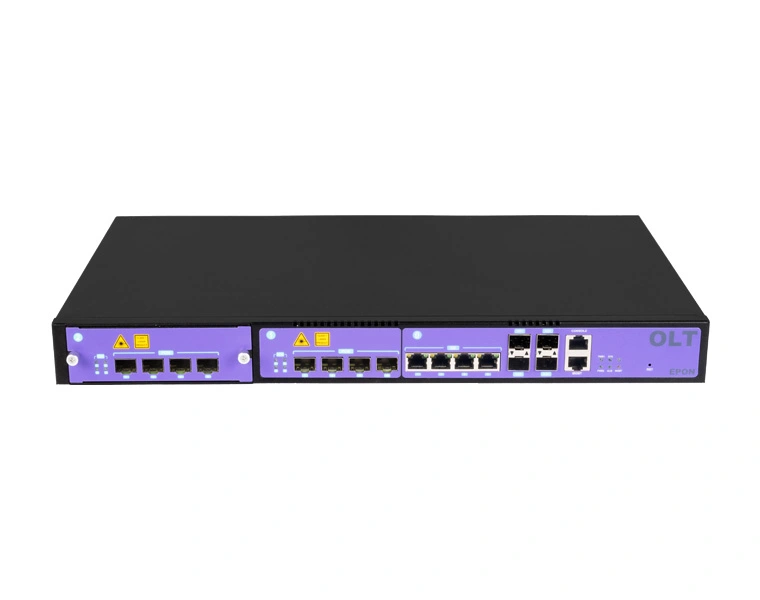

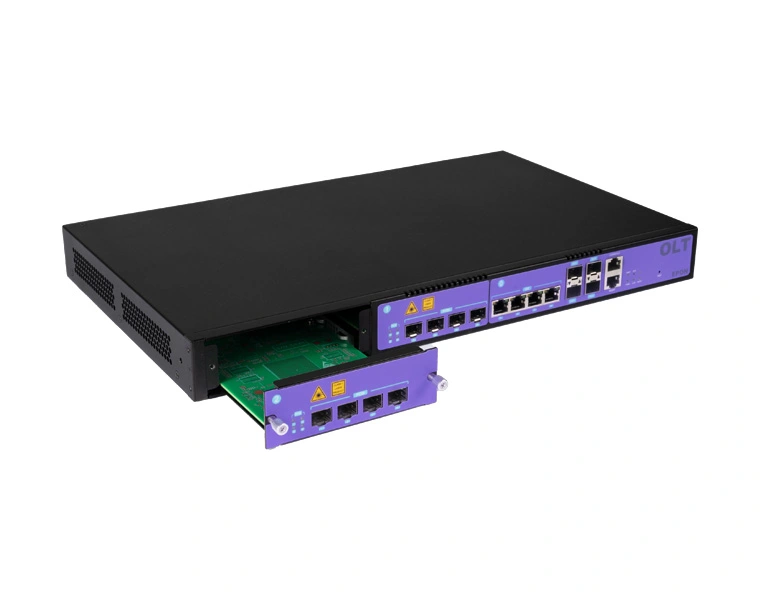

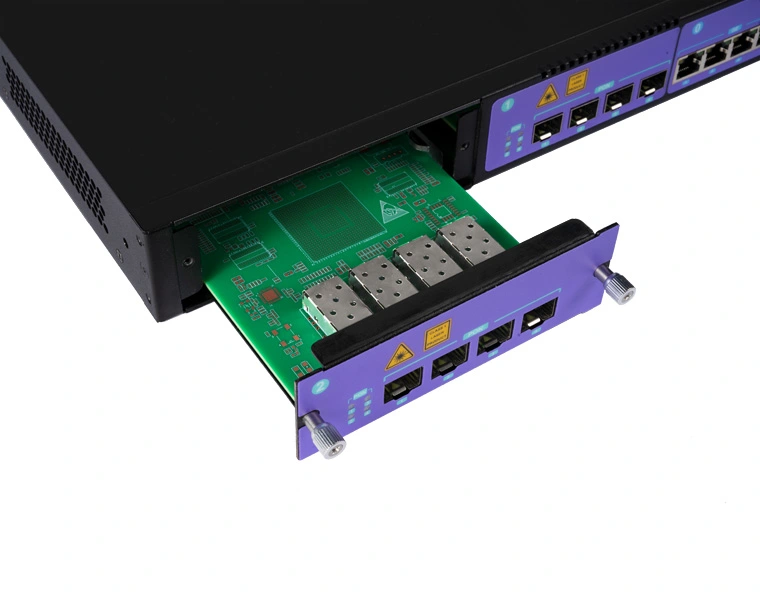

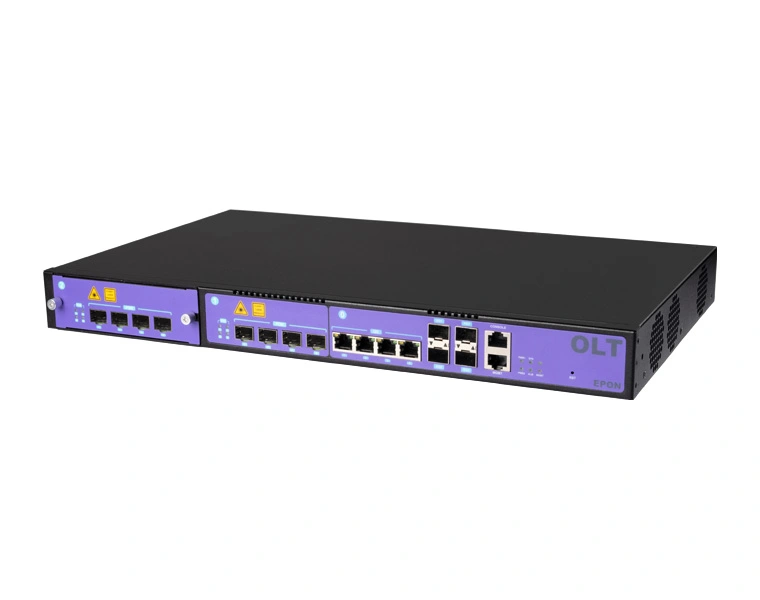

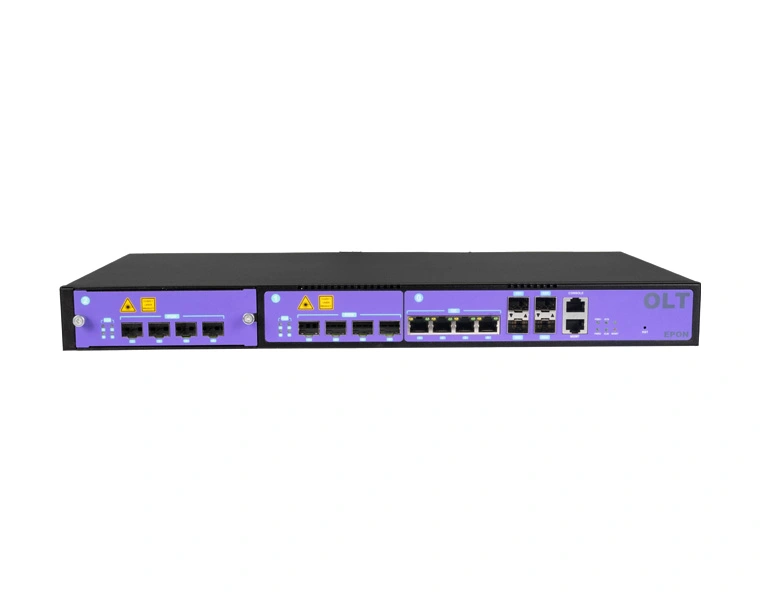

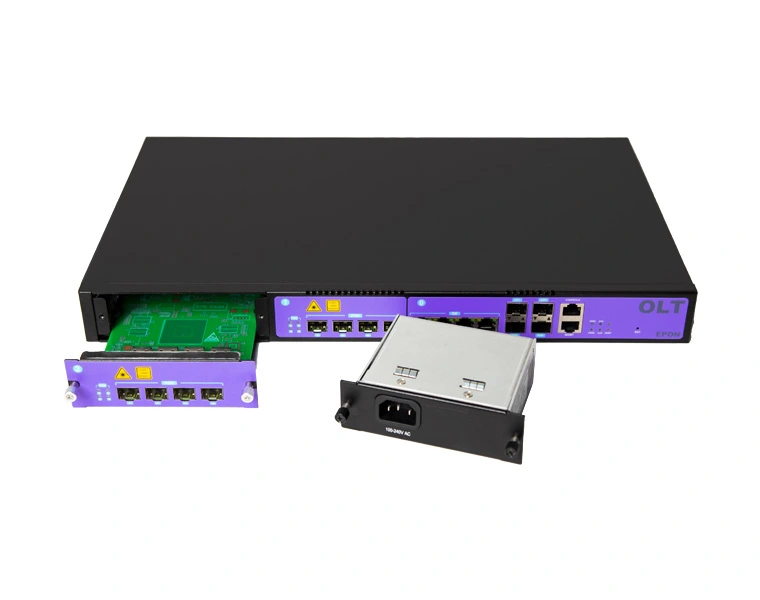

EPON OLT FD1304E-B1 completely meet relative standard of IEEE 802.3x and FSAN, which is 1U rack-mounted device 4 uplink GE ports, 4*10GE uplink ports, 4 fixed EPON ports and 4 optional EPON ports. Each EPON port supports the splitting ratio of 1:64, the EPON system supports up to 512 terminal connections.

This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.

Technical Specifications

RackType1U 19-inch standard box

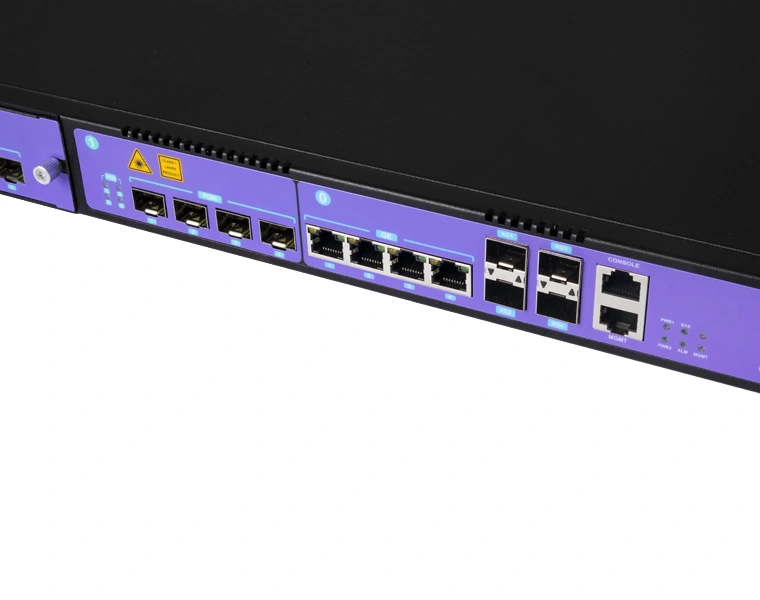

Uplink PortCOMBO port4 10/100/1000M auto-negotiation Ethernet ports
10-Gigabit4 SFP+ interfaces
PON PortQuantity4/8
Physical interfaceSFP
Interface typeEPON: IEEE802.3ah
Max splitting ratioEPON: 1:64
Management Port1 100/1000BASE-Tx out-band Ethernet port
1 CONSOLE local management port
PON Port attributeTransmission distance20KM
Port rateEPON: Symmetrical 1.25Gbps

Forwarding: 1490nm

Receiving: 1310nm

Interface typeSC/UPC
Fiber type9/125μm SMF ((Single Mode Fiber)
Receiving sensitivityEPON: -27dBm
Saturation powerEPON: -6dBm
Network management methodSupport CLI、SNMP、TELNET、SSH、WEB
Business capabilitiesSupport device log, device upgrade, device management, condition monitoring, configuration management, and user management
Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on.
PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on.
Layer 3 function: support static routing, dhcp-relay and vlanif configuration.
Backplane Bandwidth108G

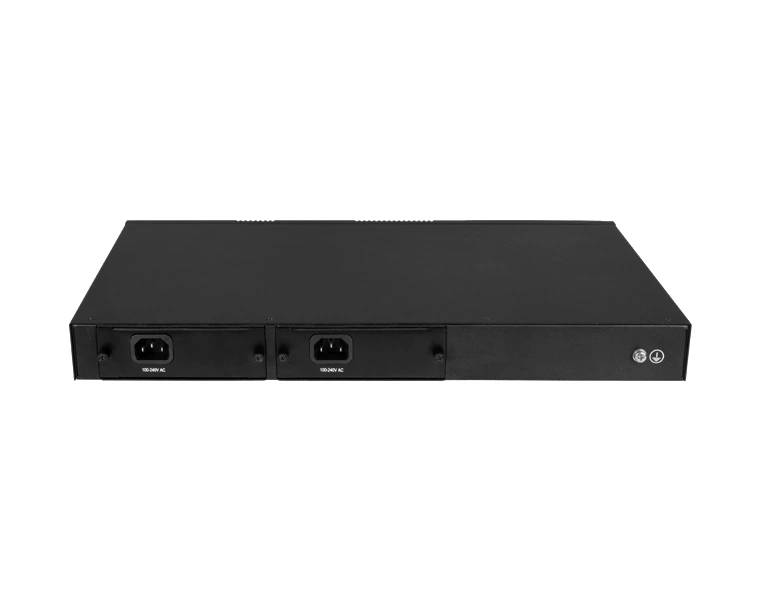

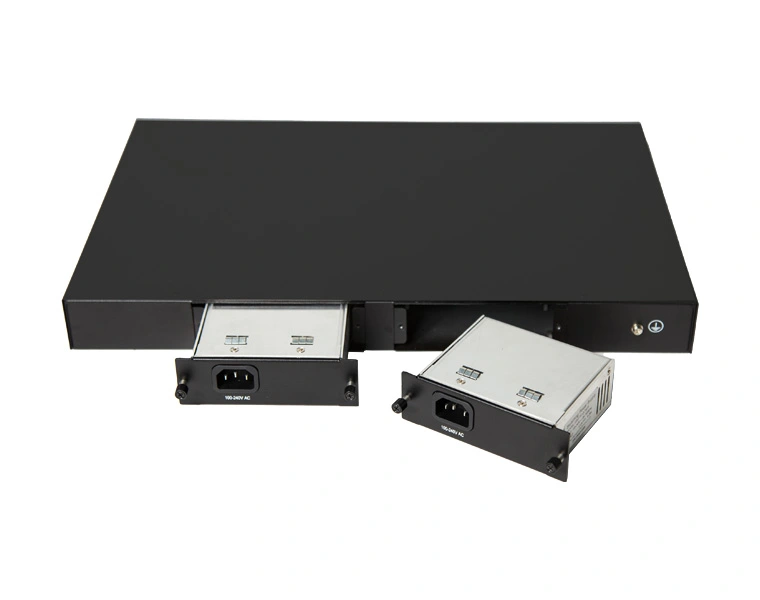

Power supply220VACAC: 100V~240V,47/63Hz
(Backup Battery Unit)
DC: 11V~14V
Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply
Maximum power78W
Working environmentWorking temperature-15~50℃
Storage temperature-40~85℃
Humidity5~90% (Non-condensing)
