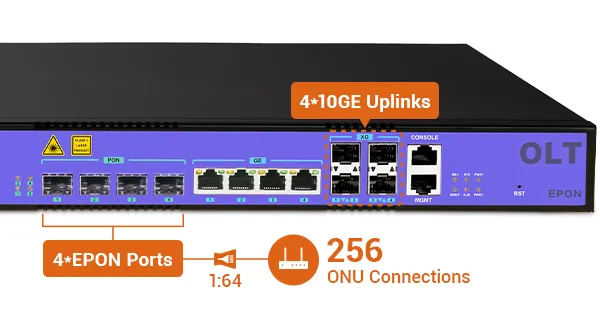

Supports up to 256 ONU connections with a 1:64 split ratio.
4*10GE high-speed uplink ports ensure powerful upstream capacity.

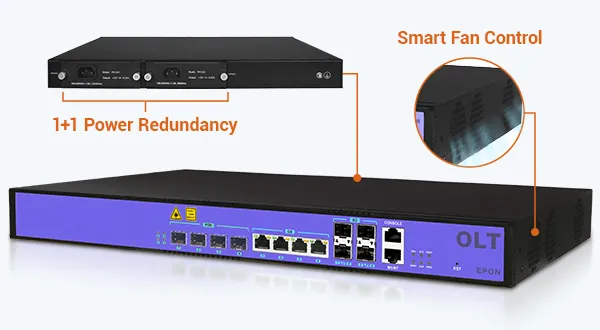

1+1 AC/DC power redundancy ensure uninterrupted operation.
Intelligent temperature-based fan control ensures stable system performance.

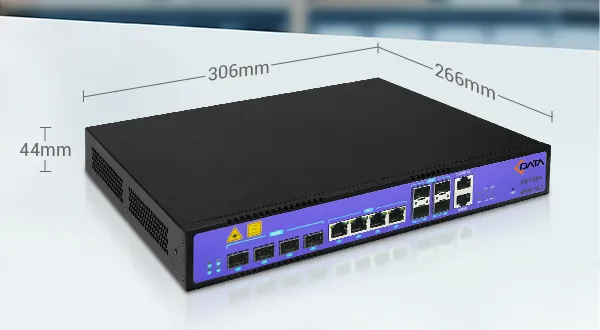

Compact pizza-box and mini form factor enable flexible rack, cabinet, or desktop installation

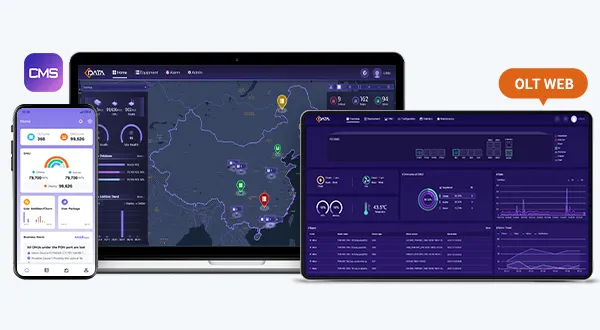

C-Data CMS provide operators and ISPs with a secure, intelligent, and efficient network management system, featuring:
Batch ONU onboarding
Remote one-click troubleshooting
Intelligent business analytics
Real-time monitoring and alerts
Integrating multi-service access to meet the needs of small-scale network deployments.

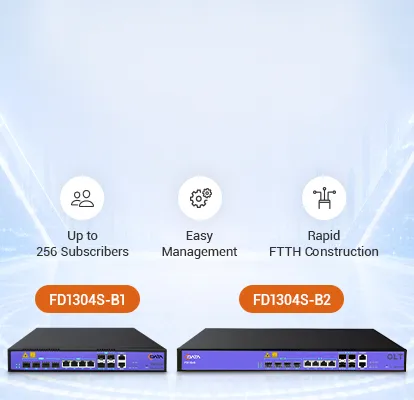

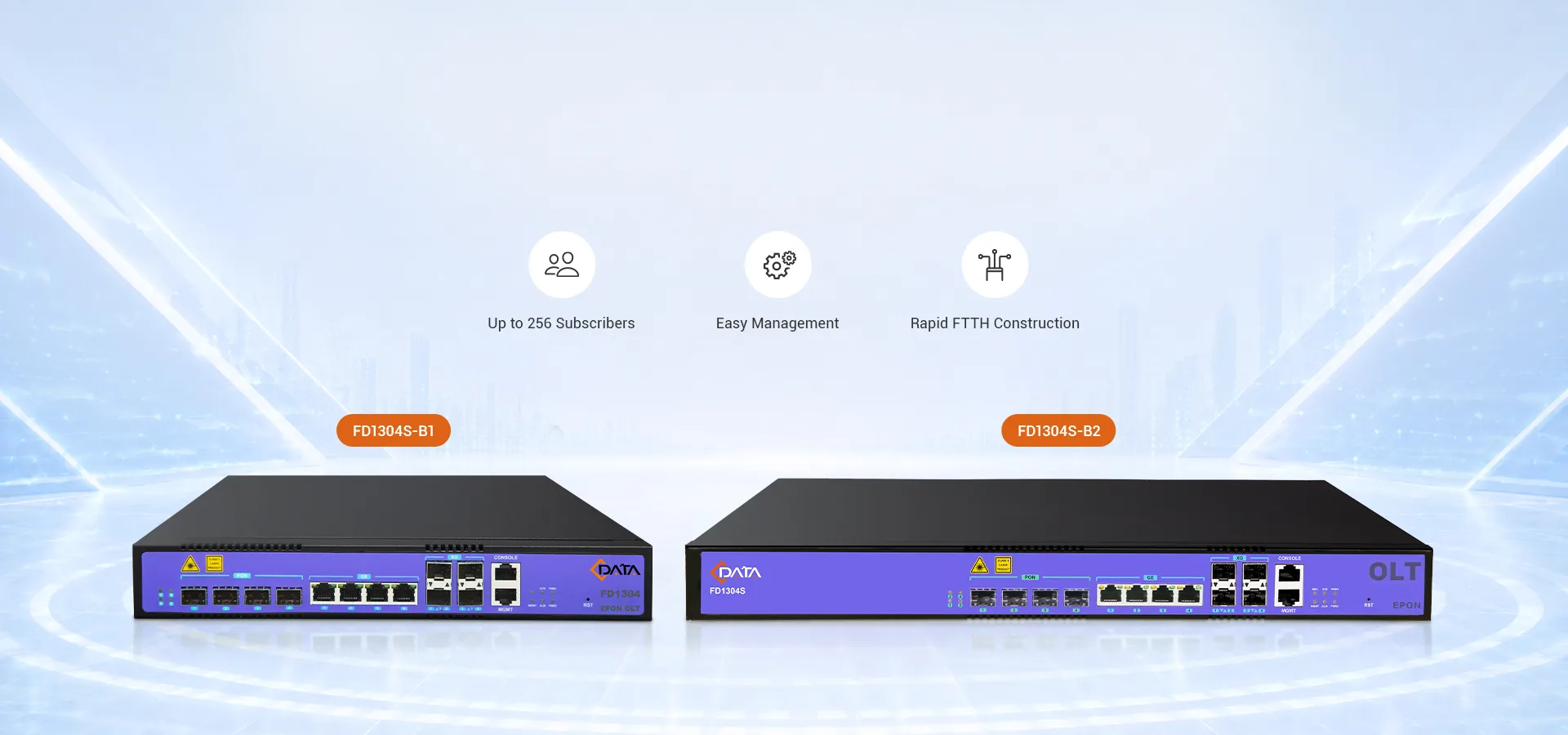

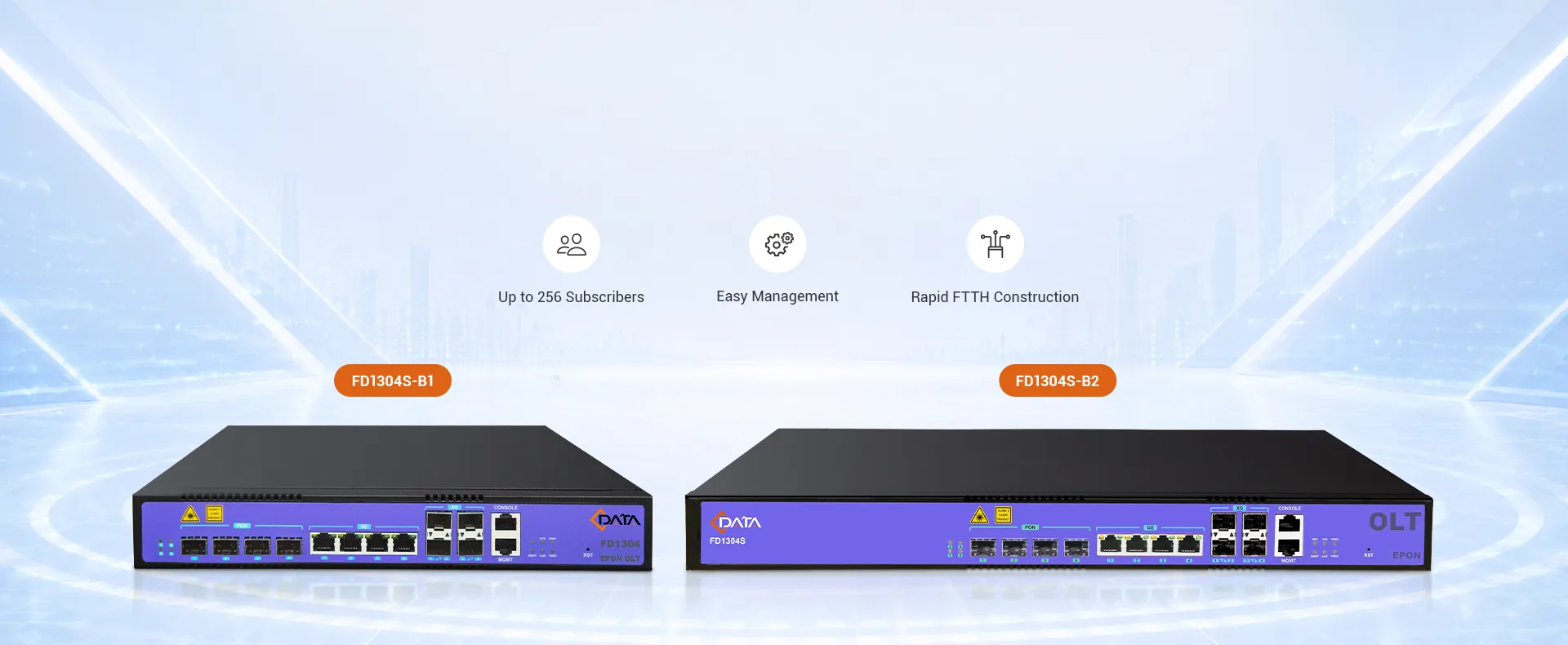

EPON OLT FD1304S completely meet relative standard of IEEE 802.3x and FSAN, which is 1U rack-mounted device with 4 uplink Ethernet ports, 4*10GE uplink ports and 4 EPON ports.Each EPON port supports the splitting ratio of 1:64, The EPON system supports up to 256 terminal connections.
Mechanics | |
Management Rack | 1U 19-inch standard box |
Dimensions | 306*266*44mm |
Weight | 2.6kg |
Hardware | ||
Uplink Port | 4 10/100/1000M auto-negotiation Ethernet ports | |
10-Gigabit | 4 SFP+ interfaces | |
PON Port | Quantity | 4 |
Physical interface | SFP slot | |
Interface type | EPON: IEEE802.3ah | |
Max splitting ratio | EPON: 1:64 | |
Management Port | 1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port | |
PON Port attribute | Transmission distance | 20KM |
Port rate | EPON: Symmetrical 1.25Gbps | |
Wavelength | Forwarding: 1490nm Receiving: 1310nm | |
Interface type | SC/UPC | |
Fiber type | 9/125μm SMF (Single Mode Fiber) | |
Light transmission power | PX20+: 2~5.5dBm | |
Receiving sensitivity | PX20+:-28dBm | |
Saturation power | PX20+:-8dBm | |
Backplane Bandwidth | 98G | |
Power supply | |
AC | 100V ~ 240V，47~63Hz |
DC | -36 ~ -72VDC |
Environment | |
Working temperature | -15 ~ 50℃ |
Storage temperature | -40 ~ 85℃ |
Ambient humidity | 5 ~ 90% (Non-condensing) |
Product Model | Specifications | Power Supply |
FD1304S-B2 | 4*EPON + 4*10GE (SFP+) + 4*1GE (RJ45) | 100V~240VAC or -40V~-72VDC Optional BBU |
