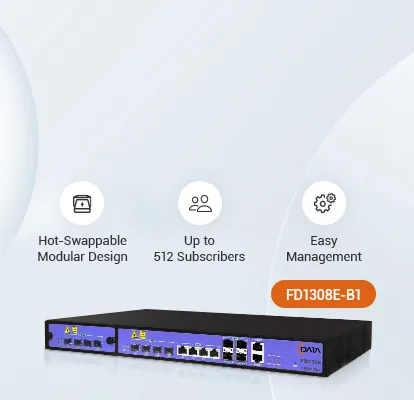

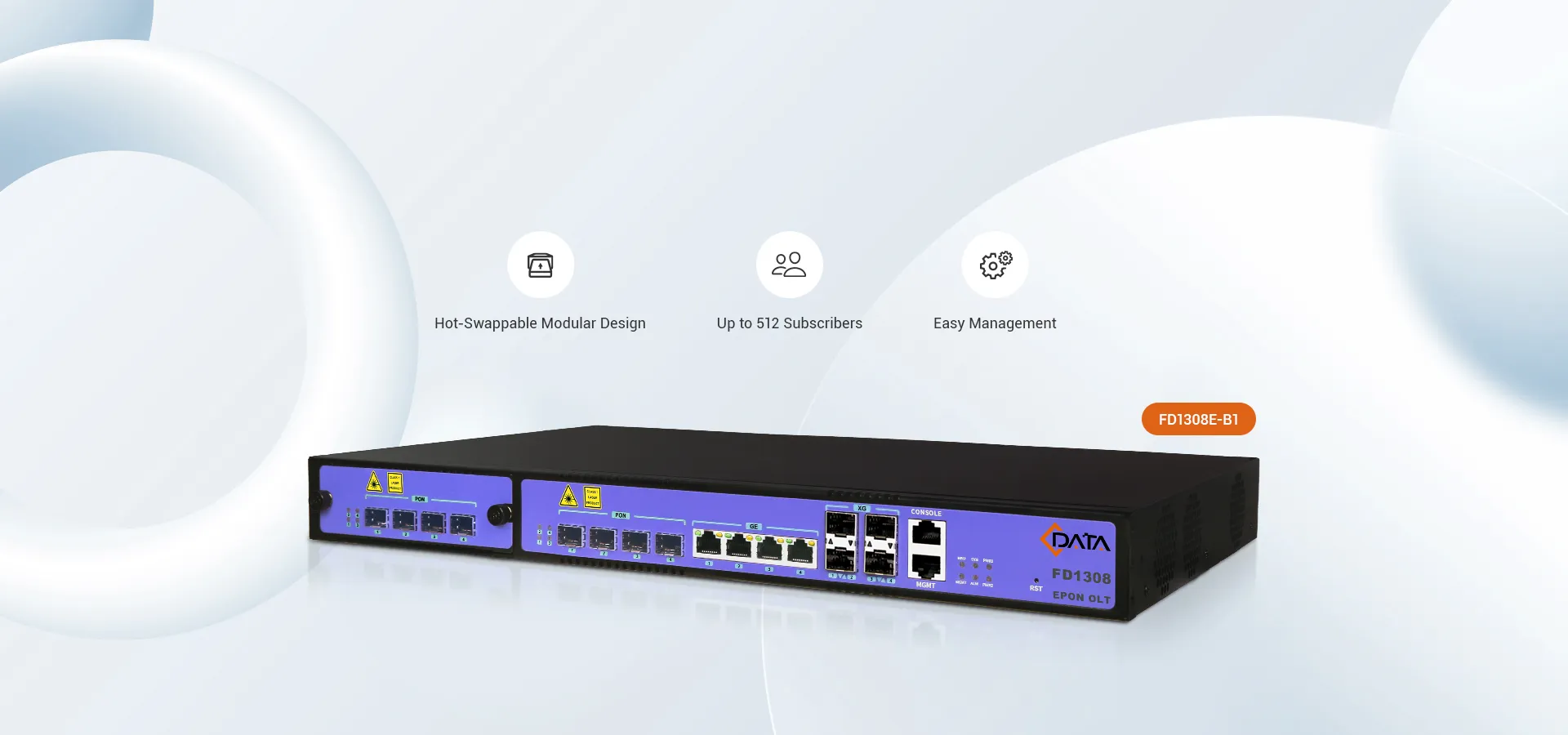

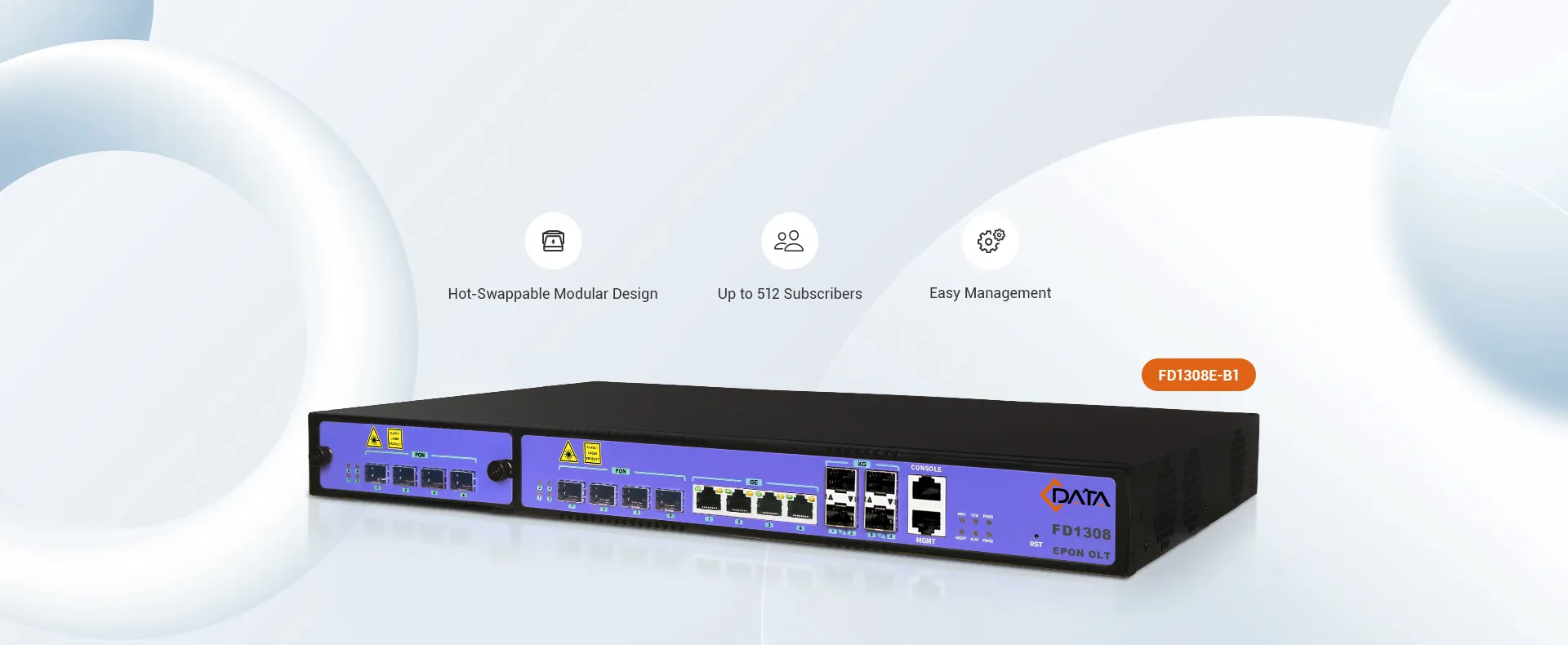

FD1304S-B2 FD1304E-B1
Scalable Capacity, Fast Connectivity

Scalable Capacity, Fast Connectivity

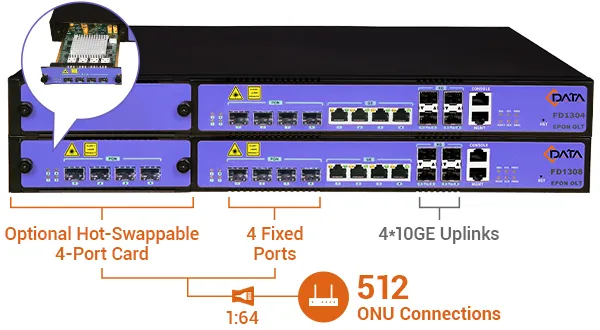

  • Flexible architecture with 4 fixed ports and optional hot-swappable 4-port expansion.

  • Delivers high-bandwidth performance with 4*10GE uplink ports.

  • Supports up to 512 ONU connections with 1:64 split ratio.

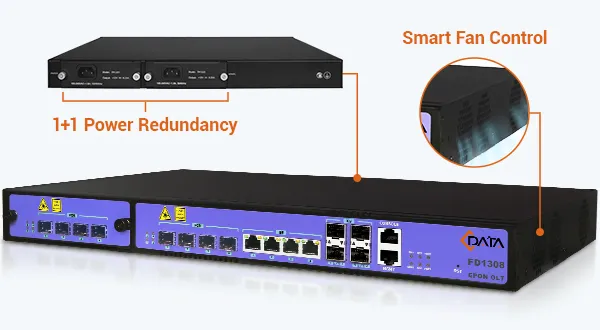

High Reliability

High Reliability

  • 1+1 AC/DC power redundancy ensure uninterrupted operation.

  • Intelligent temperature-based fan control ensure stable system performance.

Streamlined Network Management

Streamlined Network Management

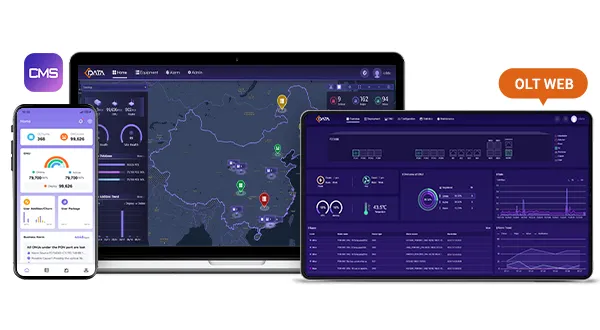

Centralized CMS management of OLT and connected ONUs for smart and streamlined O&M, featuring:

  • Batch ONU onboarding

  • Remote one-click troubleshooting

  • Intelligent business analytics

  • Real-time monitoring and business alerts


Diverse Application Scenarios

Integrating multi-service access to meet the needs of small-scale network deployments.

  • 5 1 FTTH
  • 5 2 SMBs
  • 5 3 Rural Networks
  • 5 4 Residential Buildings

Technical Overview

  • c data fd1304e8ports1
  • c data fd1304e8ports2
  • c data fd1304e8ports5
  • c data fd1304e4ports1
  • c data fd1304e4ports2
  • c data fd1304e8ports1
  • c data fd1304e8ports2
  • c data fd1304e8ports5
  • c data fd1304e4ports1
  • c data fd1304e4ports2

EPON OLT FD1304E-B1 completely meet relative standard of IEEE 802.3x and FSAN, which is 1U rack-mounted device 4 uplink GE ports, 4*10GE uplink ports, 4 fixed EPON ports and 4 optional EPON ports. Each EPON port supports the splitting ratio of 1:64, the EPON system supports up to 512 terminal connections.

This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.

Datasheet Get Docs

Technical Specifications

ITEMFD1304E-B1
RackType1U 19-inch standard box
Uplink PortCOMBO port4 10/100/1000M auto-negotiation Ethernet ports
10-Gigabit4 SFP+ interfaces
PON PortQuantity4/8
Physical interfaceSFP
Interface typeEPON: IEEE802.3ah
Max splitting ratioEPON: 1:64
Management Port1 100/1000BASE-Tx out-band Ethernet port
1 CONSOLE local management port
PON Port attributeTransmission distance20KM
Port rateEPON: Symmetrical 1.25Gbps
Wavelength

Forwarding: 1490nm

Receiving: 1310nm

Interface typeSC/UPC
Fiber type9/125μm SMF ((Single Mode Fiber)
Receiving sensitivityEPON: -27dBm
Saturation powerEPON: -6dBm
Network management methodSupport CLI、SNMP、TELNET、SSH、WEB
Business capabilitiesSupport device log, device upgrade, device management, condition monitoring, configuration management, and user management
Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on.
PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on.
Layer 3 function: support static routing, dhcp-relay and vlanif configuration.
Backplane Bandwidth108G
Size440*293*44mm
Weight4.0Kg
Power supply220VACAC: 100V～240V，47/63Hz
-48DCDC:-40V～-72V
BBU
(Backup Battery Unit)		DC: 11V～14V
Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply
Maximum power78W
Working environmentWorking temperature-15～50℃
Storage temperature-40～85℃
Humidity5～90% (Non-condensing)


Technical Specifications

ITEM

  • FD1304E-B1

Rack
Type

  • 1U 19-inch standard box

Uplink Port
COMBO port

  • 4 10/100/1000M auto-negotiation Ethernet ports

10-Gigabit

  • 4 SFP+ interfaces

PON Port
Quantity

  • 4/8

Physical interface

  • SFP

Interface type

  • EPON: IEEE802.3ah

Max splitting ratio

  • EPON: 1:64

Management Port

  • 1 100/1000BASE-Tx out-band Ethernet port
    1 CONSOLE local management port

PON Port attribute
Transmission distance

  • 20KM

Port rate

  • EPON: Symmetrical 1.25Gbps

Wavelength

  • Forwarding: 1490nm

  • Receiving: 1310nm

Interface type

  • SC/UPC

Fiber type

  • 9/125μm SMF ((Single Mode Fiber)

Receiving sensitivity

  • EPON: -27dBm

Saturation power

  • EPON: -6dBm

Network management method

  • Support CLI、SNMP、TELNET、SSH、WEB

Business capabilities

  • Support device log, device upgrade, device management, condition monitoring, configuration management, and user management

  • Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on.
    PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on.

  • Layer 3 function: support static routing, dhcp-relay and vlanif configuration.

Backplane Bandwidth

  • 108G

Size

  • 440*293*44mm

Weight

  • 4.0Kg

Power supply
220VAC

  • AC: 100V～240V，47/63Hz

-48DC

  • DC:-40V～-72V

BBU
(Backup Battery Unit)

  • DC: 11V～14V

  • Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply

Maximum power

  • 78W

Working environment
Working temperature

  • -15～50℃

Storage temperature

  • -40～85℃

Storage temperature

  • 5～90% (Non-condensing)


Ordering Information

Product Model

Specification

Power Supply

FD1304E-B1

4*EPON + 4*10GE (SFP+) + 4*GE (SFP)

100V~240VAC or -40V~-72VDC

Optional BBU

FD3041T

Optional 4*EPON port card (only compatible with FD1304E)




Ordering Information

NO.

  • 1

  • 2

  • 3

Product Model

  • FD1304E

  • FD1304S

  • FD3041T

Specifications

  • 4+4*EPON + 4*GE + 4*10GE SFP+

  • 4*EPON + 4*GE RJ45 + 4*10GE SFP+

  • Optional 4*EPON port card (only compatible with FD1304E)

Accessories

  • FD1304S: Extended rack-ear


Related Products
