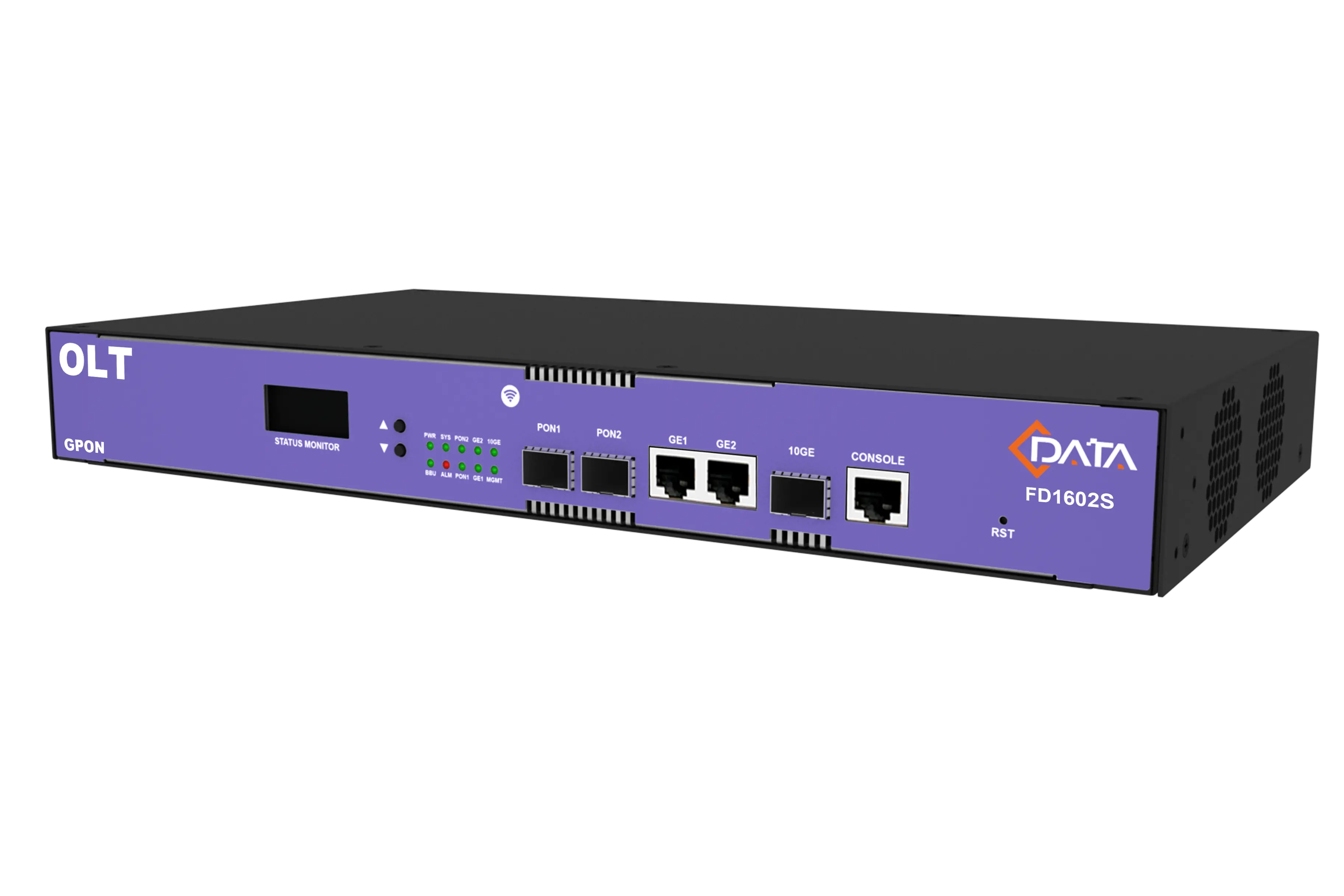

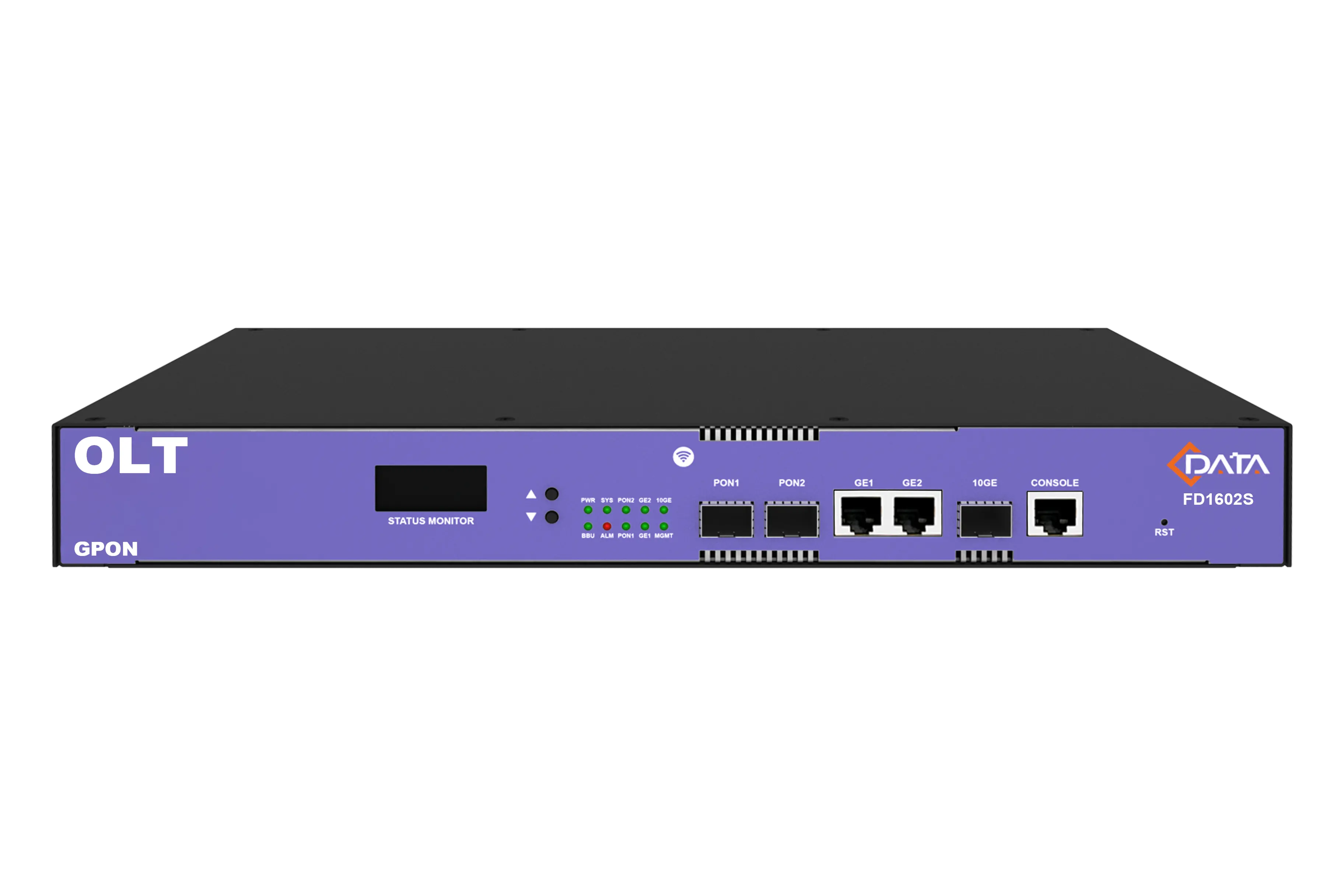

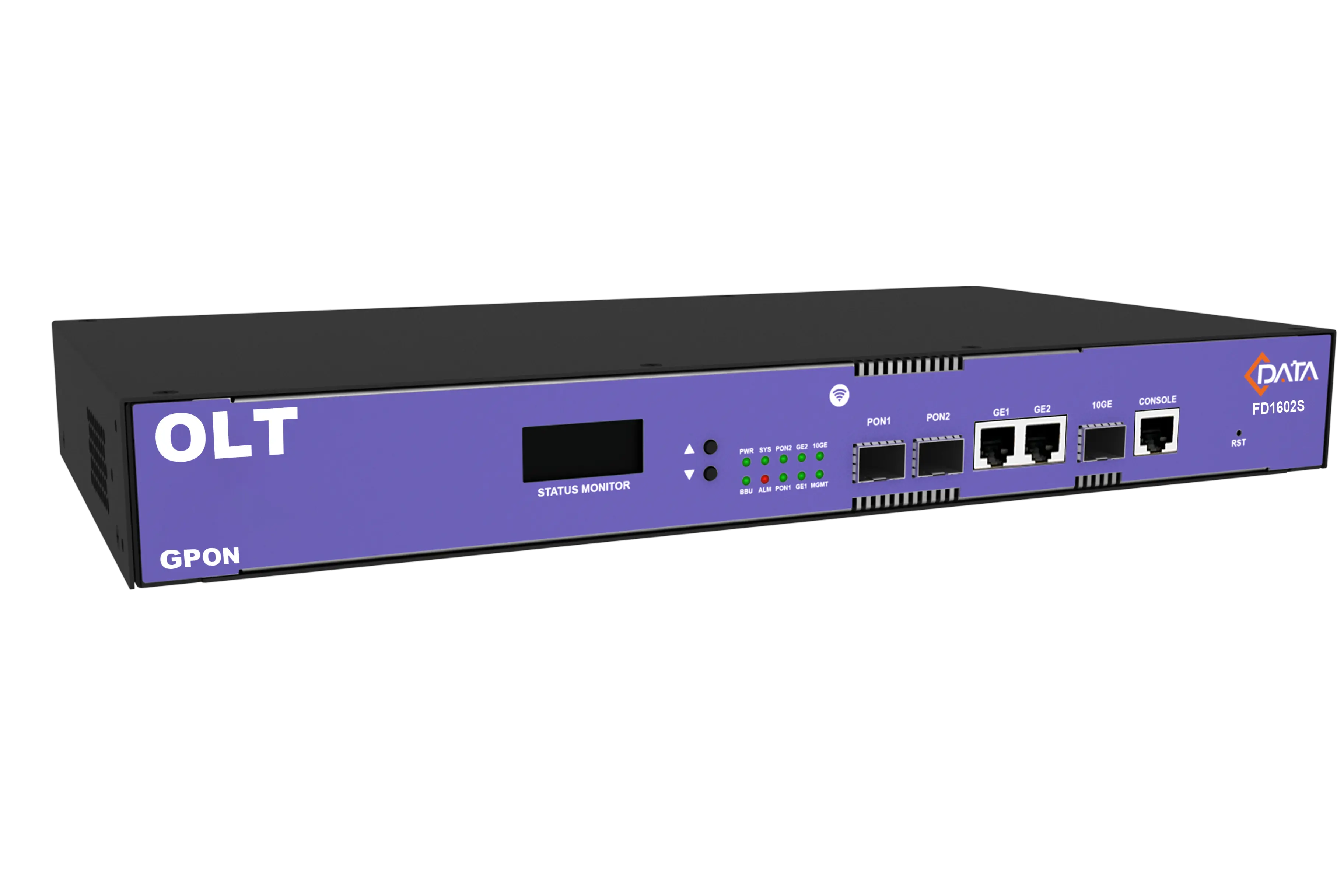

FD1602S-B1
2PON PORT GPON OLT

GPON OLT FD1602S-B1 completely meet relative standard of ITU G.984.x and FSAN, the device with 2 uplink Ethernet ports and 1 10 Gigabit uplink port and 2 GPON port.Each GPON port supports the splitting ratio of 1:128, The GPON system supports up to 256 terminal connections.


Technical Specifications

Mechanics

Dimensions

360mm(L)*193mm(W)*44mm(H)

Weight

1.70Kg

Hardware

Uplink Port

2*10/100/1000M auto-negotiation Ethernet ports

Optional port

1*10 Gigabit uplink port

PON Port

Quantity

2

Physical interface

SFP slot

Interface type

GPON:  ITU-TG.984.2 Class B+/Class C+

Max splitting ratio

GPON:  1:128

Management Port

1  CONSOLE local management port

PON Port attribute

Transmission distance

20KM

Port rate

GPON:

Downstream: 2.5Gbps

Upstream: 1.25Gbps

Wavelength

Forwarding: 1490nm

Receiving: 1310nm

Interface type

SC/UPC

Fiber type

9/125μm SMF (Single Mode Fiber)

Light transmission power

Class B+  +1.5 ~ +5dBm

Class C+  +3 ~ +7dBm

Receiving sensitivity

Class B+ :  -28dBm

Class C+ :  -30dBm

Saturation power

Class B+  -8dBm

Class C+  -12dBm

Backplane Bandwidth

31.5G

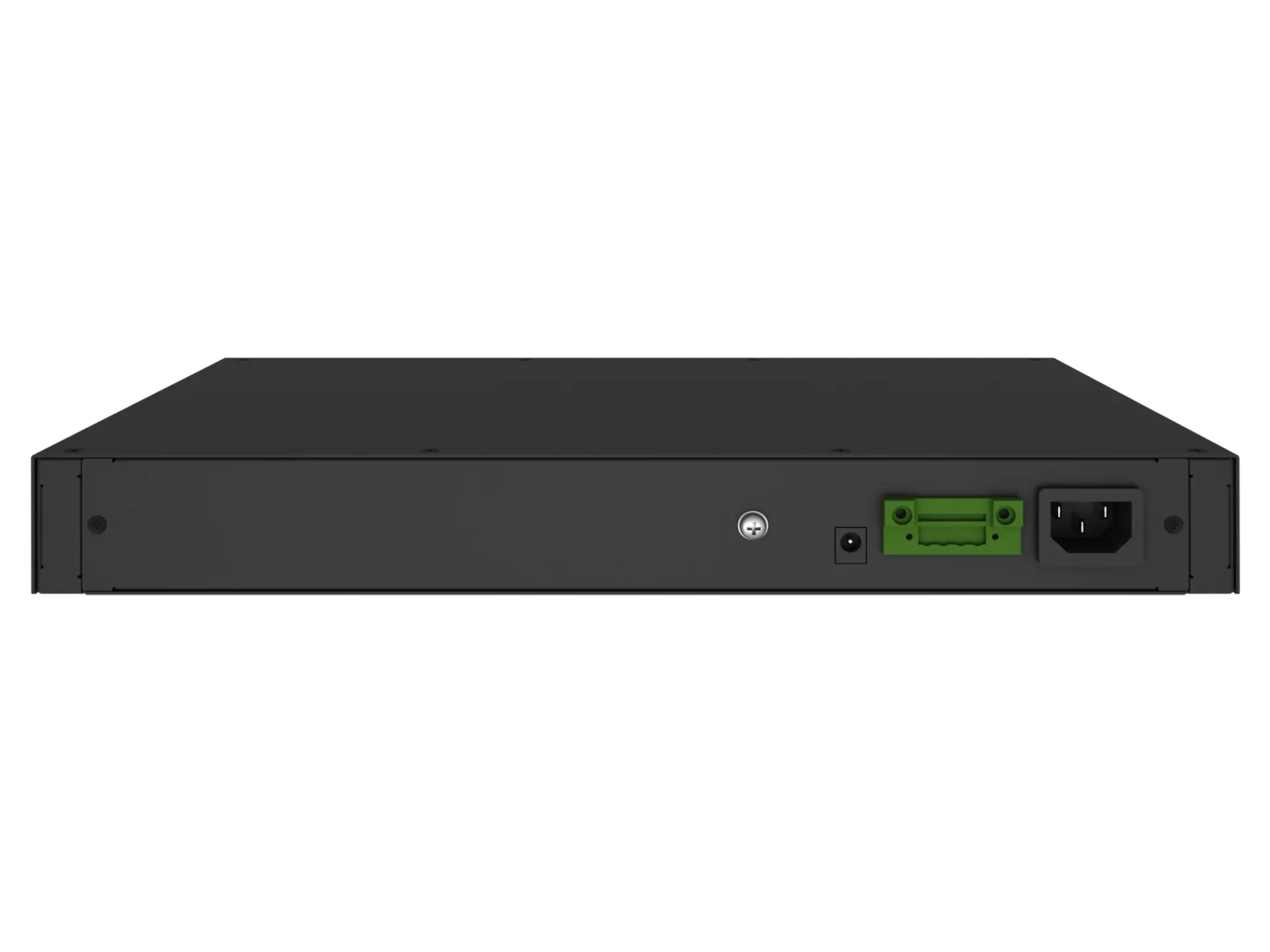

Power supply

AC

100V ~ 240V,47~63Hz

DC

External adapter mode 12V/2.5A

Environment

Working temperature

-15 ~ 50℃

Storage temperature

-40 ~ 85℃

Ambient humidity

5 ~ 90% (Non-condensing)
