What Is OLT in FTTH and Telecom Networks?

In fiber access networks, OLT is one of the most important devices. Whether the project is residential FTTH broadband, enterprise fiber access, campus networking, hotel connectivity, or ISP infrastructure, the OLT works as the central control and aggregation point of the PON network.

Common questions include: "What is the role of OLT in FTTH networks?", "What is the difference between OLT and ONU?", "What is a Combo PON OLT?", "What is a cloud-managed OLT?", "What is a mini OLT?" and "What is an outdoor OLT?" These questions all relate to how an OLT works, where it is deployed, and which type of OLT should be selected for different network scenarios.

This article explains the meaning, role, types, and selection logic of OLT in FTTH and telecom networks.

What Is OLT in Telecom Networks?

OLT stands for Optical Line Terminal. It is the operator-side device in a Passive Optical Network. In telecom networks, the OLT connects the operator's core or aggregation network to multiple user-side ONU / ONT devices through passive optical splitters and fiber cables.

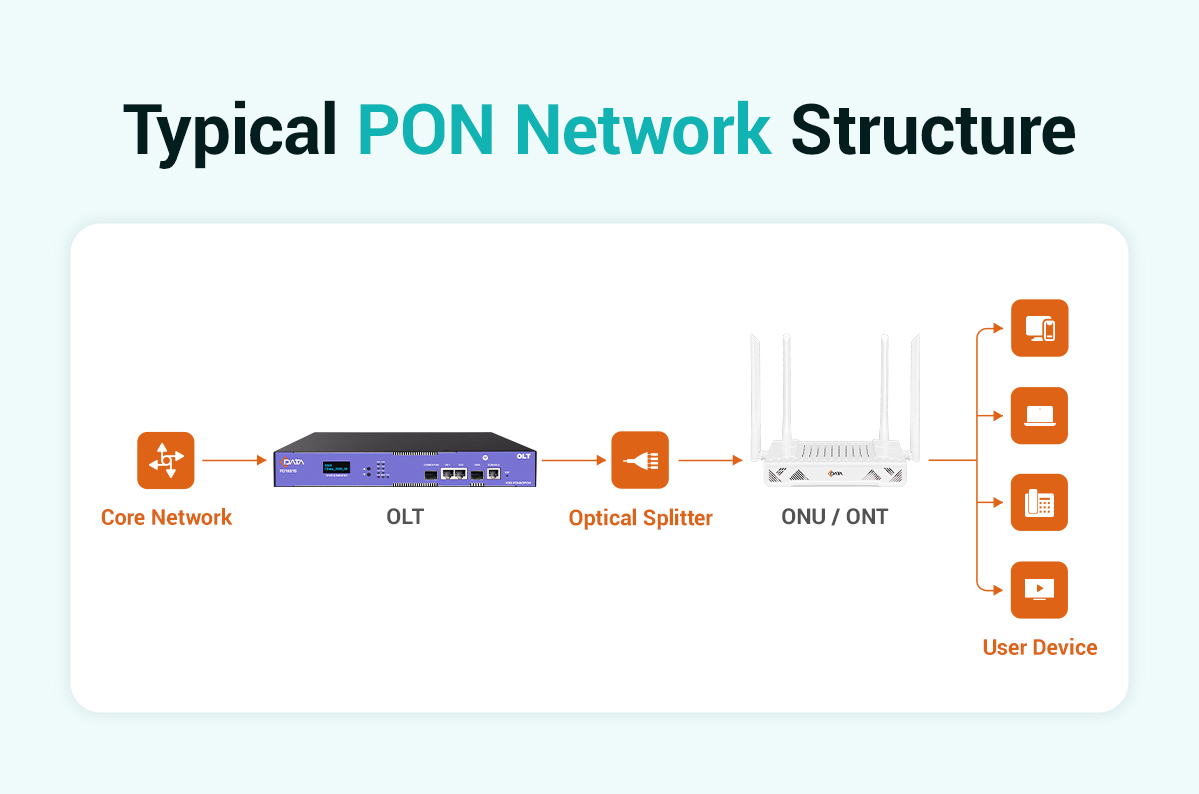

A typical PON network structure is:

Core network → OLT → optical splitter → ONU / ONT → user device

The OLT is usually installed in a central office, access node, equipment room, outdoor cabinet, enterprise network room, or community broadband access point. It manages downstream and upstream traffic between the service provider network and subscriber-side terminals.

According to ITU-T G.984.1, GPON is defined as a Gigabit-capable Passive Optical Network standard, which provides the technical background for understanding how OLTs work in fiber access networks.

For operators and integrators, choosing a suitable C-Data OLT is important because it affects access capacity, user experience, service stability, bandwidth planning, and long-term network expansion.

What Is the Role of OLT in FTTH Networks?

In FTTH networks, the OLT plays the role of central access control, bandwidth distribution, service management, and traffic aggregation. It connects the operator's core network with subscriber-side ONUs or ONTs.

The main roles of OLT in FTTH networks include:

• Connecting the PON network to the core or aggregation network

• Transmitting downstream traffic to multiple ONUs

• Receiving upstream traffic from ONUs

• Managing user authentication and service access

• Allocating bandwidth to subscribers

• Supporting VLAN, QoS, multicast, VoIP, IPTV, and data services

• Monitoring ONU status and network performance

• Supporting remote configuration and maintenance

In simple terms, the OLT is the "central controller" of an FTTH network. Without an OLT, a PON access network cannot provide broadband services to connected ONUs.

For example, a GPON OLT can be used to provide fiber access for homes, apartments, hotels, office buildings, industrial parks, and communities. It works with optical splitters and ONUs to deliver broadband, voice, video, and enterprise data services.

What Is the Difference Between OLT and ONU?

The main difference between OLT and ONU is their network position and function. The OLT is installed on the service provider side, while the ONU is installed on the user side.

The OLT sends services into the fiber access network. The ONU receives those services and converts optical signals into Ethernet interfaces and may also provide Wi-Fi, voice (POTS), or CATV interfaces.

For example, an ONU is usually installed near the end user, while the OLT is deployed at the operator or network management side. This is why OLT and ONU must be compatible in terms of PON standard, configuration, service profile, and management protocol.

What Is a Combo PON OLT?

A Combo PON OLT is an OLT that can support multiple PON technologies, usually GPON and XG(S)-PON, through the same or compatible access platform. It helps operators upgrade from GPON to 10G PON without completely rebuilding the existing optical distribution network.

In traditional network upgrades, operators may need to replace equipment or deploy parallel systems when moving from GPON to XG(S)-PON. A Combo PON OLT can simplify this process by supporting coexistence and smoother migration.

A Combo PON OLT is useful when:

• Existing GPON users need to remain online

• Some users require higher bandwidth through XG(S)-PON

• The operator wants to reduce upgrade cost

• The network needs a gradual migration path

• The same ODN needs to support different user packages

For FTTH operators, C-Data Combo PON OLTs enable a smooth evolution from GPON to 10G broadband. With flexible 1-, 16-, and 112-port configurations, they support projects of different scales while protecting existing GPON investments and meeting future bandwidth demands.

What Is a Cloud-Managed OLT?

A cloud-managed OLT is an OLT that can be remotely monitored, configured, upgraded, and maintained through a centralized cloud-based management platform. Instead of managing each OLT separately through a local interface, operators can manage multiple OLTs from a unified system.

Cloud-managed OLT management is useful for broadband networks with access devices deployed across multiple communities, towns, campuses, buildings, outdoor cabinets, or remote sites. Without centralized management, maintenance becomes time-consuming and expensive.

A cloud-managed OLT can help with:

• Remote device configuration

• Firmware upgrade

• Fault alarm monitoring

• ONU status checking

• Service profile management

• Bandwidth and user policy management

• Batch deployment

• Reduced on-site maintenance

For ISPs, the value of a cloud-managed OLT is improved operational efficiency. It enables engineers to manage access networks at scale, reduce manual configuration, and respond faster to faults.

What Is a Mini OLT?

A mini OLT is a compact OLT designed for small and medium-scale fiber access deployment. Compared with large chassis OLT systems, mini OLTs are smaller, easier to install, and more cost-effective for limited user capacity.

A mini OLT is suitable for:

• Small FTTH projects

• Rural broadband deployment

• Hotels and apartments

• Office buildings

• Schools and campuses

• Small ISP access networks

• Enterprise fiber access

• Temporary or phased network deployment

The advantage of a mini OLT is flexibility. C-Data offers GPON and Combo PON mini OLTs in 1- or 2-port configurations, ideal for edge deployment. Their compact design enables flexible installation in small equipment rooms, wall-mounted cabinets, structured wiring cabinets, or distributed access locations. Compared with high-density chassis OLTs, mini OLTs offer a cost-effective solution for small-scale deployments.

However, mini OLT selection should still consider PON port count, uplink capacity, management functions, maximum supported ONUs, redundancy requirements, and future expansion needs. A low-cost OLT may not be the best choice if the network will grow quickly.

What Is an Outdoor OLT?

An outdoor OLT is an OLT designed for outdoor or harsh deployment environments. It is commonly used when indoor equipment rooms are not available or when the access node needs to be closer to subscribers.

Outdoor OLTs are often deployed in:

• Rural FTTH networks

• Remote communities

• Outdoor cabinets

• Industrial parks

• Roadside telecom cabinets

• Smart city access networks

• Mining, port, or transportation networks

• Distributed broadband access scenarios

Compared with indoor OLTs, outdoor OLTs usually need stronger environmental protection. They may require wider operating temperature range, dust protection, lightning protection, surge protection, and cabinet-level installation design.

The C-Data outdoor OLT solution features a modular design that integrates GPON OLT and EYDFA modules into a rugged outdoor cabinet. With support for both pole- and wall-mounted installation, it enables deployment closer to end users, reducing feeder fiber requirements while improving flexibility in remote and distributed access networks.

For outdoor deployment, buyers should check:

• Operating temperature range

• IP rating (such as IP67)

• Power supply mode

• Surge and lightning protection

• Uplink port type

• PON port count

• Cabinet compatibility

• Remote management capability

Outdoor OLTs are not only about installing an OLT outside. They are about building a stable access node that can operate reliably in real field conditions.

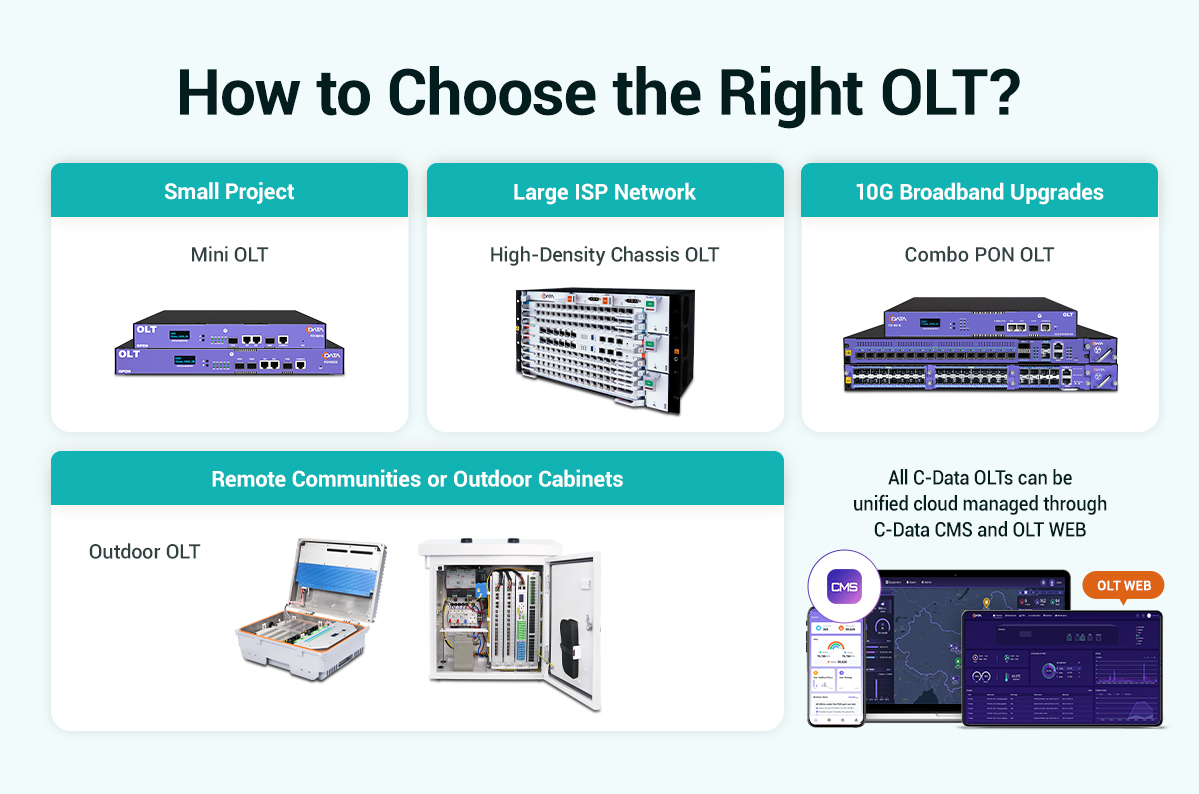

How to Choose the Right OLT for FTTH or Telecom Projects?

Choosing the right OLT depends on network scale, deployment environment, bandwidth demand, PON standard, and management requirements.

For a small project, a mini OLT may be enough. For a large ISP network, a high-density chassis OLT may be more suitable. For 10G broadband upgrades, a Combo PON OLT may be the better choice. For remote communities or outdoor cabinets, an outdoor OLT may be required. For multi-site operations, a cloud-managed OLT can improve maintenance efficiency.

Key selection factors include:

• GPON, EPON, XGS-PON, or Combo PON support

• Number of PON ports

• Uplink port speed

• Maximum split ratio

• ONU compatibility

• Maximum user capacity

• VLAN and QoS support

• Multicast and IPTV support

• EMS, web, CLI, SNMP, or cloud management

• Indoor or outdoor installation environment

• Power redundancy and protection design

• Future upgrade path

The best OLT is not always the largest or most expensive model. The right choice should match the actual network plan, user density, service type, and future expansion strategy.

Conclusion

OLT is the central access device in FTTH and telecom PON networks. It connects the core network to user-side ONUs, manages bandwidth allocation and service provisioning, and supports large-scale fiber broadband access.

The difference between OLT and ONU is clear: the OLT is on the operator side, while the ONU is on the subscriber side. The OLT controls the PON network, and the ONU delivers services to end users.

Different OLT types solve different deployment problems. A Combo PON OLT supports smooth GPON-to-XG(S)-PON upgrades. A cloud-managed OLT improves remote operation and maintenance. A mini OLT is suitable for small and flexible deployments. An outdoor OLT is designed for distributed or harsh environments.

For ISPs, integrators, and enterprise network planners, understanding these OLT types helps build a more scalable, manageable, and future-ready FTTH network.

FAQ

1. What does OLT mean in telecom?

OLT means Optical Line Terminal. It is the operator-side device in a Passive Optical Network and connects the telecom operator's network to multiple ONU / ONT devices through optical splitters.

2. What is the role of OLT in FTTH networks?

The OLT manages the FTTH access network. It connects to the core network, sends downstream traffic to ONUs, receives upstream traffic from users, controls bandwidth, and supports services such as internet, IPTV, VoIP, and enterprise data.

3. What is the difference between OLT and ONU?

The OLT is installed on the operator or central office side, while the ONU is installed on the user side. The OLT controls and manages the PON network. The ONU receives the optical signal and provides service interfaces for users.

4. What is a Combo PON OLT used for?

A Combo PON OLT is used for network upgrade and coexistence scenarios. It supports GPON and XG(S)-PON simultaneously, helping operators provide higher bandwidth while protecting existing GPON investment.

5. What is a cloud-managed OLT?

A cloud-managed OLT can be remotely configured, monitored, upgraded, and maintained through a centralized management platform. It is useful for ISPs managing many distributed access nodes.

6. What is a mini OLT?

A mini OLT is a compact OLT for small or medium FTTH deployments. It is often used in hotels, apartments, rural broadband, small ISP networks, schools, and enterprise access projects.

7. What is an outdoor OLT?

An outdoor OLT is designed for outdoor or cabinet-based deployment. It is suitable for remote areas, rural FTTH networks, roadside cabinets, industrial parks, and distributed access scenarios where indoor equipment rooms are not available.
