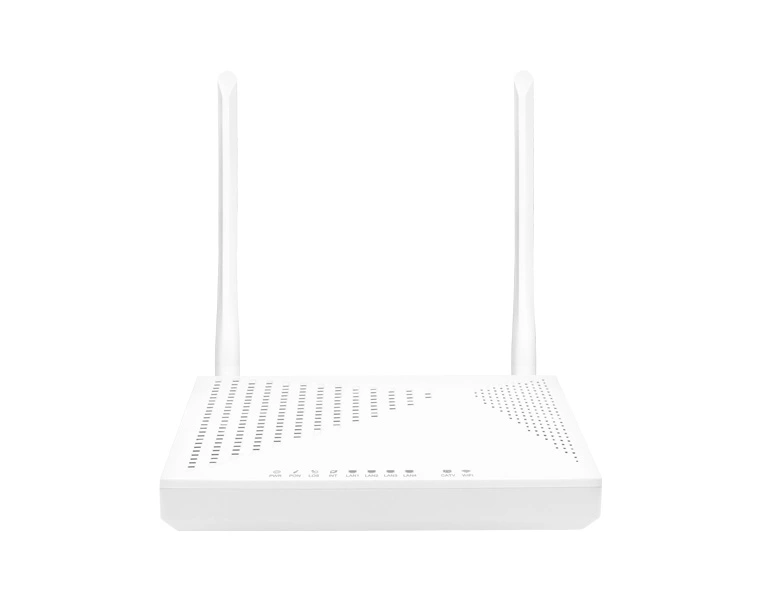

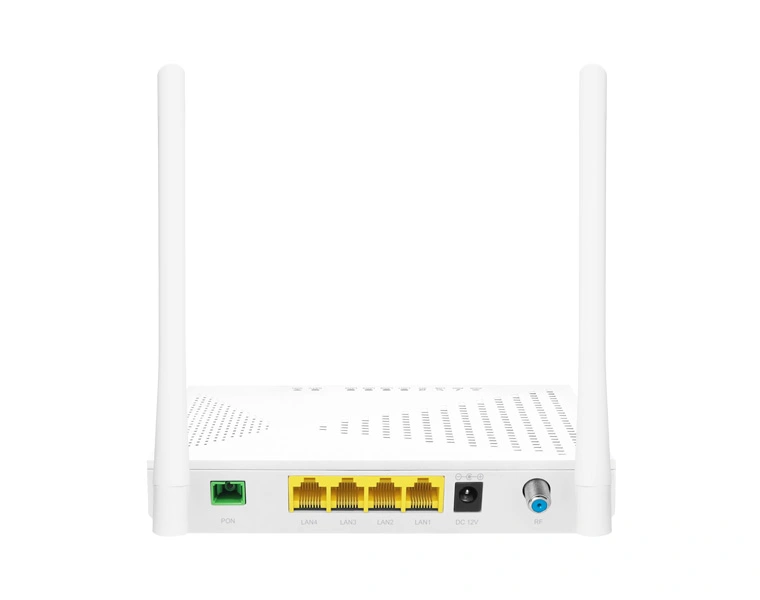

FD714GW-R760 is an indoor fiber broadband access terminal. The device provides one GPON / EPON adaptive optical port and supports XPON mode. It can be used in connection with our company FD16/17 series GPON OLT or FD12 / 13 series EPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) GPON or EPON OLT to provide users with Internet, WIFI and CATV services based on GPON and EPON technology.
| Item | FD714GW-R760 | |
| Specifications | 1*xPON + 4*GE RJ45 + 1*RF CATV + Wi-Fi | |
| GPON/EPON Port | Single mode single fiber | |
| GPON | FSAN G.984.2 standard，Class B+ | |
| EPON | 1000BASE-PX20+ symmetric | |
| GPON | 2.488Gbps/1.244Gbps downstream/upstream | |
| EPON | 1.25Gbps downstream/upstream | |
| Wavelength | Transmit: 1310nm Receiver: 1490nm | |
| Receiving sensitivity | GPON：-28dBm EPON：-27dBm | |
| Saturated power | GPON：-8dBm EPON：-3dBm | |
| Transmitting power | GPON：0.5～5dBm EPON:0～4dBm | |
| User Port(LAN) | RJ-45 connector | |
| 4*10/100/1000Mbps adaptive Ethernet port | ||
| Full/half duplex | ||
| Auto MDI/MDI-X | ||
| WIFI performance parameters | IEEE802.11b/g/n(2.4G) | |
| IEEE802.11a/n/ac(5G) | ||
| Max rate | 300M(2.4G) | |
| Max rate | 867Mbps(5G) | |
| MAX TX power 2.4G | 17dBm | |
| MAX TX power 5G | 17dBm | |
| CATV（Input /Output port） | Wavelength | 1550nm |
| RF frequency | 47MHz~1000MHz | |
| RF impedance | 75Ω | |
| Input optical power | -18dBm～0dBm(with AGC) | |
| RF output level | 78dBuV (@-12~-2dBm@85MHz) (with AGC) | |
| RF output return loss | >12dB(with AGC) | |
| Indicators | PWR/PON/LOS/INT/LAN1-4/CATV/WIFI | |
| Power | External 12V/1A power supply adapter | |
| Power consumption:≤6.5W | ||
| Dimension and Weight | Item Dimension | 234mm(L) x 157.5mm(W) x 32mm(H) |
| Item weight | About 200g | |
| Environmental Specifications | Operating temperature | 0 to 40ºC |
| Storage temperature | -40 to 85ºC | |
| Operating humidity | 10% to 90%(Non-condensing) |
