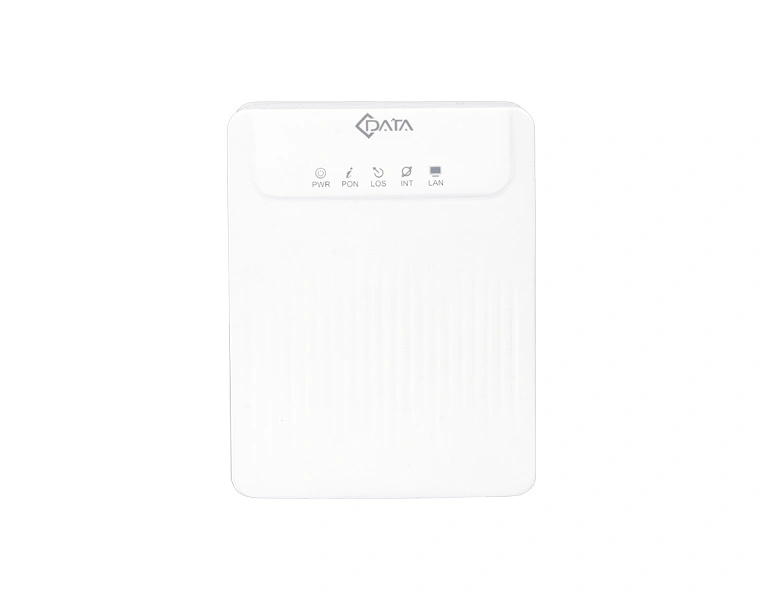

FD511G-FA10
1GE XPON ONU

FD511G-FA10 dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.

FD511G-FA10 features high-performance forwarding capabilities to ensure excellent experience with Internet services. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucent. It provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

Technical Specifications

Item
FD511G-FA10
Specifications
1*xPON + 1*GE RJ45
GPON/EPON Port
SC/APC single mode single fiber
GPONFSAN G.984.x standard,Class B+
EPON1000BASE-PX20+ symmetric
GPON2.488Gbps/1.244Gbps downstream/upstream
EPON1.25Gbps downstream/upstream
WavelengthTransmit: 1310nm Receiver: 1490nm
Receiving sensitivityGPON:-28dBm EPON:-27dBm
Saturated powerGPON:-8dBm EPON:-3dBm
Transmitting powerGPON:0.5~5dBm EPON:0~4dBm
User Port(LAN)
1*10/100/1000 Mbps Auto-negotiation RJ45 ports

Full Duplex / Half-Duplex

RJ45, Auto-MDI/MDI-X

Transmission Distance 100 Meters
Indicators
PWR / PON / LOS / LAN / INT
Power
External 12V/0.5A DC power supply adapter

Power consumption: <3W
Dimension and WeightItem Dimension110*86*30mm(Without Coiled fiber box)110*86*45mm(With Coiled fiber box)
Item weightabout 125g
Environmental SpecificationsOperating temperature0 to 40ºC
Operating humidity10% to 90%(Non-condensing)
