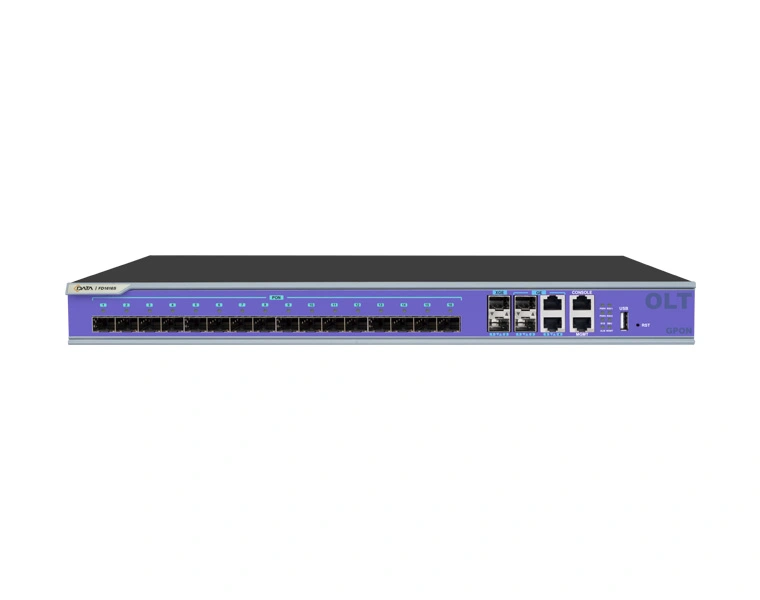

GPON OLT FD1616S-B0 completely meet relative standard of ITU G.984.x and IEEE 802.3x and FSAN, which is 1U rack-mounted device with 1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, 2*10GE uplink ports and 16 GPON ports. Each GPON port supports the splitting ratio of 1:128. GPON system support 2048 terminals accessing in for the most.

This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.

Technical Specifications

16*GPON + 2*GE + 2*GE SFP + 2*10GE SFP+
Management RackType1U 19-inch standard box
Uplink PortCOMBO port4 10/100/1000M auto-negotiation Ethernet ports
4 SFP interfaces
10-Gigabit2 SFP+ interfaces
PON PortQuantity16
Physical interfaceSFP slot
Interface type

GPON: ITU-TG.984.2

Class B+/Class C+

Max splitting ratioGPON: 1:128
Management Port1 100/1000BASE-Tx out-band Ethernet port
1 CONSOLE local management port
USB Port1 USB interface (It's used to backup configuration, upgrade program, and record log information)
PON Port
Transmission distance20KM
Port rateGPON:
Downstream: 2.5Gbps
Upstream: 1.25Gbps
WavelengthForwarding: 1490nm
Receiving: 1310nm
Interface typeSC/UPC
Fiber type9/125μm SMF (Single Mode Fiber)
Light transmission powerClass B+ +1.5~+5dBm
Class C+ +3~+7dBm
Receiving sensitivityClass B+: -28dBm
Class C+: -30dBm
Saturation powerClass B+ -8dBm
Class C+ -12dBm
Network management methodSupport CLI, SNMP, TELNET, SSH, WEB
Business capabilitiesSupport device log, device upgrade, device management, condition monitoring, configuration management, and user management. Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on.
PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on.
Layer 3 function: support static routing, dhcp-relay and vlanif configuration
Backplane Bandwidth108G
Power supply220VACAC: 90V~240V, 47/63Hz
Maximum power100W
Working environmentWorking
Storage temperature-40~85℃
Relative humidity5~90% (Non-condensing)
