Name: Mini GPON OLT
Brand: Shenzhen C-Data Technology Co., Ltd.
Price: 100 USD

C-Data Mini GPON OLT

Savings Meet Performance

Effortless Integration for High-Performance Networking in a Compact Design

Built-in Wi-Fi and Status Monitoring LED

Provide seamless deployment and maintenance, allowing operators or installers to conveniently configure settings using their smartphones.

Real-time data can be effortlessly monitored via the LED display for enhanced operational insights.

Efficient Fiber Connectivity

Choose between models with either 1 GPON port or 2 GPON ports, tailored to your specific requirements.

Compact Size Takes the Crown

Just 290*193*41mm, environmentally friendly and energy-efficient design, seamlessly adaptable to various environments.

Easily integrated into outdoor cabinets and indoor small sites, deployment without worries, eliminating constraints of space.

Manage Remotely with Ease

Access your network management through various methods including CLI, WEB, Telnet, SSH, and MQTT.

Utilize the C-Data CMS for remote, unified management, featuring comprehensive functions and info graphic guides.

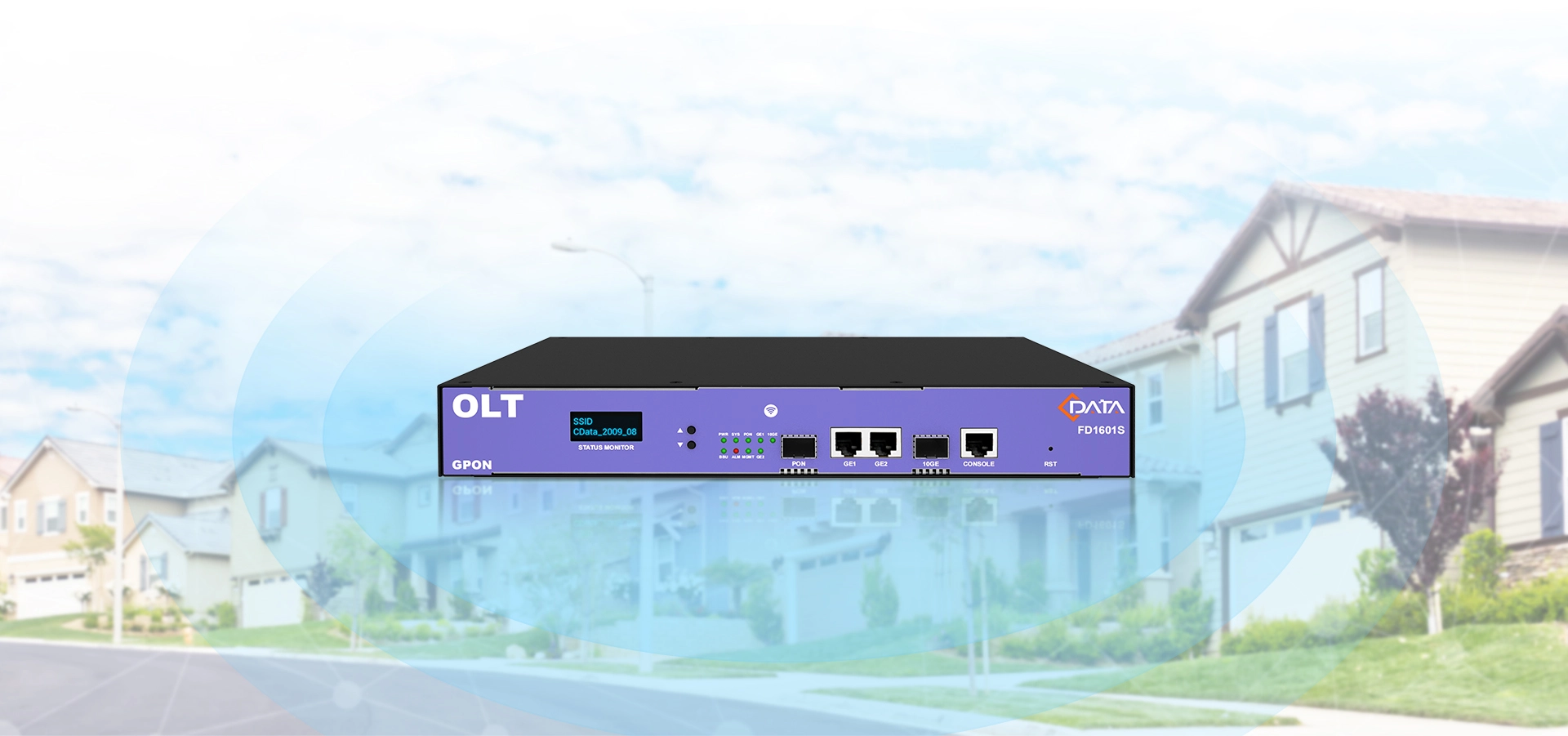

Economical Choice

Perfect for budget-friendly solutions for small-scale networks.

Save on space and maintenance costs while tailoring deployments to local infrastructure conditions.

Application Scenarios

SPECIFICATIONS

Model	FD1601S-B1
Management Rack	1U 19-inch standard box
Dimensions	290(L)193(W)41(H)mm
Uplink Port	2*10/100/1000M auto-negotiation Ethernet ports
PON Port	Quantity: 1 Physical interface: SFP Interface type: GPON: ITU-TG.984.2 Class B+/Class C+ Max splitting ratio: GPON: 1:128
Management Port	1* CONSOLE local management port
Backplane Bandwidth	27.75G

See More 

Take Back 

RELATED PRODUCTS

ITEM	FD1601S-B1					FD1602S-B1
Uplink Port	2 10/100/1000M auto-negotiation Ethernet ports					2*10/100/1000M auto-negotiation Ethernet ports
	10 Gigabit uplink port					1*10 Gigabit uplink port
PON Port	Quantity	1				2
	Physical interface	SFP slot				SFP slot
	Interface type	GPON:ITU-TG.984.2 Class B+/Class C+/Class C++				GPON: ITU-TG.984.2 Class B+/Class C+/Class C++
	Max splitting ratio	GPON:1:128				GPON: 1:128
Management Port		1 CONSOLE local management port				1 CONSOLE local management port
PON Port attribute	Transmission distance	20KM				20KM
	Port rate	GPON:Downstream: 2.5Gbps Upstream: 1.25Gbps				GPON:Downstream: 2.5Gbps Upstream: 1.25Gbps
	Wavelength	Forwarding: 1490nm Receiving: 1310nm				Forwarding: 1490nm Receiving: 1310nm
	Interface type	SC/UPC				SC/UPC
	Fiber type	9/125μm SMF (Single Mode Fiber)				9/125μm SMF (Single Mode Fiber)
	Light transmission power	Class B+: +1.5 ~+5dBm	Class C+:+3 ~ +7dBm	Class C++:+4.5dBm~+10d Bm	Class C++++:+7.5dBm~+ 10.5dBm	Class B+: +1.5 ~+5dBm	Class C+:+3 ~ +7dBm	Class C++:+4.5dBm~+10d Bm	Class C++++:+7.5dBm~+ 10.5dBm
	Receiving sensitivity	Class B+:-28dBm	Class C+:-30dBm	Class C++:-31dBm	Class C++++:-30dBm	Class B+:-28dBm	Class C+:-30dBm	Class C++:-31dBm	Class C++++:-30dBm
	Saturation power	Class B+:-8dBm	Class C+:-12dBm	Class C++:-10dBm	Class C++++:-10dBm	Class B+:-8dBm	Class C+:-12dBm	Class C++:-10dBm	Class C++++:-10dBm
Backplane Bandwidth		27.75G				31.5G

Power supply
AC		100V ~ 240V，47~63Hz				100V ~ 240V，47~63Hz
DC		External adapter mode 12V/2.5A				External adapter mode 12V/2.5A

NO.	Product Model	Specifications	Dimensions	Fan Module	Power supply
1	FD1601S-B1	1GPON + 2GE RJ45 + 1*Optional XGPON or 10GE(SFP+)	290mm(L)193mm(W)41mm(H)	N/A	90V ~ 240V AC; External adapter mode 12V/2.5A; Optional BBU power supply
2	FD1601S-B2	1GPON + 2GE RJ45 + 1*Optional XGPON or 10GE(SFP+)	312.8mm(L)193mm(W)44mm(H)	Smart Fan Module
3	FD1602S-B1	2GPON + 2GE RJ45 + 1*Optional XGPON or 10GE(SFP+)	360mm(L)193mm(W)44mm(H)	Smart Fan Module
