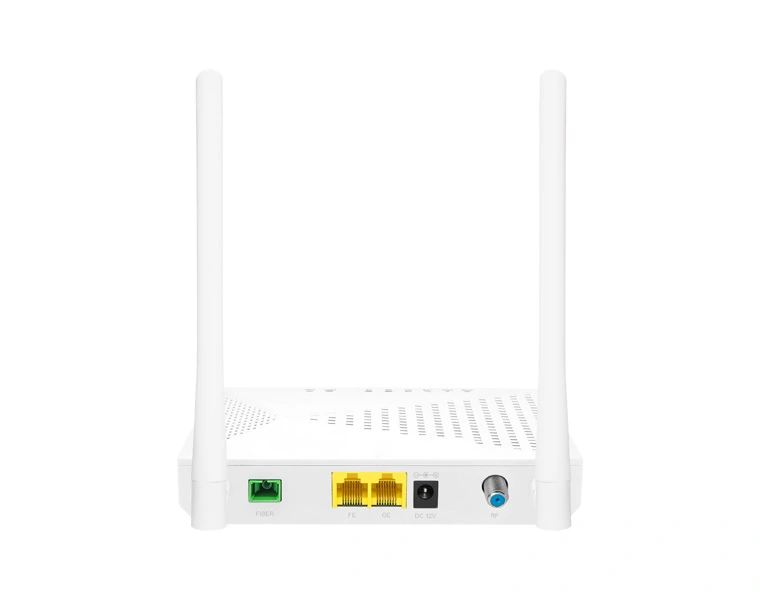

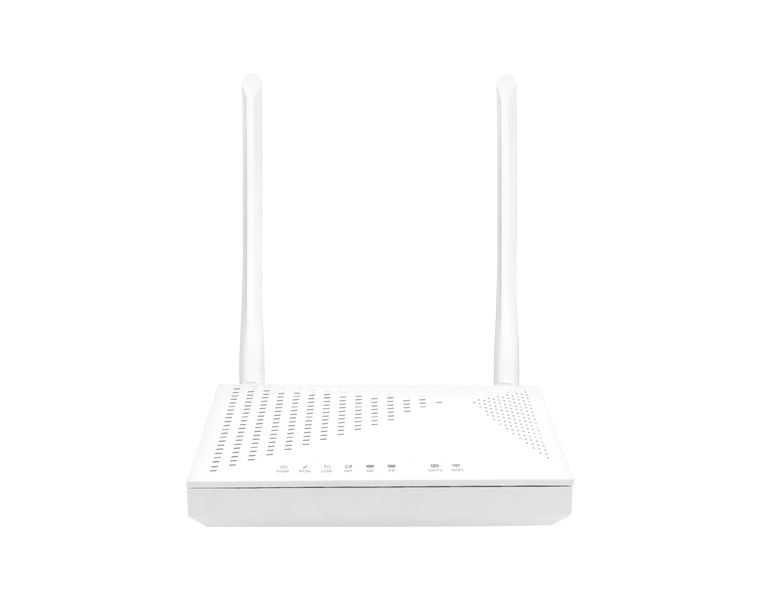

FD712XW-R460
1GE+1FE+CATV+WIFI XPON ONU

FD712XW-R460 dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.

FD712XW-R460 integrates wireless function which meets 802.11 b/g/n technical standards. It has two external high gain omnidirectional antennas, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

Technical Specifications

Item
FD712XW-R460
Specifications
1*xPON + 2*GE RJ45 + 1*RF CATV + Wi-Fi
GPON/EPON Port
Single mode single fiber
GPONFSAN G.984.2 standard, Class B+
EPON1000BASE-PX20+ symmetric
GPON2.488Gbps/1.244Gbps downstream/upstream
EPON1.25Gbps downstream/upstream
WavelengthTransmit: 1310nm Receiver: 1490nm
Receiving sensitivityGPON:-28dBm EPON:-27dBm
Saturated powerGPON:-8dBm EPON:-3dBm
Transmitting powerGPON:0.5~5dBm EPON:0~4dBm
User Port(LAN)
RJ-45 connector

1*10/100 and 1*10/100/1000Mbps adaptive Ethernet port

Full/half duplex

Auto MDI/MDI-X
WIFI performance parameters
IEEE802.11b/g/n(2.4G)
Max rate300M(2.4G)
MAX TX power2.4G:17dBm
CATV(Input /Output port)Wavelength1550nm
RF frequency47MHz~1000MHz
RF impedance75Ω
Input optical power-18dBm~0dBm(with AGC)
RF output level78dBuV (@-12dBm@85MHz) (with AGC)
RF output return loss>12dB(with AGC)
Indicators
PWR/PON/LOS/GE/FE/CATV/WIFI/INT/OPT
Power
External 12VDC/1A power supply adapter

Power consumption:<7.2W
Dimension and WeightItem Dimension214*139.5*32mm
Item weight0.23kg
Environmental SpecificationsOperating temperature0 to 40ºC
Storage temperature-40 to 85ºC
Operating humidity10% to 90%(Non-condensing)
