Hot-pluggable SFP design for deployment on existing switches.

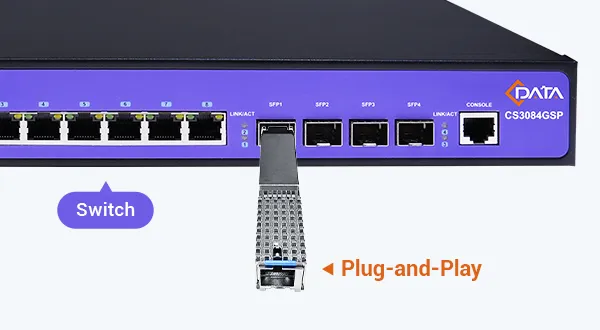

Seamlessly transforms Ethernet networks into GPON access networks.
Maximizes existing network investment.
Integrated PON MAC for GPON OLT functionality.
Compact SFP stick form factor for quick and flexible deployment.
Low-power operation for reduce energy consumption.
Supports 1:128 split ratio with 1.25Gbps/2.5Gbps bandwidth, based on Class C+ optical budget.
≤3W low power consumption operating from 0 to 70℃.

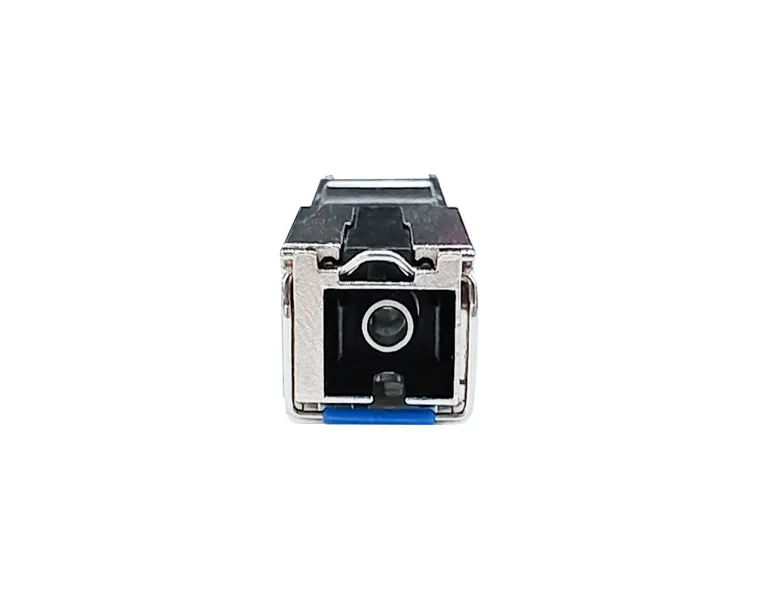

SC/UPC optical interface for single-mode fiber transmission.
Up to 20km transmission distance.
Plug-and-play with automatic ONU registration.
Compatible with third-party ONUs for flxible deployment.
Enables scale capacity as demand grows.

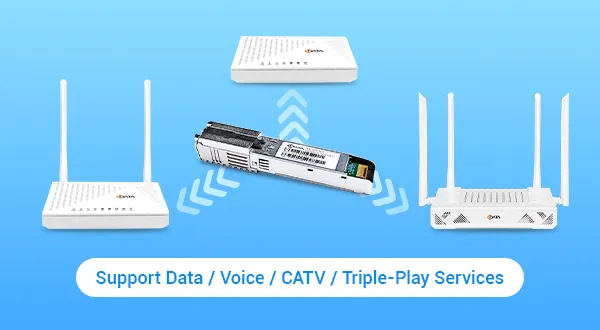

Widely applicable to various deployment scenarios, suitable for space-constrained environments, enabling fast capacity expansion, cost optimization, and edge network deployments.

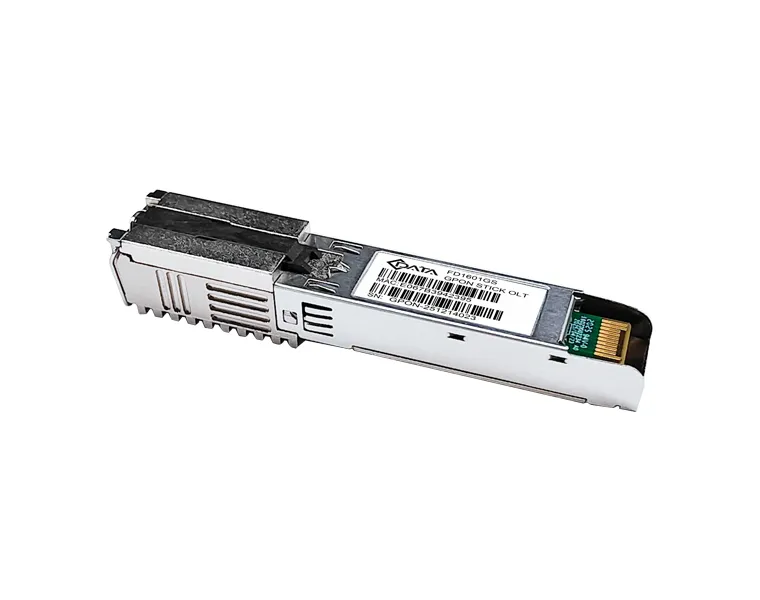

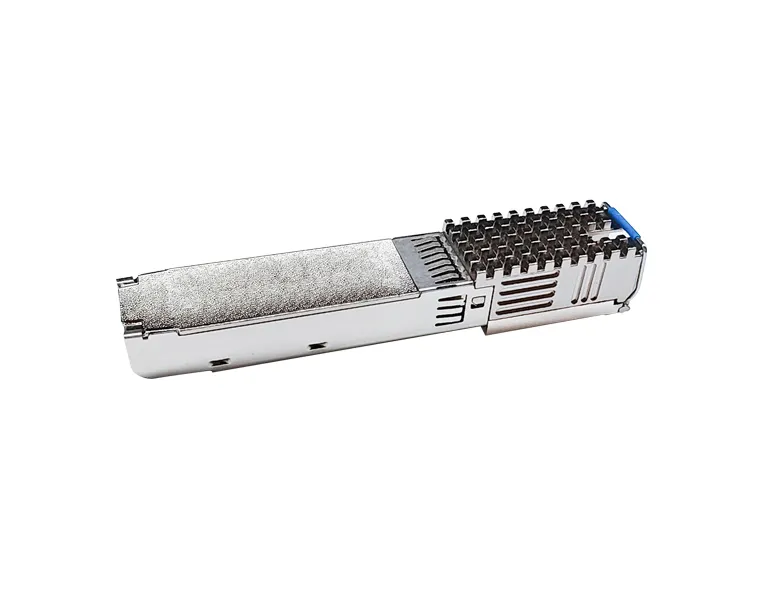

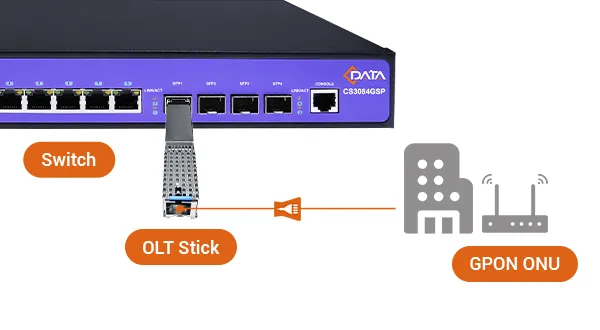

GPON Stick OLT FD1601GS completely meets relative standard of ITU-T. It can be hot-swapped into the SFP slot of the Layer2 Ethernet switch. The whole machine can be used as an small OLT equipment with 1 Gigabit uplink ports, and 1 GPON ports. The GPON port supports the splitting ratio of 1:128.
This product has the characteristics of small size, low cost, low power consumption, plug and play, flexible deployment, and no need for debugging. It is suitable for FTTH/FTTR application scenarios, small and medium-sized enterprise parks, monitoring private networks, rural and remote broadband coverage, and other application scenarios.
Mechanics | |

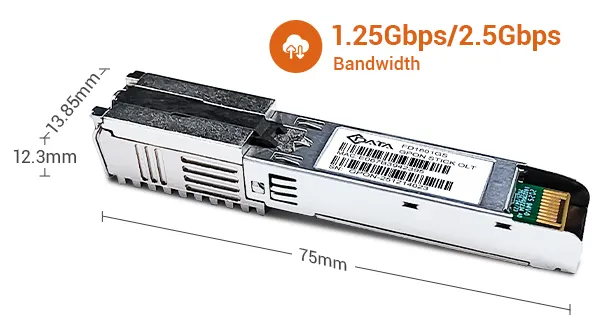

Dimensions | 75mm(L)x13.85mm(W)x12.3mm(H) |
Weight | About 30g |
Hardware | |||
Stick OLT | Physical Interface | SFP | |
Interface type | GPON: GPON Class C+ | ||
Max splitting ratio | GPON: 1:128 | ||
PON Port attribute | Transmission distance | 20KM | |
Port rate | GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps | ||
Wavelength | Forwarding: 1490nm Receiving: 1310nm | ||
Interface type | SFP SC/UPC | ||
Fiber type | 9/125μm SMF (Single Mode Fiber) | ||
Light transmission power | Class C+: +3 ~ +7dBm | ||
Receiving sensitivity | Class C+: -30dBm | ||
Saturation power | Class C+: -12dBm | ||
Switching Capacity | 8.75G | ||
Power supply | |
Vcc | 3.0V~3.6V |
| Maximum Power | ≤3W |
Environment | |
Working temperature | 0 ~ 70℃ |
Storage temperature | -40～85℃ |
Ambient humidity | 5 ~ 95% (Non-condensing) |
Product Name | Product Model | Description |
GPON OLT Stick | FD1601GS | SFP Interface, SC/UPC Connector, TX 1490nm/RX 1310nm, Class C+, 20km, ≤3W |
