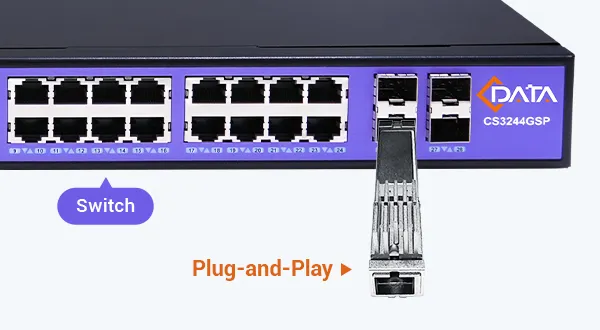

Hot-pluggable SFP+ design for deployment on existing switches.

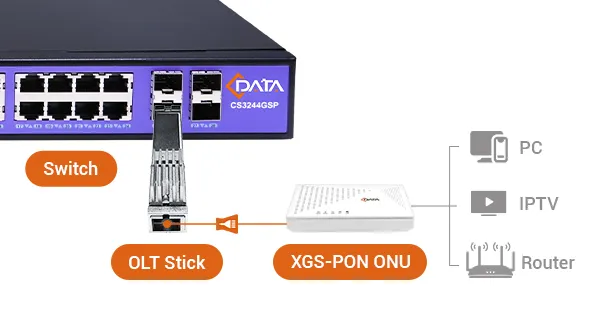

Seamlessly transforms Ethernet networks into XGS-PON access networks.
Symmetric 10Gbps bandwidth meets the demands of future high-speed networks.
Integrated PON MAC for XGS-PON OLT functionality.
Compact SFP+ stick form factor for quick and flexible deployment.
Low-power operation for reduce energy consumption.
Delivers 10Gbps symmetric bandwidth with up to 1:128 split ratio, based on Class N2 optical budget.
4.5W low power consumptio, operatin from -20 to 85℃.
SC/UPC optical interface for single-mode fiber transmission.
Up to 20km transmission distance.

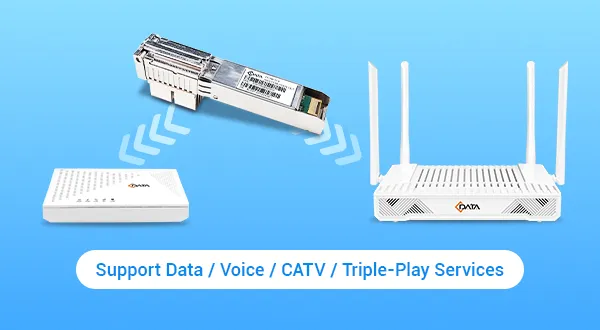

Plug-and-play with automatic ONU registration.
Compatible with third-party ONUs for simplified deployment.
Enables flexible network expansion while reducing costs.
Versatile solution for high-bandwidth scenarios, designed for space-constrained environments, enabling rapid expansion, cost optimization, and high-speed edge connectivity.

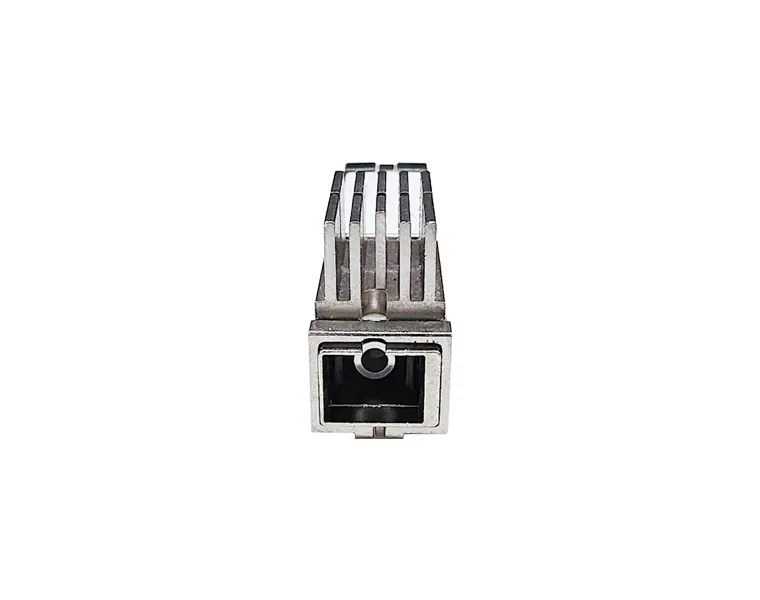

XGS-PON Stick OLT FD1801TS completely meets relative standard of ITU-T. It can be hot-swapped into the SFP+ slot of the Layer2 Ethernet switch. The whole machine can be used as an small OLT equipment with 1 10 Gigabit uplink ports, and 1 XGS-PON ports. The XGS-PON port supports the splitting ratio of 1:128.
This product has the characteristics of small size, low cost, low power consumption, plug and play, flexible deployment, and no need for debugging. It is suitable for FTTH/FTTR application scenarios, small and medium-sized enterprise parks, monitoring private networks, rural and remote broadband coverage, and other application scenarios.
Mechanics | |

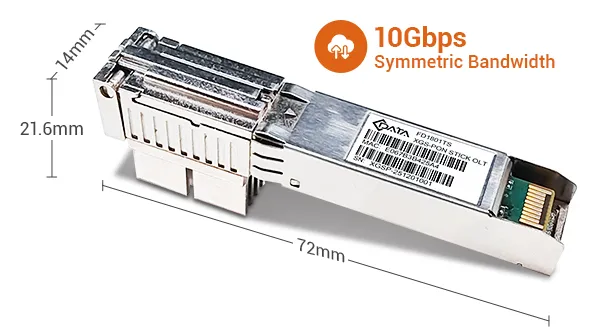

Dimensions | 72mm(L)x14mm(W)x21.6mm(H) |
Weight | About 30g |
Hardware | |||
Stick OLT | Physical Interface | SFP+ | |
Interface type | XGS-PON: XGS-PON Class N2 | ||
Max splitting ratio | XGS-PON: 1:128 | ||
PON Port attribute | Transmission distance | 20KM | |
Port rate | XGS-PON: Downstream: 10Gbps Upstream: 10Gbps | ||
Wavelength | Forwarding: 1577nm Receiving: 1270nm | ||
Interface type | SFP+ SC/UPC | ||
Fiber type | 9/125μm SMF (Single Mode Fiber) | ||
Light transmission power | Class N2: +4 ~ +7dBm | ||
Receiving sensitivity | Class N2: -28dBm | ||
Saturation power | Class N2: -7dBm | ||
Switching Capacity | 40G | ||
Power supply | |
Vcc | 3.0V~3.6V |
| Maximum Power | 4.5W |
Environment | |
Working temperature | -20 ~ 85℃ |
Storage temperature | -40～85℃ |
Ambient humidity | 5 ~ 70% (Non-condensing) |
Product Name | Product Model | Description |
XGS-PON OLT Stick | FD1801TS | SFP+ Interface, SC/UPC Connector, TX 1577nm/RX 1270nm, Class N2, 20km, 4.5W |
