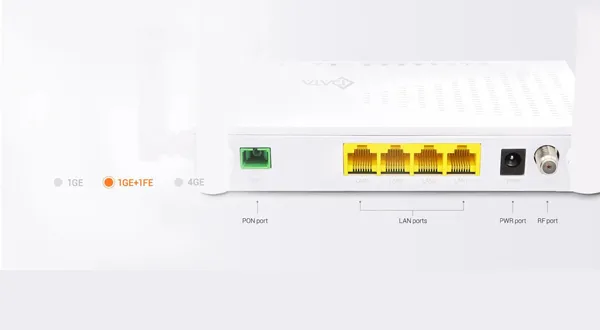

You can choose the appropriate number of ports as needed.

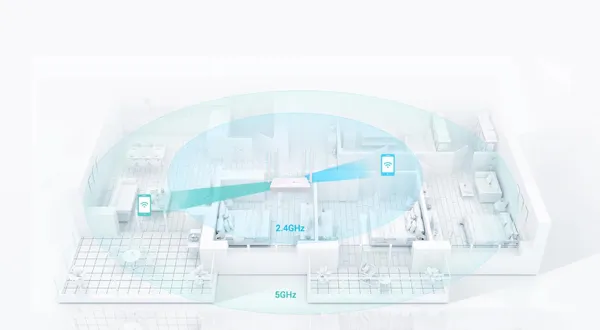

2.4G+5G dual-band WiFi, combined with 2.4G’s wall penetration capability and 5G’s fast speed, creates the ultimate Internet experience.

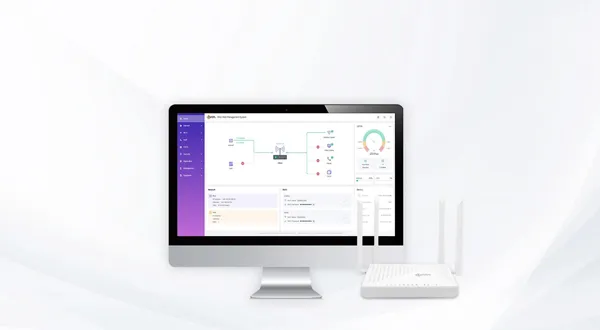

Both of EPON and GPON support a variety of management methods, remote maintenance, convenient and fast.
Both of EPON and GPON support a variety of management methods, remote maintenance, convenient and fast.
C-Data CATV series products have been granted two utility model patents：PCB board for assembling single fiber three-way optical devices and space shield structure of single fiber three-way optical devices.
FD711G-F360 is based on the mature, stable, high cost performance gigabit Ethernet switching, WDM and HFC technology. It has a higher bandwidth, higher reliability, easy management and good quality of service(QoS) guarantee with technical performance of equipment meet the IEEE802.3ah requirement and have good compatibility with third party manufacturers OLT.
FD711G-F360 dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.
It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm . It only needs one-core fiber to transmit data and CATV service.
| Item | FD711G-F360 | |
| Specifications | 1*xPON + 1*GE RJ45 + 1*RF CATV | |
| GPON/EPON Port | Single mode single fiber | |
| GPON | FSAN G.984.2 standard，Class B+ | |
| EPON | 1000BASE-PX20+ symmetric | |
| GPON | 2.488Gbps/1.244Gbps downstream/upstream | |
| EPON | 1.25Gbps downstream/upstream | |
| Wavelength | Transmit: 1310nm Receiver: 1490nm | |
| Receiving sensitivity | GPON：-28dBm EPON：-27dBm | |
| Saturated power | GPON：-8dBm EPON：-3dBm | |
| Transmitting power | GPON：0.5～5dBm EPON:0～4dBm | |
| User Port(LAN) | RJ-45 connector | |
| 1*10/100/1000Mbps adaptive Ethernet port | ||
| Full/half duplex | ||
| Auto MDI/MDI-X | ||
| CATV（Input /Output port） | Wavelength | 1550nm |
| RF frequency | 47MHz~1000MHz | |
| RF impedance | 75Ω | |
| Input optical power | -18dBm～0dBm(with AGC) | |
| RF output level | 78dBuV (@-12~-2dBm@85MHz) (with AGC) | |
| RF output return loss | >12dB(with AGC) | |
| Indicators | PWR / PON / LOS / LAN / CATV / INT | |
| Power | External 12VDC/0.5A power supply adapter | |
| Power consumption:<3.5W | ||
| Dimension and Weight | Item Dimension | 125*80*30.5mm |
| Item weight | 0.13kg | |
| Environmental Specifications | Operating temperature | 0 to 40ºC |
| Storage temperature | -40 to 85ºC | |
| Operating humidity | 10% to 90%(Non-condensing) |
| NO. | Product Model | Specifications | Accessories |
| 1 | FD711G-F360 | 1*xPON + 1*GE RJ45 + 1*RF CATV | AC-DC Power Adapter: DC 12V/0.5A |
| 2 | FD712XW-R460 | 1*xPON + 2*GE RJ45 + 1*RF CATV + Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
| 3 | FD712GD-R460 | 1*xPON + 2*GE RJ45 + 1*RF CATV + Dual-Band Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
| 4 | FD704G-X-R410 | 1*xPON + 4*GE RJ45 + 1*RF CATV | AC-DC Power Adapter: DC 12V/0.5A |
| 5 | FD714GD-R880 | 1*xPON + 4*GE RJ45 + 1*RF CATV + Dual-Band Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
