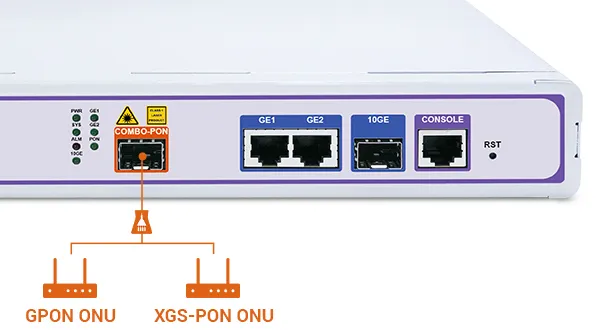

Integrated GPON and XGS-PON, enabling a seamless transition to 10G network.
No changes required to existing network architecture, reducing upgrade costs.

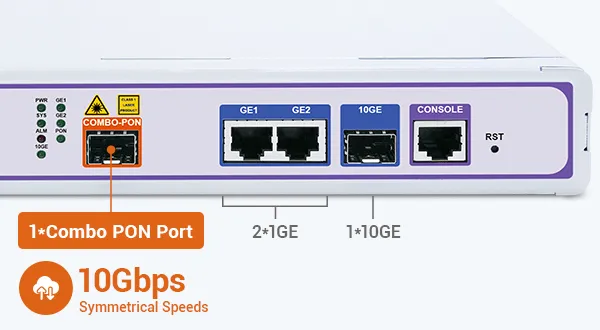

1*Combo PON port with up to 1:128 split ratio.
Symmetrical 10Gbps transmission rates.
High-speed uplinks with 1*10GE and 2*1GE.
Transmission distance up to 20km.

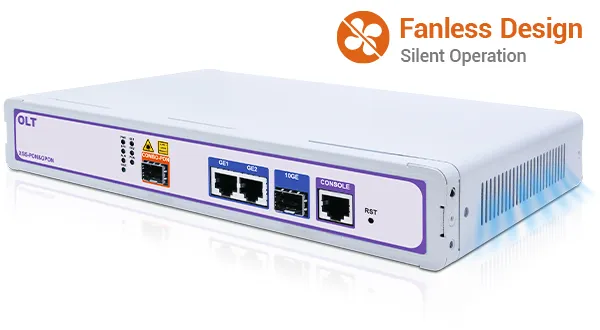

Fanless design with natural ventilation enables efficient heat dissipation.
Low power consumption for enhanced energy efficiency.
Silent operation for noise-sensitive environments.
Compact at 260*157*40mm and lightweight at just 1.46kg, ensuring low power consumption.

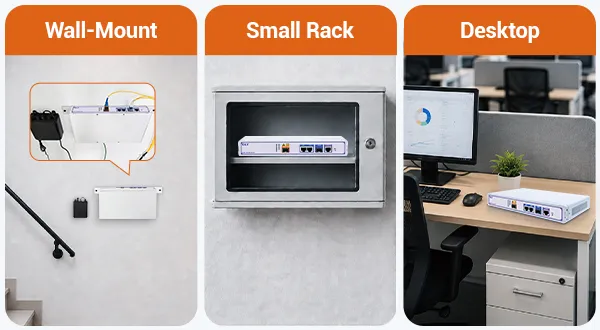

Easily fit into space-constrained environments with wall-mount, desktops, or small rack deployment .

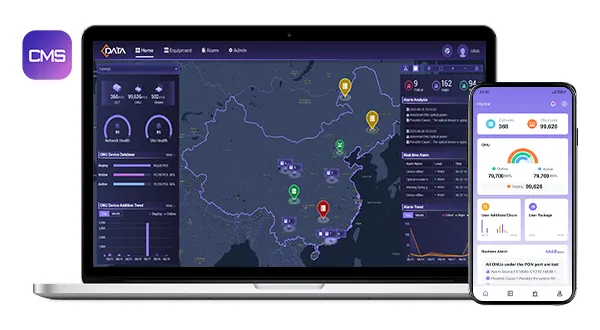

Centralized management of OLT and connected ONUs via CMS, delivering intelligent and efficient O&M, featuring:
Remote one-click troubleshooting
Intelligent business analytics
Real-time monitoring and business alerts
Built for small-scale network environments, it supports both residential and business broadband demands, enabling flexible deployment across diverse applications.
SMEs
Residential Buildings
Broadband Upgrades
Smart Community
The chassis OLT enables seamless multi-service convergence across diverse scenarios with ultra-high density and massive bandwidth.

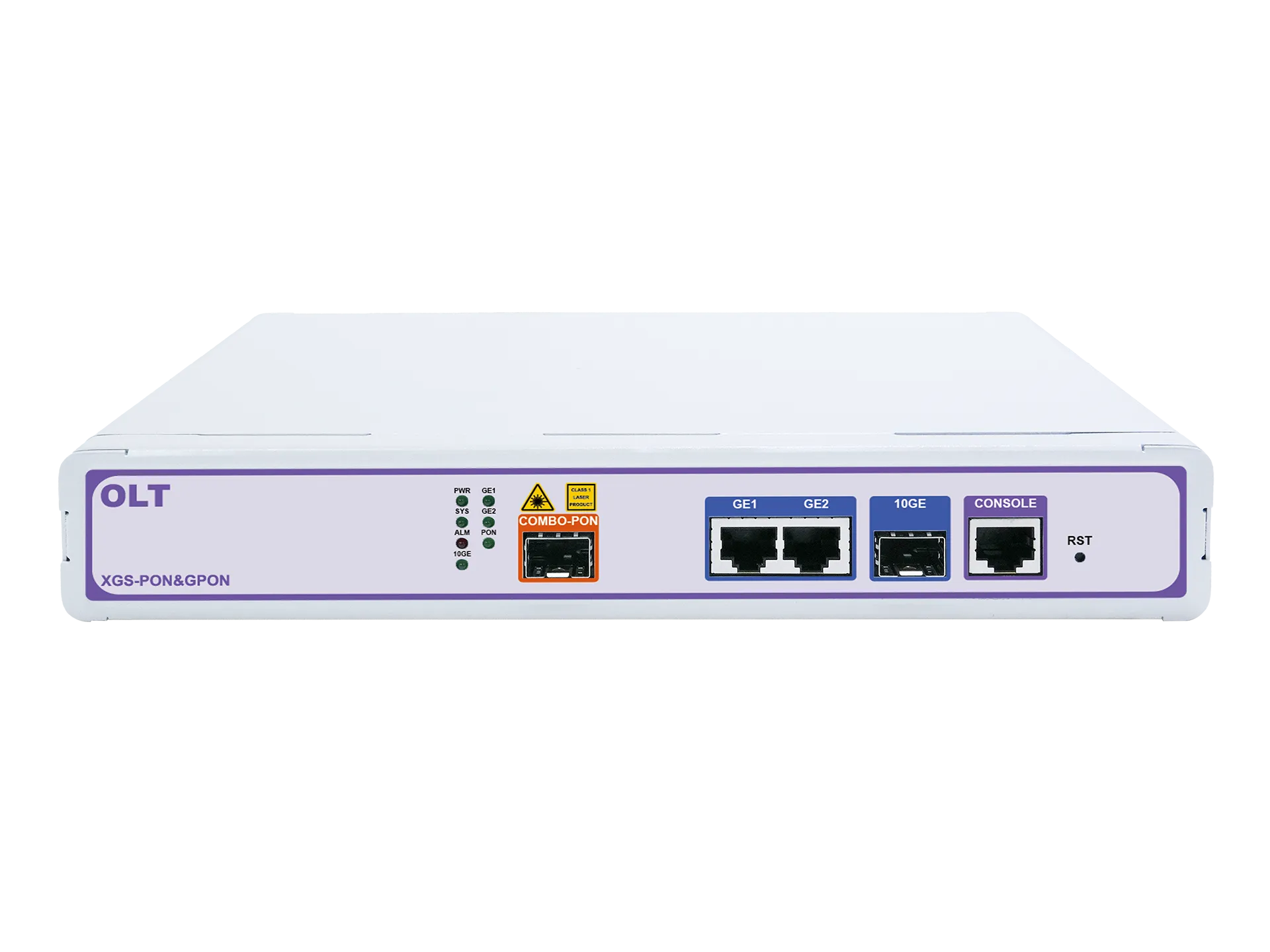

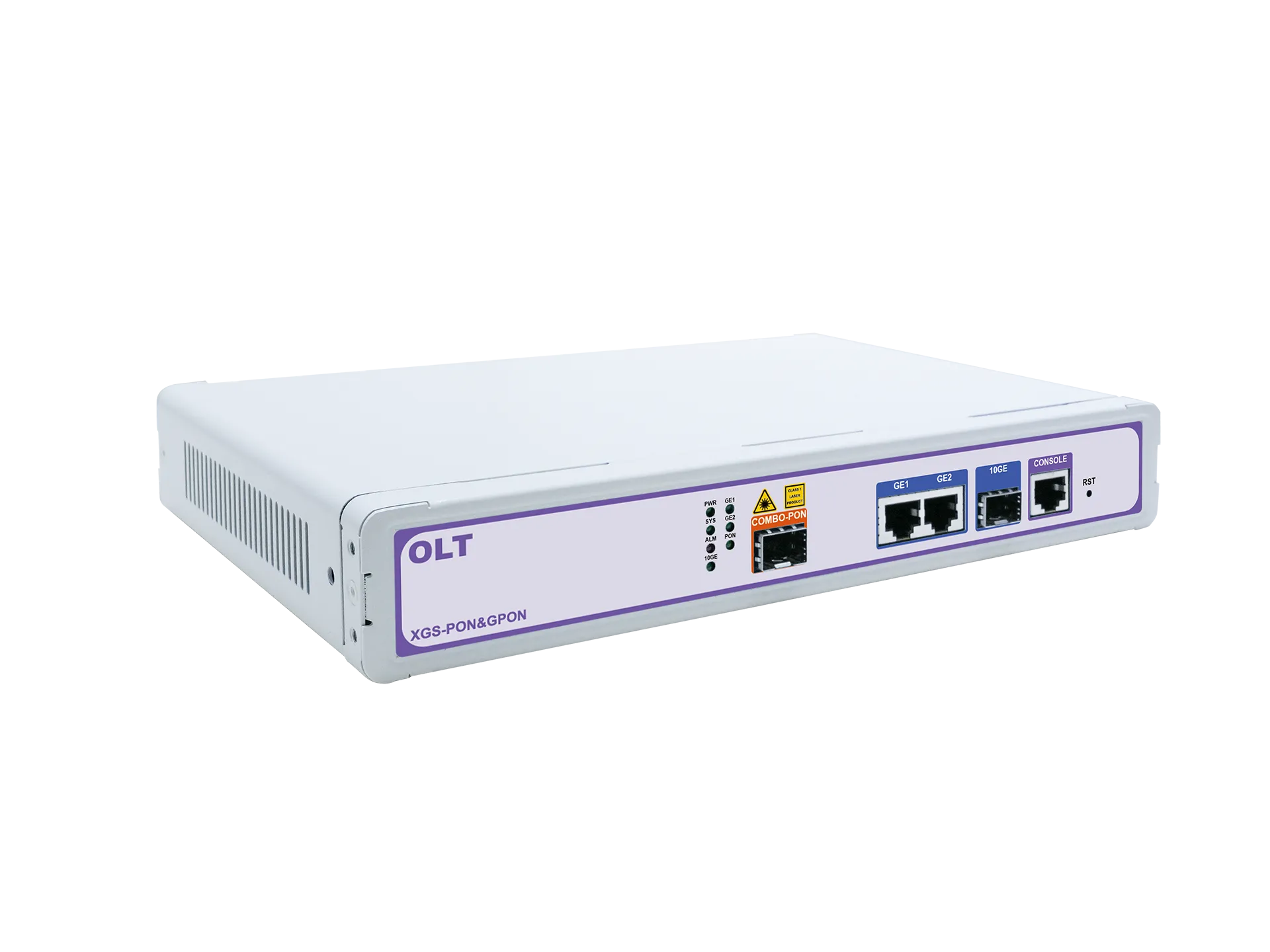

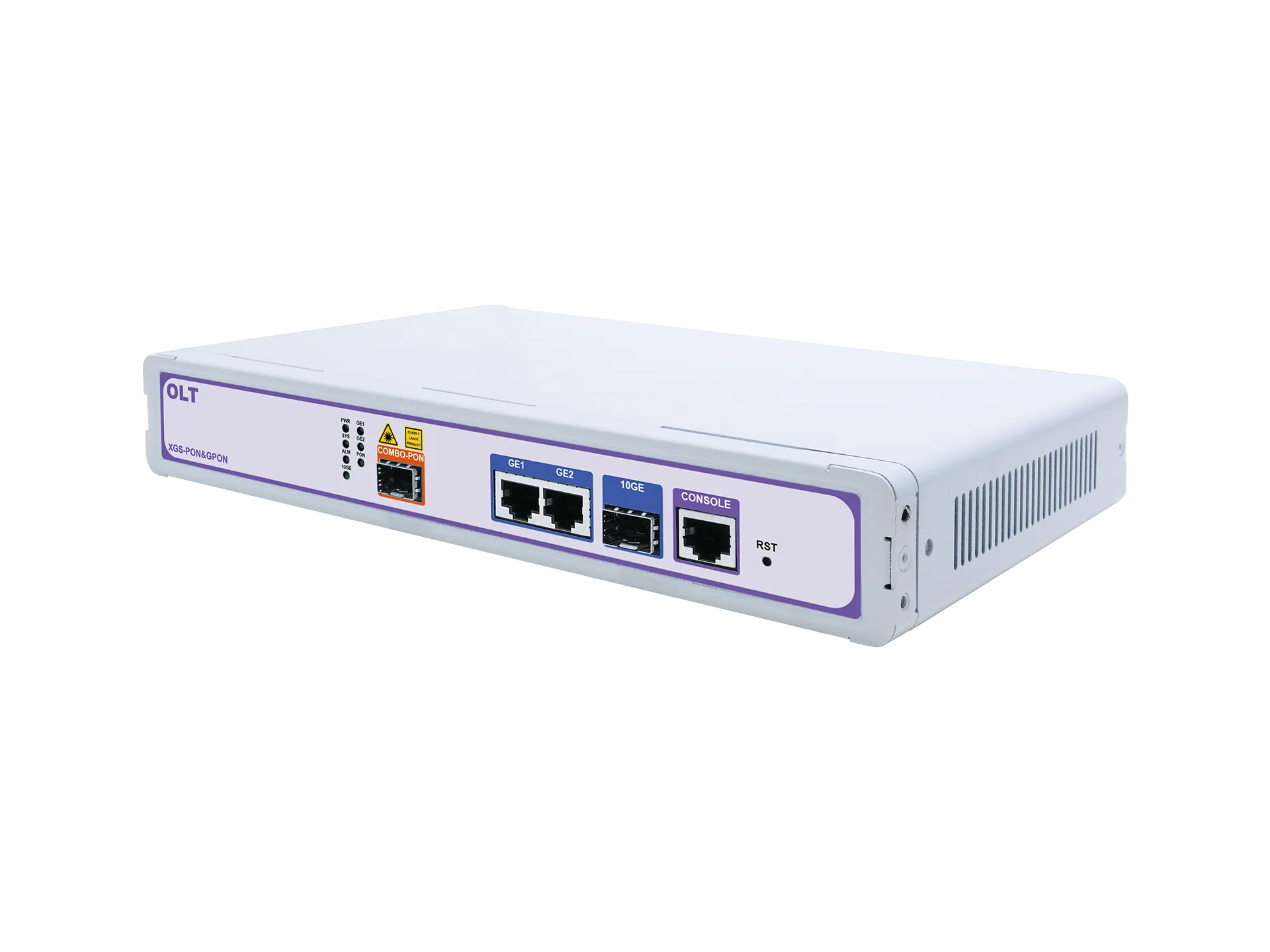

XGS-PON&GPON OLT FD1801S-C2 completely meets relative standard of ITU-T G.9807.1. It is 1U rack-mounted device with 2 uplink GE ports, 1 10GE uplink ports and 1 XGS-PON&GPON(Combo PON)ports. The XGS-PON&GPON port supports the splitting ratio of 1:128. The XGS-PON&GPON system supports up to 128 terminal connections. This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which is convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance,improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.
| Mechanics | |
| Dimensions | 260mm(L)*157mm(W)*40mm(H) |
| Weight | 1.46Kg |
| Hardware | ||
| Uplink Port | GE port | 2* 10/100/1000M auto-negotiation Ethernet ports |
| 10-Gigabit port | 1* SFP+ interfaces | |
| PON Port | Quantity | 1 |
| Physical Interface | SFP slot | |
| Max Splitting Ratio | 1:128 | |
| Management Port | 1* CONSOLE local management port | |
| PON Port Attribute | Transmission Distance | 20KM |
| Port Rate | XGS-PON: Downstream:10Gbps Upstream:10Gbp sGPON: Downstream: 2.5Gbps Upstream:1.25Gbps | |
| Wavelength | XGS-PON: Forwarding: 1577nm Receiving: 1270nm GPON: Forwarding: 1490nm Receiving: 1310nm | |
| Interface Type | SC/UPC | |
| Fiber type | 9/125μm SMF (Single Mode Fiber) | |
| Light Transmission Power | XGS-PON&GPON COMBO5~8dBm (9.953G)3~7dBm (2.488G) | |
| Receiving Sensitivity | XGS-PON&GPON COMBO≥-29dBm (9.953G)≥-30.5dBm (2.488G)≥-30dBm (1.244G) | |
| Saturation Power | XGS-PON&GPON COMBO≤-8dBm (9.953G)≤-10dBm (2.488G)≤-12dBm (1.244G) | |
| Network Management Method | Support CLI, SNMP, TELNET, SSH, WEB | |
| Business Capabilities | Support device log, device upgrade, device management, condition monitoring, configuration management, and user management. Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on. PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. Layer 3 function: support static routing, dhcp-relay and vlanif configuration. | |
| Backplane Bandwidth | 44G | |

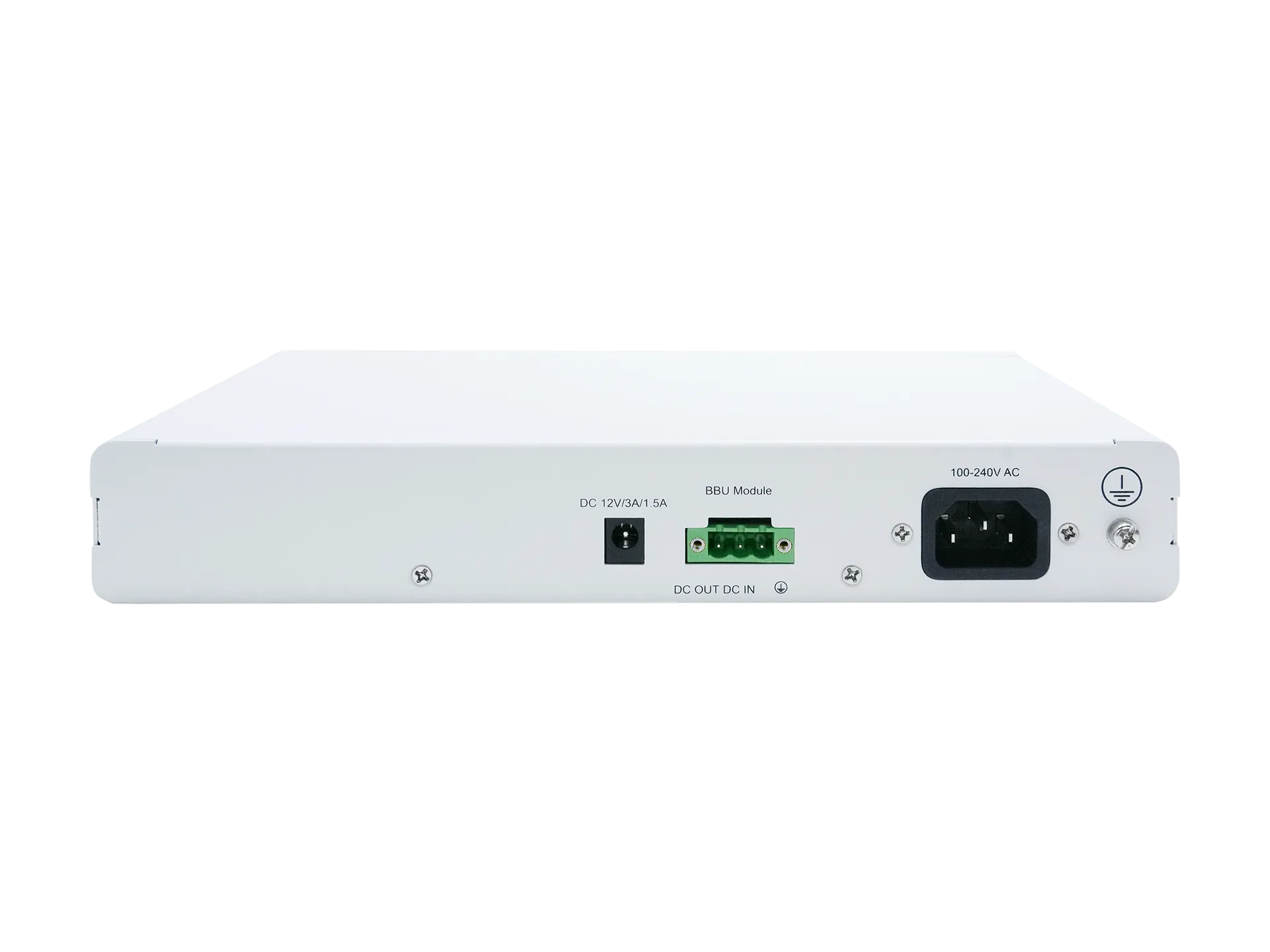

| Power supply | |
| AC | 100V ~ 240V, 47~63Hz |
| DC | 1. External adapter mode 12V/1.5A |
| Maximum Power | <12W |
| Environment | |
| Working Temperature | -15 ~ 50℃ |
| Storage Temperature | -40 ~ 85℃ |
| Ambient Humidity | 5 ~ 90% (Non-condensing) |
Product Model | Specification | Power Supply |
FD1801S-C2 | 1*Combo PON (XGS-PON & GPON) + 1*10GE (SFP+) + 2*1GE (RJ45) | 100V~240V AC 12V/1.5A external adapter |
