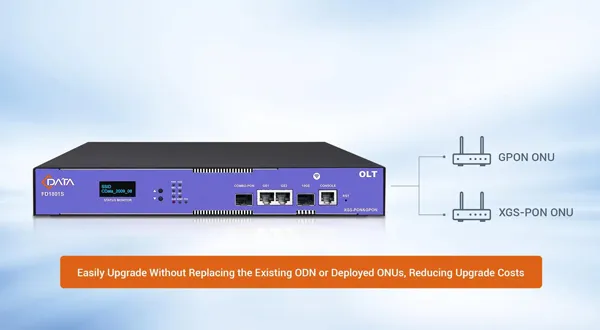

Integrates GPON and XGS-PON, enabling a seamless transition to 10G network.
No changes required to existing network architecture, reducing upgrade costs.

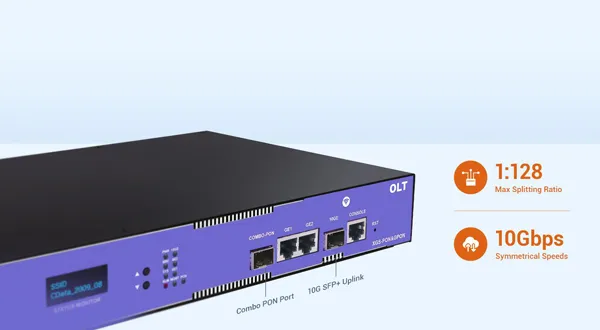

1*Combo PON port with up to 1:128 split ratio.
Symmetrical 10Gbps transmission rates.
High-speed uplinks with 1*10GE and 2*1GE.
Transmission distance up to 20km.

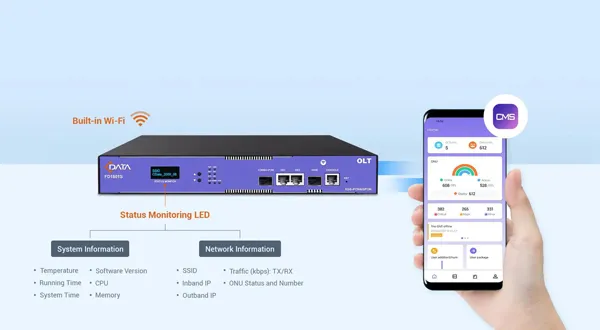

Deploy and maintain with ease - configure directly from your smartphone.
Real-time status visibility through the LED display for instant insights.

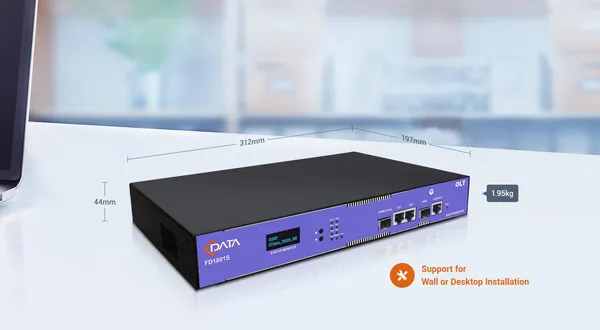

Compact 312*197*44mm design and 1.95kg lightweight build with energy-efficient performance.
Flexible wall-mount cabinet, desktop, or small rack deployment.

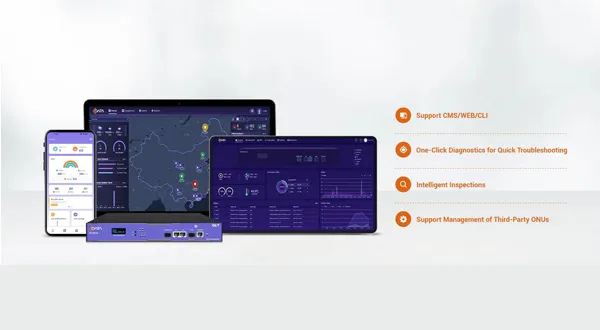

Centralized CMS management of OLT and connected ONUs, delivering intelligent and efficient O&M, featuring:
Batch ONU onboarding
Remote one-click troubleshooting
Intelligent business analytics
Real-time monitoring and business alerts
Supporting diverse service access and smooth network evolution, the Combo PON OLT is ideal for GPON-to-10G PON migration scenarios.

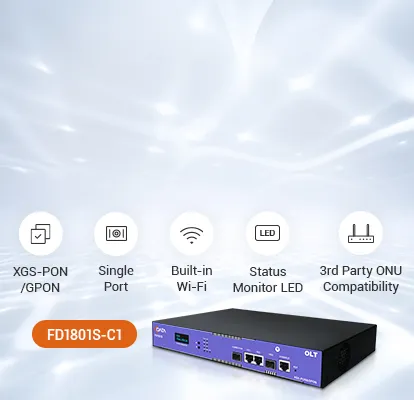

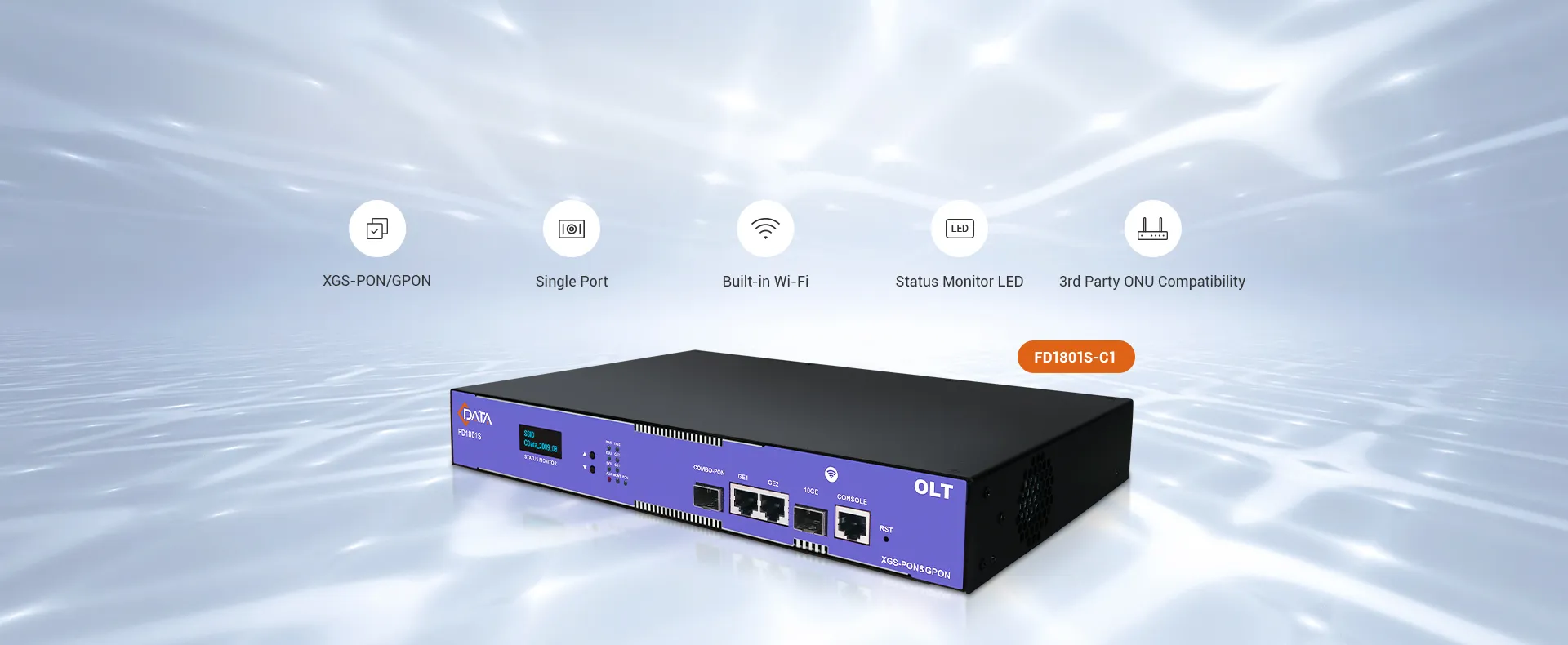

XGS-PON&GPON OLT FD1801S-C1 completely meets relative standard of ITU-T G.9807.1. It is 1U rack-mounted device with 2 uplink GE ports, 1 10GE uplink ports and 1 XGS-PON&GPON(Combo PON) ports. The XGS-PON&GPON port supports the splitting ratio of 1:128. The XGS-PON&GPON system supports up to 128 terminal connections.
This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which is convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.
| Mechanics | |
| Dimensions | 312.8mm(L)*197mm(W)*44mm(H) |
| Weight | 1.95Kg |
| Hardware | ||
| Uplink Port | GE port | 2* 10/100/1000M auto-negotiation Ethernet ports |
| 10-Gigabit port | 1* SFP+ interfaces | |
| PON Port | Quantity | 1 |
| Physical Interface | SFP slot | |
| Max Splitting Ratio | 0.130555556 | |
| Management Port | 1* CONSOLE local management port | |
| PON Port Attribute | Transmission Distance | 20KM |
| Port Rate | XGS-PON: Downstream: 10Gbps Upstream: 10Gbps | |
| GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps | ||
| Wavelength | XGS-PON: Forwarding: 1577nm Receiving: 1270nm | |
| GPON: Forwarding: 1490nm Receiving: 1310nm | ||
| Interface Type | SC/UPC | |
| Fiber type | 9/125μm SMF (Single Mode Fiber) | |
| Light Transmission Power | XGS-PON&GPON COMBO | |
| 5~8dBm (9.953G) | ||
| 3~7dBm (2.488G) | ||
| Receiving Sensitivity | XGS-PON&GPON COMBO | |
| ≥-29dBm (9.953G) | ||
| ≥-30.5dBm (2.488G) | ||
| ≥-30dBm (1.244G) | ||
| Saturation Power | XGS-PON&GPON COMBO | |
| ≤-8dBm (9.953G) | ||
| ≤-10dBm (2.488G) | ||
| ≤-12dBm (1.244G) | ||
| Network Management Method | Support CLI, SNMP, TELNET, SSH, WEB | |
| Business Capabilities | Support device log, device upgrade, device management, condition monitoring, configuration management, and user management. | |
| Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on. | ||
| PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. | ||
| Layer 3 function: support static routing, dhcp-relay and vlanif configuration. | ||
| Backplane Bandwidth | 44G | |
| Power supply | |
| AC | 100V ~ 240V, 47 ~ 63Hz |
| DC | External adapter mode 12V/2.5A |
| BBU (Backup Battery Unit) | DC: 11V～14V. |
| Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply and charge the backup power supply. | |
| Maximum Power | <14W |
| Environment | |
| Working Temperature | -15 ~ 50℃ |
| Storage Temperature | -40 ~ 85℃ |
| Ambient Humidity | 5 ~ 90% (Non-condensing) |
| Product Model | Specifications | Power Supply |
| FD1801S-C1 | 1*XGS-PON & GPON Combo Port + 1*10GE (SFP+) + 2*GE (RJ45) | 100V~240V AC External adapter mode 12V/2.5A Optional BBU power supply |
