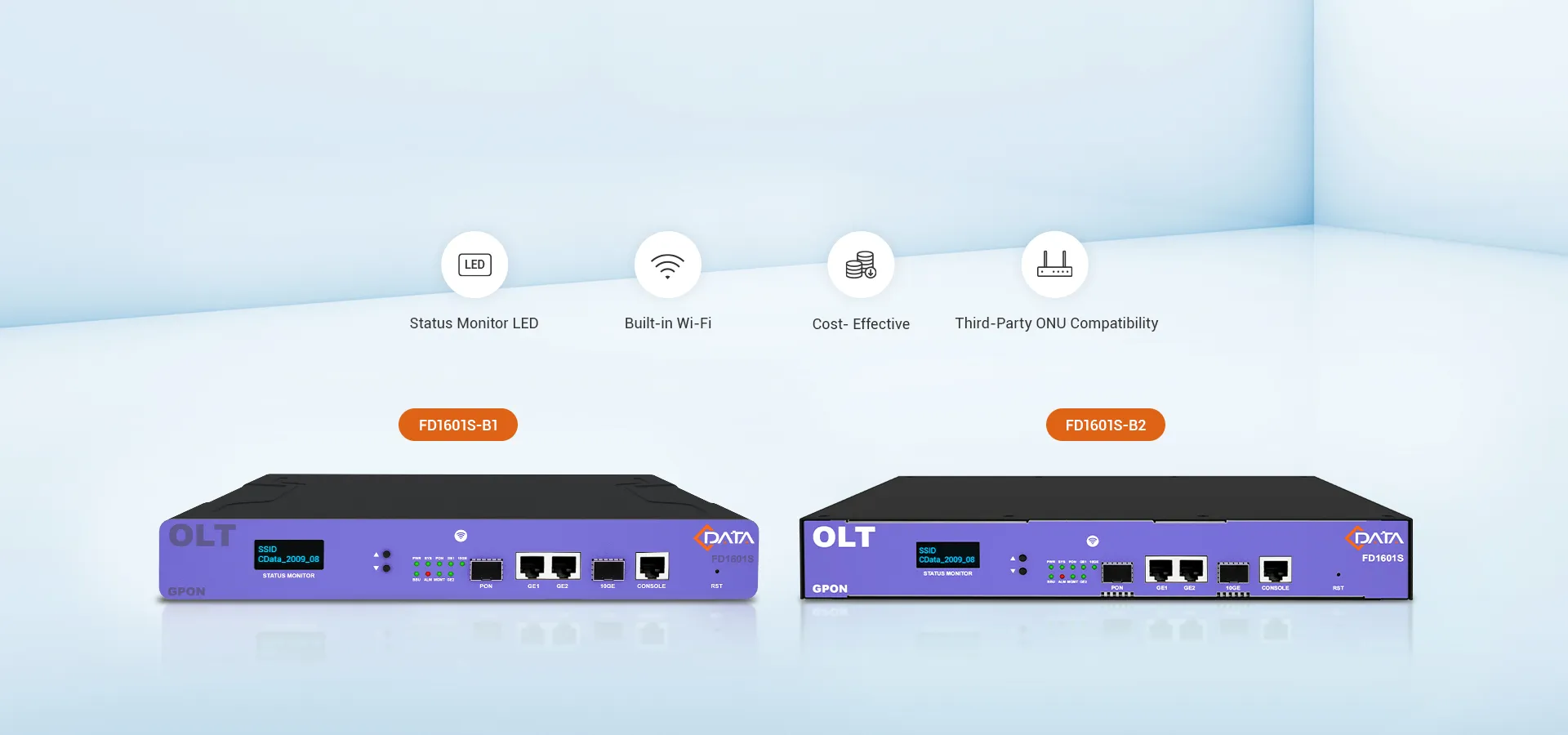

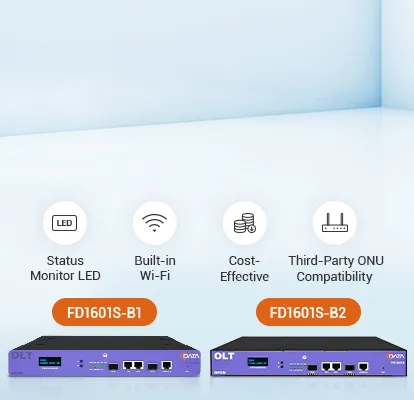

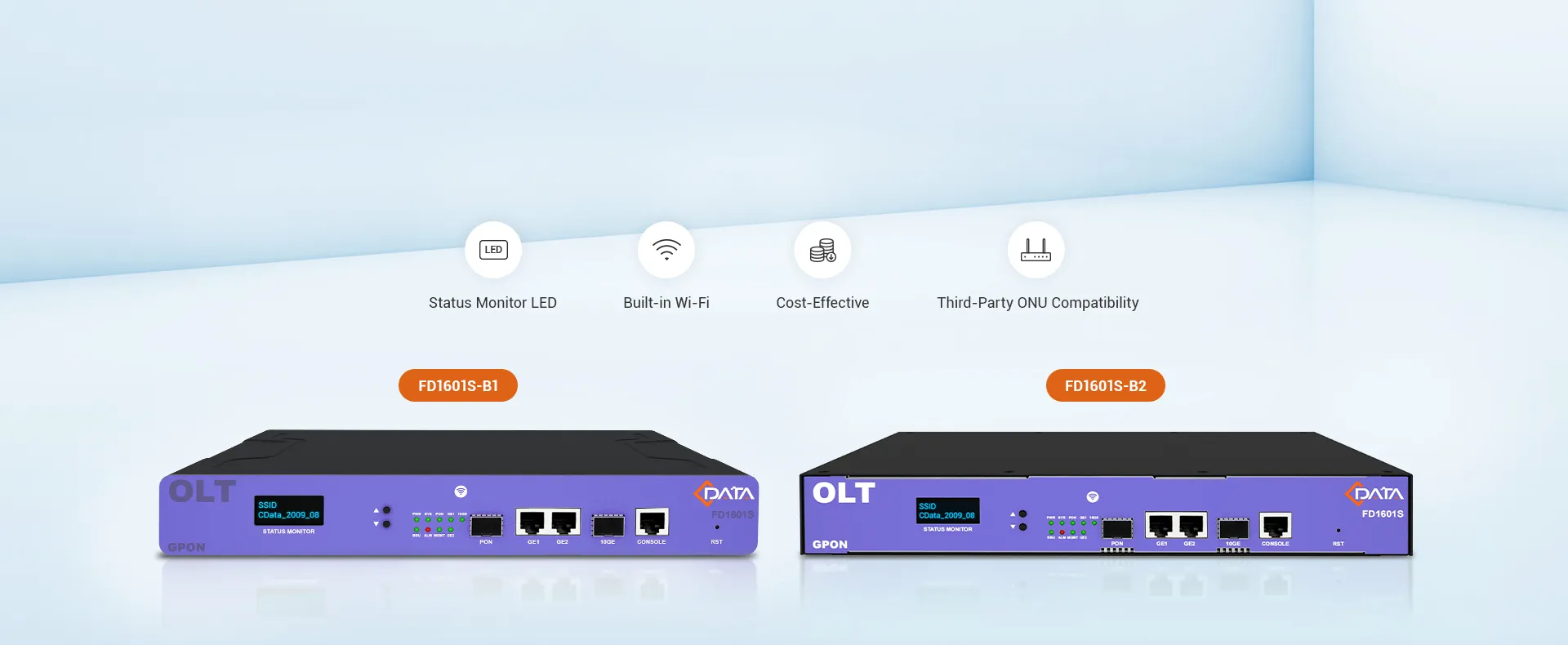

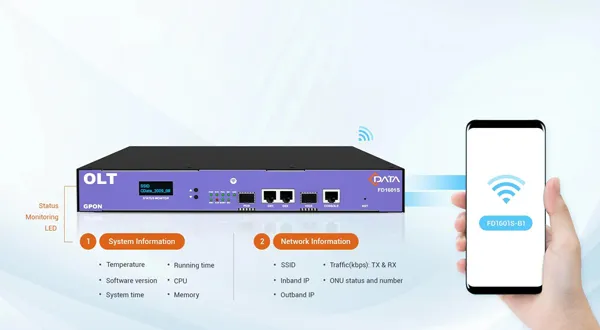

Built-in Wi-Fi and Status Monitoring LED

Provide seamless deployment and maintenance, allowing operators or installers to conveniently configure settings using their smartphones.

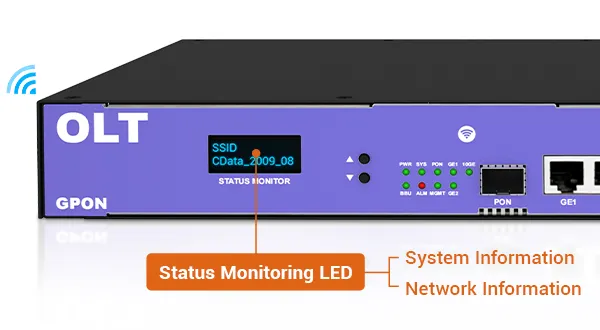

Real-time data can be effortlessly monitored via the LED display for enhanced operational insights.

Compact Size Takes the Crown

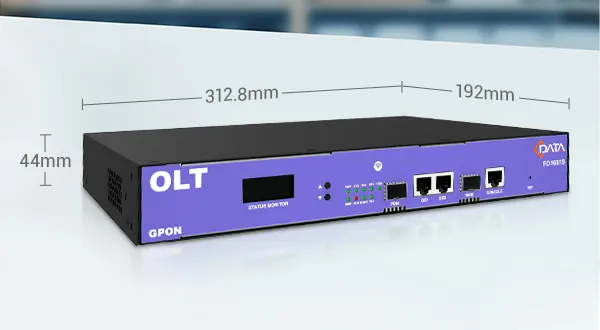

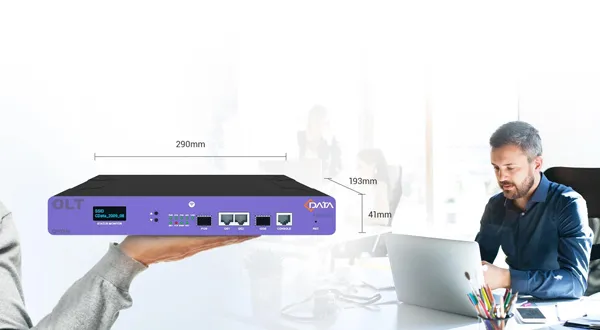

Just 290*193*41mm, environmentally friendly and energy-efficient design, seamlessly adaptable to various environments.

Easily integrated into outdoor cabinets and indoor small sites, deployment without worries, eliminating constraints of space.

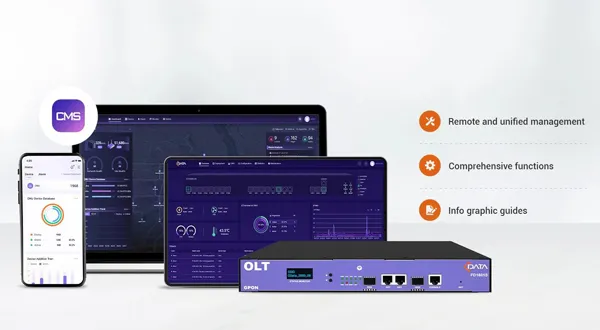

Manage Remotely with Ease

Access your network management through various methods including CLI, WEB, Telnet, SSH, and MQTT.

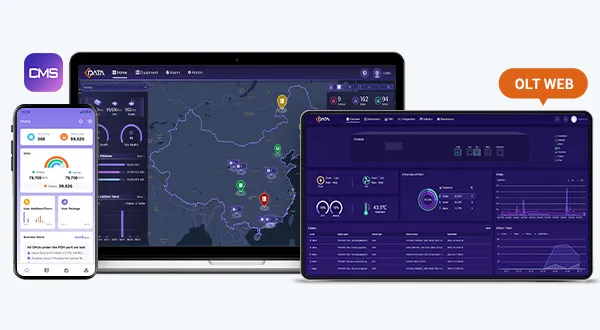

Utilize the C-Data CMS for remote, unified management, featuring comprehensive functions and info graphic guides.

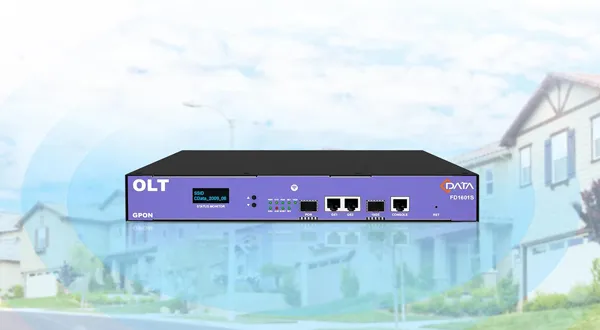

Economical Choice

Perfect for budget-friendly solutions for small-scale networks.

Save on space and maintenance costs while tailoring deployments to local infrastructure conditions.

Efficient Fiber Connectivity

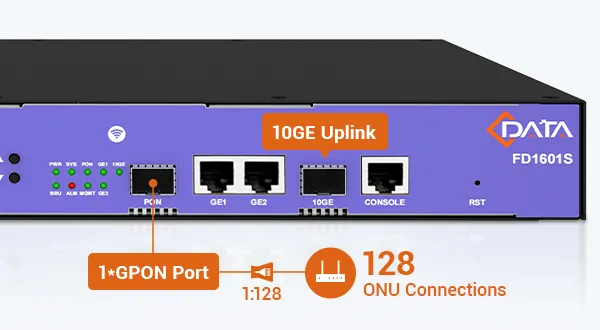

Choose between models with either 1 GPON port or 2 GPON ports, tailored to your specific requirements.

Technical Overview

GPON OLT FD1601S-B1 completely meet relative standard of ITU G.984.x and FSAN, the device with 2 uplink Ethernet ports and 1 10 Gigabit uplink port and 1 GPON port.Each GPON port supports the splitting ratio of 1:128, The GPON system supports up to 128 terminal connections.

 Datasheet  Get Docs

Technical Specifications

Mechanics
Dimensions	290mm(L)192mm(W)40mm(H)
Weight	1.50Kg

Hardware
Uplink Port	2 10/100/1000M auto-negotiation Ethernet ports
	10 Gigabit uplink port
PON Port	Quantity	1
	Physical interface	SFP slot
	Interface type	GPON: ITU-TG.984.2 Class B+/Class C+
	Max splitting ratio	GPON: 1:128
Management Port		1 CONSOLE local management port
PON Port attribute	Transmission distance	20KM
	Port rate	GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps
	Wavelength	Forwarding: 1490nm Receiving: 1310nm
	Interface type	SC/UPC
	Fiber type	9/125μm SMF (Single Mode Fiber)
	Light transmission power	Class B+ +1.5 ~ +5dBm	Class C+ +3 ~ +7dBm
	Receiving sensitivity	Class B+ : -28dBm	Class C+ : -30dBm
	Saturation power	Class B+ -8dBm	Class C+ -12dBm
Backplane Bandwidth		27.75G

Power supply
AC	100V ~ 240V，47~63Hz
DC	External adapter mode 12V/2.5A

Environment
Working temperature	-15 ~ 50℃
Storage temperature	-40 ~ 85℃
Ambient humidity	5 ~ 90% (Non-condensing)



Ordering Information

NO.	Product Model	Specifications	Dimensions	Fan Module	Power supply
1	FD1601S-B1	1GPON + 2GE RJ45 + 1*Optional XGPON or 10GE(SFP+)	290mm(L)193mm(W)41mm(H)	N/A	90V ~ 240V AC; External adapter mode 12V/2.5A; Optional BBU power supply
2	FD1601S-B2	1GPON + 2GE RJ45 + 1*Optional XGPON or 10GE(SFP+)	312.8mm(L)193mm(W)44mm(H)	Smart Fan Module
3	FD1602S-B1	2GPON + 2GE RJ45 + 1*Optional XGPON or 10GE(SFP+)	360mm(L)193mm(W)44mm(H)	Smart Fan Module
