CC1000S can customize the number of PON ports and uplink ports, and can manage FT1004B/M of C-Data. It has the functions of aggregation switches, such as switching, routing, QoS, link aggregation, flow control, cloud integration, and so on. In addition, CC1000 has additional interfaces, IO, 1588.

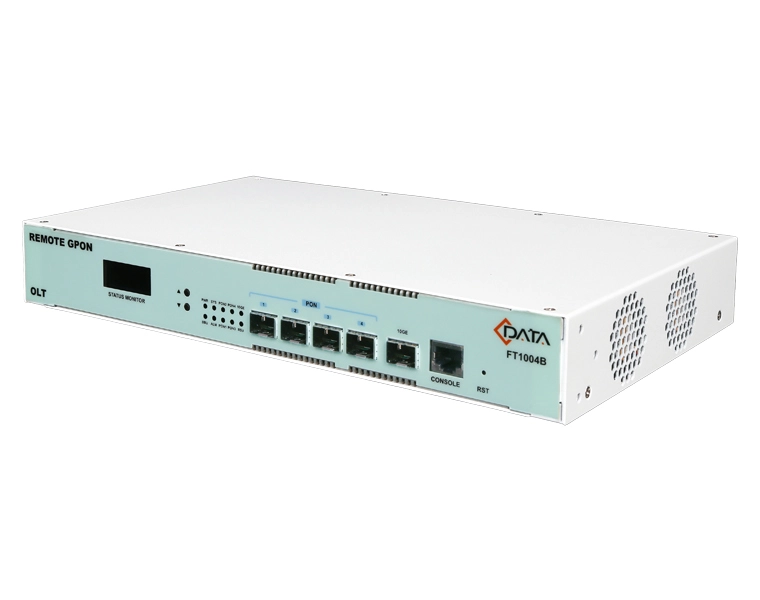

GPON OLT FT1004B completely meet relative standard of ITU G.984.x and FSAN, the device with 1*10 Gigabit uplink port and 4 GPON port. Each GPON port supports the splitting ratio of 1:128, The GPON system supports up to 512 terminal connections.
| Mechanics | |
| Management Rack | 1U 19-inch standard box |
| Dimensions | 441mm(L)*296mm(W)*44mm(H) |
| Weight | About 4.45kg |
| Hardware | |
| Remote PON | 16* 1/ 10GE |
| Uplink Port | 8*1/ 10GE 2*40/ 100GE |
| Management Port | 1 100/ 1000BASE-Tx out-band Ethernet port |
| 1 CONSOLE local management port | |
| Power Supply | |
| AC | 100V ~ 240V |
| DC | -40 ~ - 57 V |
| Environment | |
| Working temperature | -15 ~ 50℃ |
| Storage temperature | -40 ~ 85℃ |
| Ambient humidity | 5 ~ 90% (Non-condensing) |
| S.L | Model | Specifications | Accessory |
| 1 | CC1000S | 24*10GE(SFP+)+2*100GE(QSFP28) | 1/2*AC/ DC; 1 * BBU (optional); 10GE SFP+module (optional); 100GE QSFP28 module (optional); |
| Mechanics | |
| Dimensions | 310mm(L)*192mm(W)*44mm(H) |
| Weight | 1.95Kg |
| Hardware | |||
| Uplink Port | 1*10 Gigabit uplink port | ||
| PON Port | Quantity | 4 | |
| Physical interface | SFP slot | ||
| Interface type | GPON: ITU-TG.984.2 Class B+/Class C+ | ||
| Max splitting ratio | GPON: 1:128 | ||
| Management Port | 1 CONSOLE local management port | ||
| PON Port attribute | Transmission distance | 20KM | |
| Port rate | GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps | ||
| Wavelength | Forwarding: 1490nm Receiving: 1310nm | ||
| Interface type | SC/ UPC | ||
| Fiber type | 9/ 125μm SMF (Single Mode Fiber) | ||
| Light transmission power | Class B+ +1.5 ~ +5dBm | Class C+ +3 ~ +7dBm | |
| Receiving sensitivity | Class B+ : -28dBm | Class C+ : -30dBm | |
| Saturation power | Class B+ -8dBm | Class C+ -12dBm | |
| Backplane Bandwidth | 35G | ||
| Power supply | |
| AC | 100V ~ 240V ，47~63Hz |
| DC | External adapter mode 12V/2.5A |
Environment | |
Working temperature | -15 ~ 50℃ |
Storage temperature | -40 ~ 85℃ |
Ambient humidity | 5 ~ 90% (Non-condensing) |
