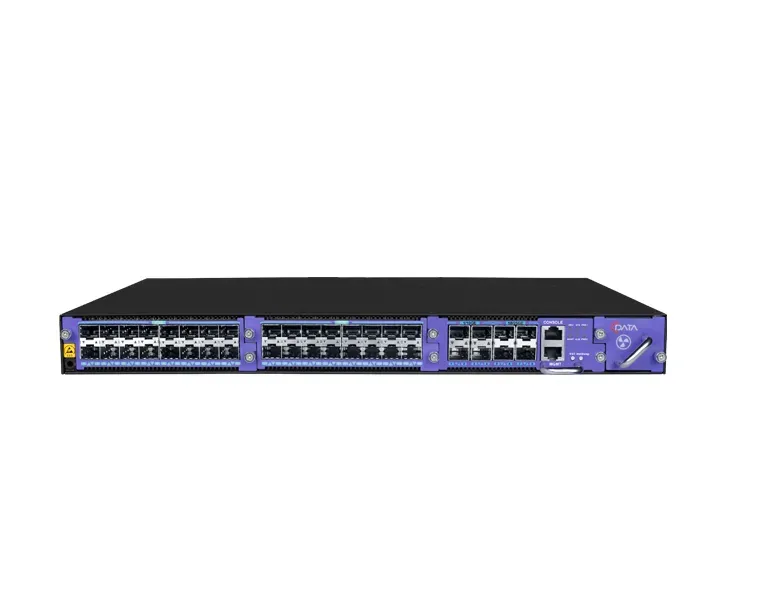

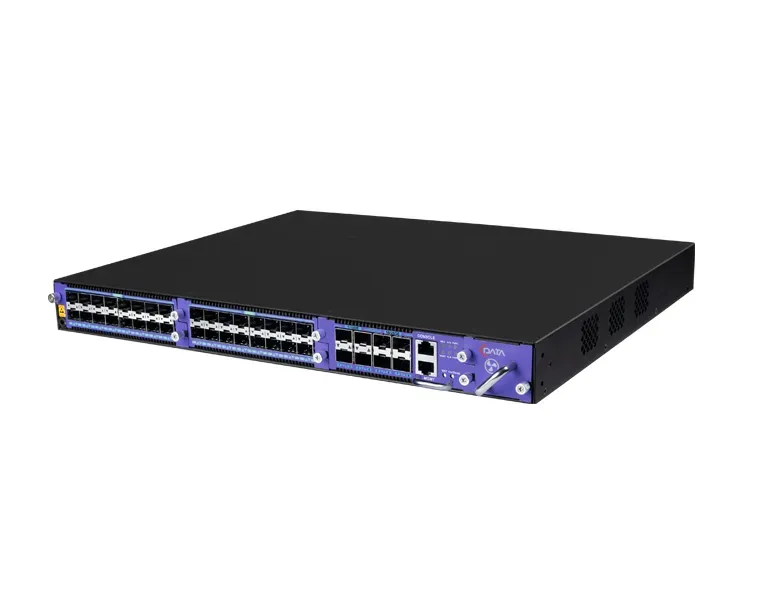

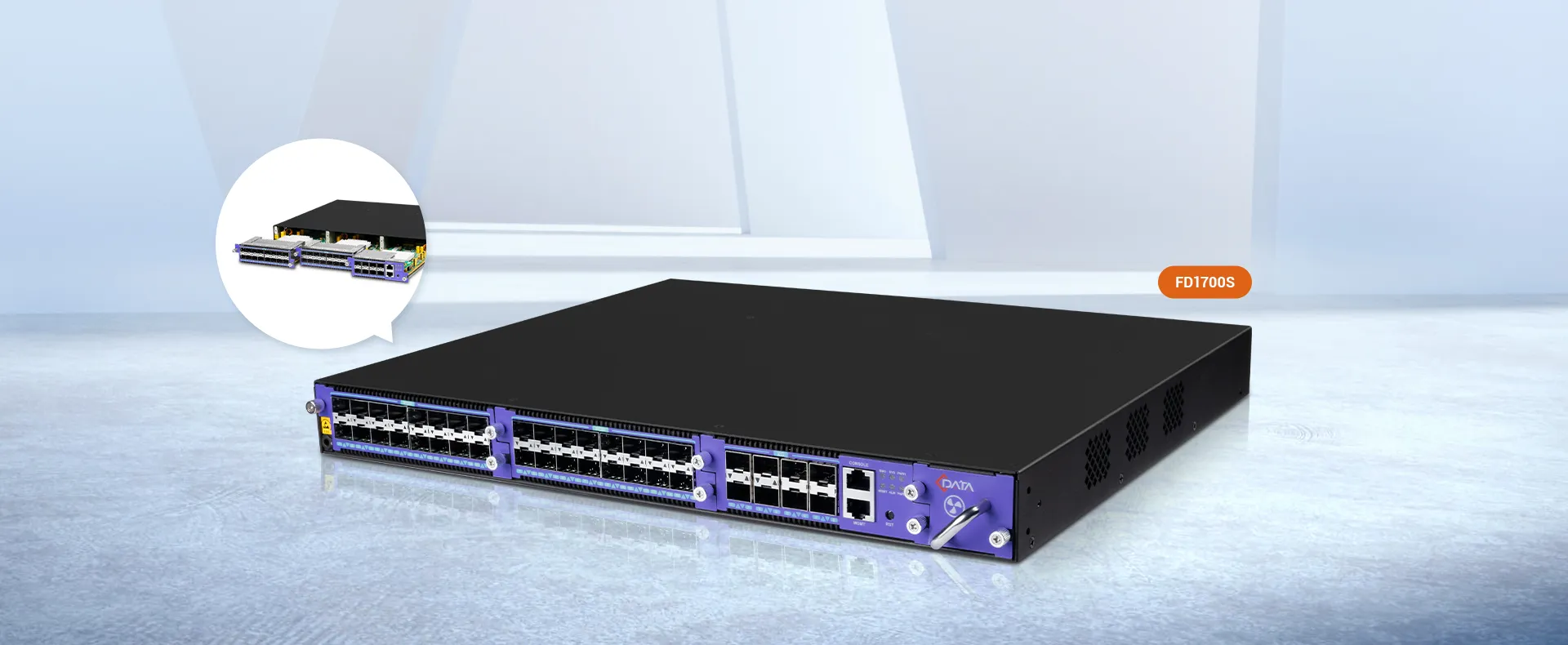

FD1700S - Shenzhen C-Data Technology Co., Ltd.

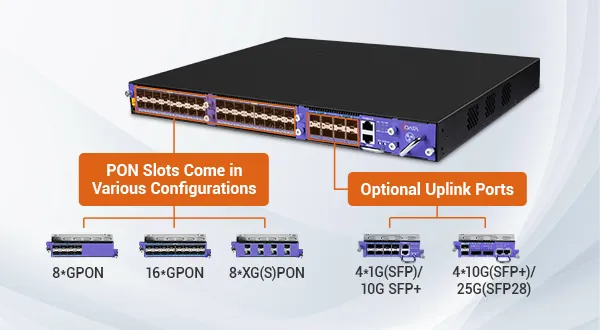

Easily Adapting to Changing Network Requirements, Preventing Unnecessary Expenses on Unused Features.

FD1700S offers unparalleled flexibility and excellent scalability.

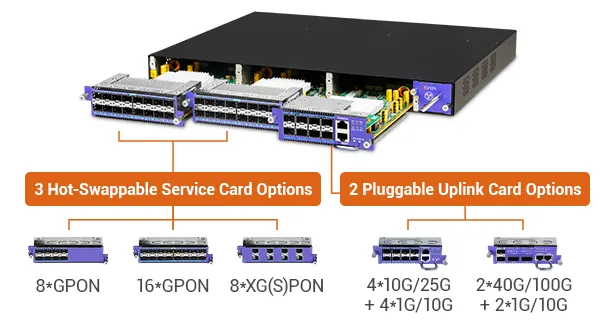

Supporting 2 pluggable slots with 4 various choices, it tailors solutions for every need, seamlessly integrating into existing networks, effortlessly bridging the present and the future.

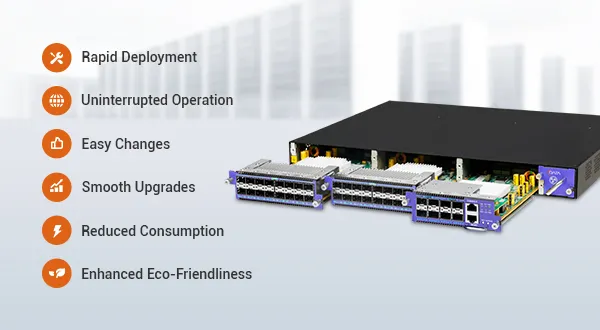

Flexible, Efficient, and Future-Ready OLT Solution

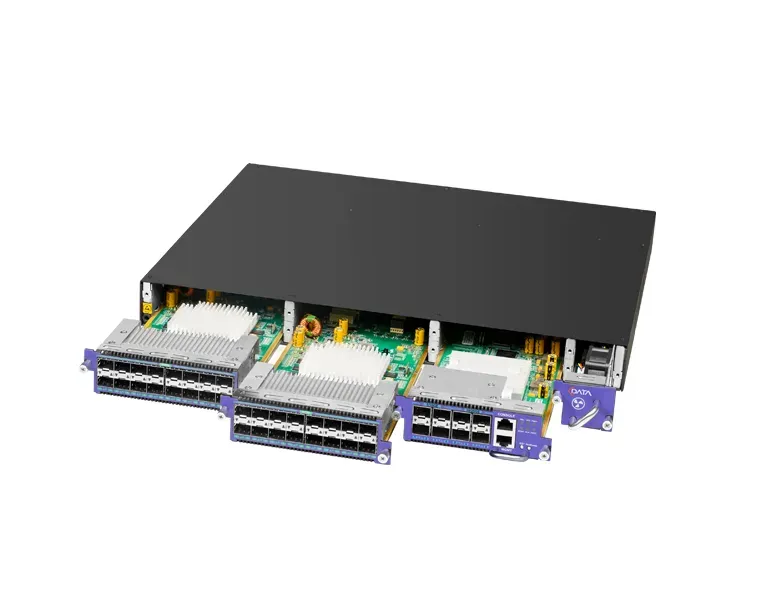

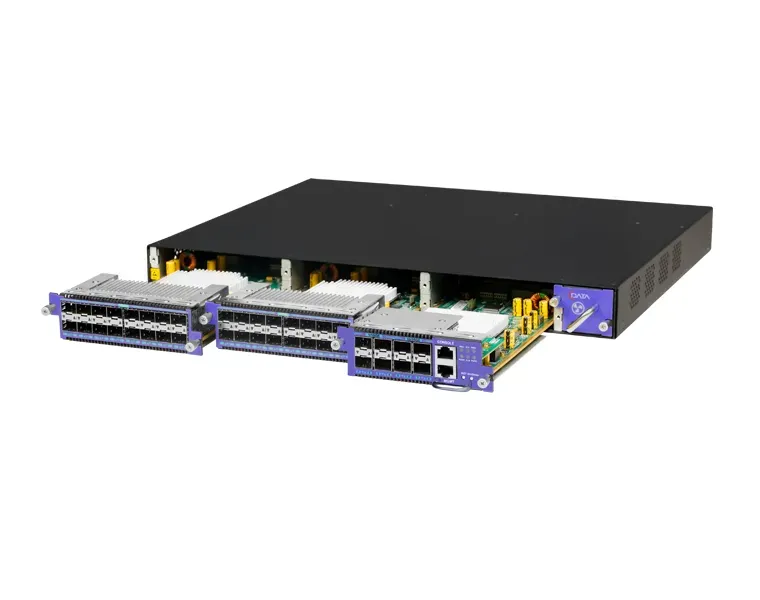

Customized to your needs, FD1700S features a hot-pluggable and modular design, making it effortless to achieve:

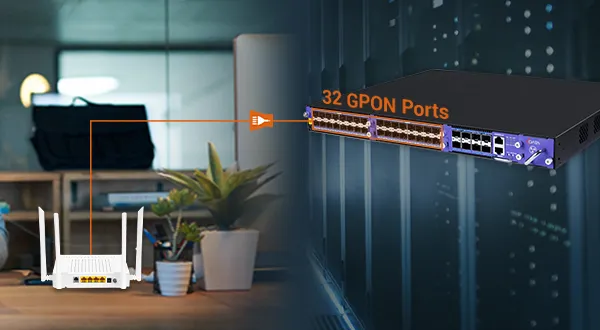

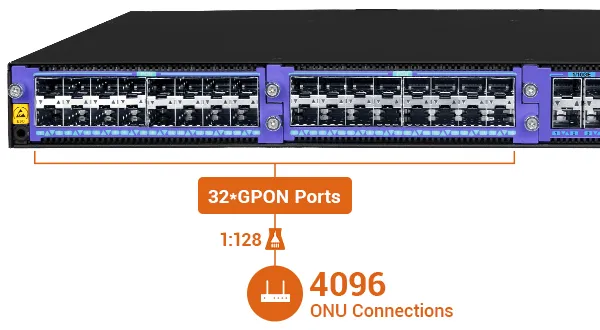

High Density, Compact Size

Standard 1RU but powerful: FD1700S boasts up to 32 GPON ports within a standard 1RU size.
This ensures high density without sacrificing performance, offering savings in costs, energy, and space.
Incredible data throughput: Each GPON port supports a stable splitting ratio of 1:128, accommodating a maximum of up to 4096 terminal connections.

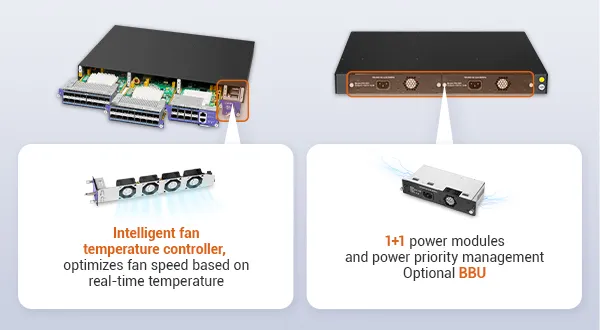

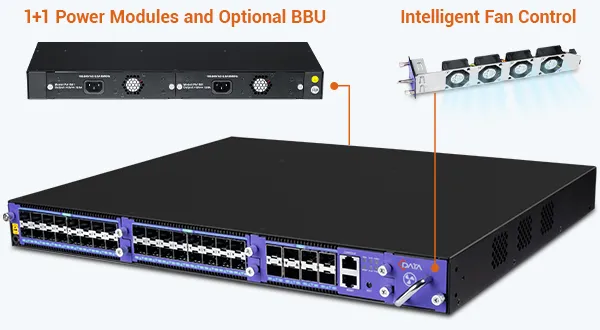

High Reliability, Enduring Performance

Stability is paramount, and FD1700S guarantees enduring and trustworthy performance.

Aligned with ITU-T G.984.x and FSAN Standards

Full-service support encompassing Voice, Ethernet Access, Wi-Fi, HD Video, Security Defense, etc, Remote data transmission without compromise.

Shared Private OAM/OMCl Definitions, ensuring incredible compatibility.

Technical Overview



The GPON OLT FD1700S fully complies with the relevant standards of ITU G.984.x and FSAN. It's a 1RU device featuring an uplink SFP port with options for either 4*1G/10G and 4*10G/25G. The PON ports come in configurations of 4/8/16 ports. Each GPON port supports a splitting ratio of 1:128. Consequently, the GPON system can accommodate up to 4096 terminal connections, depending on the number of PON ports chosen.

 Datasheet  Get Docs

Specification

Mechanics
Management Rack	1U 19-inch standard box
Dimensions	44037544mm
Weight	About 6kg

Hardware
Uplink Port	41G(SFP)/10G SFP+ 410G(SFP+)/25G(SFP28)
PON Port	Quantity	8GPON/ 16GPON/24GPON/32GPON/ 8*XG(S)PON
	Physical interface	SFP slot
	Interface type	GPON: ITU-TG.984.2 Class B+/Class C+
	Max splitting ratio	GPON: 1:128
Management Port		100/ 1000BASE-Tx out-band Ethernet port CONSOLE local management port
PON Port attribute	Transmission distance	20KM
	Port rate	GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps
	Wavelength	Forwarding: 1490nm Receiving: 1310nm
	Interface type	SC/ UPC
	Fiber type	9/ 125μm SMF (Single Mode Fiber)
	Light transmission power	Class B+:+1.5 ~ +5dBm	Class C+:+3 ~ +7dBm	Class C++++:+7.5dBm~+10.5d Bm	Class C++： +4.5dBm~+10dBm
	Receiving sensitivity	Class B+:-28dBm	Class C+:-30dBm	Class C++++:-30dBm	Class C++:-31dBm
	Saturation power	Class B+:-8dBm	Class C+:-12dBm	Class C++++:-10dBm	Class C++:-10dBm
Backplane Bandwidth		400G

Power Supply
AC	100V ~ 240V ，47~63Hz
DC	-40V ~ -72V

Environment
Working temperature	-15 ~ 50℃
Storage temperature	-40 ~ 85℃
Ambient humidity	5 ~ 90% (Non-condensing)

Ordering information

FD1700C：Chassis+Power Supply+Fan

FD1700S：Chassis+Power Supply+Fan+Main control card

Ordering Information

No.	Product Model	Uplink Ports Options	3*Optional PON Modules	Power Supply
1	FD1700S	41G(SFP)/10G SFP+ 410G(SFP+)/25G(SFP28)	8GPON 16GPON 8*XG(S)-PON	1+1 power modules Optional BBU

Related Products



Contact Networking Equipment Manufacturer

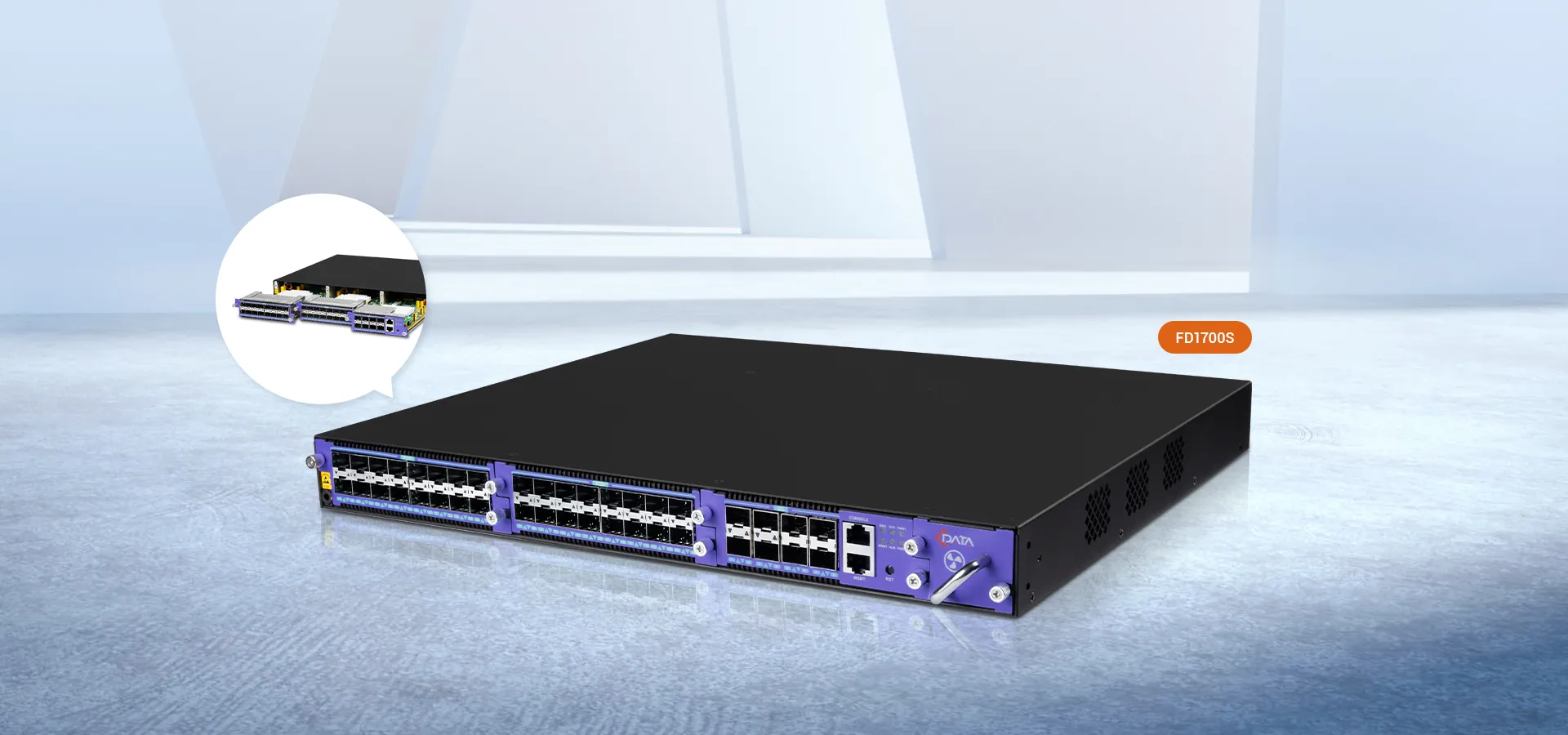

C-Data Expandable OLT Platform FD1700S
