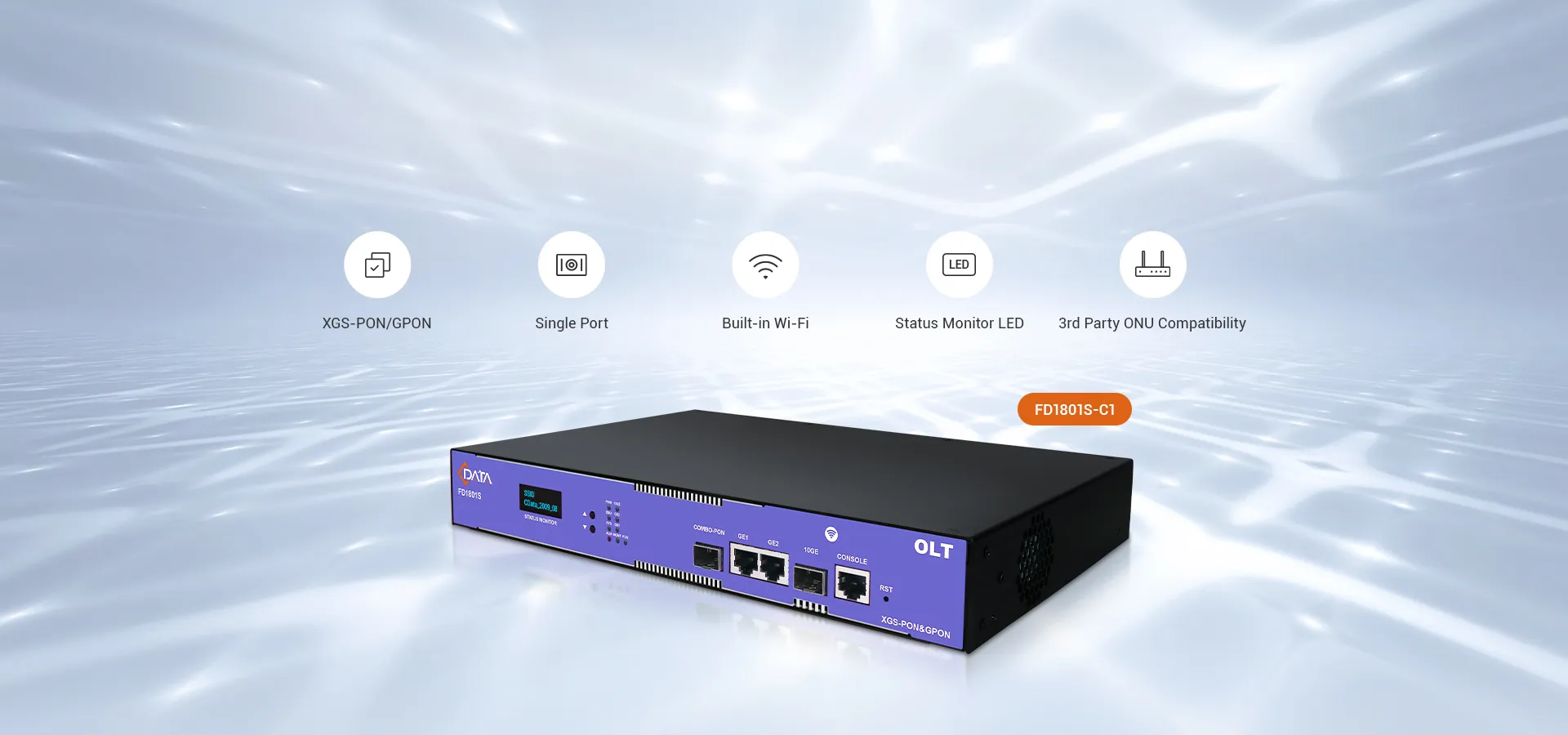

By integrating GPON and XGS-PON technologies, the Combo PON OLT FD1801S is compatible with existing GPON networks while providing high-bandwidth services,
facilitating a smooth network upgrade with highest cost-effectiveness.

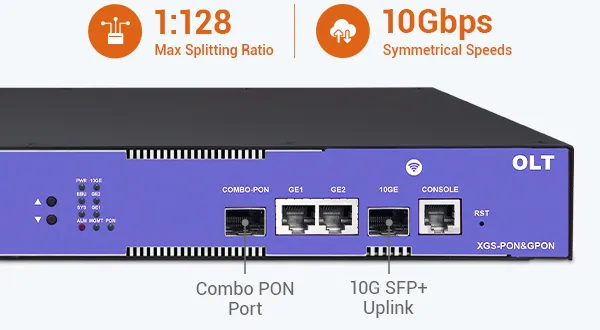

C-Data Combo PON OLT comes with a single Combo PON port that delivers cost-effective GPON services with gigabit speeds,
and supports upgrade to XGS-PON to provide 10Gbps high-speed services, meeting the user needs for higher bandwidth and lower latency.

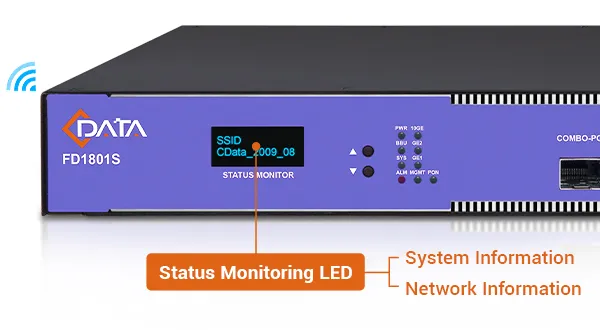

With built-in Wi-Fi and an LED screen for real-time status monitoring, FD1801S allows seamless management and configuration through smartphones, improving operational efficiency.

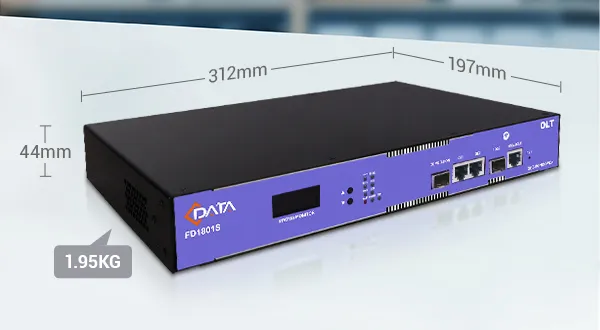

FD1801S features a compact size of just 312*197*44mm and weighs only 1.95kg. The space-saving design fits easily into different scenarios,
from office desks to network cabinets, with support for wall or desktop installation.

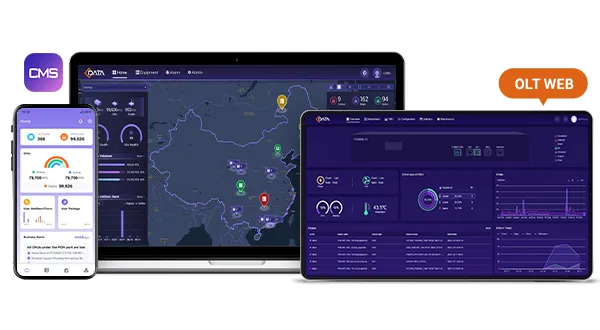

C-Data CMS and OLT Web provide users, operators, and enterprises with a secure, intelligent, and efficient network operation and maintenance platform,
simplifying management and enhancing overall efficiency.

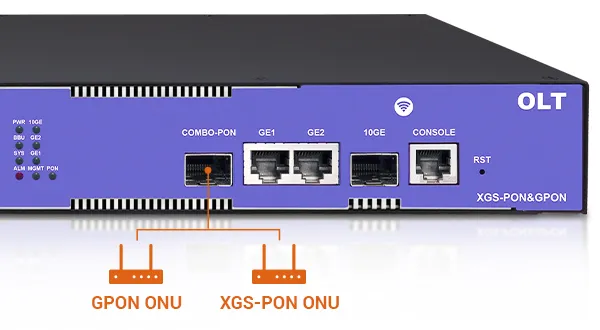

The Combo PON OLT connects existing GPON ONU and the on-demand upgraded XGS-PON ONU and enables diverse service access,
meeting the growing bandwidth demands of users. With both technical and economic benefits, it is the optimal choice for GPON-to-10G PON evolution across various application scenarios.

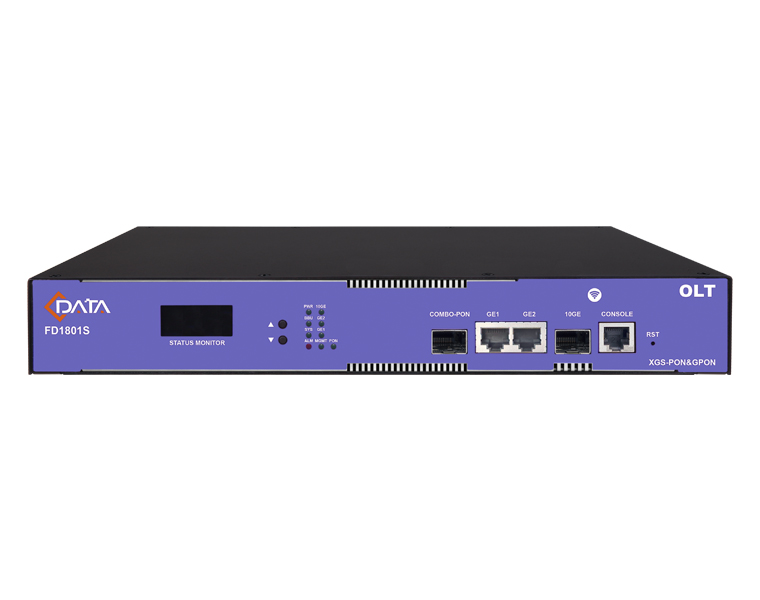

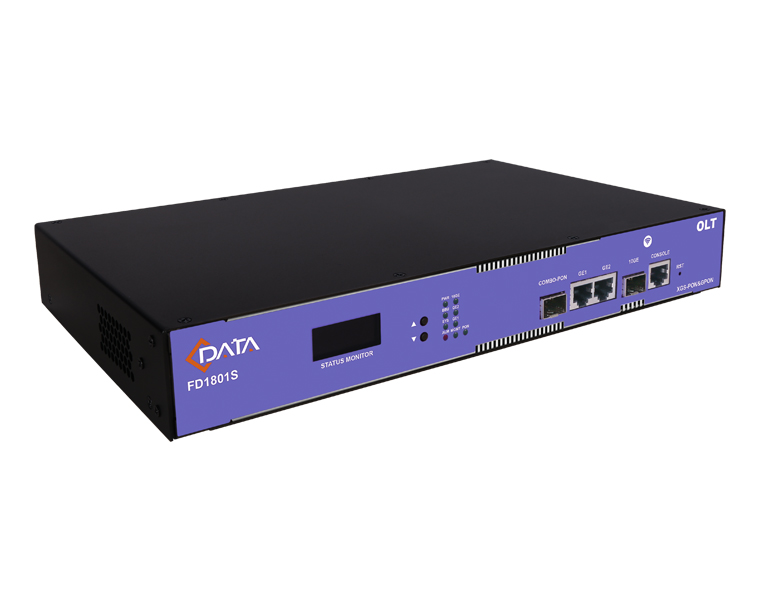

XGS-PON&GPON OLT FD1801S-C1 completely meets relative standard of ITU-T G.9807.1. It is 1U rack-mounted device with 2 uplink GE ports, 1 10GE uplink ports and 1 XGS-PON&GPON(Combo PON) ports. The XGS-PON&GPON port supports the splitting ratio of 1:128. The XGS-PON&GPON system supports up to 128 terminal connections.
This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which is convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.
| Mechanics | |
| Dimensions | 312.8mm(L)*197mm(W)*44mm(H) |
| Weight | 1.95Kg |
| Hardware | ||
| Uplink Port | GE port | 2* 10/100/1000M auto-negotiation Ethernet ports |
| 10-Gigabit port | 1* SFP+ interfaces | |
| PON Port | Quantity | 1 |
| Physical Interface | SFP slot | |
| Max Splitting Ratio | 0.130555556 | |
| Management Port | 1* CONSOLE local management port | |
| PON Port Attribute | Transmission Distance | 20KM |
| Port Rate | XGS-PON: Downstream: 10Gbps Upstream: 10Gbps | |
| GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps | ||
| Wavelength | XGS-PON: Forwarding: 1577nm Receiving: 1270nm | |
| GPON: Forwarding: 1490nm Receiving: 1310nm | ||
| Interface Type | SC/UPC | |
| Fiber type | 9/125μm SMF (Single Mode Fiber) | |
| Light Transmission Power | XGS-PON&GPON COMBO | |
| 5~8dBm (9.953G) | ||
| 3~7dBm (2.488G) | ||
| Receiving Sensitivity | XGS-PON&GPON COMBO | |
| ≥-29dBm (9.953G) | ||
| ≥-30.5dBm (2.488G) | ||
| ≥-30dBm (1.244G) | ||
| Saturation Power | XGS-PON&GPON COMBO | |
| ≤-8dBm (9.953G) | ||
| ≤-10dBm (2.488G) | ||
| ≤-12dBm (1.244G) | ||
| Network Management Method | Support CLI, SNMP, TELNET, SSH, WEB | |
| Business Capabilities | Support device log, device upgrade, device management, condition monitoring, configuration management, and user management. | |
| Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on. | ||
| PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. | ||
| Layer 3 function: support static routing, dhcp-relay and vlanif configuration. | ||
| Backplane Bandwidth | 44G | |

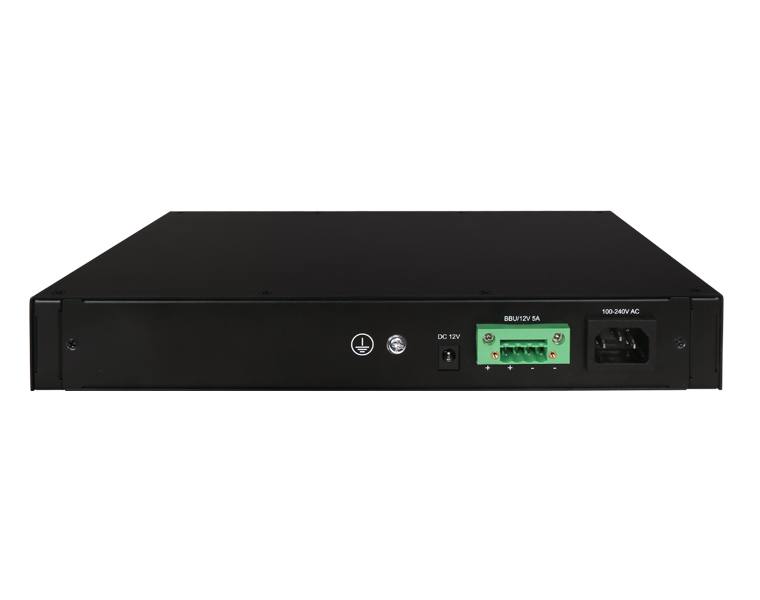

| Power supply | |
| AC | 100V ~ 240V, 47 ~ 63Hz |
| DC | External adapter mode 12V/2.5A |
| BBU (Backup Battery Unit) | DC: 11V～14V. |
| Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply and charge the backup power supply. | |
| Maximum Power | <14W |
| Environment | |
| Working Temperature | -15 ~ 50℃ |
| Storage Temperature | -40 ~ 85℃ |
| Ambient Humidity | 5 ~ 90% (Non-condensing) |
| Product Model | Specifications | Power Supply |
| FD1801S-C1 | 1*XGS-PON & GPON Combo Port + 1*10GE (SFP+) + 2*GE (RJ45) | 100V~240V AC External adapter mode 12V/2.5A Optional BBU power supply |
