With support for GPON, XG-PON, and XGS-PON,
the Combo PON OLT FD1816S provides 10G high-bandwidth services - making the transition to the 10G era effortless.

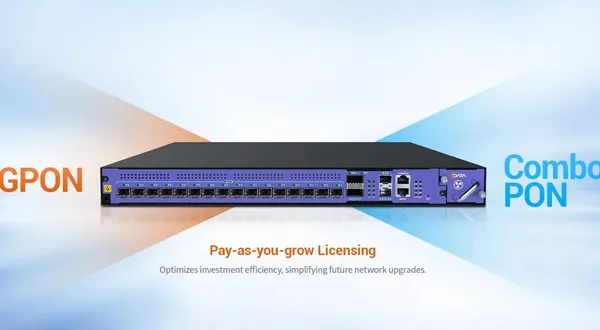

The Combo PON OLT FD1816S features flexible mode switching, allowing on-demand operation as a GPON OLT,
providing operators with unmatched deployment flexibility and a future-proof path for network growth.

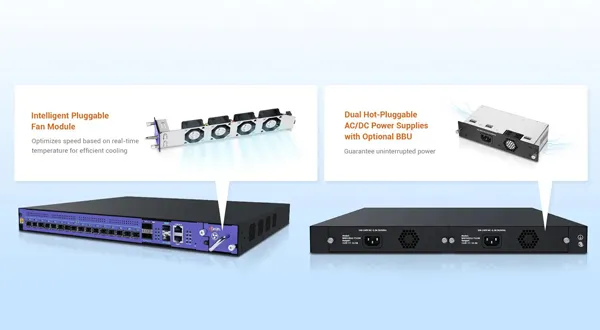

Redundant power and cooling design ensures stability and efficiency.
C-Data CMS and OLT Web provide users, operators, and enterprises with a secure, intelligent, and efficient network operation and maintenance platform,
simplifying management and enhancing overall efficiency.
The Combo PON OLT FD1816S delivers high-quality multi-service convergence, fully compatible with GPON and XG(S)-PON.
It effortlessly handles 10G broadband and future network upgrades, supporting massive user connectivity, suitable for diverse high-bandwidth application scenarios.

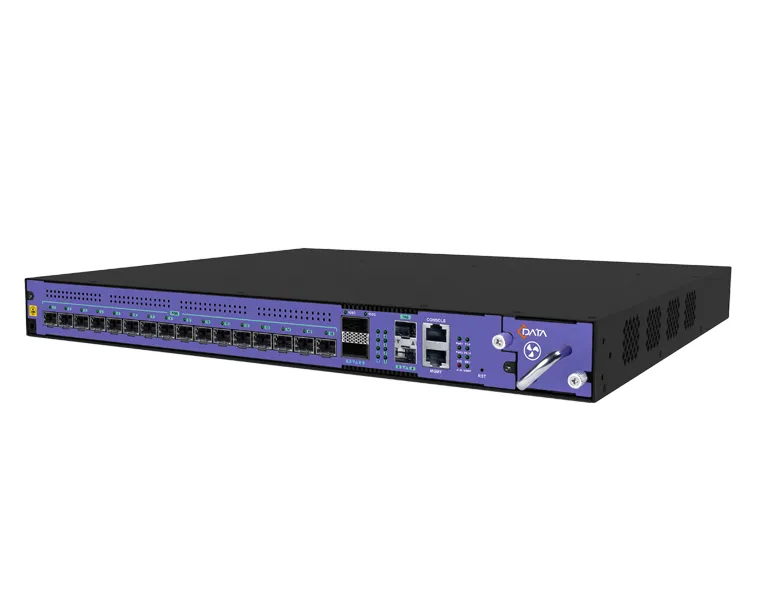

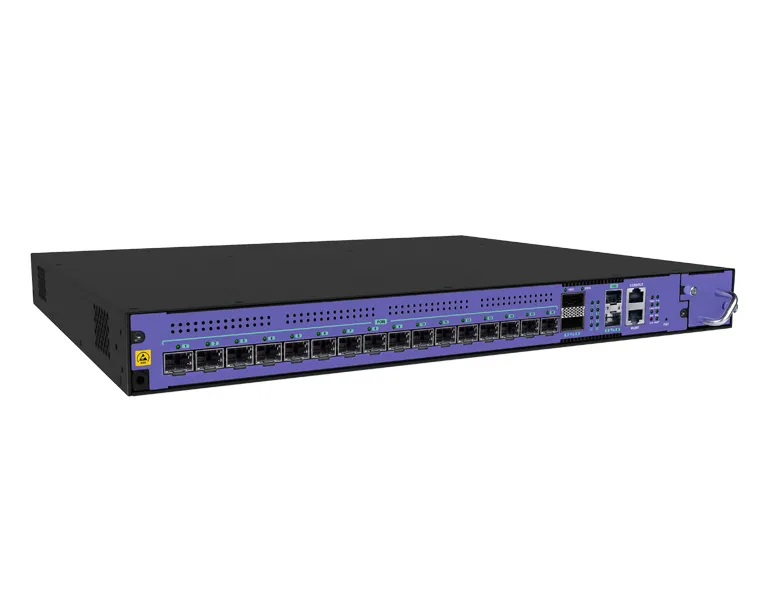

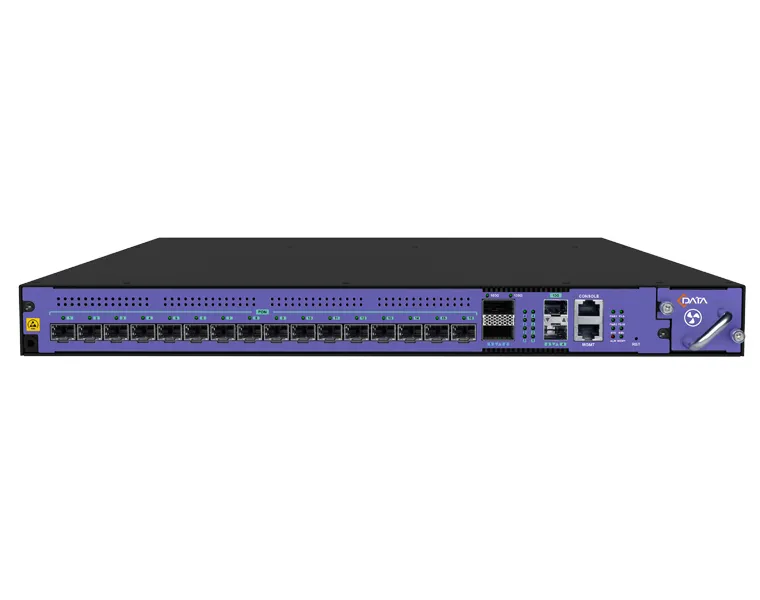

XG(S)-PON&GPON OLT FD1816S-B1 completely meets relative standard of ITU-T G.9807.1. It is 1U rack-mounted device with 2* 1G(SFP) / 10G(SFP+) uplink ports, 2* 40G(QSFP+) / 100G(QSFP28) uplink ports and 16 XG(S)-PON&GPON(Combo PON) ports. The XG(S)-PON&GPON port supports the splitting ratio of 1:256. The XG(S)-PON&GPON system supports up to 4096 terminal connections.
This product has excellent performance, is easy to use and flexible, and is easy to deploy. It is suitable for application scenarios with multiple network businesses and high user density. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.
Mechanics | |
Dimensions | 441mm(L)*397.5mm(W)*44.4mm(H) |
Weight | 6.18Kg |
Hardware | ||
Uplink Port | Uplink port | 2* 1G(SFP) / 10G(SFP+) ports 2* 40G(QSFP+) / 100G(QSFP28) ports |
PON Port | Quantity | 16 |
Physical Interface | SFP+ slot | |
Max Splitting Ratio | 1:256 | |
Management Port | 1* CONSOLE local management port 1* 100/ 1000BASE-Tx out-band MGMT Ethernet port | |
PON Port Attribute | Transmission Distance | 20KM |
Port Rate | XGS-PON: Downstream: 10Gbps Upstream: 10Gbps XG-PON: Downstream: 10Gbps Upstream: 2.5Gbps GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps | |
Wavelength | XGS-PON: Forwarding: 1577nm Receiving: 1270nm XG-PON: Forwarding: 1577nm Receiving: 1270nm GPON: Forwarding: 1490nm Receiving: 1310nm | |
Connector Type | SC/ UPC | |
Fiber type | 9/ 125μm SMF (Single Mode Fiber) | |
Light Transmission Power | XG(S)-PON&GPON COMBO 5~8dBm (9.953G) 3~7dBm (2.488G) | |
Receiving Sensitivity | XG(S)-PON&GPON COMBO ≥ -29dBm (9.953G) ≥ -30.5dBm (2.488G) ≥ -30dBm (1.244G) | |
Saturation Power | XG(S)-PON&GPON COMBO ≤ -8dBm (9.953G) ≤ -10dBm (2.488G) ≤ -12dBm (1.244G) | |
Network Management Method | Support CLI, SNMP, TELNET, SSH, WEB | |
| Business Capabilities | Support device log, device upgrade, device management, condition monitoring, configuration management, and user management. Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on. PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. Layer 3 function: support static routing, dhcp-relay and vlanif configuration. | |
Backplane Bandwidth | 760G | |
Power supply | |
AC | 100V ~ 240V, 47 ~ 63Hz |
DC | -40V ~ -72V |
BBU (Backup Battery Unit) | DC: 11V～14V. Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply and charge the backup power supply. |
Maximum Power | ≤ 150W |
Environment | |
Working Temperature | -15 ~ 50℃ |
Storage Temperature | -40 ~ 85℃ |
Ambient Humidity | 5 ~ 90% (Non-condensing) |
| Hardware | ||
Product Model | Specifications | Power Supply |
| FD1816S-B1 | 16*GPON & XG(S)-PON Combo Ports + 2*100G (QSFP28) + 2*1G (SFP)/10G (SFP+) | AC: 100V~240V DC: -40V~-72V Optional BBU power supply |
| Software | ||
License Control | License Quality | Description |
Upgrade GPON to XG(S)-PON authorization | 1 | Upgrade 8 PON ports to XG(S)-PON (8 PON ports per license) |
Upgrade GPON to XG(S)-PON authorization | 2 | Upgrade 16 PON ports to XG(S)-PON (8 PON ports per license) |
