Name: XGS-PON ONU
Brand: Shenzhen C-Data Technology Co., Ltd.

C-Data XGS-PON ONU Series

High Bandwidth, Lightning-Fast Connectivity

High Bandwidth | 10Gbps | Compatible with 3rd OLT | Easy Management

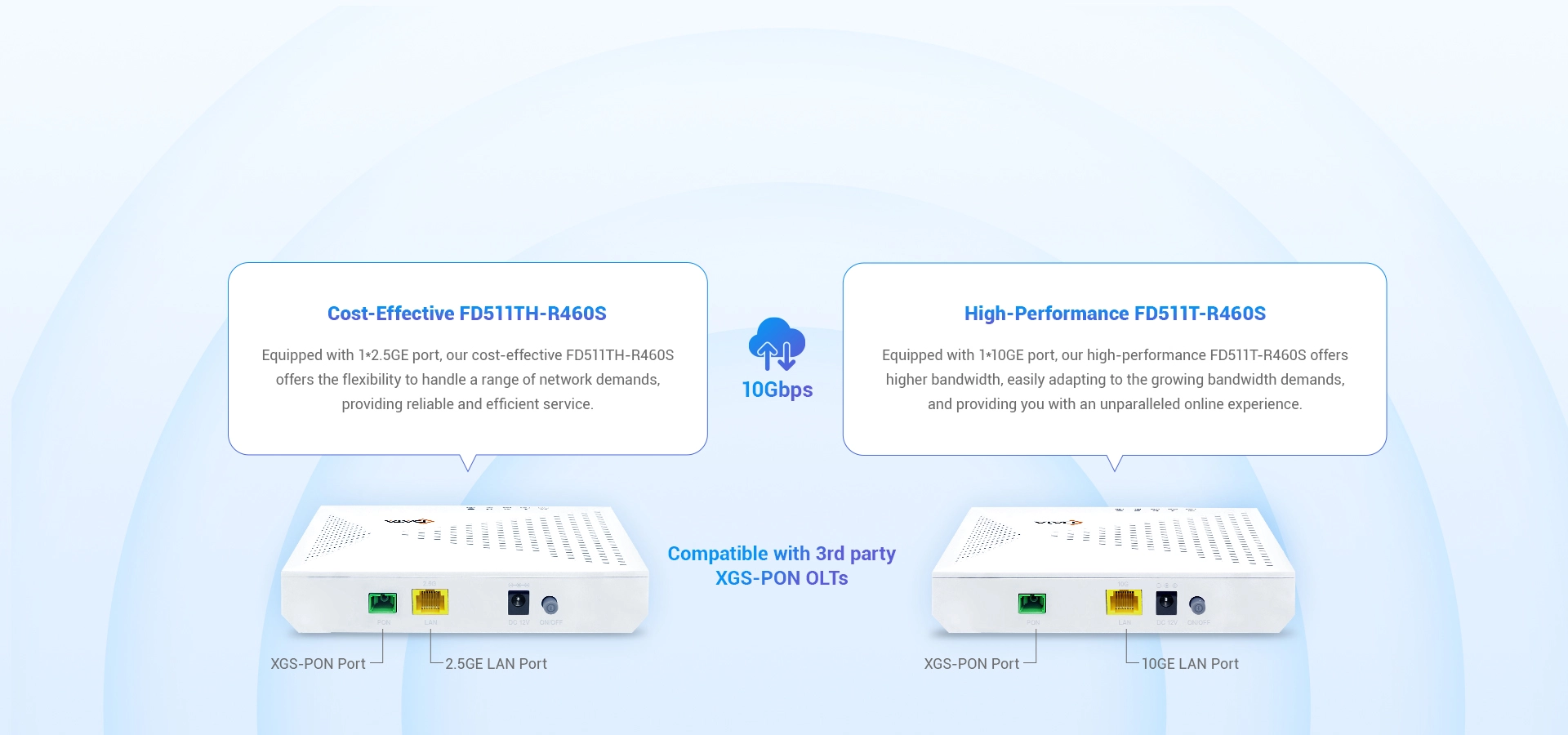

Elevating Network Capacity with High Bandwidth

C-Data XGS-PON ONU features 1*XGS-PON port, supporting 10Gbps data transmission rate for both downstream and upstream,

and enabling large-capacity and fast-speed data transmission.

Efficient Solution for Modern Business Operations

Facilitating efficient operations for Enterprise/SMB with C-Data XGS-PON ONU Series. Boasting high bandwidth, high stability, and low latency,

XGS-PON ONUs meet the needs for high-speed data transmission and simultaneously supports multiple users.

The Ideal Choice for Enhanced Life Quality

Designed specifically for home user, C-Data XGS-PON ONU supports simultaneous connection for smartphones, computers, and smart home devices,

meeting the diverse network needs of family members. No more latency, enjoy the ultimate network experience.

Multiple Application Scenarios

The Integrated Management System

CMS and ONU WEB provide users, enterprises, and operators with a secure, efficient, and intelligent network operation and maintenance platform.

CMS achieves efficient, stable, and swift management, significantly enhancing overall efficiency.

SPECIFICATIONS

Model	FD511T-R460s	FD511TH-R460s
User Port	RJ-45 connector 10GE Full/half duplex Auto MDI/ MDI-X	RJ-45 connector 2.5GE Full/half duplex Auto MDI/ MDI-X
Indicators	PWR / XGSPON / LOS / LAN / INT	PWR / XGSPON / LOS / LAN / INT
PON Port	XGSPON：FSAN G.9807.1 standard XGSPON：10Gbps/10Gbps downstream/upstream Transmit: 1270nm Receiver: 1577nm XGSPON：-28dBm XGSPON：-9dBm XGSPON：+4～+9dBm	XGSPON：FSAN G.9807.1 standard XGSPON：10Gbps/10Gbps downstream/upstream Transmit: 1270nm Receiver: 1577nm XGSPON：-28dBm XGSPON：-9dBm XGSPON：+4～+9dBm
Environment	Working temperature: 0 to 40ºC Operating humidity: 10% ~ 90% (Non-condensing)	Working temperature: 0 to 40ºC Operating humidity: 10% ~ 90% (Non-condensing)
Power	Power consumption: <8.1W	Power consumption: <8.1W
Dimensions	160mm(L)112mm(W)32mm(H)	160mm(L)112mm(W)32mm(H)
Weight	About 200g	About 200g

See More 

Take Back 

RELATED PRODUCTS

Item		FD511TH-R460s	FD511T-R460s
Specifications		1XGS-PON+12.5GE RJ45	1XGS-PON+110GE RJ45
Dimensions		160mm(L)112mm(W)32mm(H)	160mm(L)112mm(W)32mm(H)
Weight		About 200g	About 200g
User Port (LAN)		RJ-45 connector	RJ-45 connector
		2.5GE	10GE
		Full/half duplex	Full/half duplex
		Auto MDI/ MDI-X	Auto MDI/ MDI-X
Indicators		PWR / XGSPON / LOS / LAN / INT	PWR / XGSPON / LOS / LAN / INT
PON Port	PON Mode	XGSPON：FSAN G.9807.1 standard	XGSPON：FSAN G.9807.1 standard
	PON Rate	XGSPON：10Gbps/10Gbps downstream/upstream	XGSPON：10Gbps/10Gbps downstream/upstream
	Wavelength	Transmit: 1270nm Receiver: 1577nm	Transmit: 1270nm Receiver: 1577nm
	Receiving sensitivity	XGSPON：-28dBm	XGSPON：-28dBm
	Saturated power	XGSPON：-9dBm	XGSPON：-9dBm
	Average sending	XGSPON：+4～+9dBm	XGSPON：+4～+9dBm
Working temperature		0 to 40ºC	0 to 40ºC
Operating humidity		10% ~ 90% (Non-condensing)	10% ~ 90% (Non-condensing)
Power consumption		<8.1W	<8.1W

Product Model	Specifications	Accessories
FD511T-R460s	1XGS-PON+110GE RJ45	External 12VDC/1A power supply adapter
FD511TH-R460S	1XGS-PON+12.5GE RJ45	External 12VDC/1A power supply adapter
