XGS-PON MDU

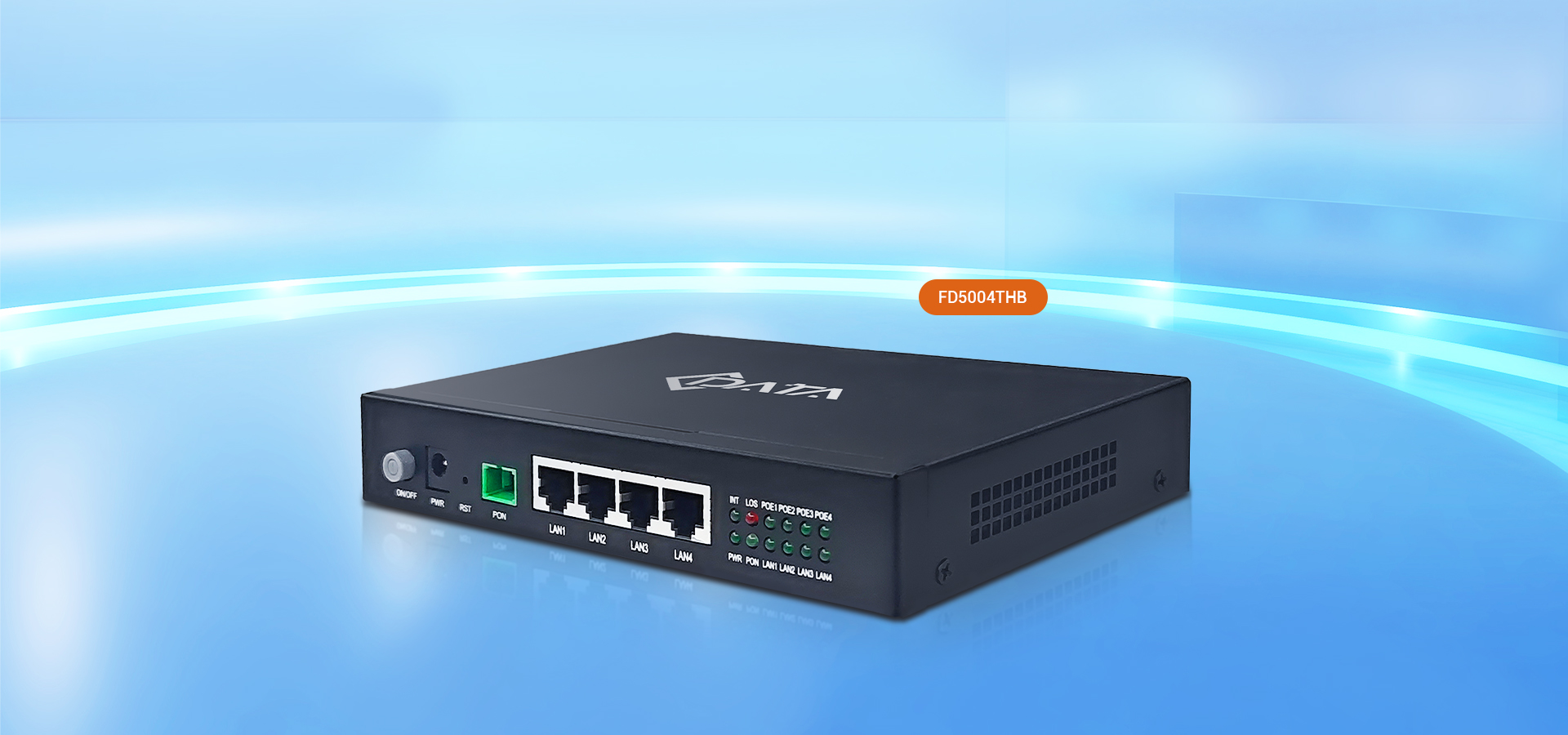

C-Data XGS-PON MDU with PoE+ Support
C-Data XGS-PON MDU with PoE+ Support

High-Speed Connectivity, Exceptional Performance

  • Optional PoE/PoE+ (PSE)
    Optional PoE/PoE+ (PSE)
  • XGS-PON
    XGS-PON
  • Security Monitoring
    Security Monitoring
  • Compatible with 3rd OLT
    Compatible with 3rd OLT
  • Easy Management
    Easy Management

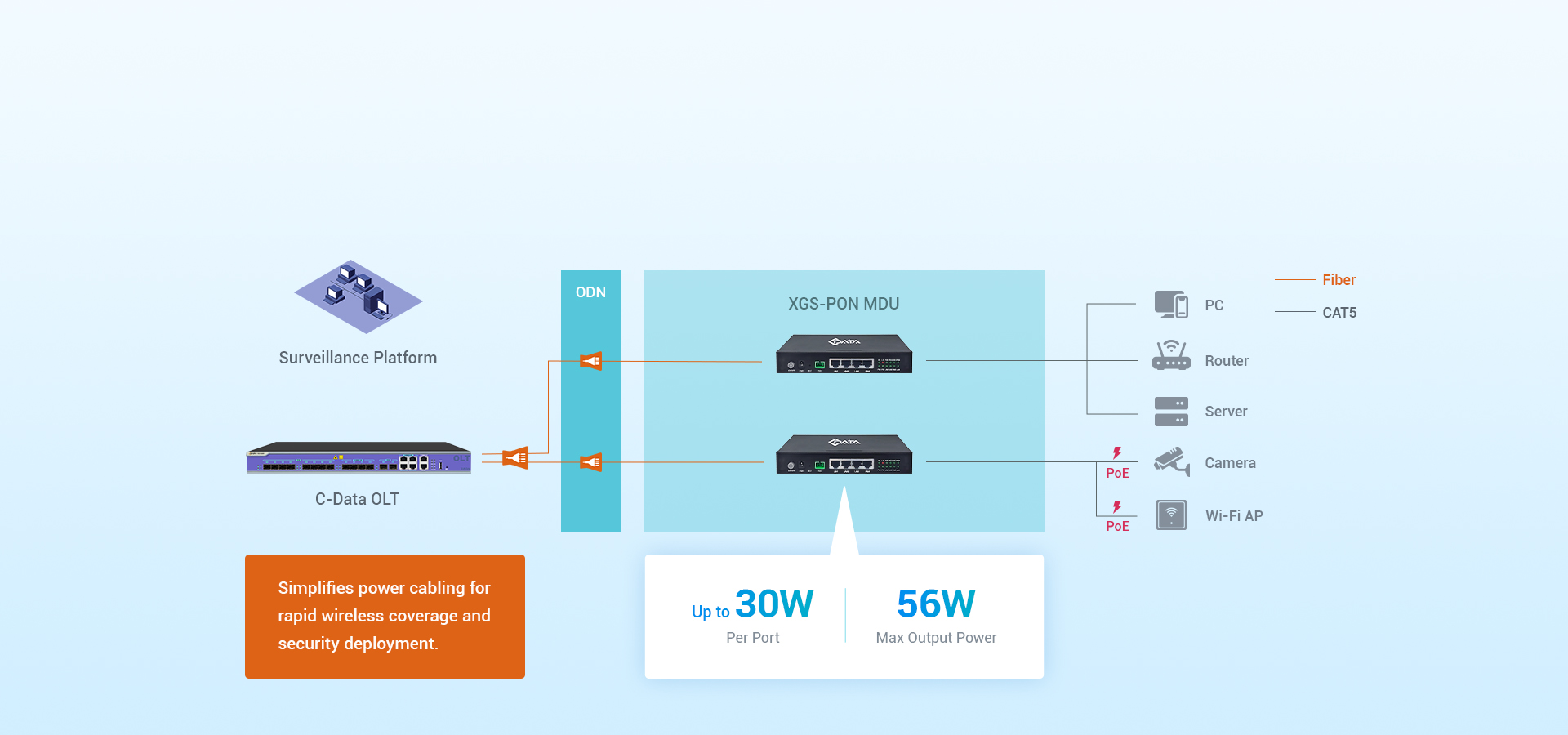

Flexible Deployment with PoE+ Delivery
Flexible Deployment with PoE+ Delivery

Supports optional PoE/PoE+ (PSE), delivering up to 30W per port and a total PoE power budget of up to 56W,

ensuring reliable power supply for cameras and wireless APs for enhanced deployment flexibility.

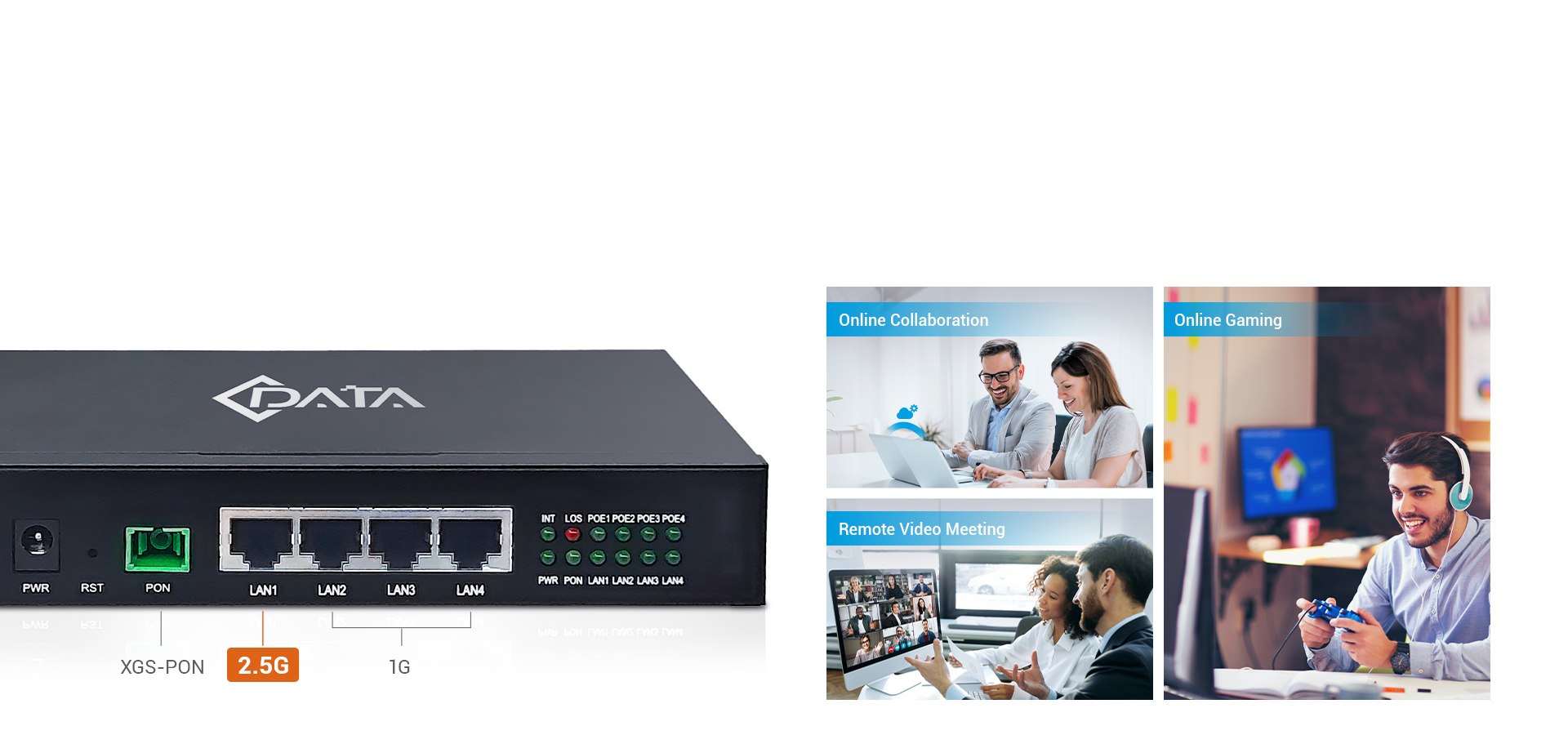

Effortless Connectivity with High-Speed Performance
Effortless Connectivity with High-Speed Performance

The XGS-PON MDU features a 10Gbps transmission capability on the PON interface,

paired with 1*2.5G and 3*1G Ethernet ports, delivering exceptional performance for diverse networking needs of business and homes.

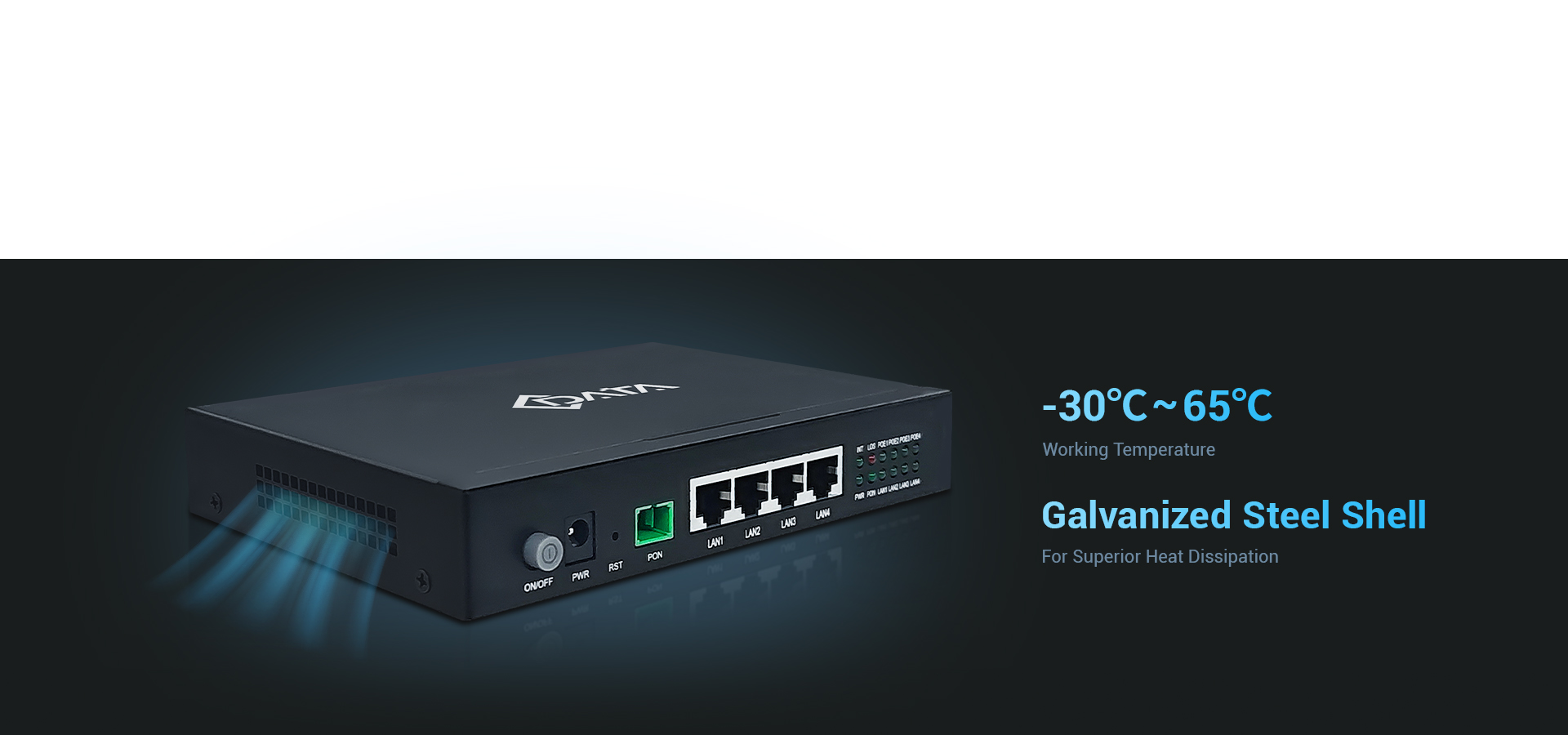

Industrial-Grade Quality, Performs Reliable
Industrial-Grade Quality, Performs Reliable

Featuring a durable galvanized steel shell and optimized ventilation design, the XGS-PON MDU ensures superior heat dissipation.

It operates stably within a temperature range of -30℃~65℃, providing reliable connectivity even in extreme conditions.

The Integrated Management System
The Integrated Management System

C-Data CMS and ONU Web provide users, enterprises, and operators with a secure, efficient,

and intelligent network operation and maintenance platform, enhancing management efficiency and saving O&M costs.

Multiple Application Scenarios
Multiple Application Scenarios

SPECIFICATIONS

ModelFD5004THB
Dimensions180mm(L) x 122mm(W) x 30mm (H)
WeightAbout 500g
Hardware
User Port (LAN)RJ-45 connector
1*2.5G and 3* 10/100/1000Mbps adaptive Ethernet port
Full/Half duplex
Auto MDI/MDI-X
IndicatorsPWR / PON / LOS / LAN/ INT / POE
PON PortPON ModeXGS-PON: ITU-T G.9807.1 standard
PON RateXGS-PON:10Gbps/10Gbps downstream/upstream
WavelengthTransmit: 1270nmReceiver: 1577nm
Receiving sensitivityXGS-PON: -28dBm
Saturated powerXGS-PON: -9dBm
Average sendingXGS-PON: +4～+9dBm


See More
Take Back

RELATED PRODUCTS

ItemFD5004THB-RSFD5004THBF
Dimensions180mm(L) x 122mm(W) x 30mm (H)180mm(L) x 122mm(W) x 30mm (H)
WeightAbout 500gAbout 500g
Hardware

User Port (LAN)RJ-45 connectorRJ-45 connector
1*2.5G and 3* 10/100/1000Mbps adaptive Ethernet port 1*2.5G and 3* 10/100/1000Mbps adaptive Ethernet port
Full/Half duplexFull/Half duplex
Auto MDI/MDI-XAuto MDI/MDI-X
IndicatorsPWR / PON / LOS / LAN/ INT / POEPWR / PON / LOS / LAN/ INT / POE
PON PortPON ModeXGS-PON: ITU-T G.9807.1 standardPON ModeXGS-PON: ITU-T G.9807.1 standard
PON RateXGS-PON:10Gbps/10Gbps downstream/upstreamPON RateXGS-PON:10Gbps/10Gbps downstream/upstream
WavelengthTransmit: 1270nmReceiver: 1577nmWavelengthTransmit: 1270nmReceiver: 1577nm
Receiving sensitivityXGS-PON: -28dBmReceiving sensitivityXGS-PON: -28dBm
Saturated powerXGS-PON: -9dBmSaturated powerXGS-PON: -9dBm
Average sendingXGS-PON: +4～+9dBmAverage sendingXGS-PON: +4～+9dBm



ORDERING INFORMATION

NO.

Product Model

Specification

Power Supply

1

FD5004THBF-RS

1*XGS-PON + 1*2.5GE (RJ45) + 3*GE (RJ45) + PoE/PoE+ (PSE)



Max PoE Output Power: 56W

PSE Output Voltage: 48V DC

External power supply 48V DC/1.5A

Max power consumption <60W

2

FD5004THB-RS

1*XGS-PON + 1*2.5GE (RJ45) + 3*GE (RJ45)

External power supply 12V DC/1A

Max power consumption <6W
