The product provides 3GE and 1*2.5G ports with PoE/PoE+ functions, which can not only transmit data, but also connect to terminal devices such as cameras through its PoE ports to supply power, making the networking more flexible. FD5004THB-RS&FD5004THBF-RS Corridor MDU has the characteristics of high reliability, quality of service(QoS) guarantee, easy management, flexible upgrade and expansion and networking. The various functions and performance indicators of the equipment meet ITU-T related recommendations, relevant international standards and technical specifications of industry standards, and have good compatibility when used with mainstream manufacturers' central office OLTs.
Support MDU auto-discovery/Link detection/remote upgrade of software
Support SN and LOID+Password multiple registration methods
Support port VLAN configuration
Support port-based rate limitation and bandwidth control
Support MAC address learning
Support MAC address learning account limit
Support VLAN transparent/tag/translate/trunk
Support broadcasting storm resistance function
Support igmp transparent/snooping/proxy mode
Support Dynamic Bandwidth Allocation (DBA)
Support AES encryption and decryption
EMS network management based on SNMP, convenient for maintenance
Support power-off alarm function, easy for link problem detection
Support Firewall
Support MAC address/URL filter
Support Remote WEB/Telnet access control
| Mechanics | |||
| Dimensions | 180mm(L) x 122mm(W) x 30mm (H) | ||
| Weight | About 500g | ||
| Hardware | |||

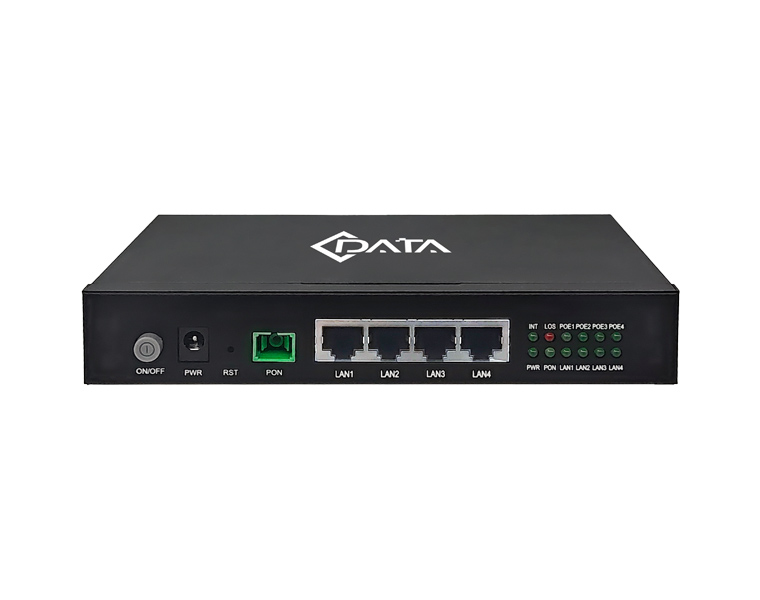

| User Port (LAN) | RJ-45 connector | ||
| 1*2.5G and 3* 10/100/1000Mbps adaptive Ethernet port | |||
| Full/Half duplex | |||
| Auto MDI/MDI-X | |||
| Indicators | PWR / PON / LOS / LAN/ INT / POE | ||
| PON Port | PON Mode | XGS-PON: ITU-T G.9807.1 standard | |
| PON Rate | XGS-PON: 10Gbps/10Gbps downstream/upstream | ||
| Wavelength | Transmit: 1270nm | Receiver: 1577nm | |
| Receiving sensitivity | XGS-PON: -28dBm | ||
| Saturated power | XGS-PON: -9dBm | ||
| Average sending | XGS-PON: +4～+9dBm | ||
| Environment | |||
| Working temperature | -30 to 65ºC | ||
| Operating humidity | 10% ~ 90% (Non-condensing) | ||
| Power | |||
| FD5004THBF-RS: | |||
| External power supply: 48VDC/1.5A | |||
| Support POE feed (PSE) | |||
| PSE output voltage: 48V DC | |||
| The maximum output power of the whole machine: 56W, the maximum output power of a single port: 30W | |||
| Max machine power consumption: <60W | |||
| FD5004THB-RS: | |||
| External 12VDC/1A power supply adapter | |||
| Max machine power consumption:<6W |
