Panel-Type ONU

  • Support EPON/GPON
    Support EPON/GPON
  • Multiple Interface Optional
    Multiple Interface Optional
  • Flexible Installation
    Flexible Installation

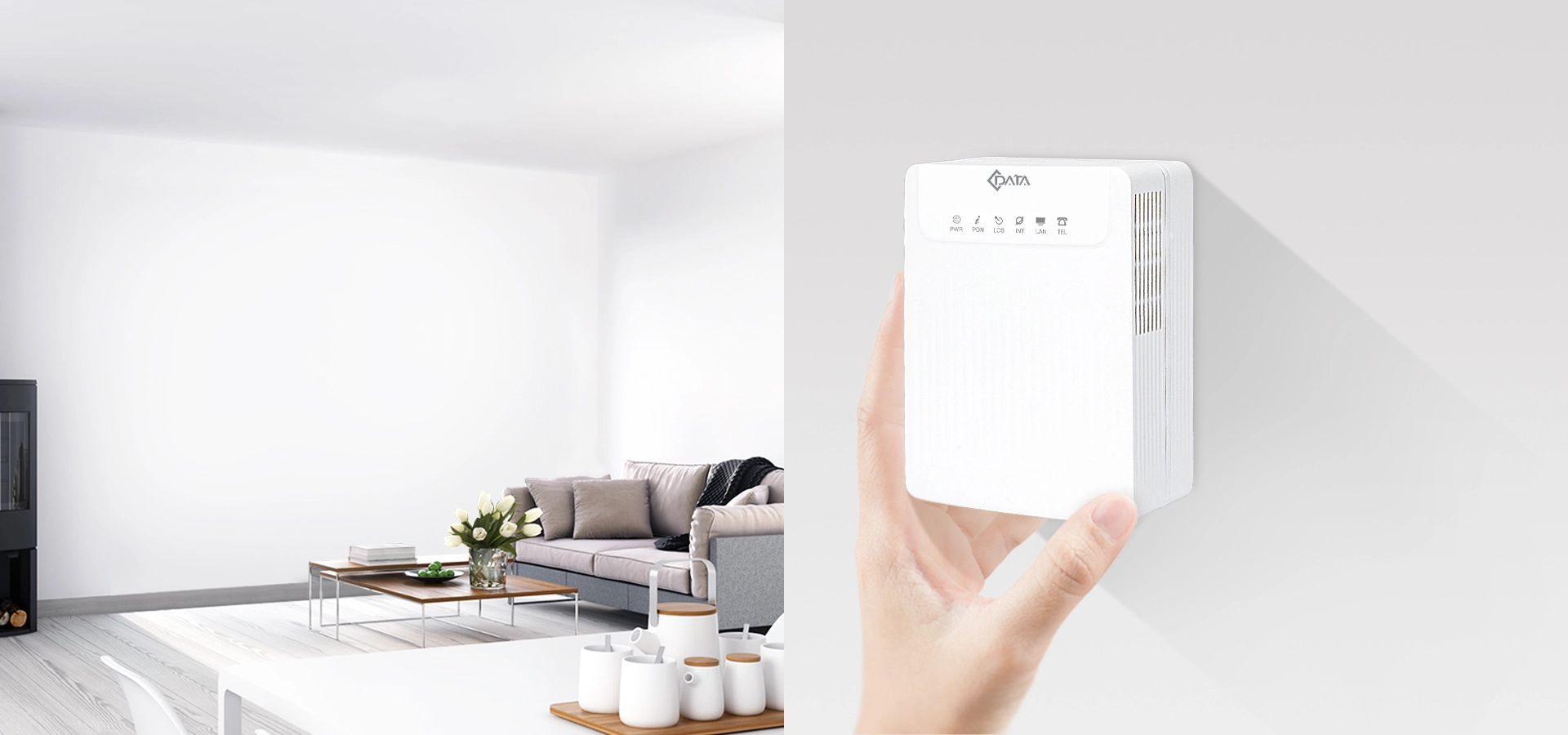

Plug and Play, Flexible Installation
Plug and Play, Flexible Installation

The C-Data Panel-Type ONU is a compact and versatile solution, the size of only 110mm*86mm*30mm.

Designed for indoor wall mounting and compatible with 86-type electrical boxes,

it integrates an optical fiber cassette for fiber splicing, routing, bend-radius protection, and optical connector safeguarding.

With support for wall surface and 86-type dark box installations, it adapts to your unique preferences, offering a streamlined network solution.

Ensures a Seamless Experience for Voice, Video, and Data Service
Ensures a Seamless Experience for Voice, Video, and Data Service

The C-Data Panel-Type ONU comes equipped with an xPON port, supporting adaptive access for both EPON and GPON modes. On the user side, it features 1 Gigabit Ethernet (GE) port. With versatile options for multi-service ports, you can choose from 1 GE, 1 GE + 1 POTS, or 1 GE + 1 CATV, catering to a wide range of connectivity needs.

Standards-Compliant and Reliable
Standards-Compliant and Reliable

The C-Data Panel-Type ONU is compliant with IEEE802.3ah and ITU-T G.984.x standards, guaranteeing top-notch quality. Additionally, it features a power-off alarm function for easy link problem detection, ensuring a robust and dependable network solution.

Achieve Seamless Full Coverage for FTTH / FTTx
Achieve Seamless Full Coverage for FTTH / FTTx

The C-Data Panel-Type ONU enhances the convenience of FTTH and FTTB installations by offering a compact, versatile, and standards-compliant solution with integrated fiber capabilities and multiple service ports. It adapts to various installation preferences and helps ensure seamless network connectivity.

High-Performance Forwarding Capabilities
High-Performance Forwarding Capabilities

The C-Data Panel-Type ONU ensures outstanding internet service experiences. This series offers flexible and stable terminal solutions for FTTH/FTTx deployments and future-proof business support capabilities.

The Integrated Management System
The Integrated Management System

ONU WEB3.0 and CMS provide users, enterprises, and operators with a secure, efficient, and intelligent network operation and maintenance platform, achieving efficient, stable, and swift management and operation, significantly enhancing overall efficiency.

Application Scenarios
Application Scenarios


User PortSC/APC single mode single fiber
GPON: FSAN G.984.2 standard,Class B+
EPON: 1000BASE-PX20+ symmetric
GPON: 2.488Gbps/1.244Gbpsdownstream/upstream
EPON: 1.25Gbps downstream/upstream
Wavelength: Transmit: 1310nm; Receiver: 1490nm
Receiving sensitivity: GPON: -28dBm EPON: -27dBm
Saturated power: GPON: -8dBm EPON: -3dBm
Transmitting power: GPON: 0.5~5dBm EPON: 0~4dBm
Interface1*xPON + 1*GE RJ45
User Port (LAN)1*10/100/1000 M Auto-negotiation RJ45 ports
Full Duplex / Half-Duplex
RJ45, Auto-MDI/MDI-X
Transmission Distance 100 Meter


Weightabout 125g

See More
Take Back





1*xPON + 1*GE RJ45
SC/APC single mode single fiber
GPONFSAN G.984.x standard,Class B+
EPON1000BASE-PX20+ symmetric
GPON2.488Gbps/1.244Gbps downstream/upstream
EPON1.25Gbps downstream/upstream
WavelengthTransmit: 1310nm Receiver: 1490nm
Receiving sensitivityGPON:-28dBm EPON:-27dBm
Saturated powerGPON:-8dBm EPON:-3dBm
Transmitting powerGPON:0.5~5dBm EPON:0~4dBm
User Port(LAN)
1*10/100/1000 Mbps Auto-negotiation RJ45 ports

Full Duplex / Half-Duplex

RJ45, Auto-MDI/MDI-X

Transmission Distance 100 Meters
External 12V/0.5A DC power supply adapter

Power consumption:<3W
Dimension and WeightItem Dimension110*86*30mm(Without Coiled fiber box)110*86*45mm(With Coiled fiber box)
Item weightabout 125g
Environmental SpecificationsOperating temperature0 to 40ºC
Operating humidity10% to 90%(Non-condensing)


NO.Product ModelSpecificationsAccessories
1FD511G-FA101*xPON + 1*GE RJ45AC-DC Power Adapter: DC 12V/0.5A
2FD711G-FA101*xPON + 1*GE RJ45 + 1*RF CATVAC-DC Power Adapter: DC 12V/0.5A
3FD611G-RA101*xPON + 1*GE RJ45 + 1*POTSAC-DC Power Adapter: DC 12V/0.5A
