The output optical power is 0-3dB, which you can manually adjust according to your needs.

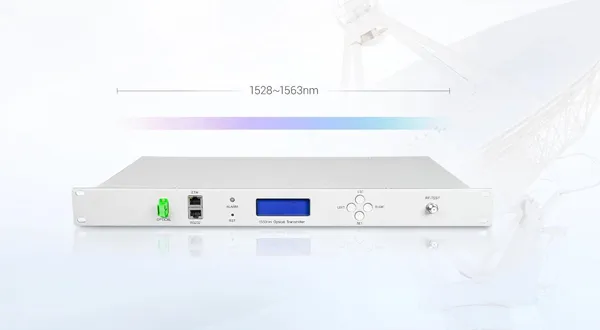

The wavelength range is 1528 ~ 1563nm. You can quickly and accurately select and convert the wavelength according to your needs.

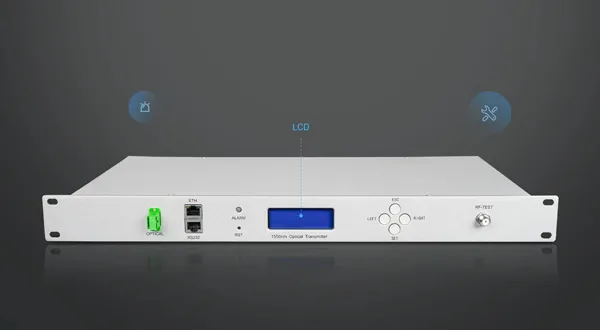

LCD displays working parameters in real time, it supports sound and light alarm, and is convenient for on-site use and maintenance.

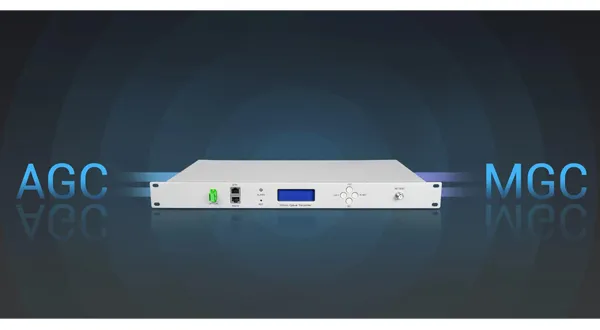

The AGC function and the MGC function can be used instead.

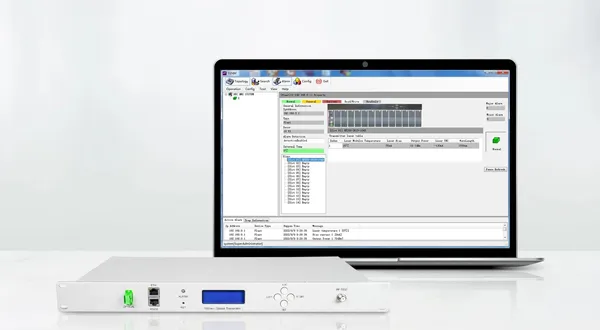

C-Data 1550nm optical transmitter supports WEB and SNMP management for easy maintenance.
HF200-3615E series External Modulated Optical Transmitter is the preferred product of broadband transmission system and large capacity CATV optical transmission system network.Mainly using in optical modulation, optical insertion, WDM, the network upgrade and expansion of the large 1550nm optical transmission system, that is a core device to achieve triple play, FTTX, 1550nm RFTV broadcast network system.
| Item | HF200-3615E | |
| Specifications | 1*RJ45 + 1*RS232 + 2*Optical output + 1*RF input | |
| Optical Parameter | Wavelength（nm） | 1550±10nm |
| Optical output power | Specify by customer (2×5、2×6、2×7、2×9For choice) | |
| Connector type | FC/APC or SC/APC | |
| Optical Reflection Loss | ≥50 | |
| Laser Type | DFB | |
| Light modulationmode | External modulation | |
| RF parameters | RF Band | 47-862/1000 |
| RF Input level | 80±5dBμV (AGC) | |
| Level Difference of Narrow-Band port andMain Port | ||
| Nominal RF Input Impedance | 75 | |
| RF Input Reflection Los | ＞16 (45~750MHz) | |
| Flatness | ≤±0.75dB (45~1000MHz) | |
| Input Level Detection | ||
| Link Parameter | C/N | / |
| CSO | ≥60dB | |
| CTB | ≥65.0 dB | |
| MER | ||
| CNR | ≥52 | |
| SBS Suppression | Continuously Adjustable (13.5、16.5、18.5 forchoice) | |
| General Parameter | Power Supply | 100～240 VAC (Option-48VDC) |
| Power consumption | / | |
| Working Temperature | 0℃～50℃ (Automatically shelltemp contro) | |
| Working relativeTemp | 20%～85% | |
| Storage Temperature | ||
| Size (Length x Width x Height) | 483mmx381mmx44mm | |
| Reference Net Weight | ||
| Power loss | ≤50W |
| NO. | Product Model | Specifications | Accessories |
| 1 | HF200-3615 | 1*LAN + 1*RS232 + 2*Optical output + 1*RF input | |
| 2 | HF200-3615E | 1*RJ45 + 1*RS232 + 2*Optical output + 1*RF input |
