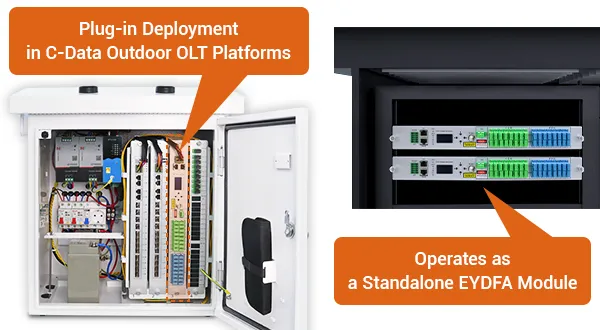

Supports plug-in deployment in C-Data outdoor OLT platforms for flexible CATV service delivery.
Operates as a standalone EYDFA module for independent optical amplification deployment.
Improves operational efficiency across different network scenarios.

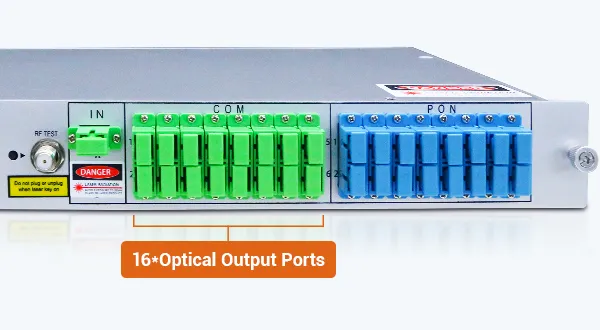

+27~33 dBm high total output power enables long-reach signal transmission.
Maintains low noise figure of <5.5 dB for high-quality signal performance.
CATV wavelength range of 1540~1563nm supports stable RF overlay transmission.
Provides a flexible and cost-effective solution for large-scale CATV and PON coverage in urban FTTx networks.

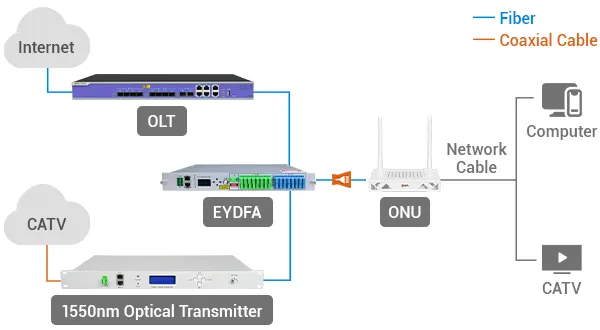

Enhances network efficiency in hybrid CATV and PON deployments through optimized optical distribution.

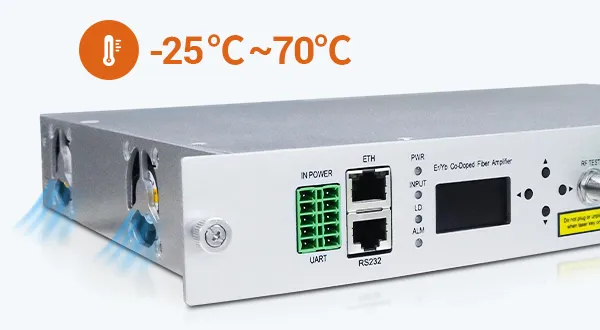

Equipped with efficient fan cooling design for stable heat dissipation.
Operates reliably in harsh environments from -25~70℃.
Supports APC and ATC to ensure stable optical output and consistent system performance.
Designed for flexible FTTH network deployment, the EYDFA enables efficient video and data convergence with simplified network architecture and improved efficiency.

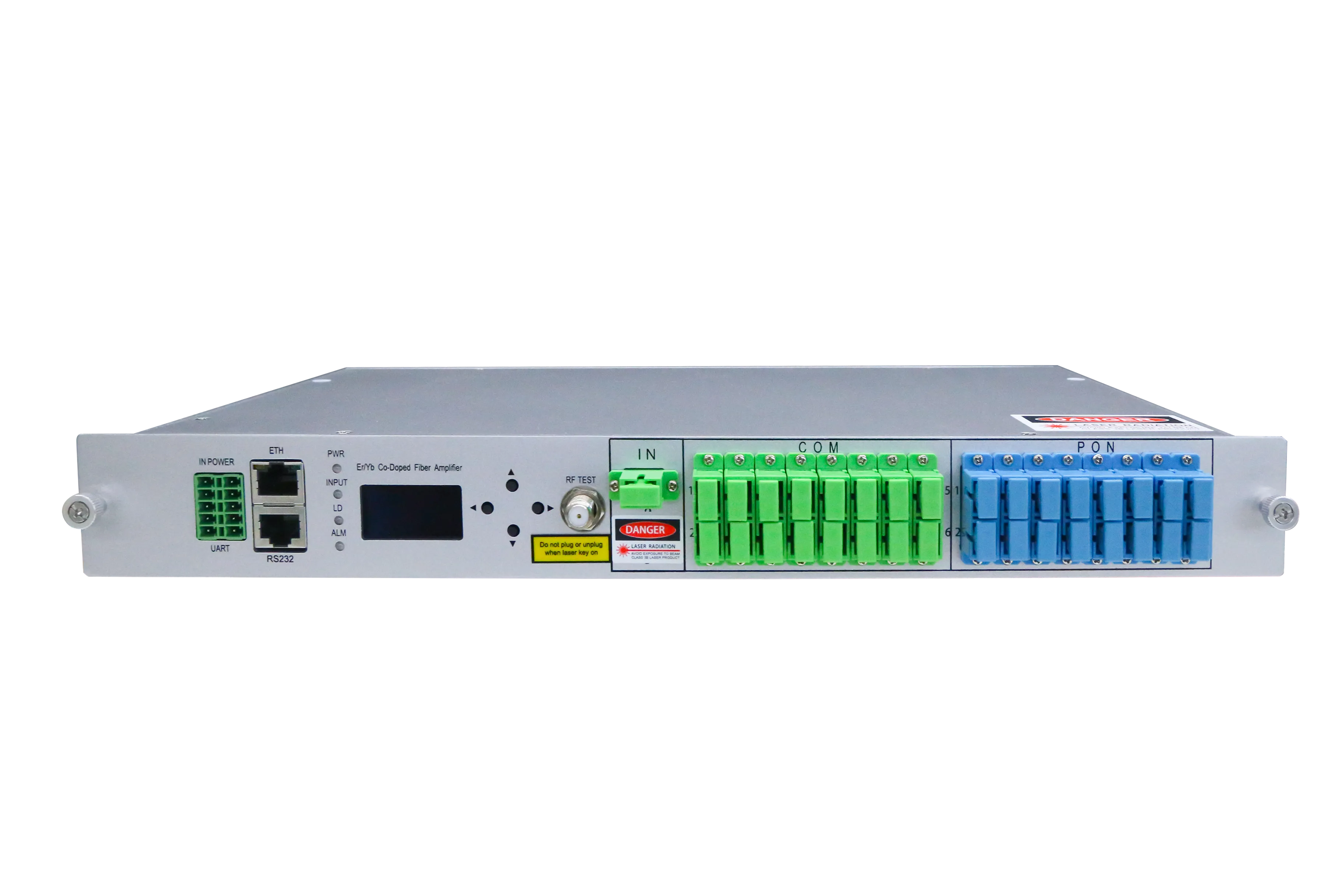

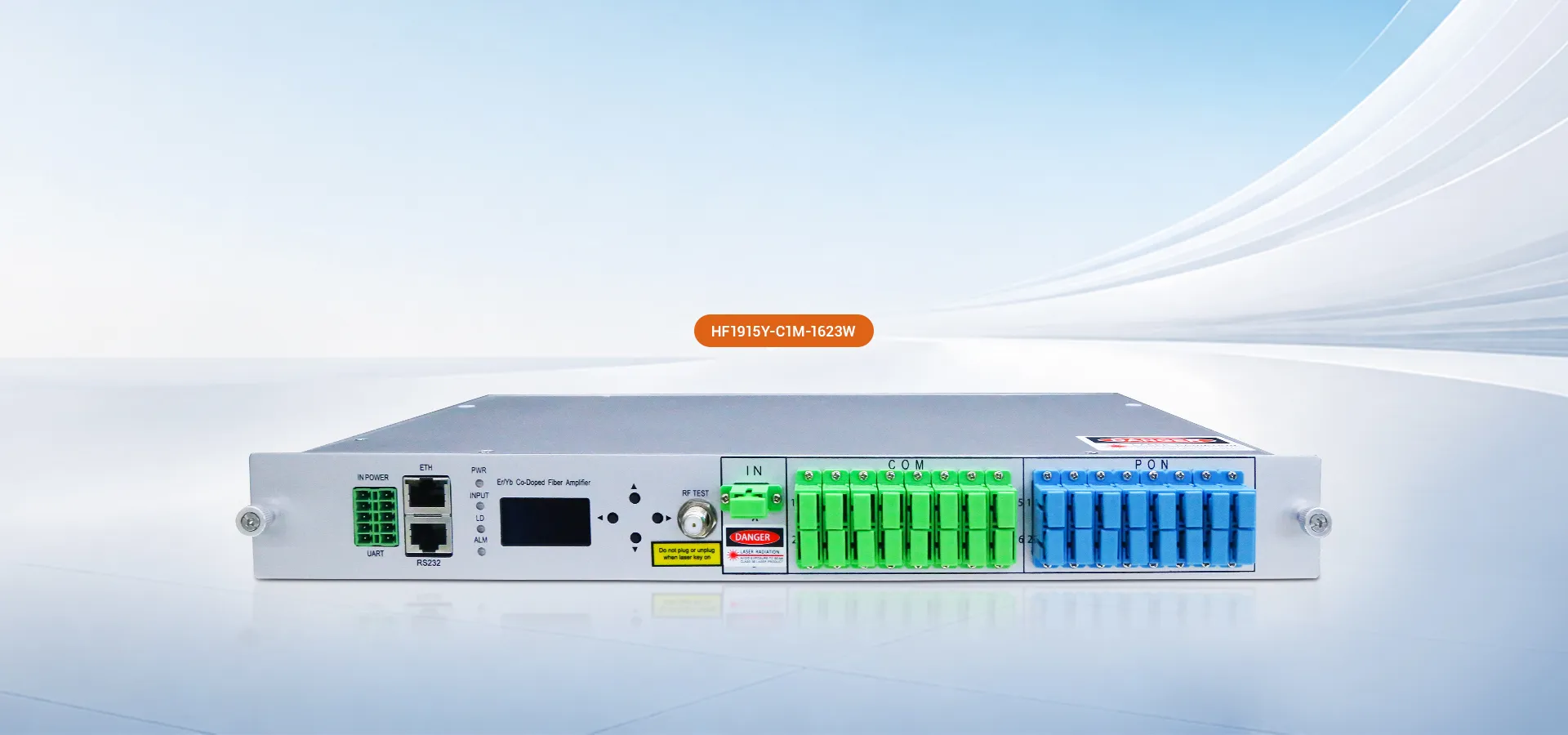

HF1915 series erbium-ytterbium co-doped double-clad fiber amplifier module (EYDFA) core device incorporates a high-reliability pump laser, adopts unique APC (automatic power control) and ATC (automatic temperature control) circuit, as well as software control technology, output power Stability, good environmental stability and other characteristics; unique optical path design ensures excellent optical path indicators; high stability and high precision microprocessors are used together with well-designed control software to ensure reliable system automatic adjustment, accurate display parameters, and intelligent operation .
HF1915 series EYDFA consists of two parts: optical gain module and microprocessor control system.
Mechanics | |
Dimensions | 440*375*44mm |
Weight | About 6kg |
Environment | |
Working temperature | -25 ~ 70℃ |
Storage temperature | -25~ 80℃ |
Storage relative humidity | 5 ~ 90% (Non-condensing) |
Power supply requirements | |
Voltage | 12V DC |
Power consumption | <50W |
Product Model | Specification | Power Supply |

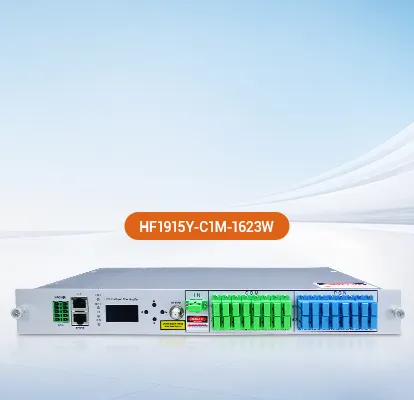

HF1915Y-C1M-1623W | 16*optical output + 1*input, 1540 ~1563nm | 12VDC |
