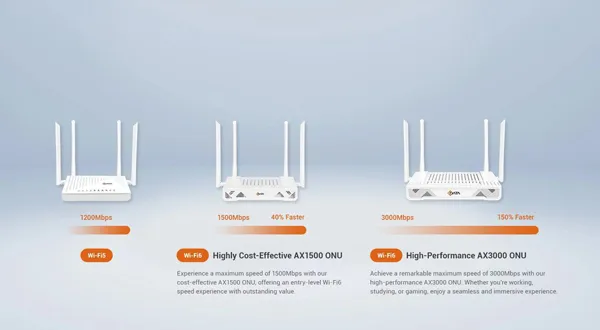

With high bandwidth, low latency, and support for a maximum 160MHz frequency bandwidth, C-Data's latest Wi-Fi 6 ONUs puts smooth connections in your hands, whether you're seamlessly engaged in HD/4K/8K live streaming, online gaming, or remote work.

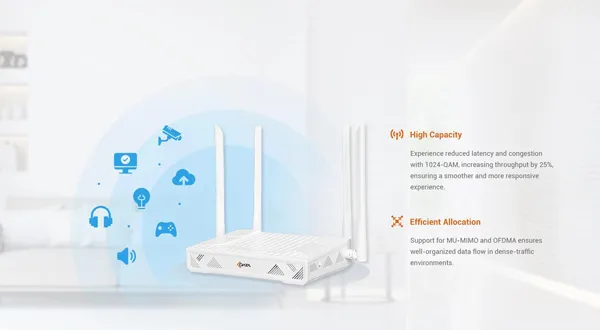

Power up your smart home with the Wi-Fi6 ONU Series, simultaneously supporting substantial IoT applications.

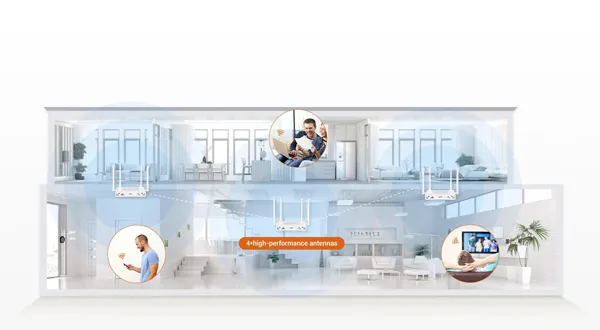

With 802.11ax(Wi-Fi6) compliance, extend your reliable network effortlessly; Further steps with router kits and Mesh connectivity, reaching every corner for sharing with family and friends.

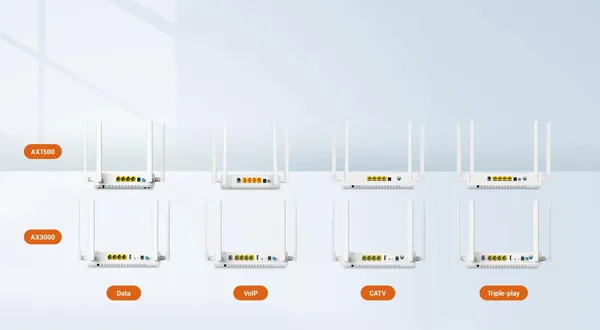

The Wi-Fi6 ONU is equipped with an xPON port, offering adaptive access for both EPON and GPON modes. With multiple models, each supporting interfaces for data, voice, CATV, and triple-play services, it caters to a wide range of connectivity needs.

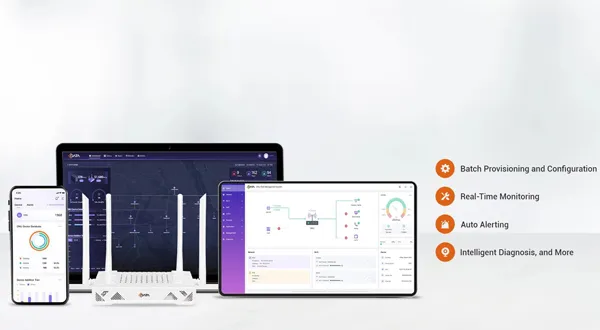

CMS & ONU Web: provide users, enterprises, and operators with a secure, efficient, and intelligent network operation and maintenance platform, achieving efficient, stable, and swift management and operation.
Mobile CMS APP : Improve efficiency with one-click operations for installation and troubleshooting.
Compatible with third-party OLTs: Experience plug-and-play simplicity, ensuring easy access and optimal connectivity.
FD514GD-R550 is an indoor fiber broadband access terminal. The device provides one GPON / EPON adaptive optical port and supports XPON mode. It can be used in connection with our company FD16/17 series GPON OLT or FD12 / 13 series EPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) GPON or EPON OLT to provide users with Internet and WIFI services based on GPON and EPON technology.
Mechanics | |
Dimensions | 170mm*120mm*41mm |
Weight | About 228g |
Hardware | |||
User Port (LAN) | RJ-45 connector | ||
4 *10/ 100/ 1000Mbps adaptive Ethernet port | |||
Full/half duplex | |||
Auto MDI/ MDI-X | |||
Indicators | PWR / PON / LOS / LAN / INT / WIFI | ||
PON Port | PON Mode | EPON：1000BASE-PX20+ symmetric GPON：FSAN G.984.2 standard,Class B+ | |
PON Rate | EPON：1.25Gbps downstream/upstream GPON：2.488Gbps/1.244Gbps downstream/upstream | ||
Wavelength | Transmit: 1310nm | Receiver: 1490nm | |
Receiving sensitivity | EPON：-27dBm GPON：-28dBm | ||
Saturated power | EPON：-3dBm GPON：-8dBm | ||
Transmitting power | EPON:0～4dBm GPON：0.5～5dBm | ||
WIFI performance parameters |
IEEE802. 11b/g/n(2.4G) IEEE802. 11a/n/ac(5G) |
Max rate: 300M(2.4G) Max rate: 867Mbps(5G) |
MAX TX power 2.4G:17dBm MAX TX power 5G:17dBm |
Environment | |
Working temperature | 0 to 40ºC |
Operating humidity | 10% ~ 90% (Non-condensing) |
Power | |
External 12VDC/ 1A power supply adapter | |
Power consumption | ≤9.7W |
No. | Product Model | Specifications | Accessories |
1 | FD514GS1-R550 | 1*xPON + 4*GE RJ45 4*External 5dBi antennas Dual-Band Wi-Fi6 (AX1500) | External 12VDC/2A power supply adapter |
2 | FD514GS3-R850 | 1*xPON + 4*GE RJ45 4*External 5dBi antennas Dual-Band Wi-Fi6 (AX3000) | External 12VDC/2A power supply adapter |
3 | FD614GS1-R550 | 1*xPON + 4*GE RJ45 + 1*RJ11 POTS 4*External 5dBi antennas Dual-Band Wi-Fi6 (AX1500) | External 12VDC/2A power supply adapter |
4 | FD614GS3-R850 | 1*xPON + 4*GE RJ45 + 1*RJ11 POTS 4*External 5dBi antennas Dual-Band Wi-Fi6 (AX3000) | External 12VDC/2A power supply adapter |
5 | FD714GS1-R550 | 1*xPON+4*GE RJ45+1*RF CATV(F-Type) 4*External 5dBi antennas 2.4GHz + 5GHz Dual-Band Wi-Fi6 (AX1500) | External 12VDC/2A power supply adapter |
6 | FD714GS3-R850 | 1*xPON+4*GE RJ45+1*RF CATV(F-Type) 4*External 5dBi antennas 2.4GHz + 5GHz Dual-Band Wi-Fi6 (AX3000) | External 12VDC/2A power supply adapter |
