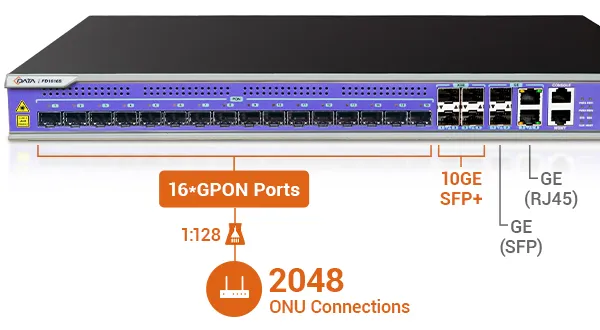

Diverse GPON port options, including 4/8/16 port models, with a splitting ratio of up to 1:128.
The upgraded B2 series is equipped with 4*10 GE SFP+ uplink ports, providing an unparalleled fast connection experience.
With a depth of only 265mm, saving space and allowing flexible deployment.
Supports fiber coverage distances of up to 20 KM, making full use of fiber internet services within the area.

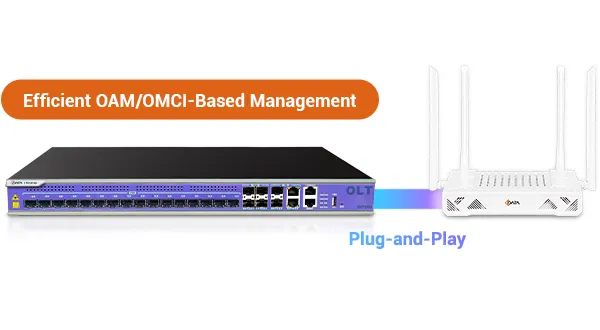

Compatible with mainstream ONU/ONT devices, supports shared private OAM/OMCI, enhancing network efficiency and maintenance convenience.
Rapid setup with ONU/ONT online auto-registration for plug-and-play simplicity.
Compliant with ITU G.984.x and FSAN standards, suitable for FTTH and FTTO applications, simplifying fiber network construction.

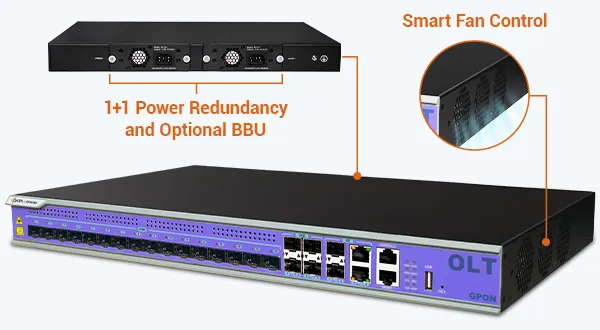

1+1 power modules and power redundancy support without interruption
Opt for optional BBU for extended operation
Intelligent fan temperature controller keeping your system cool and efficient.
Full range of management options covering CLI, WEB, Telnet, SSH and MQTT

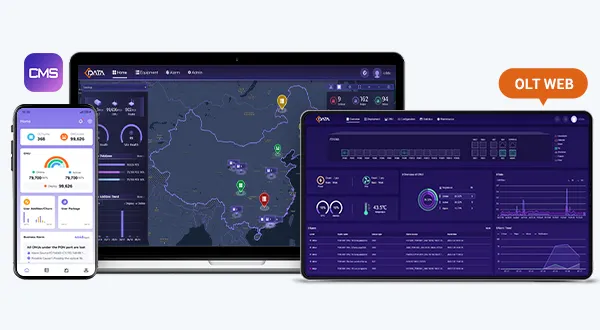

Intuitive OLT Web: Step-by-step guides and info clarity simplify your maintenance experience and increase efficiency
C-Data CMS provide users, enterprises, and operators with a secure, efficient, and intelligent network operation and maintenance platform,
achieving efficient, stable, and swift management and operation.
Mobile CMS APP : Improve efficiency with one-click operations for installation and troubleshooting.

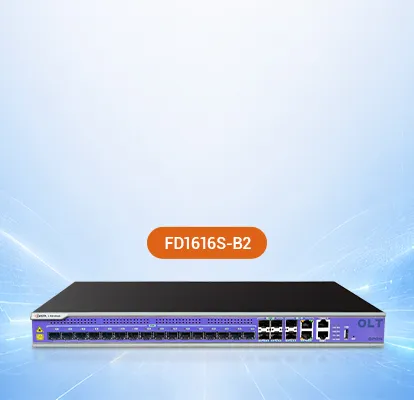

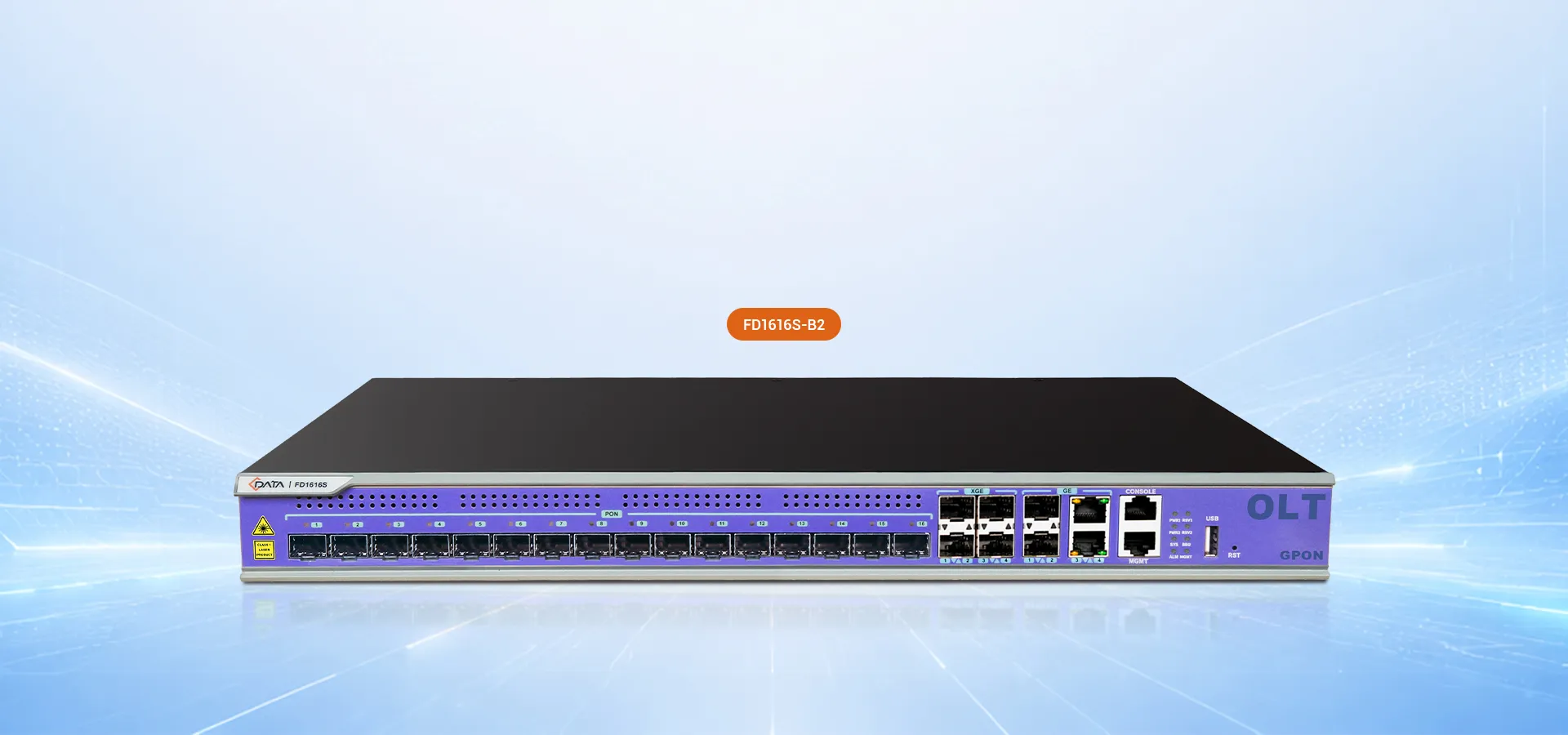

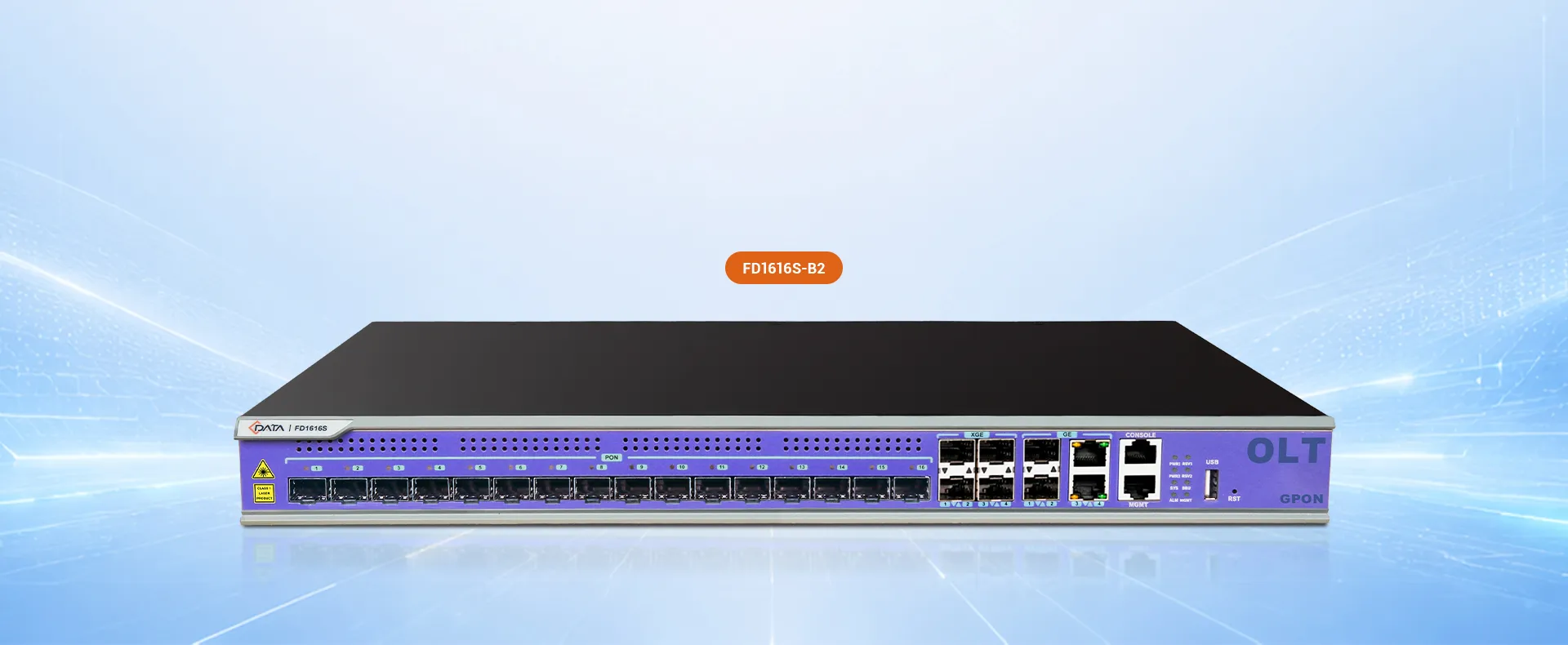

GPON OLT FD1616S-B2 completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with 1 USB interface, 2 uplink Ethernet ports, 2 uplink SFP ports, 4*10GE uplink ports and 16 GPON ports.Each GPON port supports the splitting ratio of 1:128, The GPON system supports up to 2048 terminal connections.
Mechanics | |
Management Rack | 1U 19-inch standard box |
Dimensions | 440mm(L)*276mm(W)*44mm(H) |
Weight | 4.50Kg |
Hardware | |||
Uplink Port | 2 10/100/1000M auto-negotiation Ethernet ports | ||
2 SFP interfaces | |||
10-Gigabit | 4 SFP+ interfaces | ||
PON Port | Quantity | 16 | |
Physical interface | SFP slot | ||
Interface type | GPON: ITU-TG.984.2 Class B+/Class C+ | ||
Max splitting ratio | GPON: 1:128 | ||
Management Port | 1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port | ||
USB Port | 1 USB interface (It’s used to backup configuration, upgrade program, and record log information) | ||
PON Port attribute | Transmission distance | 20KM | |
Port rate | GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps | ||
Wavelength | Forwarding: 1490nm Receiving: 1310nm | ||
Interface type | SC/UPC | ||
Fiber type | 9/125μm SMF (Single Mode Fiber) | ||
Light transmission power | Class B+ +1.5 ~ +5dBm | Class C+ +3 ~ +7dBm | |
Receiving sensitivity | Class B+ : -28dBm | Class C+ : -30dBm | |
Saturation power | Class B+ -8dBm | Class C+ -12dBm | |
Backplane Bandwidth | 148G | ||
Power supply | |
AC | 100V ~ 240V，47~63Hz |
DC | -40V ~ -72V |
Environment | |
Working temperature | -15 ~ 50℃ |
Storage temperature | -40 ~ 85℃ |
Ambient humidity | 5 ~ 90% (Non-condensing) |
| NO. | Product Model | Specifications | Accessories |
| 1 | FD1604S-B1 | 4*GPON + 4*GE + 4*GE SFP + 2*10GE SFP+ | Optional-BBU |
| 2 | FD1608S-B1 | 8*GPON + 4*GE + 4*GE SFP + 2*10GE SFP+ | Optional-BBU |
| 3 | FD1608S-B2 | 8*GPON+2*GE+2*GE SFP+4*10GE SFP+ | Optional-BBU |
| 4 | FD1616S-B2 | 16*GPON+2*GE+2*GE SFP+4*10GE SFP+ | Optional-BBU |
