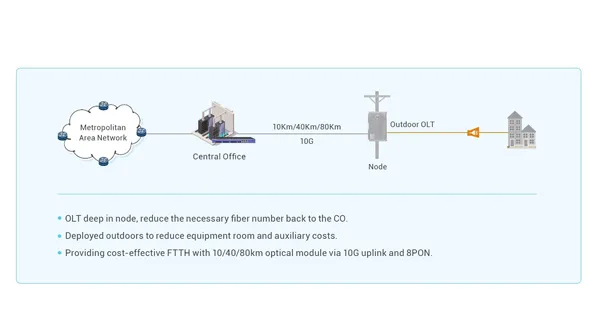

OLT deep in node, reduce the necessary fiber number back to the co.
Deployed outdoors to reduce equipment room and auxiliary costs.
Providing cost-effective FTTH with 10/40/80km optical module via 10G uplink and 8PON.

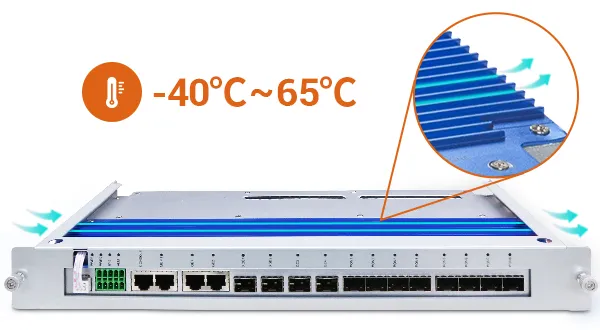

-40℃~65℃ working temperature, suitable for harsh environment
Industrial chip, more stable
Aluminum shell, easy to carry, efficient heat dissipation
Dual power supply, 1+1 redundant backup, ensure stable power supply
IP67, waterproof and dustproof

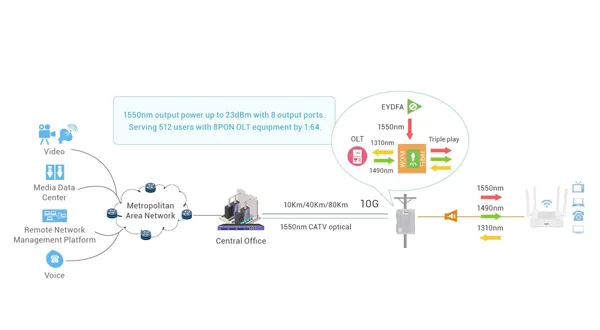

1550nm output power up to 23dBm with 8 output ports.
Serving 512 users with 8PON OLT equipment by 1:64.

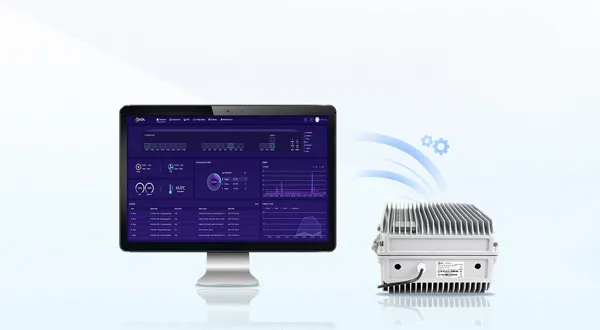

Multiple interfaces, support in-band & out-band management. High-power EYDFA is included in network management, convenient for maintenance. Remote management, solve problems with one click. Automatic alarm mechanism, troubleshooting timely.

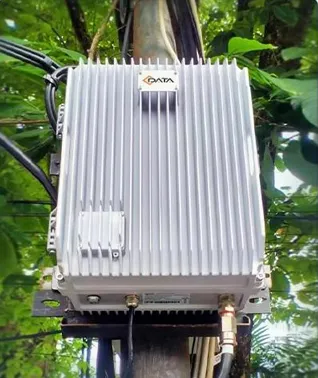

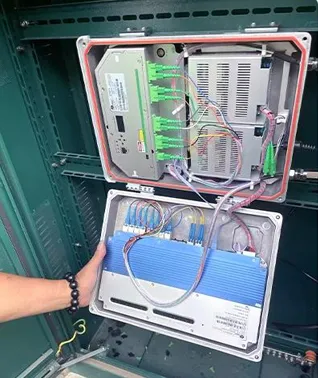

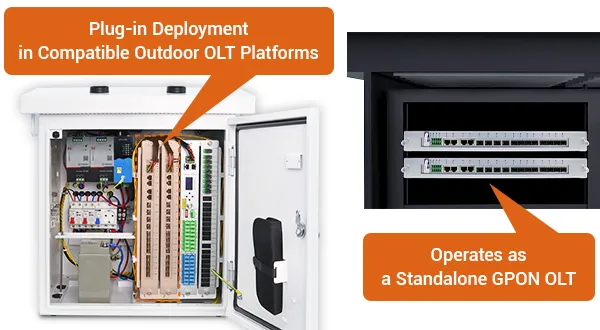

Designed to be installed in OSP locations: strand mount, wall, pole, cabinet or pedestal.

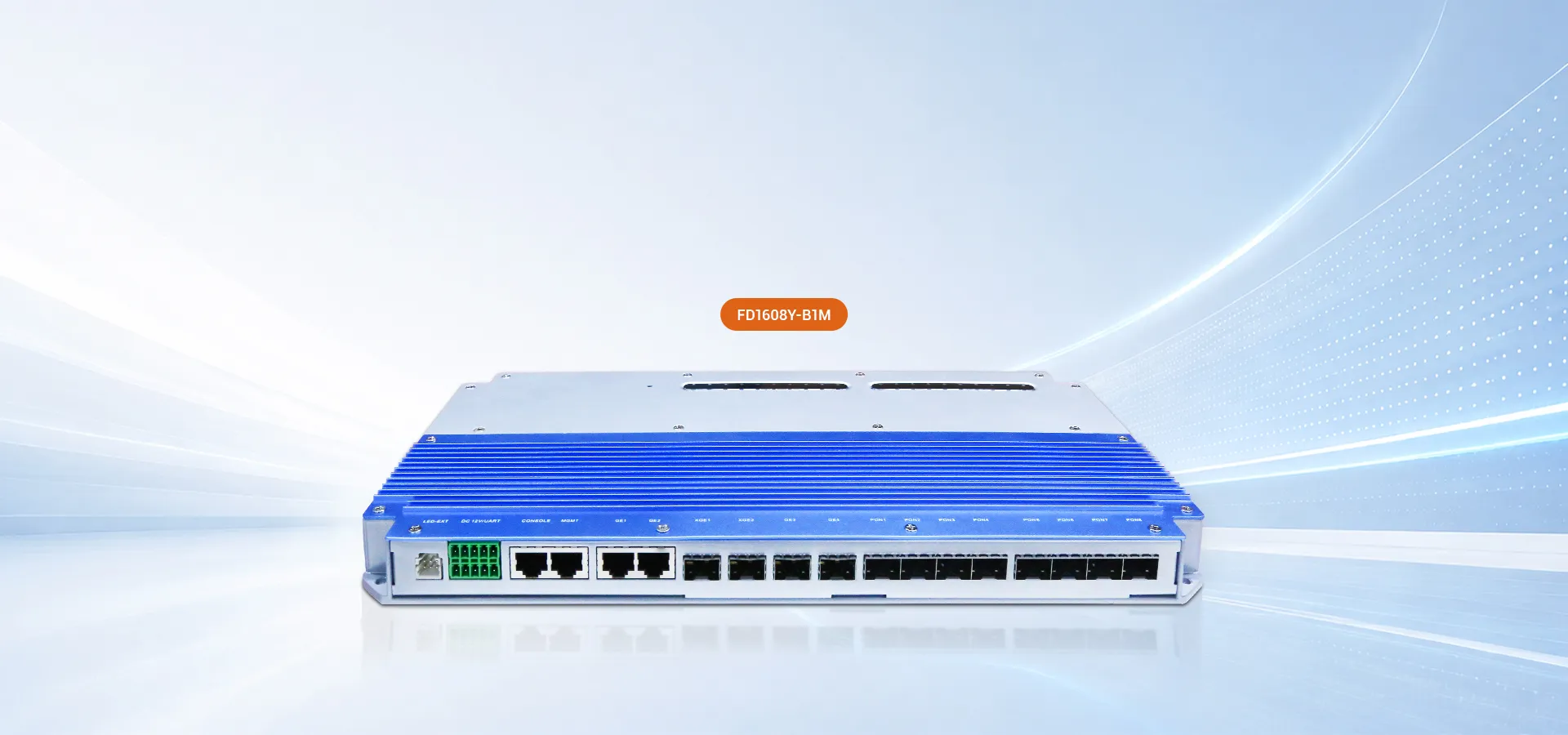

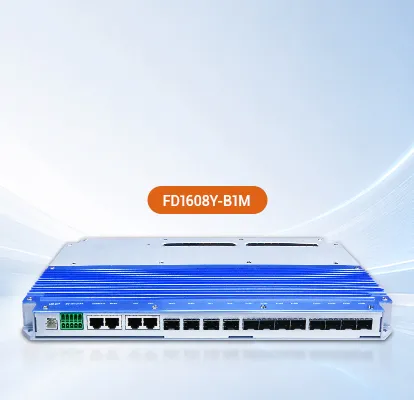

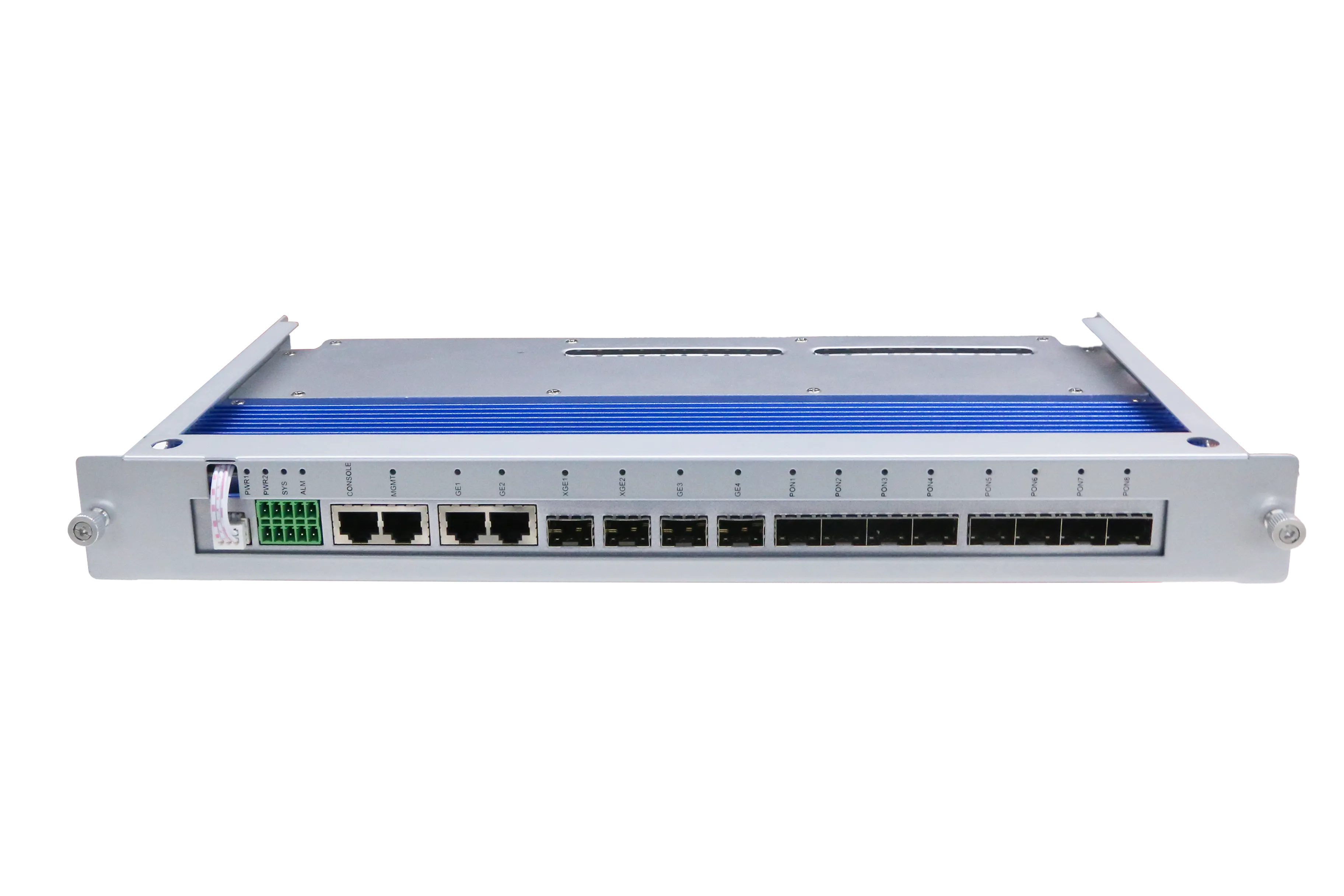

FD1608Y-B1M GPON OLT module is an outdoor local end module. The product is made of cast aluminum shell, which has good heat dissipation and shielding effect. The device is flexible in use and easy to deploy, meeting the performance requirements of the outdoor environment.
Mechanics | |
Management Rack | 1U 19-inch standard box |
Dimensions | 385(L)mm*195mm(W)*44mm(H) |
Weight | 2KG |
Hardware | |||

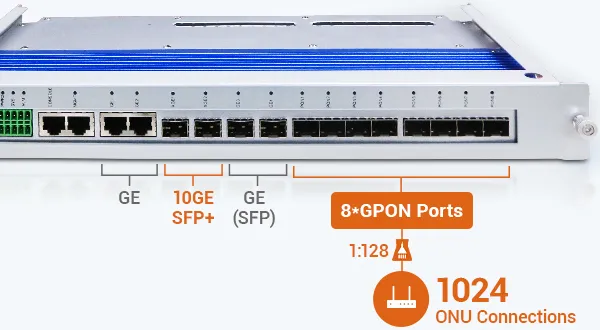

Uplink Port | 2* 10/100/1000 auto-negotiation Ethernet port | ||
2*SFP | |||
2*SFP+ | |||
PON Port | Quantity | 8 | |
Physical interface | SFP slot | ||
Interface type | GPON: ITU-TG.984.2 Class B+/Class C+ | ||
Max splitting ratio | GPON: 1:128 | ||
Management Port | 1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port | ||
PON Port attribute | Transmission distance | 20KM | |
Port rate | GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps | ||
Wavelength | Forwarding: 1490nm Receiving: 1310nm | ||
Interface type | SC/UPC | ||
Fiber type | 9/125μm SMF (Single Mode Fiber) | ||
Light transmission power | Class B+: +1.5 ~ +5dBm | Class C+: +3 ~ +7dBm | |
Receiving sensitivity | Class B+: -28dBm | Class C+: -30dBm | |
Saturation power | Class B+: -8dBm | Class C+: -12dBm | |
Backplane Bandwidth | 74G | ||
Power supply |
12VDC |
Environment | |
Working temperature | -40~65℃ |
Storage temperature | -40～85℃ |
Ambient humidity | 5 ~ 90% (Non-condensing) |
| NO. | Product Model | Specifications | Accessories |
| 1 | FD1608Y | 8*GPON + 2*GE + 2*GE SFP + 2*10GE SFP+ | Optional 1*EYDFA module Pole-mounted/wall-mounted installation kits |
| 2 | FDC600Y | 2*8-port GPON OLT modules + 2*GE + 2*SFP + 2*SFP+ 1*EYDFA module | Pole-mounted/wall-mounted installation kits |
