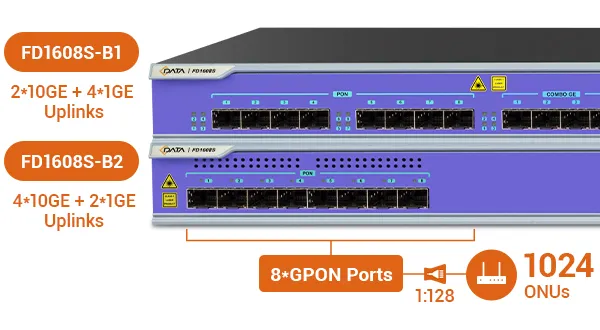

Diverse GPON port options, including 4/8/16 port models, with a splitting ratio of up to 1:128.
The upgraded B2 series is equipped with 4*10 GE SFP+ uplink ports, providing an unparalleled fast connection experience.
With a depth of only 265mm, saving space and allowing flexible deployment.
Supports fiber coverage distances of up to 20 KM, making full use of fiber internet services within the area.

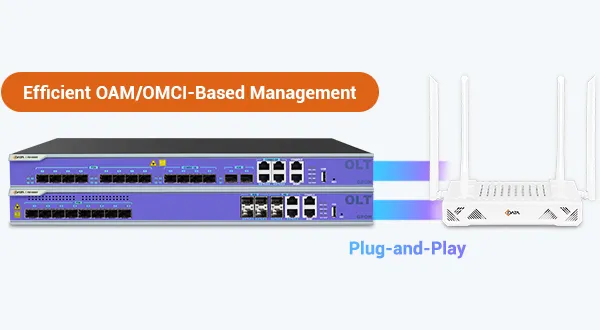

Compatible with mainstream ONU/ONT devices, supports shared private OAM/OMCI, enhancing network efficiency and maintenance convenience.
Rapid setup with ONU/ONT online auto-registration for plug-and-play simplicity.
Compliant with ITU G.984.x and FSAN standards, suitable for FTTH and FTTO applications, simplifying fiber network construction.

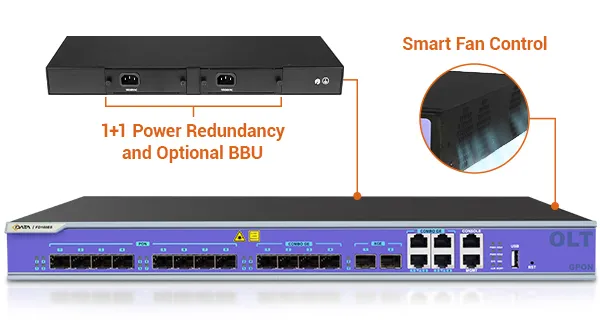

1+1 power modules and power redundancy support without interruption
Opt for optional BBU for extended operation
Intelligent fan temperature controller keeping your system cool and efficient.

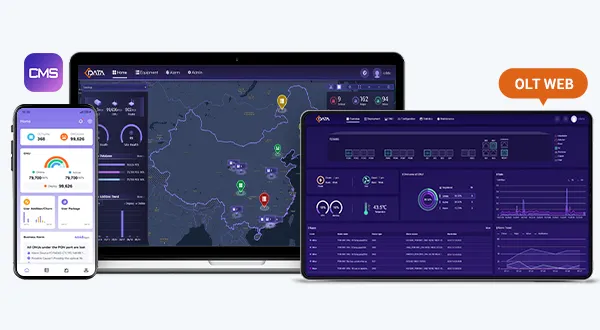

Full range of management options covering CLI, WEB, Telnet, SSH and MQTT
Intuitive OLT Web: Step-by-step guides and info clarity simplify your maintenance experience and increase efficiency
C-Data CMS provide users, enterprises, and operators with a secure, efficient, and intelligent network operation and maintenance platform,
achieving efficient, stable, and swift management and operation.
Mobile CMS APP : Improve efficiency with one-click operations for installation and troubleshooting.

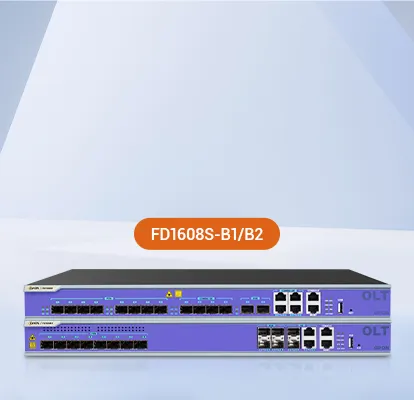

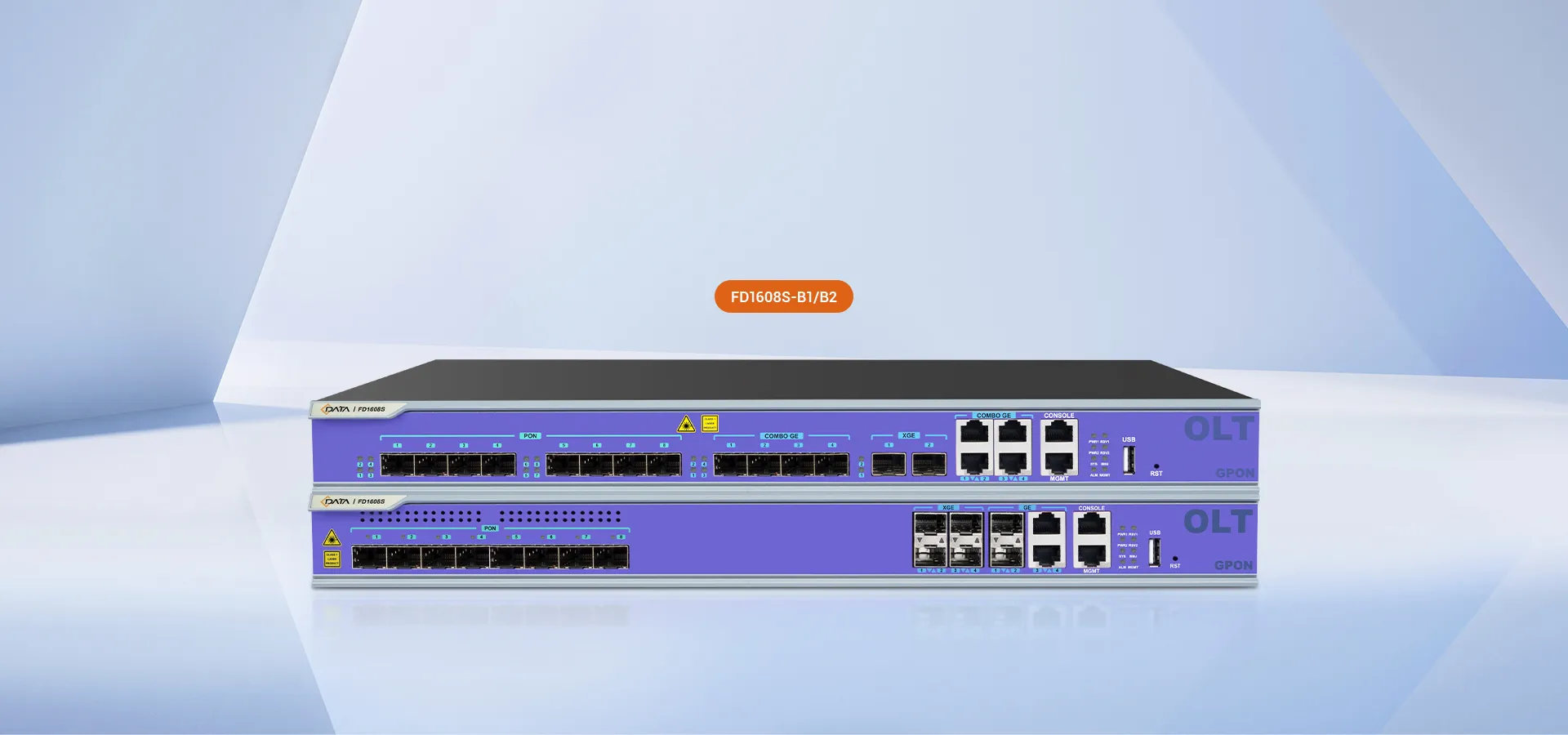

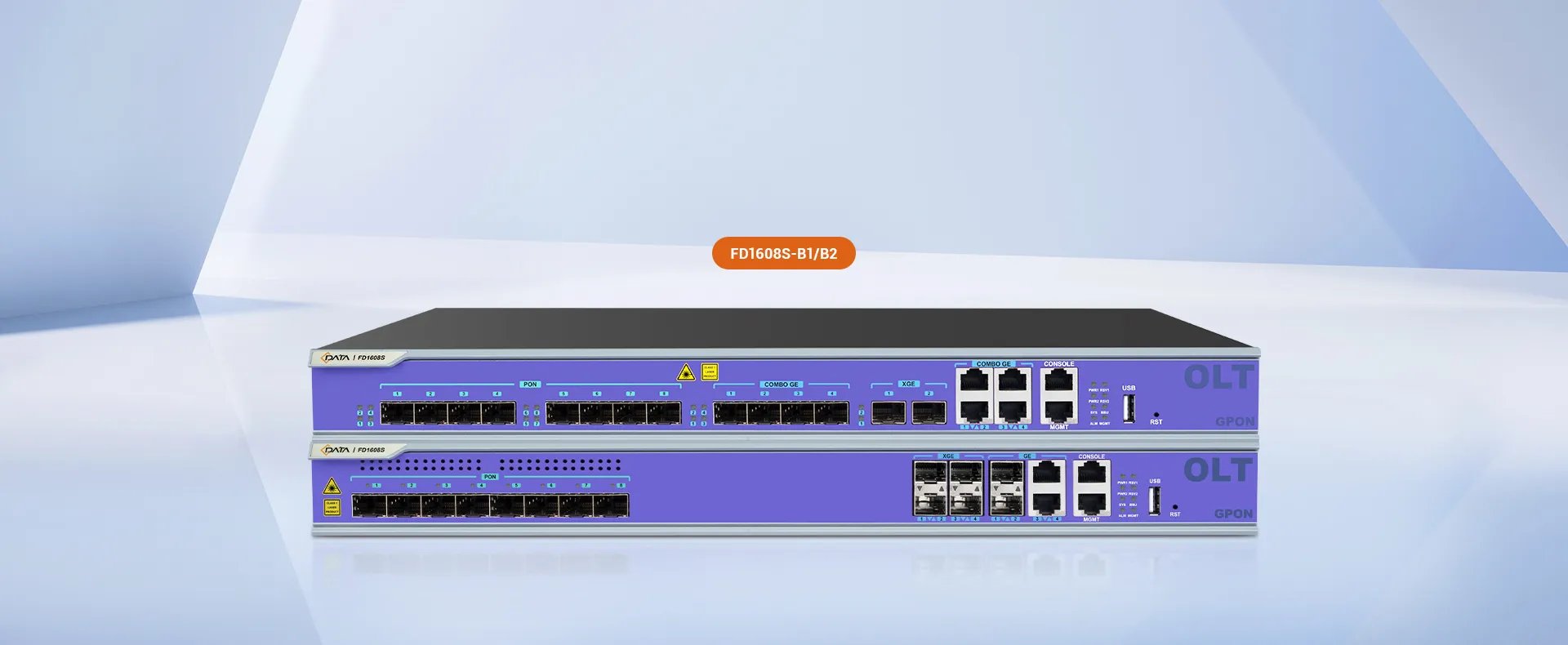

GPON OLT FD1608S-B1 completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with 1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, 2*10GE uplink ports and 8 GPON ports. Each GPON port supports the splitting ratio of 1:128, the GPON system supports up to 1024 terminal connections.
This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio。
ITEM | FD1608S-B1 | ||
Rack | Type | 1U 19-inch standard box | |
Uplink Port | COMBO port | 4 10/100/1000M auto-negotiation Ethernet ports | |
4 SFP interfaces | |||
10-Gigabit | 2 SFP+ interfaces | ||
PON Port | Quantity | 8 | |
Physical interface | SFP | ||
Interface type | GPON: ITU-TG.984.2 Class B+/Class C+ | ||
Max splitting ratio | GPON: 1:128 | ||
Management Port | 1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port | ||
USB Port | 1 USB interface (It’s used to backup configuration, upgrade program and record log information) | ||
PON Port attribute | Transmission distance | 20KM | |
Port rate | GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps | ||
Wavelength | Forwarding: 1490nm Receiving: 1310nm | ||
Interface type | SC/UPC | ||
Fiber type | 9/125μm SMF ((Single Mode Fiber) | ||
Light transmission power | Class B+：+1.5～+5dBm Class C+：+3～+7dBm | ||
Receiving sensitivity | Class B+：-28dBm Class C+：-30dBm | ||
Saturation power | Class B+：-8dBm Class C+：-12dBm | ||
Network management method | Support CLI、SNMP、TELNET、SSH、WEB | ||
Business capabilities | Support device log, device upgrade, device management, condition monitoring, configuration management, and user management Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on. PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. Layer 3 function: support static routing, dhcp-relay and vlanif configuration. | ||
Backplane Bandwidth | 78G | ||
Size | 440*44*276mm | ||
Weight | 4.50Kg | ||
Power supply | 220VAC | AC: 100V～240V，47/63Hz | |
-48DC | DC:-40V～-72V | ||
BBU (Backup Battery Unit) | DC: 11V～14V Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply | ||
Maximum power | 78W | ||
Working environment | Working temperature | -15～50℃ | |
Storage temperature | -40～85℃ | ||
Humidity | 5～90% (Non-condensing) | ||
| NO. | Product Model | Specifications | Accessories |
| 1 | FD1604S-B1 | 4*GPON + 4*GE + 4*GE SFP + 2*10GE SFP+ | Optional-BBU |
| 2 | FD1608S-B1 | 8*GPON + 4*GE + 4*GE SFP + 2*10GE SFP+ | Optional-BBU |
| 3 | FD1608S-B2 | 8*GPON+2*GE+2*GE SFP+4*10GE SFP+ | Optional-BBU |
| 4 | FD1616S-B2 | 16*GPON+2*GE+2*GE SFP+4*10GE SFP+ | Optional-BBU |
