Providing cost-effective FTTH with 10/40/80km optical module via 10G uplink and 8PON. Serving 512 users with 8PON OLT equipment by 1:64.

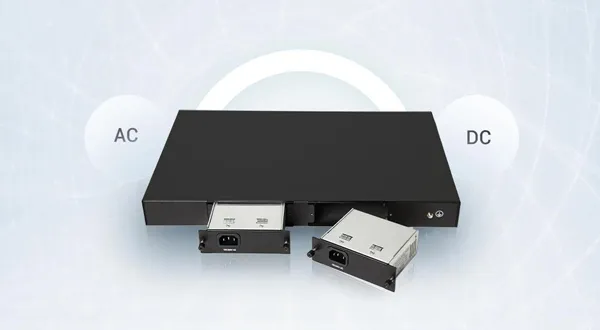

Supports AC or DC power supplies, providing flexible power supply and high reliability.
Suitable for installation in indoor and outdoor cabinets, the OLT is easy to install and saves engineering costs.
High-end Residence, Campus Network, Business Services

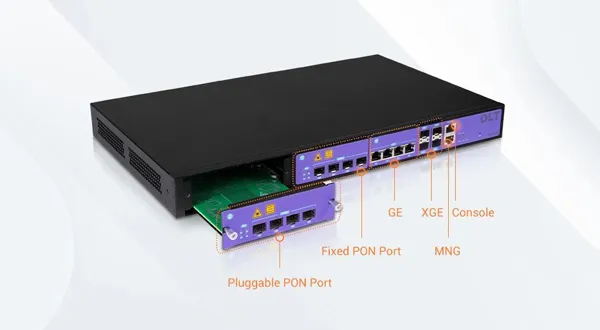

EPON OLT FD1304S completely meet relative standard of IEEE 802.3x and FSAN, which is 1U rack-mounted device with 4 uplink Ethernet ports, 4*10GE uplink ports and 4 EPON ports.Each EPON port supports the splitting ratio of 1:64, The EPON system supports up to 256 terminal connections.
Mechanics | |
Management Rack | 1U 19-inch standard box |
Dimensions | 306*266*44mm |
Weight | 2.6kg |
Hardware | ||
Uplink Port | 4 10/100/1000M auto-negotiation Ethernet ports | |
10-Gigabit | 4 SFP+ interfaces | |
PON Port | Quantity | 4 |
Physical interface | SFP slot | |
Interface type | EPON: IEEE802.3ah | |
Max splitting ratio | EPON: 1:64 | |
Management Port | 1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port | |
PON Port attribute | Transmission distance | 20KM |
Port rate | EPON: Symmetrical 1.25Gbps | |
Wavelength | Forwarding: 1490nm Receiving: 1310nm | |
Interface type | SC/UPC | |
Fiber type | 9/125μm SMF (Single Mode Fiber) | |
Light transmission power | PX20+: 2~5.5dBm | |
Receiving sensitivity | PX20+:-28dBm | |
Saturation power | PX20+:-8dBm | |
Backplane Bandwidth | 98G | |
Power supply | |
AC | 100V ~ 240V，47~63Hz |
DC | -36 ~ -72VDC |
Environment | |
Working temperature | -15 ~ 50℃ |
Storage temperature | -40 ~ 85℃ |
Ambient humidity | 5 ~ 90% (Non-condensing) |
| NO. | Product Model | Specifications | Accessories |
| 1 | FD1304E | 4+4*EPON + 4*GE + 4*10GE SFP+ | |
| 2 | FD1304S | 4*EPON + 4*GE RJ45 + 4*10GE SFP+ | Extended rack-ear |
| 3 | FD3041T | Optional 4*EPON port card (only compatible with FD1304E) |
