Name: Expandable GPON OLT
Brand: Shenzhen C-Data Technology Co., Ltd.
Price: 100 USD

Functional characteristics Specifications Related Products

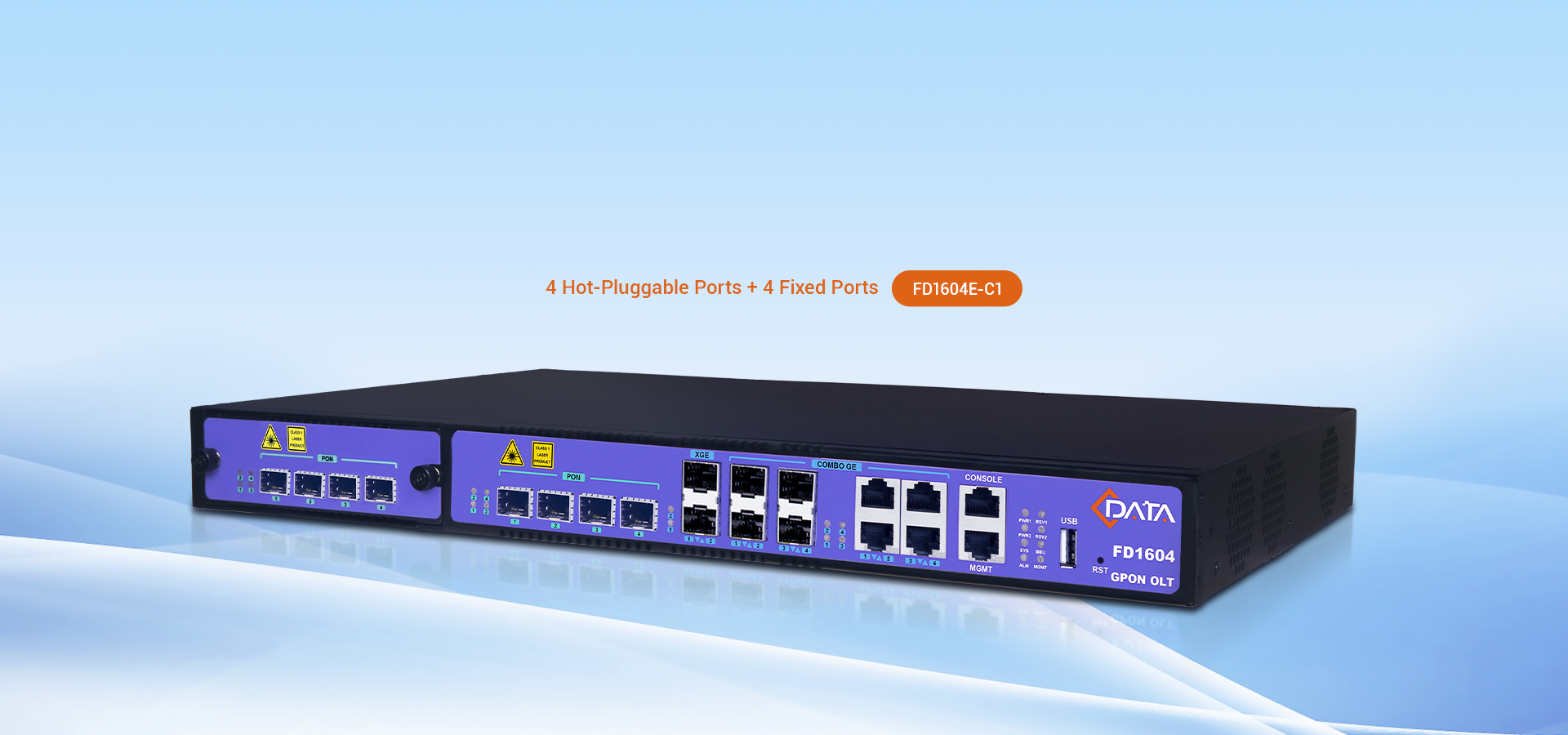

C-Data Expandable GPON OLT

Scale Effortlessly, Deliver Excellence

High Bandwidth
10GE Uplink Ports
Easy Management
High-Integration Chipset

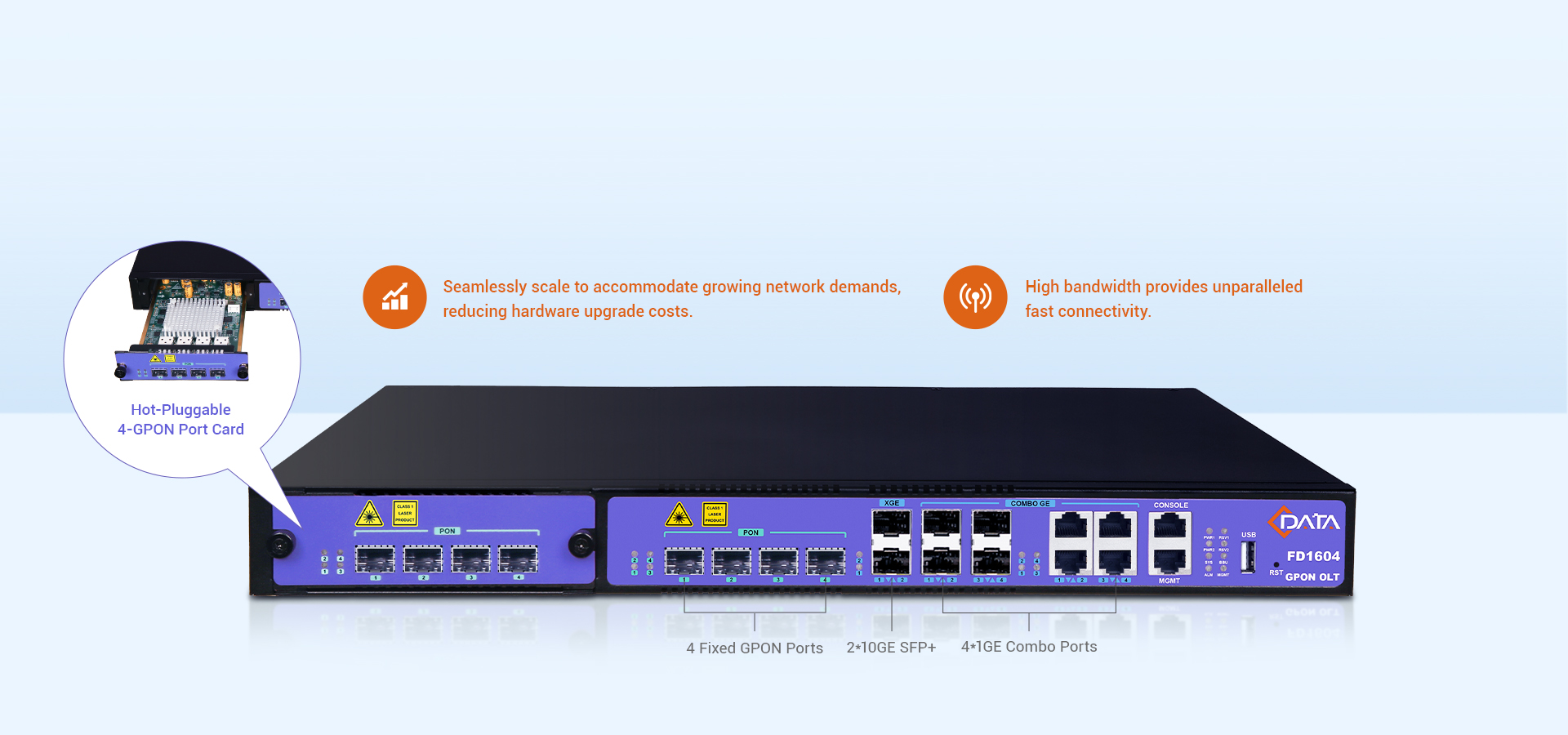

Flexible Expansion, On-Demand Upgrades

FD1604E-C1 comes with 4 fixed GPON ports and supports an optional hot-pluggable 4-GPON port card. For uplink connectivity,

it offers rich interface options including 2*10GE SFP+ uplink ports and 4*1GE Combo ports (SFP and RJ45 optional).

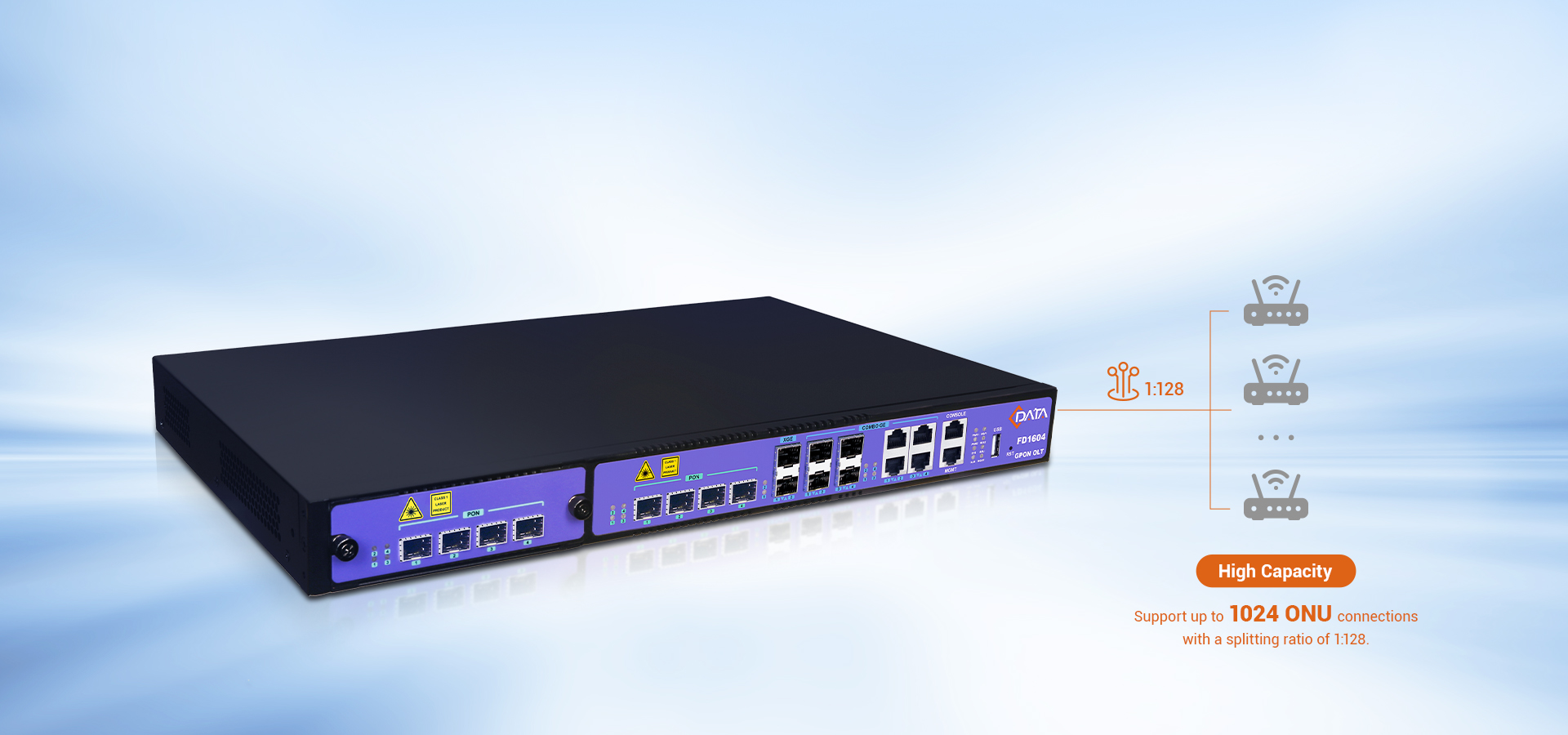

Efficient Access, Fast Connectivity

With flexible networking capabilities, FD1604E-C1 efficiently supports multiple terminal access, providing stable data transmission for seamless network connectivity.

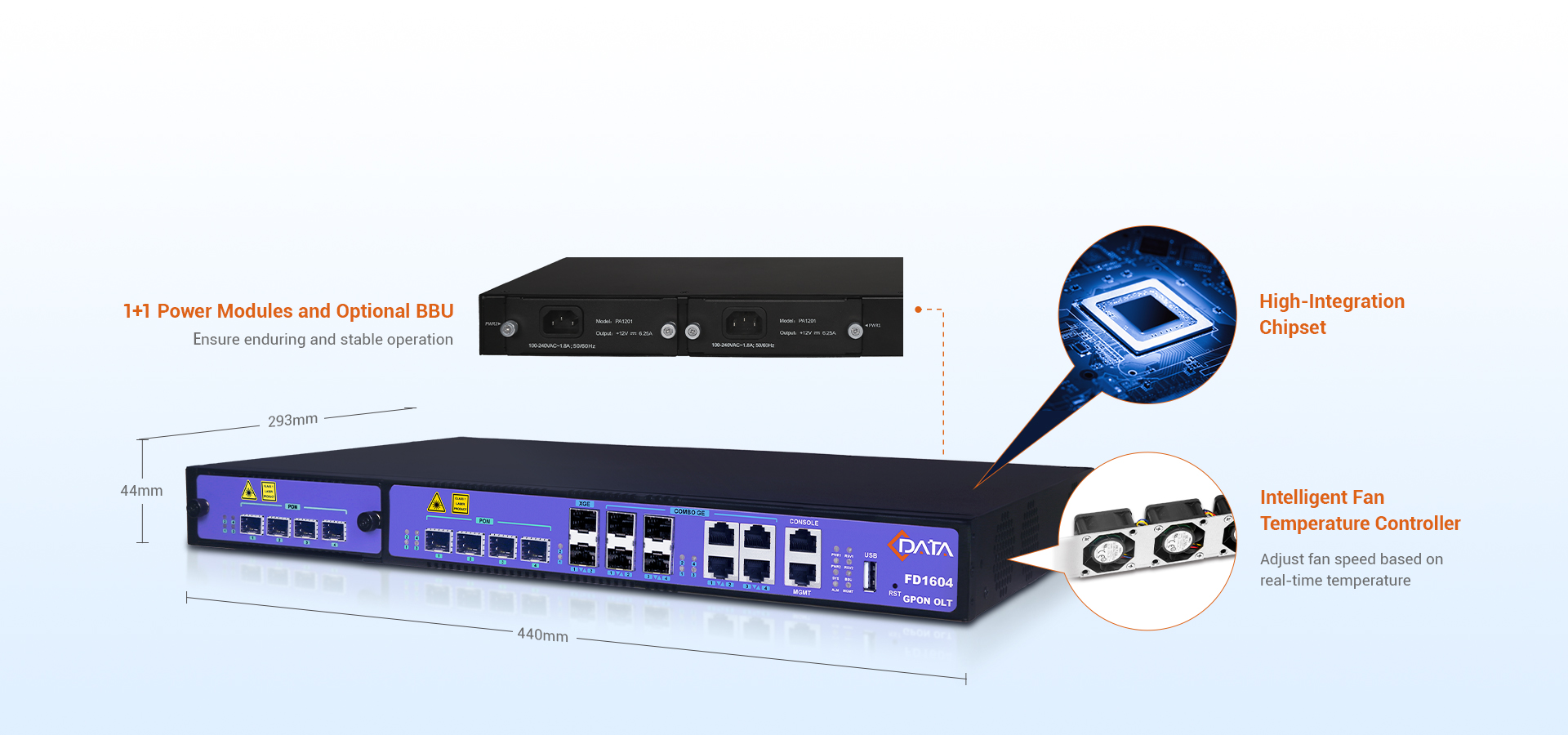

Superior Performance, Reliable Operation

Featuring a compact 1U pizza-box design, FD1604E-C1 adopts high-integration chipset, offering superior performance, reduced power consumption, and enhanced stability.

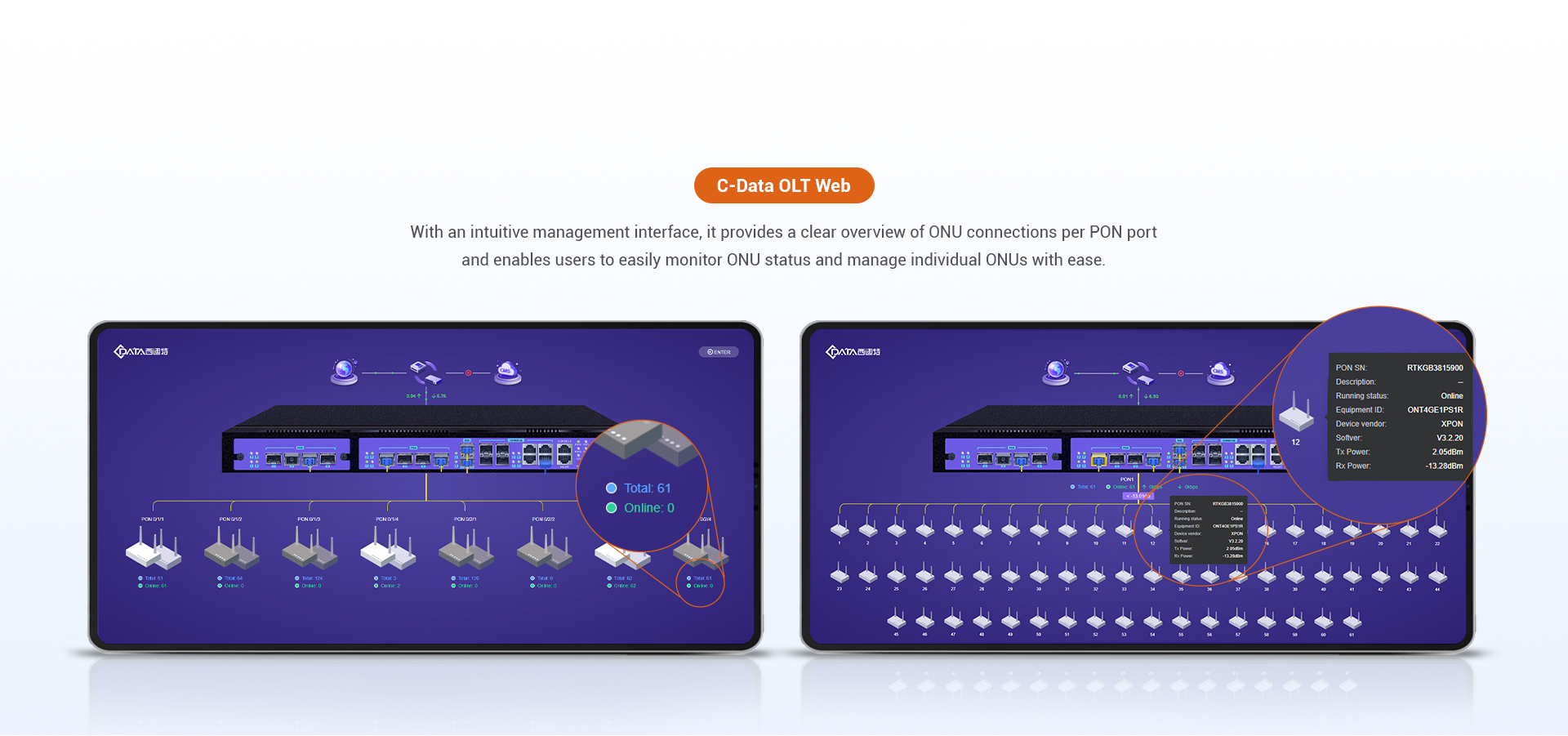

Next-Generation Web Design for Easy Network Management

Application Scenarios

Designed for access network and enterprise network, FD1604E-C1 delivers exceptional performance and is applicable to video monitoring network,

enterprise LAN and other network applications.

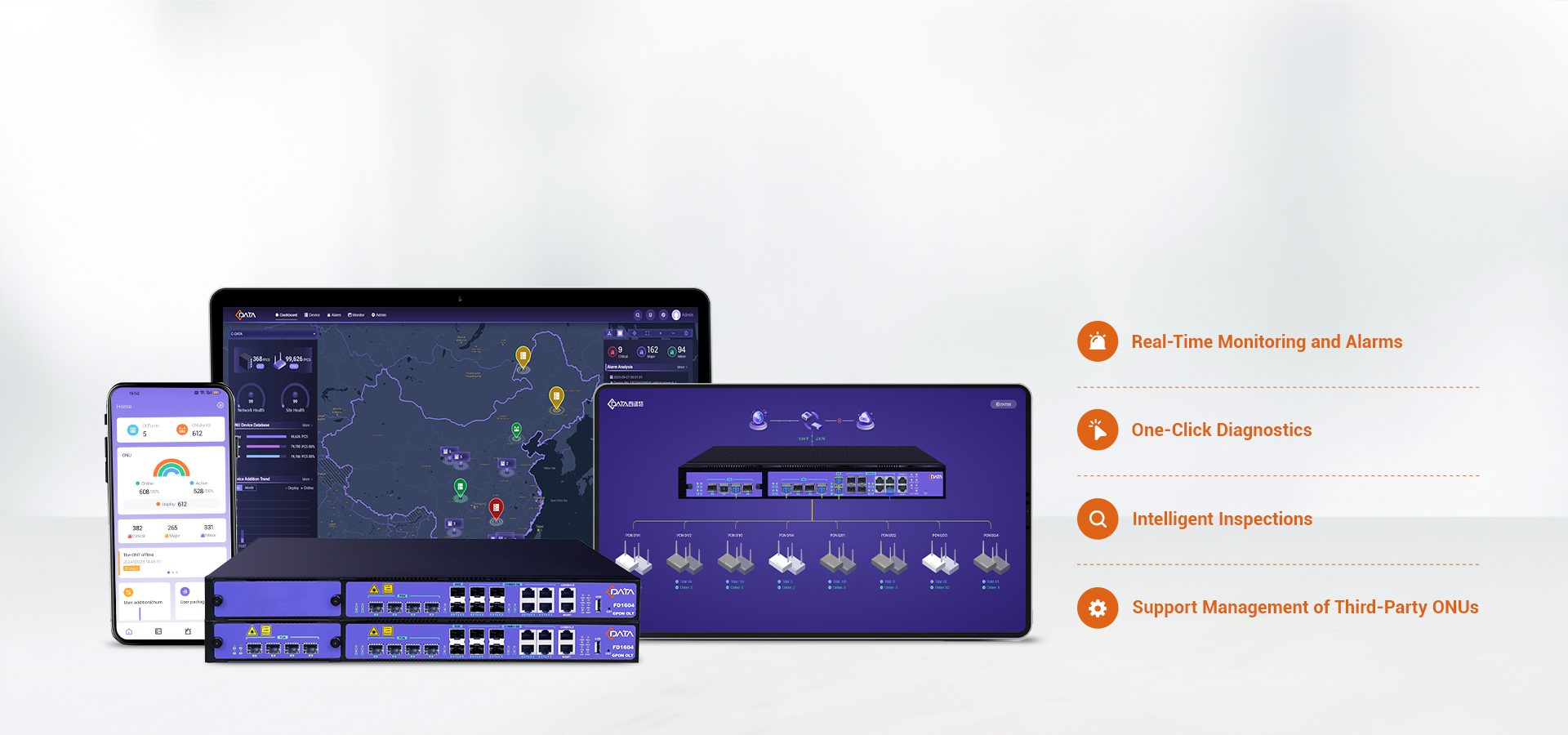

The Integrated Management System

C-Data CMS and OLT Web provide users, operators, and enterprises with a secure, intelligent, and efficient network operation

and maintenance platform, enhancing management efficiency.

SPECIFICATIONS

Model	FD1604E-C1
Dimensions	440mm(L)293mm(W)44mm(H)
Weight	3.6Kg (FD1604S-C1)
Weight	3.0Kg (FD1604E-C1)

See More 

Take Back 

ORDERING INFORMATION

NO.

Product Model

Specifications

Power Supply

FD1604E-C1

4*GPON + 2*10GE (SFP+) + 4*GE Combo Ports (SFP/RJ45)

AC: 100V~240V, DC: -40V~-72V

Optional BBU

FD6041T

Optional 4*GPON port card (only compatible with FD1604E)

RELATED PRODUCTS

Hardware
Uplink Port	COMBO port	4* 10/100/1000M auto-negotiation Ethernet ports
	10-Gigabit	4* SFP interfaces
		2* SFP+ interfaces
PON Port	Quantity	4 (FD1604S-C1)
		4/8 (FD1604E-C1)
	Physical Interface	SFP slot
	Interface Type	GPON: ITU-TG.984.2 Class B+/Class C+/Class C++
	Max Splitting Ratio	GPON: 1:128
Management Port		1* 100/1000BASE-Tx out-band Ethernet port
		1* CONSOLE local management port
USB Port		1* USB interface (It’s used to backup configuration, upgrade program and record log information)
PON Port Attribute	Transmission Distance	20KM
	Port Rate	GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps
	Wavelength	Forwarding: 1490nm Receiving: 1310nm
	Interface Type	SC/UPC
	Fiber type	9/125μm SMF (Single Mode Fiber)
	Light Transmission Power	Class B+: +1.5 ~+5dBm	Class C+: +3 ~ +7dBm	ClassC++: +4.5 ~ +10dBm
	Receiving Sensitivity	Class B+: -28dBm	Class C+: -30dBm	Class C++: -31dBm
	Saturation Power	Class B+: -8dBm	Class C+: -12dBm	Class C++: -10dBm
Network Management Method		Support CLI, SNMP, TELNET, SSH, WEB
Business Capabilities		Support device log, device upgrade, device management, condition monitoring, configuration management, and user management.
		Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on.
		PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on.
		Layer 3 function: support static routing, dhcp-relay and vlanif configuration.
Backplane Bandwidth		63G (FD1604S-C1)
		78G (FD1604E-C1)

Power supply
AC	100V ~ 240V, 47 ~ 63Hz
DC	-40V ~ -72V
BBU (Backup Battery Unit)	DC: 11V～14V. Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply and charge the backup power supply.
Maximum Power	34.6W (FD1604S-C1) 34.6W (FD1604E-C1) 49.0W (FD1608E-C1)

Environment
Working Temperature	-15 ~ 50℃
Storage Temperature	-40 ~ 85℃
Ambient Humidity	5 ~ 90% (Non-condensing)
