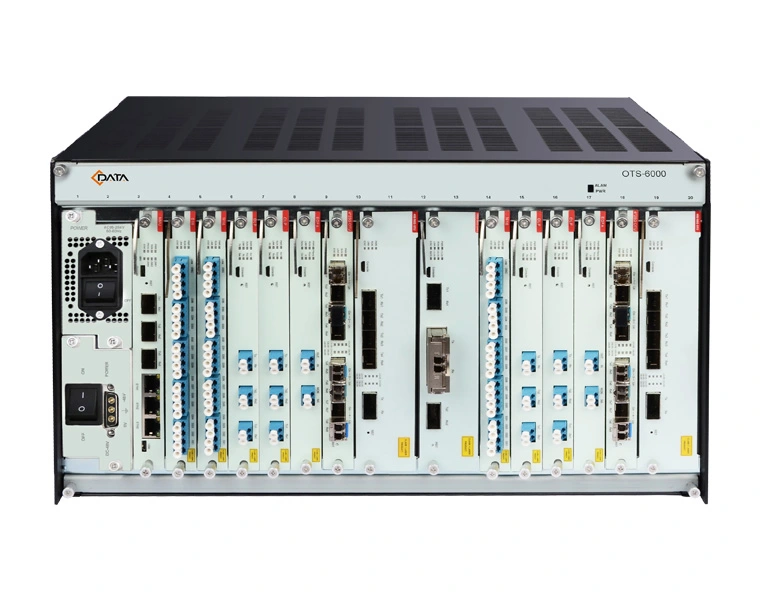

CDTrans-6000
Wavelength Division Transmission System

Wavelength division transmission system provides an excellent optical transmission platform for metropolitan. It integrates WDM technology, applies advanced optical transmission and highly integrated technology. With the functions of high-speed, large-capacity and fully transparent, which can realize the upgrade of network capacity and provide a comprehensive, flexible and mature protection scheme.

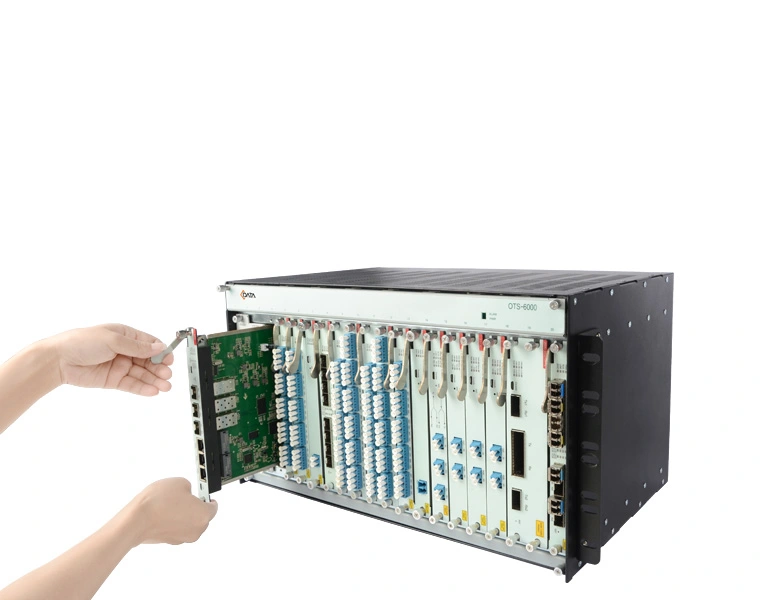

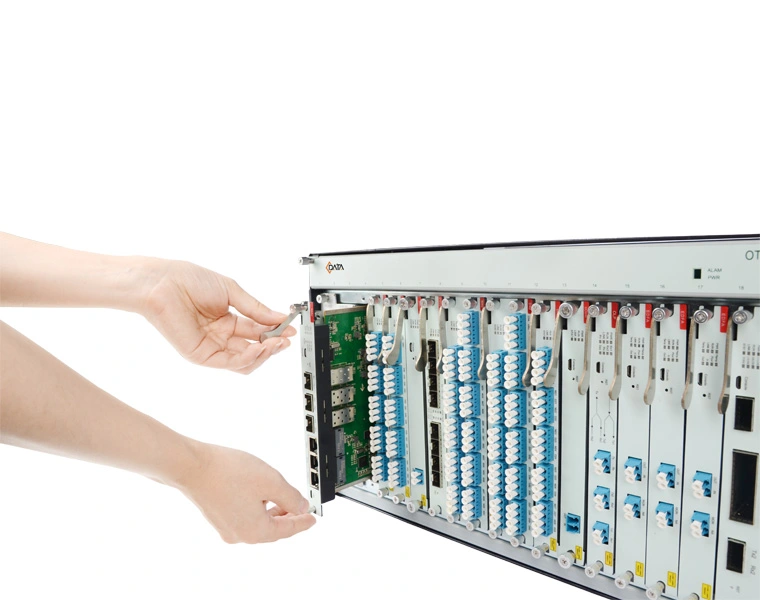

Our WDM is divided into 1U/2U/6U, which includes NMU, Mux/Demux, OTU/MOTU, EDFA, OLP, DCM, etc. The service cards are hot pluggable and can be used in all series of machine frames. It has the characteristics of compact structure, flexible configuration, low power consumption, and the humanized network management interface of B/S architecture is supported. The maintenance is simple.

Technical Specifications

ItemCDTrans-6000
Specifications3*FE RJ45 + 3*FE SFP + 20*Slots with 48/96*Channels + 2*Micro USB
Dimension6U 260 * 440 * 320mm
Slots20 slots
Maximum Power<550W
Number of channels48/96
Wavelength rangeDWDM: 1528nm~1568nm CWDM: 1271~1611nm
Wavelength interval50GHz/100GHz fixed grid
Support Service typesSDH/SONET, Ethernet, SAN, OTN, Video, CPRI
Security and EMCFCC, UL, CE, TUV, CSA
Power supply mode110V-220V AC, - 48V DC, 1 + 1 hot backup
Operating environmentTemperature: - 10 ℃ ~ 60 ℃, Humidity: 5 ~ 95% no condensation
Storage environmentTemperature: - 40 ℃ ~ 80 ℃
