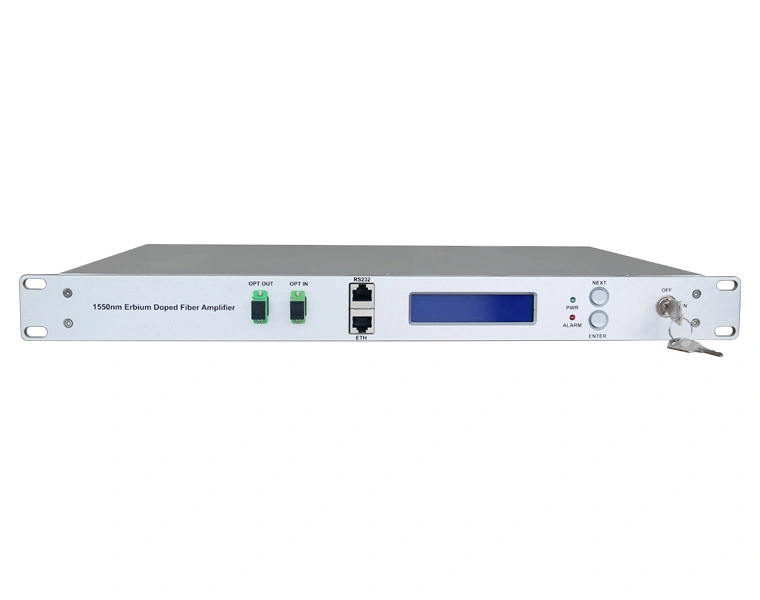

HF300-3815C-22D 1550nm EDFA mainly provides high quality image, digital or compressed digital signal transmission for cable TV, and is an important transmission device in optical fiber communication system.
| Items | 1U 1550nm EDFA HF300-3815C | |
| Specifications | 1*Optical output + 1*Optical input + 1*RS232 | |
| Optical Input Power(dBm) | -3～10 | |
| Optical Output Power(dBm) | 13～23 | |
| CATV Optical Input Power Range(dBm) | ||
| Optical Output Power Adjustable Range(dB) | ||
| CATV Wavelength(nm) | 1530～1560 | |
| PON Wavelength(nm) | Upstream | |
| Downstream | ||
| Optical Output Power Stability(dB) | ±0.2 | |
| Return Loss(dB) | ﹥45 | |
| Optical Connector | CATV Input | |
| PON Input | ||
| COMMON Output | ||
| Noise Figure (dB) | < 5.0 | |
| Network Management interface | ||
| Power Consumption(W) | <40 | |
| Power Supply | AC：220V | 110～265 |
| DC：48V | ||
| Temperature Range(℃) | Operating Temperature Range | 0～50 |
| Storage Temperature Range | -25～70 | |
| Storage Relative Humidity (%) | ||
| Dimension (mm) | ||
| Device Net Weight (Kg) |
