Name: C-Data Combo PON OLT
Brand: Shenzhen C-Data Technology Co., Ltd.
Price: 100 USD

Functional characteristics Specifications Related Products

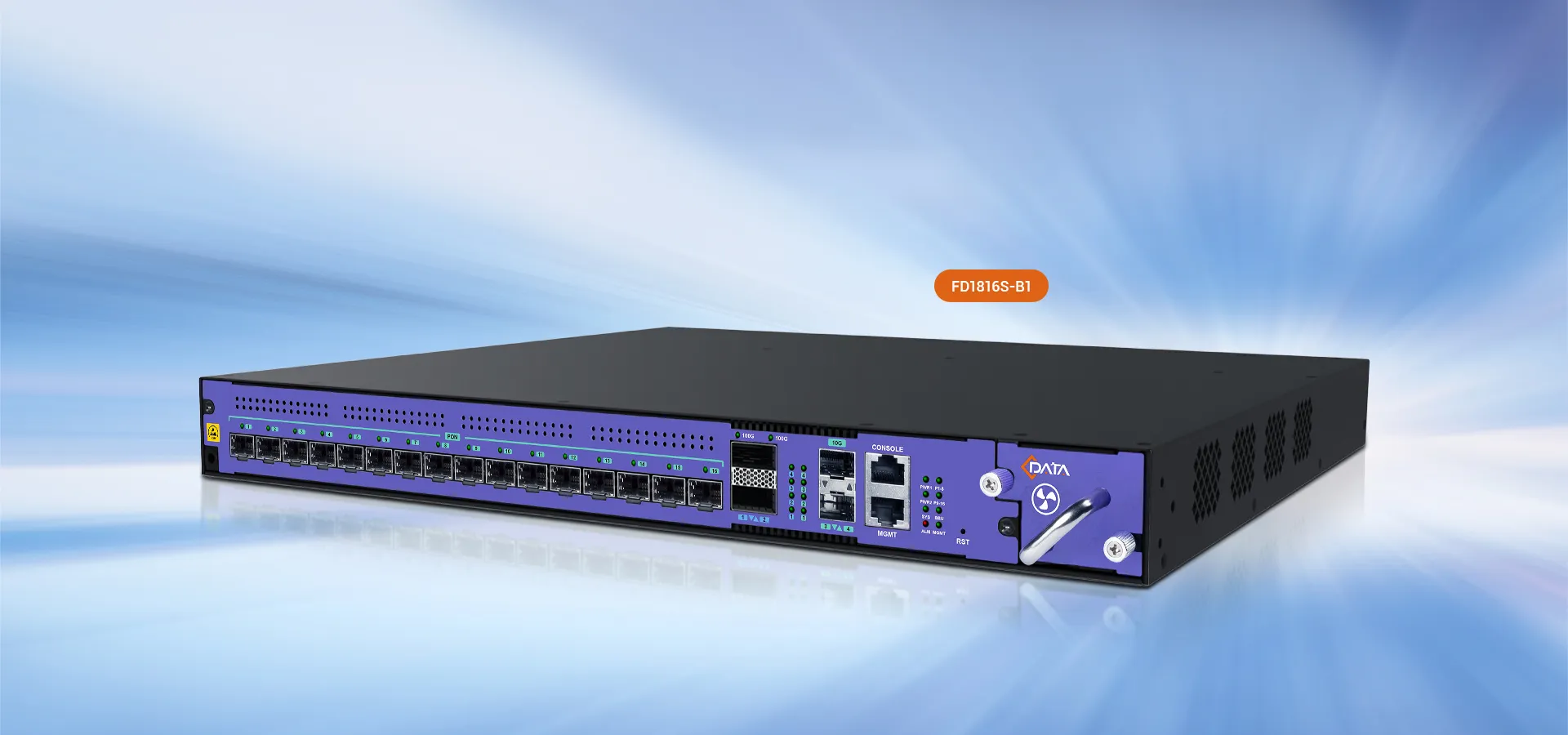

C-Data Combo PON OLT - GPON and XG(S)-PON Ready

Next-Level Performance for Next-Gen Networks

XG(S)-PON/GPON
Up to 4096 Users
Cost-Effectiveness
100GE Uplink
Easy Management
3rd Party ONU Compatibility

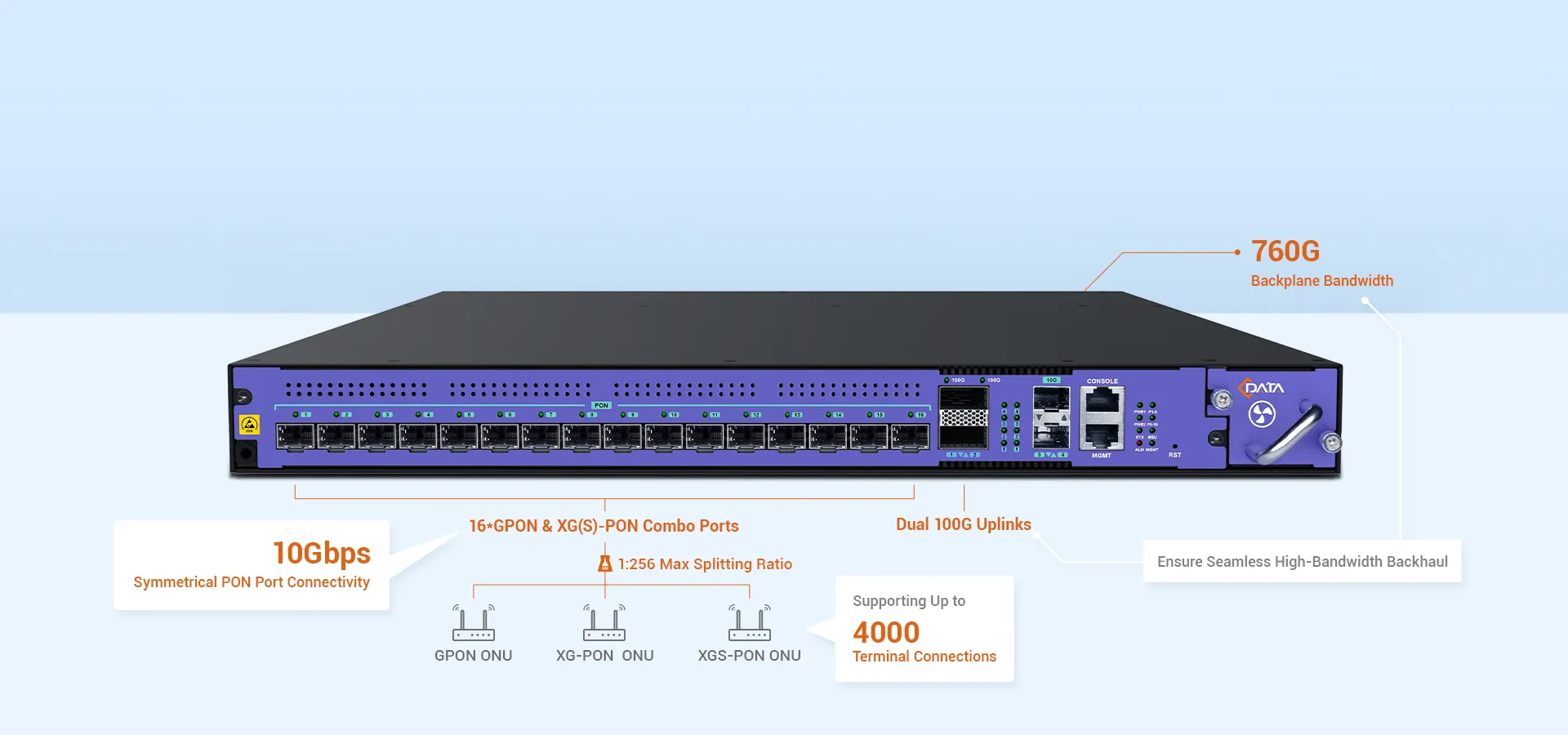

Next-Level Bandwidth, Ultimate Speed Experience

With support for GPON, XG-PON, and XGS-PON,

the Combo PON OLT FD1816S provides 10G high-bandwidth services - making the transition to the 10G era effortless.

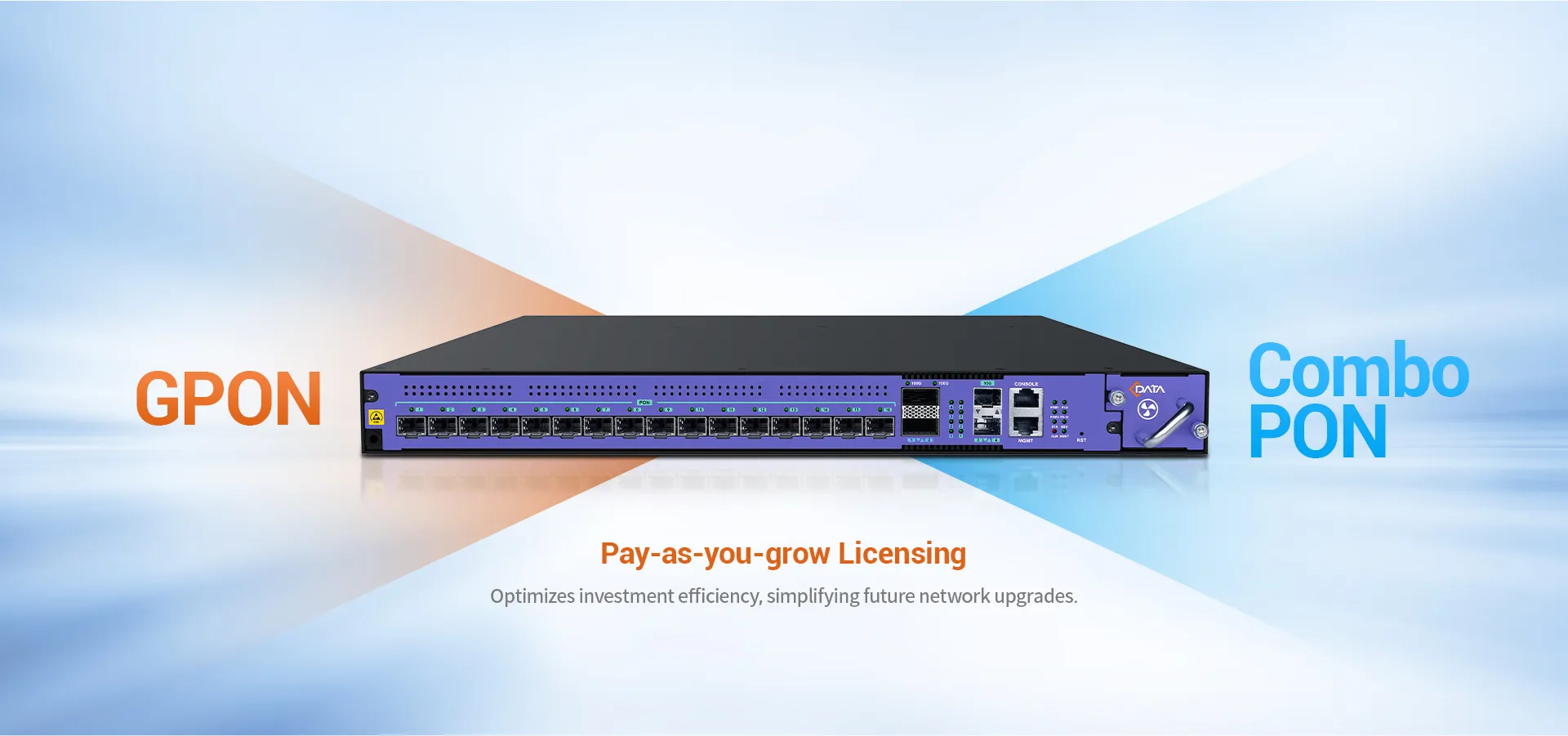

On-Demand Flexible Deployment

The Combo PON OLT FD1816S features flexible mode switching, allowing on-demand operation as a GPON OLT,

providing operators with unmatched deployment flexibility and a future-proof path for network growth.

Reliable Operation, Exceptional Durability

Redundant power and cooling design ensures stability and efficiency.

Future-Ready 10G for Every Scenario

The Combo PON OLT FD1816S delivers high-quality multi-service convergence, fully compatible with GPON and XG(S)-PON.

It effortlessly handles 10G broadband and future network upgrades, supporting massive user connectivity, suitable for diverse high-bandwidth application scenarios.

The Integrated Management System

C-Data CMS and OLT Web provide users, operators, and enterprises with a secure, intelligent, and efficient network operation and maintenance platform,

simplifying management and enhancing overall efficiency.

SPECIFICATIONS

Model	FD1816S-B1
Dimensions	441mm(L)397.5mm(W)44.4mm(H)
Weight	6.18kg

See More 

Take Back 

RELATED PRODUCTS

ITEM	FD1816S-B1
Uplink Port	Uplink port	2* 1G(SFP) / 10G(SFP+) ports 2* 40G(QSFP+) / 100G(QSFP28) ports
PON Port	Quantity	16
	Physical Interface	SFP+ slot
	Max Splitting Ratio	1:256
Management Port		1* CONSOLE local management port 1*100/1000BASE-Txout-band MGMT Ethernet port
PON Port Attribute	Transmission Distance	20KM
	Port Rate	XGS-PON:Downstream:10Gbps Upstream:10Gbps XG-PON:Downstream:10Gbps Upstream: 2.5Gbps GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps
	Wavelength	XGS-PON: Forwarding: 1577nm Receiving: 1270nm XG-PON: Forwarding: 1577nm Receiving: 1270nm GPON: Forwarding: 1490nm Receiving: 1310nm
	Connector Type	SC/UPC
	Fiber type	9/125μm SMF (Single Mode Fiber)
	Light Transmission Power	XG(S)-PON&GPON COMBO 5~8dBm (9.953G) 3~7dBm (2.488G)
	Receiving Sensitivity	XG(S)-PON&GPON COMBO ≥ -29dBm (9.953G) ≥ -30.5dBm (2.488G) ≥ -30dBm (1.244G)
	Saturation Power	XG(S)-PON&GPON COMBO ≤ -8dBm (9.953G) ≤ -10dBm (2.488G) ≤ -12dBm (1.244G)
Network Management Method		Support CLI, SNMP, TELNET, SSH, WEB
Business Capabilities		Support device log, device upgrade, device management, condition monitoring, configuration management, and user management. Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on. PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. Layer 3 function: support static routing, dhcp-relay and vlanif configuration.
Backplane Bandwidth		760G
Power supply
AC		100V ~ 240V, 47 ~ 63Hz
DC		-40V ~ -72V
BBU (Backup Battery Unit)		DC: 11V～14V. Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply and charge the backup power supply
Maximum Power		≤ 150W
Environment
Working Temperature		-15 ~ 50℃
Storage Temperature		-40 ~ 85℃
Ambient Humidity		5 ~ 90% (Non-condensing)

ORDERING INFORMATION

Hardware
Product Model	Specifications	Power Supply
FD1816S-B1	16GPON & XG(S)-PON Combo Ports + 2100G (QSFP28) + 2*1G (SFP)/10G (SFP+)	AC: 100V~240V DC: -40V~-72V Optional BBU power supply
Software
License Control	License Quality	Description
Upgrade GPON to XG(S)-PON authorization	1	Upgrade 8 PON ports to XG(S)-PON (8 PON ports per license)
Upgrade GPON to XG(S)-PON authorization	2	Upgrade 16 PON ports to XG(S)-PON (8 PON ports per license)
