Speed Up Internet Access
10Gbps | Dual-Band Wi-Fi | Compatible with 3rd OLT | Multiple Business Services

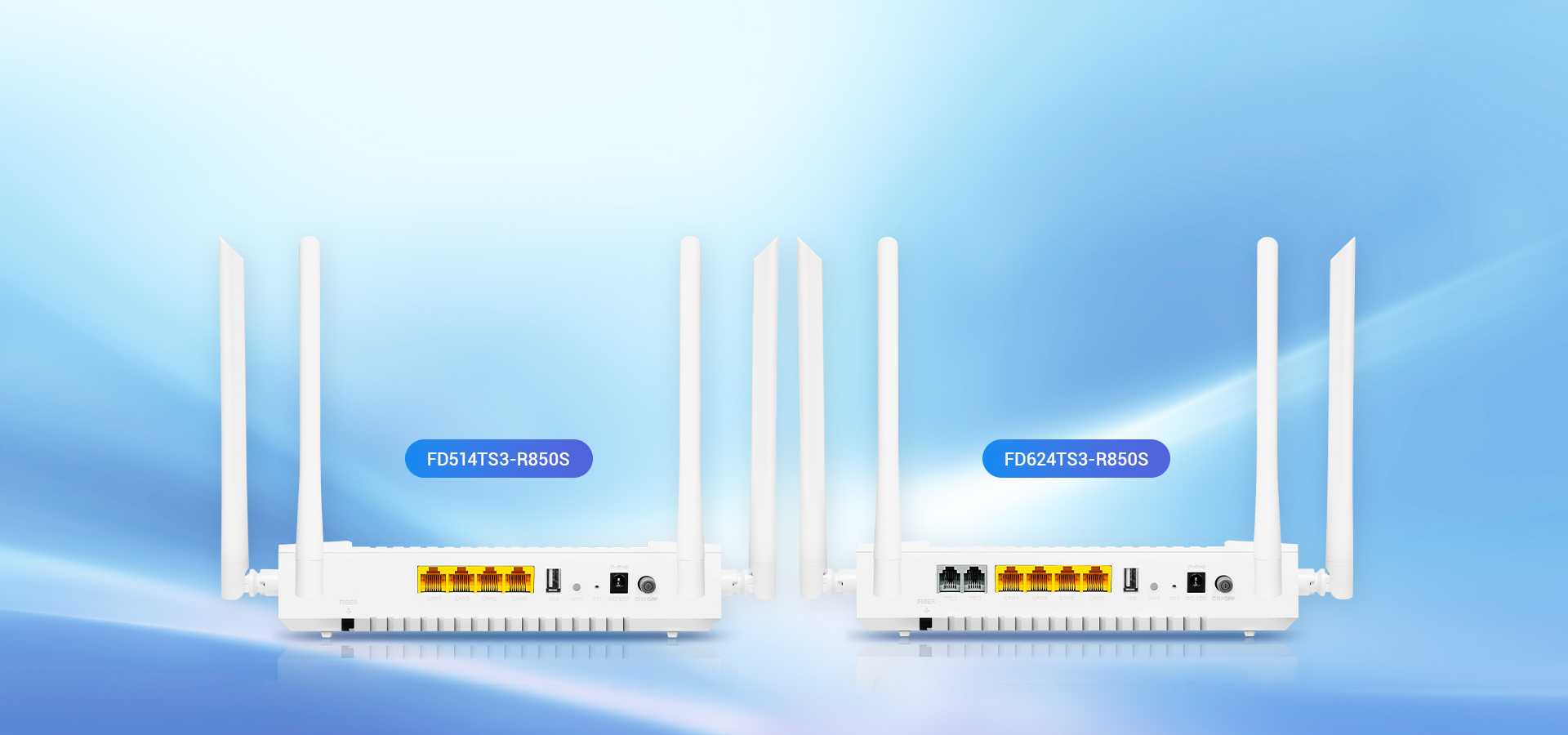

C-Data Wi-Fi6 XGS-PON ONUs are equipped with 1*XGS-PON port, supporting 10Gbps data transmission rate for both downstream and upstream.
Along with 1*2.5G and 3*1G Ethernet ports, the ONUs facilitate connections to NAS and servers, meeting users' increasing demands for high bandwidth,
ensuring enhanced network performance.
High-performance AX3000 ONUs support dual-band Wi-Fi at 2.4GHz and 5GHz, achieving speeds of up to 3000Mbps with a maximum 160MHz frequency bandwidth.
With low latency and better performance, C-Data's Wi-Fi6 XGS-PON ONUs ensure a seamless experience of studying, working, and gaming.
In compliance with 802.11ax, C-Data Wi-Fi6 XGS-PON ONU Series enhance the overall performance and security.
C-Data Wi-Fi6 XGS-PON ONUs support 10Gbps symmetrical bandwidth. With multiple models available, each supports interfaces for data, voice, CATV, and triple-play services, offering services such as IPTV, OTT, VoIP, and wireless connectivity.
CMS and ONU WEB provide users, enterprises, and operators with a secure, efficient, and intelligent network operation and maintenance platform.
CMS achieves efficient, stable, and swift management, significantly enhancing overall efficiency.
| Model | FD624TS3-R850S | FD514TS3-R850S | FD714TS3-R850S |
| Power | Power consumption: <23.3W | Power consumption: <21.3W | Power consumption: <18.9W |
| Dimensions | 210mm(L)*135mm(W)*45mm(H) | 210mm(L)*135mm(W)*45mm(H) | 210mm(L)*135mm(W)*45mm(H) |
| Weight | About 228g | About 220g | About 300g |
Item | ||||
User Port (LAN) | RJ-45 connector | RJ-45 connector | RJ-45 connector | |
1*10/100/1000M/2.5Gbps adaptive ethernet port 3* 10/100/1000Mbps adaptive ethernet port | 1*10/100/1000M/2.5Gbps adaptive ethernet port 3* 10/100/1000Mbps adaptive ethernet port | 3* 10/100/1000Mbps and 1*2.5G adaptive Ethernet port (There is a 2.5G LAN port, which defaults to 2.5G. Compatible with GE/2.5G) | ||
Full/Half duplex | Full/Half duplex | Full/Half duplex | ||
Auto MDI/MDI-X | Auto MDI/MDI-X | Auto MDI/MDI-X | ||
USB | 1* USB 3.0 port | 1* USB 3.0 port | ||
Indicators | PWR / PON / LOS / INT / LAN1-4 / WIFI / USB | PWR / PON / LOS / INT / LAN1-4 / TEL1-2 / WIFI / USB | PWR / PON / LOS / LAN1-4 / INT / WIFI / CATV | |
PON Port | PON Mode | XGS-PON: ITU-T G.9807.1 standard | XGS-PON: ITU-T G.9807.1 standard | XGSPON：FSAN G.9807.1 standard |
PON Rate | XGS-PON: 10Gbps/10Gbps downstream/upstream | XGS-PON: 10Gbps/10Gbps downstream/upstream | XGSPON：10Gbps/10Gbps downstream/upstream | |
Wavelength | Transmit: 1270nm Receiver: 1577nm | Transmit: 1270nm Receiver: 1577nm | Transmit: 1270nm Receiver: 1577nm | |
Receiving Sensitivity | XGS-PON: -28dBm | XGS-PON: -28dBm | XGSPON：-28dBm | |
Saturated Power | XGS-PON: -9dBm | XGS-PON: -9dBm | XGSPON：-9dBm | |
Transmitting Power | XGS-PON: +4～+9dBm | XGS-PON: +4～+9dBm | XGSPON：+4～+9dBm | |
Wi-Fi | IEEE 802.11b/g/n/ax(2.4GHz) IEEE 802.11a/n/ac/ax(5GHz) | IEEE 802.11b/g/n/ax(2.4GHz) IEEE 802.11a/n/ac/ax(5GHz) | IEEE802.11b/g/n/ax(2.4G) IEEE802.11a/n/ac/ax(5G) | |
Total wireless rate is 3000Mbps 2.4GHz: 40Mhz bandwidth maximum rate 574Mbps 5GHz: 160Mhz bandwidth maximum rate 2402Mbps | Total wireless rate is 3000Mbps 2.4GHz: 40Mhz bandwidth maximum rate 574Mbps 5GHz: 160Mhz bandwidth maximum rate 2402Mbps | 2.4G: 40Mhz bandwidth maximum rate 574Mbps 5G：160Mhz bandwidth maximum rate 2402Mbps Total wireless rate is 3000Mbps | ||
2.4GHz MAX TX Power: 17dBm / 5GHz MAX TX Power: 18dBm | 2.4GHz MAX TX Power: 17dBm / 5GHz MAX TX Power: 18dBm | 2.4G EIRP:22dBm / 5 G EIRP:21dBm | ||
Environment | ||||
Working Temperature | 0 to 40ºC | 0 to 40ºC | 0 to 40ºC | |
Operating Humidity | 10% ~ 90% (Non-condensing) | 10%~90% (Non-condensing) | 10%~90% (Non-condensing) | |
Power | External 12V DC/2A Power Supply Adapter | External 12V DC/2A Power Supply Adapter | External 12V DC/2A Power Supply Adapter | |
Power Consumption | <21.3W | <23.3W | <18.9W | |
Product Model | Specifications | Accessories |
1*XGS-PON+2*POTS+1*2.5GE+3*GE Dual-Band Wi-Fi6 (AX3000) | External 12VDC/2A power supply adapter | |
1*XGS-PON+1*USB+1*2.5GE+3*GE Dual-Band Wi-Fi6 (AX3000) | External 12VDC/2A power supply adapter | |
1*XGS-PON+1*RF CATV+1*2.5GE+3*GE Dual-Band Wi-Fi6 (AX3000) | External 12VDC/2A power supply adapter |
