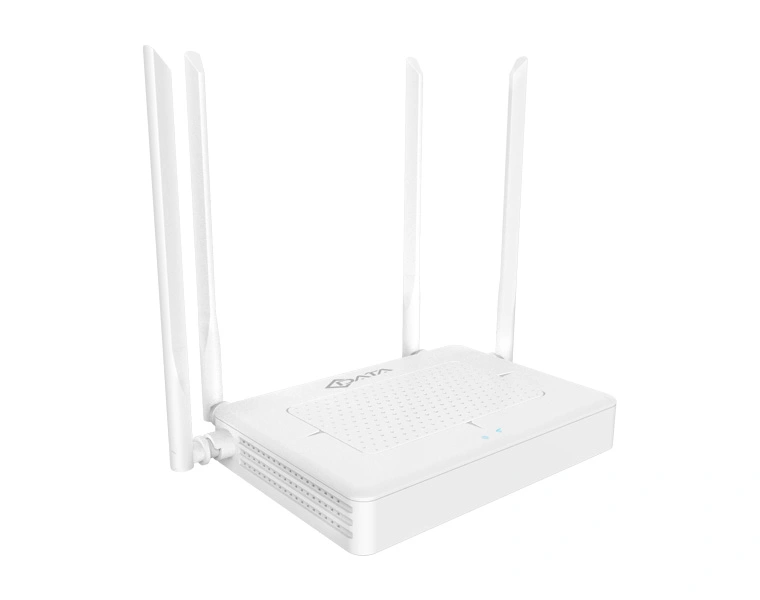

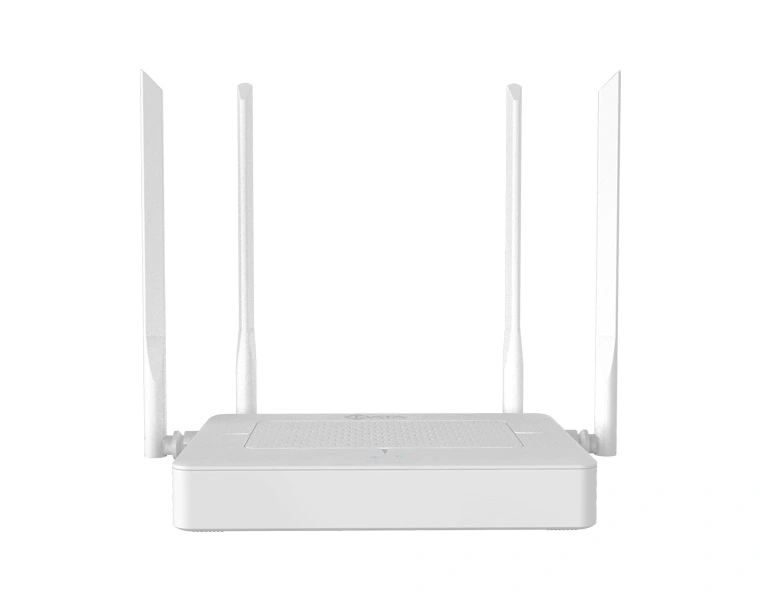

WR135G Homenet Routeris a strong wireless dual-band gigabit router specially designed for small businesses and apartments with over 100Mbps FTTH network.
It adopts the MTK mainstream chip solution. It has a larger data cache space to guarantee game acceleration and more functions. The built-in independent PA / LNA signal enhancement module and external 4 high-gain omnidirectional antennas produce strong signal penetration performance, which truly helps to achieve the full coverage of dual-band Wi-Fi in small business and small-sized apartments.
WR135G provides a maximum wireless access rate of 1200Mbps, 1 Gigabit WAN port, and 4 Gigabit LAN ports.
| Item | WR135G | |
| Specifications | 1*GE RJ45 WAN + 4*GE RJ45 LAN + Wi-Fi5 | |
| Name | AC1200 Wireless Router | |
| Model | WR135G | |
| CPU | MTK CPU MT7621D | |
| Memory /Storage | 128MB/8MB | |
| Wi-Fi Antennas | 2×2.4GHz | |
| 2×5GHz | ||
| External 5dBi Gain | ||
| Protocol | IEEE 802.11a/b/g/n/ac | |
| Wi-Fi Speed | 2.4G Wi-Fi (Speed 300Mbps) | |
| 5G Wi-Fi (Speed 867Mbps) | ||
| LED | Power | Green: Power on |
| Off: Power off | ||
| 2.4G Wi-Fi | Green:2.4G Wi-Fi up | |
| Off:2.4G Wi-Fi down | ||
| 5G Wi-Fi | Green:5G Wi-Fi up | |
| Off:5G Wi-Fi down | ||

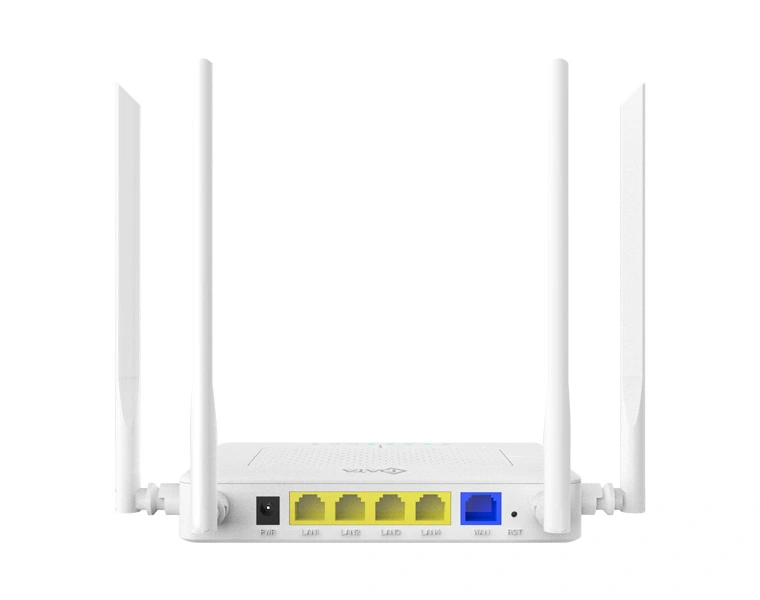

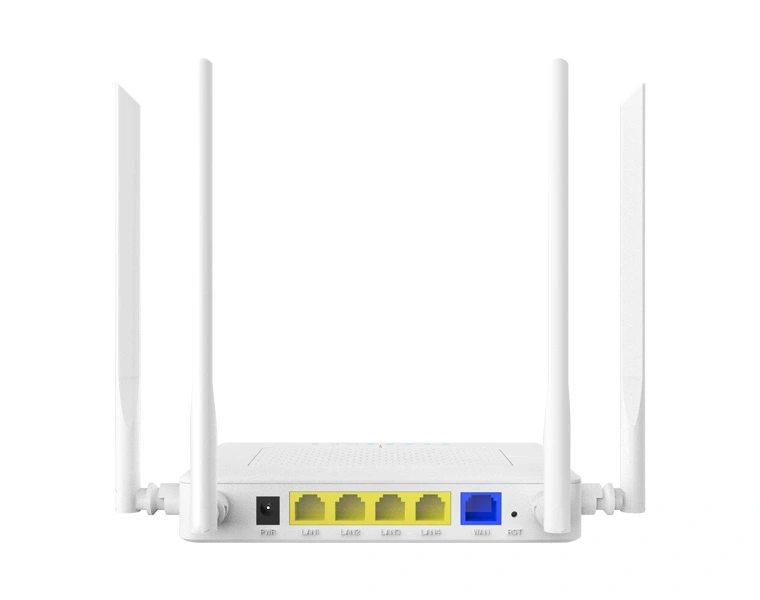

| Interface | WAN | 1 RJ45 port ,10/100/1000Mbps |
| LAN | 4 RJ45 port ,10/100/1000Mbps | |
| Reset | Button | |
| Transmit Power | 2.4G | 20dBm |
| 2.4G enhanced | 23dBm | |
| 5G | 20dBm | |
| Power Supply | DC12V/1A Adapter | |
| Power Consumption | <6W | |
| Dimension | 160x110x30mm | |
| Operating Temperature | -10～50℃ | |
| Storage Temperature | -40～85℃ |
